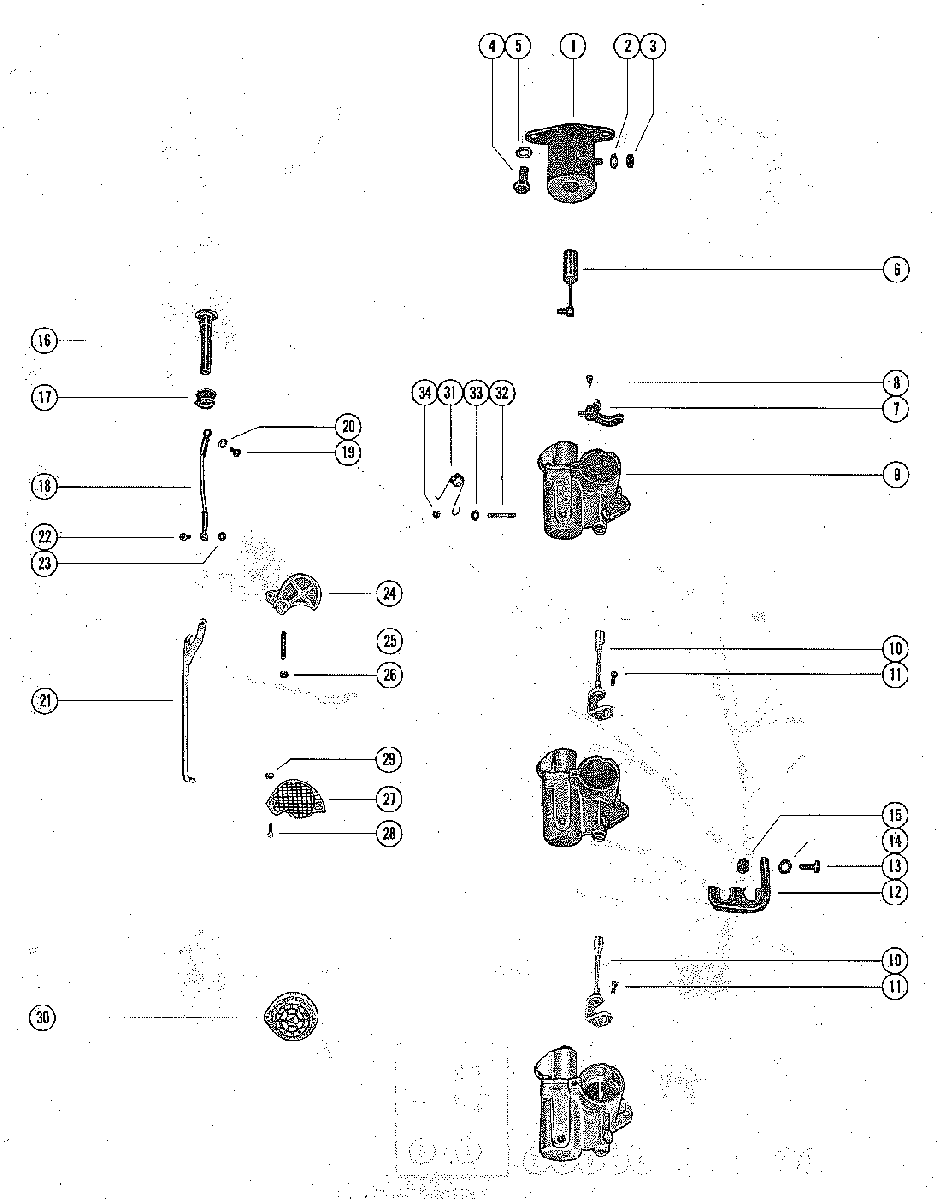

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1250 2314956 THRU 2839368
-
№АртикулНазвание
-
148187 CHOKE SOLENOIDCHOKE SOLENOID
-
213-26996 LOCKWASHER, SOLENOID TERMINALLOCKWASHER, SOLENOID TERMINAL
-
311-68219 NUT, SOLENOID TERMINALNUT, SOLENOID TERMINAL
-
410-25299 SCREW, CHOKE SOLENOID (3/4")SCREW, CHOKE SOLENOID (3/4")
-
513-26993 LOCKWASHER, CHOKE SOLENOID SCREWLOCKWASHER, CHOKE SOLENOID SCREW
-
648315A2 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOIDPLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
-
748693 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
752518 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
-
81395-6027 SCREW, CLUSTER TO THROTTLE LEVERSCREW, CLUSTER TO THROTTLE LEVER
-
91348-3547 CARBURETOR ASSEMBLY, COMPLETE (KD-1A) SEE NOT BELOWCARBURETOR ASSEMBLY, COMPLETE (KD-1A) SEE NOT BELOW
-
91348-3547 CARBURETOR ASSEMBLY, COMPLETE (KD-1B) SEE NOT BELOWCARBURETOR ASSEMBLY, COMPLETE (KD-1B) SEE NOT BELOW
-
91348-3718 CARBURETOR ASSEMBLY, COMPLETE (KD-2)CARBURETOR ASSEMBLY, COMPLETE (KD-2)
-
1053720A2 THROTTLE PICK-UP BRACKET ASSEMBLY
SERIAL 00000000-02654512THROTTLE PICK-UP BRACKET ASSEMBLY
SERIAL 00000000-02654512 -
1110-29239 SCREW, THROTTLE BRACKET MOUNTING (1/2")
SERIAL 00000000-02654512SCREW, THROTTLE BRACKET MOUNTING (1/2")
SERIAL 00000000-02654512 -
1053720A2 THROTTLE PICK-UP BRACKET ASSEMBLY
SERIAL 02654513-09999999THROTTLE PICK-UP BRACKET ASSEMBLY
SERIAL 02654513-09999999 -
1110-53651 SCREW, THROTTLE BRACKET MOUNTING
SERIAL 02654513-09999999SCREW, THROTTLE BRACKET MOUNTING
SERIAL 02654513-09999999 -
--28-89694 INSERT, THROTTLE COUPLING
SERIAL 02654513-09999999INSERT, THROTTLE COUPLING
SERIAL 02654513-09999999 -
1259757 BRACKET, COIL LEAD RETAINERBRACKET, COIL LEAD RETAINER
-
1310-64278 SCREW, COIL BRACKET (1")SCREW, COIL BRACKET (1")
-
1412-29245 WASHER, COIL BRACKET SCREWWASHER, COIL BRACKET SCREW
-
1511-20184 NUT, COIL BRACKET SCREWNUT, COIL BRACKET SCREW
-
1690242A1 KNOB, CHOKE RODKNOB, CHOKE ROD
-
1725-20116 GROMMET, CHOKE RODGROMMET, CHOKE ROD
-
1849589 STRAP, CHOKE KNOB TO CHOKE RODSTRAP, CHOKE KNOB TO CHOKE ROD
-
1910-48591 SCREW, STRAP TO CHOKE KNOB (1/2")SCREW, STRAP TO CHOKE KNOB (1/2")
-
2013-26996 LOCKWASHER, STRAP SCREWLOCKWASHER, STRAP SCREW
-
2148203 ROD, CHOKEROD, CHOKE
-
2210-48591 SCREW, STRAP TO CHOKE ROD (1/2")SCREW, STRAP TO CHOKE ROD (1/2")
-
2311-46438 NUT, STRAP TO CHOKE ROD SCREWNUT, STRAP TO CHOKE ROD SCREW
-
2448152 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
2516-48790 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2516-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOTSTUD, CARBURETOR - CHOKE SHUTTER PIVOT
-
2611-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
2735-57819A1 SCREEN, FILTER - CARBURETOR (MIDDLE AND TOP)SCREEN, FILTER - CARBURETOR (MIDDLE AND TOP)
-
2810-22523 SCREW, CARBURETOR FILTER SCREEN STO CARBURETOR (5/8")SCREW, CARBURETOR FILTER SCREEN STO CARBURETOR (5/8")
-
2911-20110 NUT, CARBURETOR FILTER SCREEN FASTENING SCREWNUT, CARBURETOR FILTER SCREEN FASTENING SCREW
-
3035-48406 SCREEN, FILTER - CARBURETOR (LOWER)SCREEN, FILTER - CARBURETOR (LOWER)
-
3124-48230 SPRING, CHOKE ROD TENSIONSPRING, CHOKE ROD TENSION
-
3210-657461 STUD, CHOKE ROD SPRING TO CARBURETORSTUD, CHOKE ROD SPRING TO CARBURETOR
-
3323-32427 SPACER, CHOKE ROD SPRING STUDSPACER, CHOKE ROD SPRING STUD
-
3411-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUDNUT, CHOKE ROD SPRING TO CARBURETOR STUD
