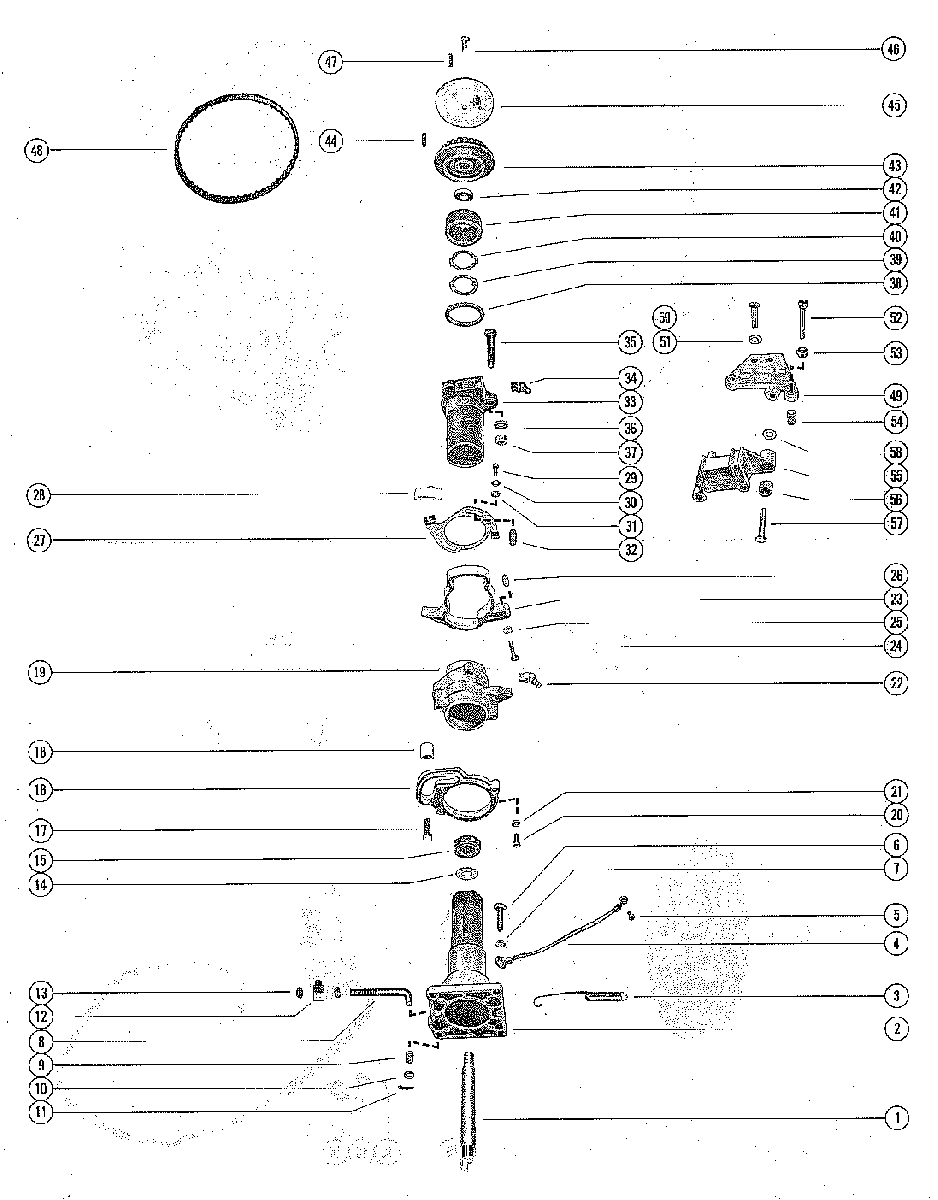

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 1250 2314956 THRU 2839368

  • №
    Артикул
    Название
  • 1
    45-47982 DRIVE SHAFT, DISTRIBUTOR
    DRIVE SHAFT, DISTRIBUTOR
  • 2
    48667 PILOT, DISTRIBUTOR MOUNTING
    PILOT, DISTRIBUTOR MOUNTING
  • 3
    24-33453 SPRING, DISTRIBUTOR PILOT TO THROTTLE LEVER (2 3/4")
    WHEN ORDERING REPLACEMENT PART, MEASURE LENGTH OF SPRING TO INSURE RECEIVING CORRECT PART.
    SPRING, DISTRIBUTOR PILOT TO THROTTLE LEVER (2 3/4")
    WHEN ORDERING REPLACEMENT PART, MEASURE LENGTH OF SPRING TO INSURE RECEIVING CORRECT PART.
  • 3
    24-54639 SPRING, DISTRIBUTOR PILOT TO THROTTLE LEVER (3 17/32")
    WHEN ORDERING REPLACEMENT PART, MEASURE LENGTH OF SPRING TO INSURE RECEIVING CORRECT PART.
    SPRING, DISTRIBUTOR PILOT TO THROTTLE LEVER (3 17/32")
    WHEN ORDERING REPLACEMENT PART, MEASURE LENGTH OF SPRING TO INSURE RECEIVING CORRECT PART.
  • 4
    30109 GROUND STRAP, DISTRIBUTOR ADAPTOR CRANKCASE
    GROUND STRAP, DISTRIBUTOR ADAPTOR CRANKCASE
  • 5
    10-62568 SCREW, GROUND STRAP TO CRANKCASE (3/8")
    SCREW, GROUND STRAP TO CRANKCASE (3/8")
  • 6
    10-28667 SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 1/8") - USE WITH
    USE WITH 2 34 SPRING -SEE REF. #3
    SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 1/8") - USE WITH
    USE WITH 2 34 SPRING -SEE REF. #3
  • 6
    10-28667 SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 1/8")
    USE WITH 3 1732" SPRING SEE REF. #3
    SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 1/8")
    USE WITH 3 1732" SPRING SEE REF. #3
  • 6
    10-69067 SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 3/8") USE WITH 3
    USE WITH 3 1732" SPRING SEE REF. #3
    SCREW, DISTRIBUTOR PILOT TO DISTRIBUTOR (1 3/8") USE WITH 3
    USE WITH 3 1732" SPRING SEE REF. #3
  • 7
    12-20533 WASHER, DISTRIBUTOR PILOT SCREW
    USE WITH 3 1732" SPRING SEE REF. #3
    WASHER, DISTRIBUTOR PILOT SCREW
    USE WITH 3 1732" SPRING SEE REF. #3
  • 7
    13-26992 LOCKWASHER, DISTRIBUTOR PILOT SCREW
    LOCKWASHER, DISTRIBUTOR PILOT SCREW
  • 8
    48676 LINK, DISTRIBUTOR PILOT TO DISTRIBUTOR ADVANCE ARM
    LINK, DISTRIBUTOR PILOT TO DISTRIBUTOR ADVANCE ARM
  • 9
    23-26856 BUSHING, NYLON - DISTRIBUTOR PILOT
    BUSHING, NYLON - DISTRIBUTOR PILOT
  • 10
    12-20583 WASHER, DISTRIBUTOR PILOT LINK
    WASHER, DISTRIBUTOR PILOT LINK
  • 11
    18-210711 COTTER PIN, LINK TO DISTRIBUTOR PILOT
    COTTER PIN, LINK TO DISTRIBUTOR PILOT
  • 12
    53635 SWIVEL, LINK TO DISTRIBUTOR ADVANCE ARM
    SWIVEL, LINK TO DISTRIBUTOR ADVANCE ARM
  • 12
    53635 SWIVEL, LINK TO DISTRIBUTOR ADVANCE ARM
    SWIVEL, LINK TO DISTRIBUTOR ADVANCE ARM
  • 13
    11-25168 NUT, JAM - LINK TO SWIVEL
    NUT, JAM - LINK TO SWIVEL
  • 13
    11-25168 NUT, JAM - LINK TO SWIVEL
    NUT, JAM - LINK TO SWIVEL
  • 13
    11-30506 NUT, JAM - LINK TO SWIVEL
    NUT, JAM - LINK TO SWIVEL
  • 14
    12-46246 WASHER, DISTRIBUTOR TO PILOT
    WASHER, DISTRIBUTOR TO PILOT
  • 15
    30-20066 BEARING, BALL - DISTRIBUTOR PILOT
    BEARING, BALL - DISTRIBUTOR PILOT
  • 16
    48691 CAM, DISTRIBUTOR
    CAM, DISTRIBUTOR
  • 17
    10-48673 SCREW, CAM FOLLOWER TO DISTRIBUTOR ADVANCE ARM
    SCREW, CAM FOLLOWER TO DISTRIBUTOR ADVANCE ARM
  • 18
    48678 CAM FOLLOWER, DISTRIBUTOR ADVANCE ARM
    CAM FOLLOWER, DISTRIBUTOR ADVANCE ARM
  • 19
    48690 COLLAR, ECONOMIZER
    COLLAR, ECONOMIZER
  • 20
    10-49990 SCREW, DISTRIBUTOR CAM TO ECONOMIZER COLLAR (1")
    SCREW, DISTRIBUTOR CAM TO ECONOMIZER COLLAR (1")
  • 21
    12-847883 WASHER, DISTRIBUTOR CAM SCREW
    WASHER, DISTRIBUTOR CAM SCREW
  • 22
    22-25094 FITTING, GREASE - ECONOMIZER COLLAR
    FITTING, GREASE - ECONOMIZER COLLAR
  • 23
    48692 COLLAR, THROTTLE ACTUATOR
    COLLAR, THROTTLE ACTUATOR
  • 24
    10-48675 SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")
    SCREW, ADJUSTING - THROTTLE ACTUATOR COLLAR (1 1/2")
  • 25
    11-20890 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 26
    52023 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 27
    48671 PLATE, THROTTLE ACTUATOR
    PLATE, THROTTLE ACTUATOR
  • 28
    54239 CAM, THROTTLE ACTUATOR PLATE
    CAM, THROTTLE ACTUATOR PLATE
  • 29
    10-37892 SCREW, ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
    SCREW, ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
  • 30
    13-26996 LOCKWASHER, ACTUATOR PLATE SCREW
    LOCKWASHER, ACTUATOR PLATE SCREW
  • 31
    12-847883 WASHER, ACTUATOR PLATE SCREW
    WASHER, ACTUATOR PLATE SCREW
  • 32
    23-48674 SPACER, ACTUATOR PLATE SCREW
    SPACER, ACTUATOR PLATE SCREW
  • 33
    66165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
    ADAPTOR ASSEMBLY, DISTRIBUTOR
  • 34
    22-25094 FITTING, GREASE - DISTRIBUTOR ADAPTOR
    FITTING, GREASE - DISTRIBUTOR ADAPTOR
  • 35
    10-78841 SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE FLANGE (1 1/2")
    SCREW, DISTRIBUTOR ADAPTOR TO CRANKCASE FLANGE (1 1/2")
  • 36
    12-20084 WASHER, DISTRIBUTOR ADAPTOR SCREW
    WASHER, DISTRIBUTOR ADAPTOR SCREW
  • 37
    11-22053 NUT, DISTRIBUTOR ADAPTOR SCREW
    NUT, DISTRIBUTOR ADAPTOR SCREW
  • 38
    12-27939 WASHER, THRUST - DISTRIBUTOR ADAPTOR
    WASHER, THRUST - DISTRIBUTOR ADAPTOR
  • 39
    14-27960 TAB WASHER, CAP LOCKING
    TAB WASHER, CAP LOCKING
  • 40
    13-27959 WASHER, WAVE - TAB WASHER TENSION
    WASHER, WAVE - TAB WASHER TENSION
  • 41
    27955 CAP, DISTRIBUTOR ADAPTOR AND PILOT
    CAP, DISTRIBUTOR ADAPTOR AND PILOT
  • 42
    23-47250 SPACER, DRIVEN PULLEY
    SPACER, DRIVEN PULLEY
  • 43
    29906A1 DRIVEN PULLEY ASSEMBLY
    DRIVEN PULLEY ASSEMBLY
  • 44
    17-29908 PIN, DRIVEN PULLEY
    PIN, DRIVEN PULLEY
  • 45
    29907 FLANGE, DRIVEN PULLEY
    FLANGE, DRIVEN PULLEY
  • 46
    10-64652 SCREW, PULLEY CLAMPING (5/8")
    SCREW, PULLEY CLAMPING (5/8")
  • 47
    28-29910 KEY, DISTRIBUTOR DRIVING
    KEY, DISTRIBUTOR DRIVING
  • 48
    20140 BELT, TIMING
    BELT, TIMING
  • 49
    48670 BRACKET, STOP
    BRACKET, STOP
  • 50
    10-31983 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
    SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
  • 51
    12-20533 WASHER, STOP BRACKET SCREW
    WASHER, STOP BRACKET SCREW
  • 52
    10-24228 SCREW, STOP BRACKET ADJUSTING (1 7/8")
    SCREW, STOP BRACKET ADJUSTING (1 7/8")
  • 53
    11-20890 NUT, STOP BRACKET ADJUSTING SCREW
    NUT, STOP BRACKET ADJUSTING SCREW
  • 54
    26852 CAP, NYLON - ADJUSTING SCREW
    CAP, NYLON - ADJUSTING SCREW
  • 55
    48668A1 ARM ASSEMBLY, DISTRIBUTOR ADVANCE
    ARM ASSEMBLY, DISTRIBUTOR ADVANCE
  • 56
    23-49537 BUSHING, DISTRIBUTOR ADVANCE ARM
    BUSHING, DISTRIBUTOR ADVANCE ARM
  • 57
    10-49285 BOLT, DISTRIBUTOR ADVANCE ARM TO STOP BRACKET
    BOLT, DISTRIBUTOR ADVANCE ARM TO STOP BRACKET
  • 58
    12-26825 WASHER, DISTRIBUTOR ADVANCE ARM BOLT
    WASHER, DISTRIBUTOR ADVANCE ARM BOLT
