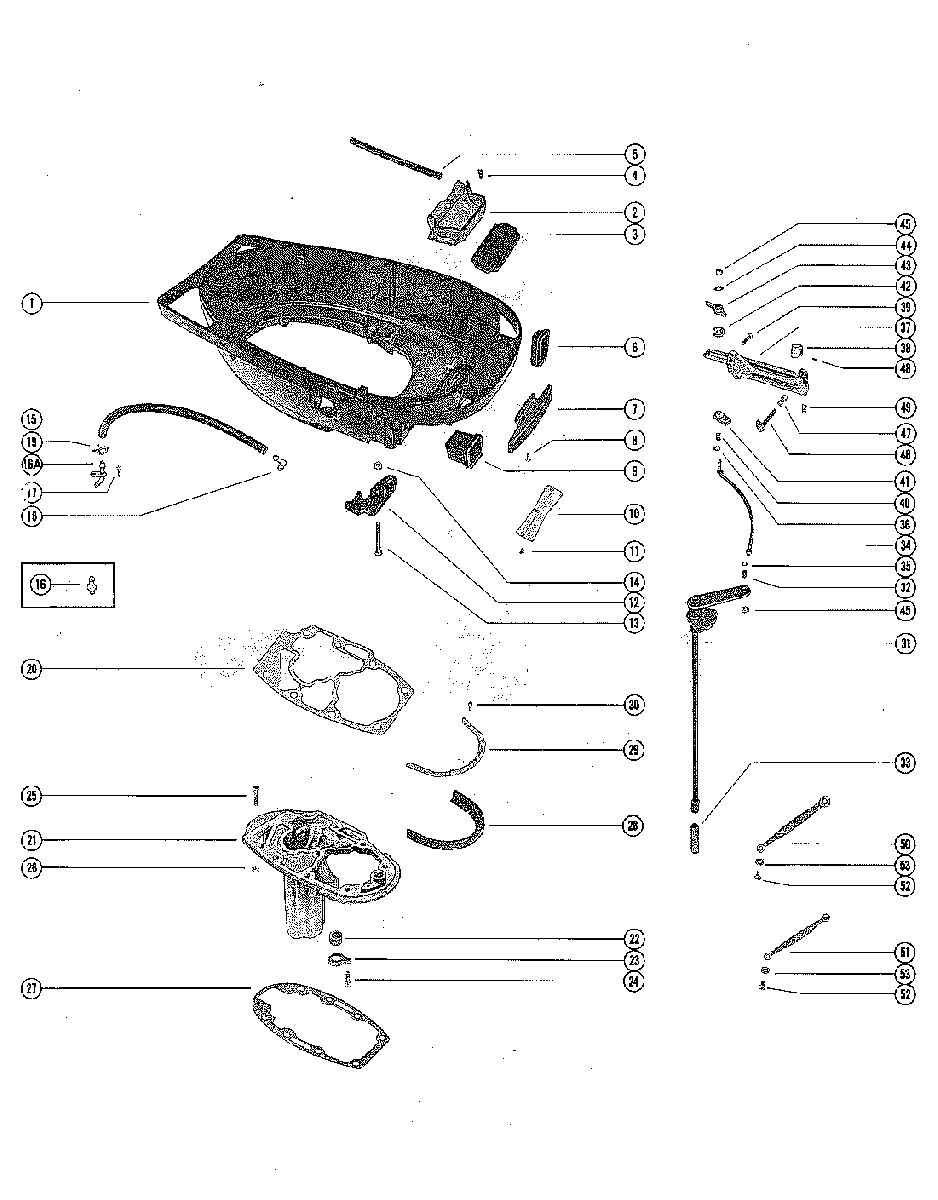

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 1250 2314956 THRU 2839368

  • №
    Артикул
    Название
  • 1
    2115-3807 COWL, BOTTOM
    COWL, BOTTOM
  • 1
    2115-3807 COWL, BOTTOM
    COWL, BOTTOM
  • 2
    52862A2 CRIP TRAY ASSEMBLY, BOTTOM COWL
    CRIP TRAY ASSEMBLY, BOTTOM COWL
  • 2
    52862A2 CRIP TRAY ASSEMBLY, BOTTOM COWL
    CRIP TRAY ASSEMBLY, BOTTOM COWL
  • 3
    37940 PAD, SOUND - DRIP TRAY
    PAD, SOUND - DRIP TRAY
  • 4
    10-41228 SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
    SCREW, DRIP TRAY TO BOTTOM COWL (1/2")
  • 5
    32-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")
    HOSE, DRIP TRAY TO BOTTOM COWL (8")
  • 6
    37638 BOOT, CONTROL CABLES - BOTTOM COWL
    BOOT, CONTROL CABLES - BOTTOM COWL
  • 7
    76369 SPACER, BOTTOM COWL (COWL FRONT COVER)
    SPACER, BOTTOM COWL (COWL FRONT COVER)
  • 8
    10-48591 SCREW, SPACER TO BOTTOM COWL (1/2")
    SCREW, SPACER TO BOTTOM COWL (1/2")
  • 9
    37637 BOOT, FUEL CONNECTOR - BOTTOM COWL
    BOOT, FUEL CONNECTOR - BOTTOM COWL
  • 10
    23760 BAFFLE, BOTTOM COWL
    BAFFLE, BOTTOM COWL
  • 11
    10-21106 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 11
    10-52867 SCREW, BAFFLE TO BOTTOM COWL
    SCREW, BAFFLE TO BOTTOM COWL
  • 12
    37445 SUPPORT, WIRING HARNESS - BOTTOM COWL
    SUPPORT, WIRING HARNESS - BOTTOM COWL
  • 13
    10-69029 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (1 3/4")
  • 13
    10-37561 SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (2 1/2")
    SCREW, WIRING HARNESS SUPPORT TO BOTTOM COWL (2 1/2")
  • 14
    11-20184 NUT, WIRING HARNESS SUPPORT SCREW
    NUT, WIRING HARNESS SUPPORT SCREW
  • 15
    32-8M0108355 HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
    HOSE, TELL TALE - EXHAUST COVER TO BOTTOM COWL (16")
  • 16
    22-291112 CONNECTOR, TELL TALE HOSE TO BOTTOM COWL
    CONNECTOR, TELL TALE HOSE TO BOTTOM COWL
  • 16A
    52889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
    NOZZLE, TELL TALE HOSE TO BOTTOM COWL
  • 17
    10-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
    SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
  • 18
    22-996642 ELBOW, TELL TALE HOSE TO EXHAUST COVER
    ELBOW, TELL TALE HOSE TO EXHAUST COVER
  • 19
    54-48123 CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
    CLAMP, TELL TALE HOSE TO CONNECTOR AND ELBOW
  • 20
    27-56304 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
    GASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
  • 21
    48712A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 21
    56306A2 PLATE ASSEMBLY, EXHAUST EXTENSION
    PLATE ASSEMBLY, EXHAUST EXTENSION
  • 22
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 23
    38448 RETAINER, WATER TUBE SEAL
    RETAINER, WATER TUBE SEAL
  • 24
    10-69069 SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
    SCREW, RETAINER TO EXHAUST EXTENSION PLATE (3/4")
  • 25
    10-24226 SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    SCREW, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 26
    11-20184 NUT, EXHAUST EXTENSION PLATE SCREW
    NUT, EXHAUST EXTENSION PLATE SCREW
  • 27
    27-48801 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 28
    37918 SEAL, EXHAUST EXTENSION PLATE
    SEAL, EXHAUST EXTENSION PLATE
  • 29
    99358 STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
    STRIP, RETAINING - EXHAUST EXTENSION PLATE SEAL
  • 30
    10-37571 SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")
    SCREW, SEAL AND RETAINING STRIP TO EXTENSION PLATE (1/2")
  • 31
    49904A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2653879 AN
    SERIAL 00000000-02653879
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2653879 AN
    SERIAL 00000000-02653879
  • 31
    49905A2 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 00000000-02653879
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 00000000-02653879
  • 31
    60304A55 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2653880 AN
    SERIAL 02653880-09999999
    SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT) SERIAL #2653880 AN
    SERIAL 02653880-09999999
  • 31
    60304A54 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 02653880-09999999
    SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
    SERIAL 02653880-09999999
  • 32
    23-26600 BUSHING, SHIFT SHAFT
    SERIAL 02653880-09999999
    BUSHING, SHIFT SHAFT
    SERIAL 02653880-09999999
  • 33
    93960A1 COUPLING, SHIFT SHAFT
    SERIAL 02653880-09999999
    COUPLING, SHIFT SHAFT
    SERIAL 02653880-09999999
  • 34
    73402 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 35
    12-24664 WASHER, LINK ROD
    WASHER, LINK ROD
  • 36
    13-29720 WASHER, WAVE - LINK ROD
    WASHER, WAVE - LINK ROD
  • 37
    52732A6 BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
    BRACKET ASSEMBLY, ANCHOR CONTROL CABLES
  • 38
    38802 CAP, BRASS BARREL TO THROTTLE CABLE
    CAP, BRASS BARREL TO THROTTLE CABLE
  • 38
    49935 CAP, BRASS BARREL TO THROTTLE CABLE
    CAP, BRASS BARREL TO THROTTLE CABLE
  • 39
    10-35386 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
    SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1")
  • 40
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 41
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 42
    12-37905 WASHER, NYLON - LINK ROD
    WASHER, NYLON - LINK ROD
  • 42
    52100 WEAR PLATE, LINK ROD (NOT AS SHOWN)
    WEAR PLATE, LINK ROD (NOT AS SHOWN)
  • 43
    8M0036768 LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING - ANCHOR BRACKET
  • 44
    12-69056 WASHER, PLAIN - LINK ROD
    WASHER, PLAIN - LINK ROD
  • 45
    11-826709109 NUT, LINK ROD
    NUT, LINK ROD
  • 46
    49932A1 LEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET
    LEVER, CONTROL CABLE LOCKING - ANCHOR BRACKET
  • 46
    49932A1 LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
    LEVER ASSEMBLY, CONTROL CABLE LOCKING - ANCHOR BRACKET
  • 47
    24-37911 SPRING, CONTROL CABLE LOCKING LEVER
    SPRING, CONTROL CABLE LOCKING LEVER
  • 48
    17-239281 PIN, ROLL - CONTROL CABLE LOCKING LEVER
    PIN, ROLL - CONTROL CABLE LOCKING LEVER
  • 49
    24-38472 SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
    SPRING, CONTROL CABLE TENSION - ANCHOR BRACKET
  • 50
    46933A1 GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
    GROUND STRAP ASSEMBLY, CRANKCASE TO COWL (3 5/8")
  • 51
    46933A2 GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
    GROUND STRAP ASSEMBLY, HOUSING TO COWL (3 3/8")
  • 52
    10-62568 SCREW, GROUND STRAP FASTENING
    SCREW, GROUND STRAP FASTENING
  • 53
    13-69432 LOCKWASHER, GROUND STRAP SCREW
    LOCKWASHER, GROUND STRAP SCREW
