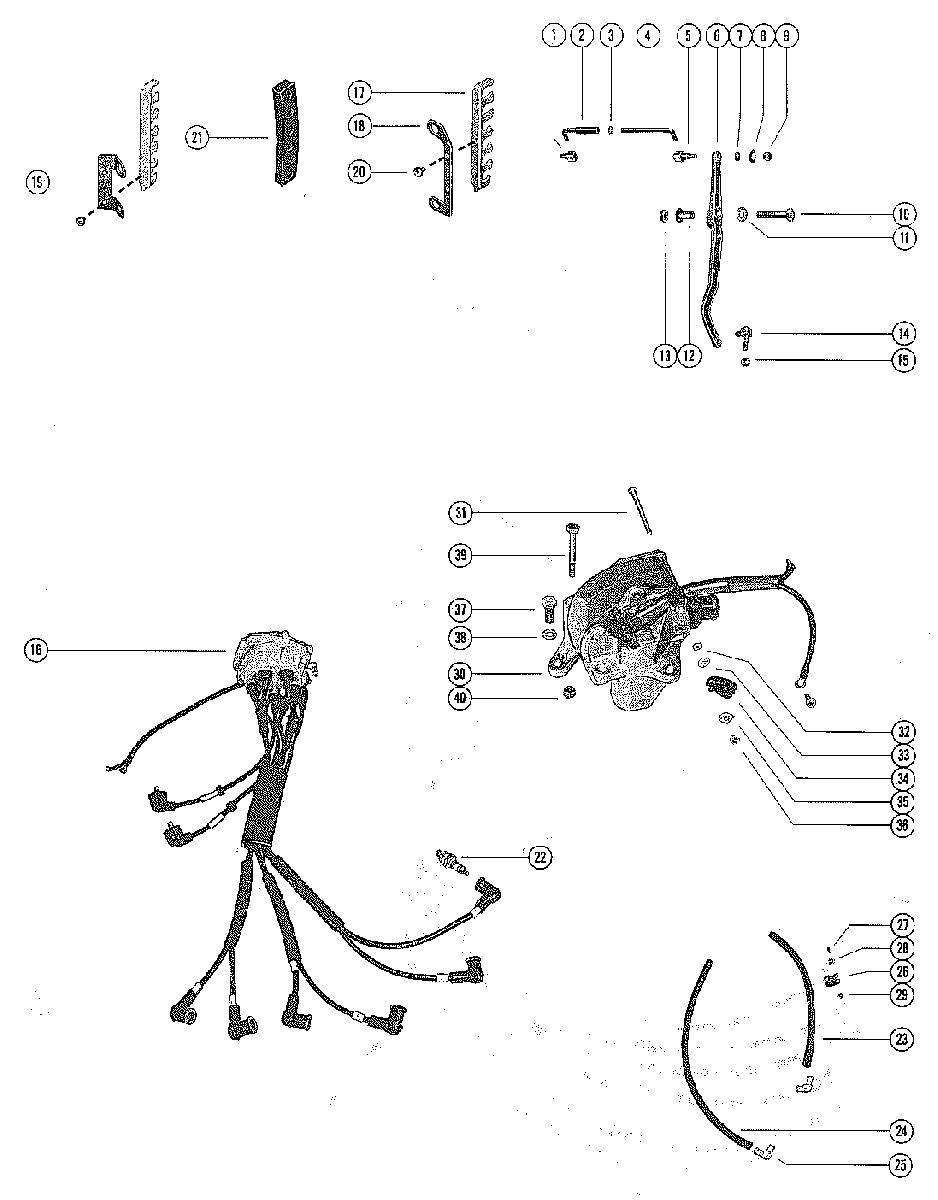

DISTRIBUTOR VERTICAL LINKAGE AND IGNITION COILS для Mercury - 1250 2314956 THRU 2839368

  • №
    Артикул
    Название
  • 1
    27947 SWIVEL, LINKAGE - ECONOMIZER COLLAR
    SWIVEL, LINKAGE - ECONOMIZER COLLAR
  • 2
    25996A1 SWIVEL AND LINK ROD ASSEMBLY
    SWIVEL AND LINK ROD ASSEMBLY
  • 3
    11-25168 NUT, UPPER LINK ROD ADJUSTING
    NUT, UPPER LINK ROD ADJUSTING
  • 4
    37700 ROD, LINK - UPPER
    ROD, LINK - UPPER
  • 5
    27948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
    SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
  • 6
    48856 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 7
    12-29245 WASHER, THROTTLE CONTROL LEVER SWIVEL
    WASHER, THROTTLE CONTROL LEVER SWIVEL
  • 8
    13-25806 WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
    WASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
  • 9
    11-8267089 NUT, UPPER LINK ROD SWIVEL TO THROTTLE CONTROL
    NUT, UPPER LINK ROD SWIVEL TO THROTTLE CONTROL
  • 10
    10-31830 SCREW, THROTTLE LEVER TO EXHAUST MANIFOLD COVER (1 3/4")
    SCREW, THROTTLE LEVER TO EXHAUST MANIFOLD COVER (1 3/4")
  • 11
    12-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREW
    WASHER, THROTTLE CONTROL LEVER SCREW
  • 12
    23-45818 BUSHING, THROTTLE CONTROL LEVER
    BUSHING, THROTTLE CONTROL LEVER
  • 13
    11-8M0042636 NUT, THROTTLE CONTROL LEVER SCREW
    NUT, THROTTLE CONTROL LEVER SCREW
  • 14
    37587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
    SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
  • 15
    11-8267089 NUT, THROTTLE CABLE TO LOWER SWIVEL
    NUT, THROTTLE CABLE TO LOWER SWIVEL
  • 16
    393-2799A11 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 17
    45409 WIRE RETAINER, HIGH TENSION LEADS
    WIRE RETAINER, HIGH TENSION LEADS
  • 18
    45392 BRACKET, FRONT - WIRE RETAINER
    BRACKET, FRONT - WIRE RETAINER
  • 19
    47398 BRACKET, REAR - WIRE RETAINER
    BRACKET, REAR - WIRE RETAINER
  • 20
    10-62568 SCREW, FRONT AND REAR BRACKET ATTACHING
    SCREW, FRONT AND REAR BRACKET ATTACHING
  • 21
    45391 SPACER, RUBBER - HIGH TENSION LEADS
    SPACER, RUBBER - HIGH TENSION LEADS
  • 22
    33-97180Q SPARK PLUG (CHAMPION - L19V)
    SPARK PLUG (CHAMPION - L19V)
  • 23
    32-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (13")
    HOSE, VENT - DISTRIBUTOR TO ELBOW (13")
  • 24
    32-8M0108355 HOSE, VENT - DISTRIBUTOR TO ELBOW (16")
    HOSE, VENT - DISTRIBUTOR TO ELBOW (16")
  • 25
    22-31521 ELBOW, VENT HOSE TO BOTTOM COWL
    ELBOW, VENT HOSE TO BOTTOM COWL
  • 26
    54-22875 CLAMP, VENT HOSE TO BOTTOM COWL
    CLAMP, VENT HOSE TO BOTTOM COWL
  • 27
    10-48591 SCREW, VENT HOSE CLAMP TO BOTTOM COWL (1/2")
    SCREW, VENT HOSE CLAMP TO BOTTOM COWL (1/2")
  • 28
    8M0084613 "D" WASHER, VENT HOSE CLAMP SCREW
    "D" WASHER, VENT HOSE CLAMP SCREW
  • 29
    11-24656 NUT, VENT HOSE CLAMP SCREW
    NUT, VENT HOSE CLAMP SCREW
  • 30
    332-4895A5 IGNITION COIL ASSEMBLY, COMPLETE
    IGNITION COIL ASSEMBLY, COMPLETE
  • 31
    10-46368 SCREW, IGNITION COIL CLAMPING (2 1/4")
    SCREW, IGNITION COIL CLAMPING (2 1/4")
  • 31
    10-46367 SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2 1/2")
    SCREW, IGNITION COIL CLAMPING - CLIP ATTACHING (2 1/2")
  • 32
    11-68219 NUT, IGNITION COIL CLAMPING SCREW
    NUT, IGNITION COIL CLAMPING SCREW
  • 33
    12-56681 WASHER, IGNITION COIL CLAMPING SCREW
    WASHER, IGNITION COIL CLAMPING SCREW
  • 34
    54-22740 CLIP, LEAD WIRE TO IGNITION COIL
    CLIP, LEAD WIRE TO IGNITION COIL
  • 35
    8M0084613 "D" WASHER, IGNITION COIL CLAMPING SCREW
    "D" WASHER, IGNITION COIL CLAMPING SCREW
  • 36
    11-8267086 NUT, IGNITION COIL CLAMPING SCREW
    NUT, IGNITION COIL CLAMPING SCREW
  • 37
    10-69026 SCREW, COIL MOUNTING BRACKET (7/8")
    SCREW, COIL MOUNTING BRACKET (7/8")
  • 38
    13-26992 LOCKWASHER, COIL MOUNTING BRACKET
    LOCKWASHER, COIL MOUNTING BRACKET
  • 39
    10-37561 SCREW, COIL MOUNTING BRACKET (2 1/2")
    SCREW, COIL MOUNTING BRACKET (2 1/2")
  • 40
    11-20184 NUT, COIL MOUNTING BRACKET SCREW
    NUT, COIL MOUNTING BRACKET SCREW
