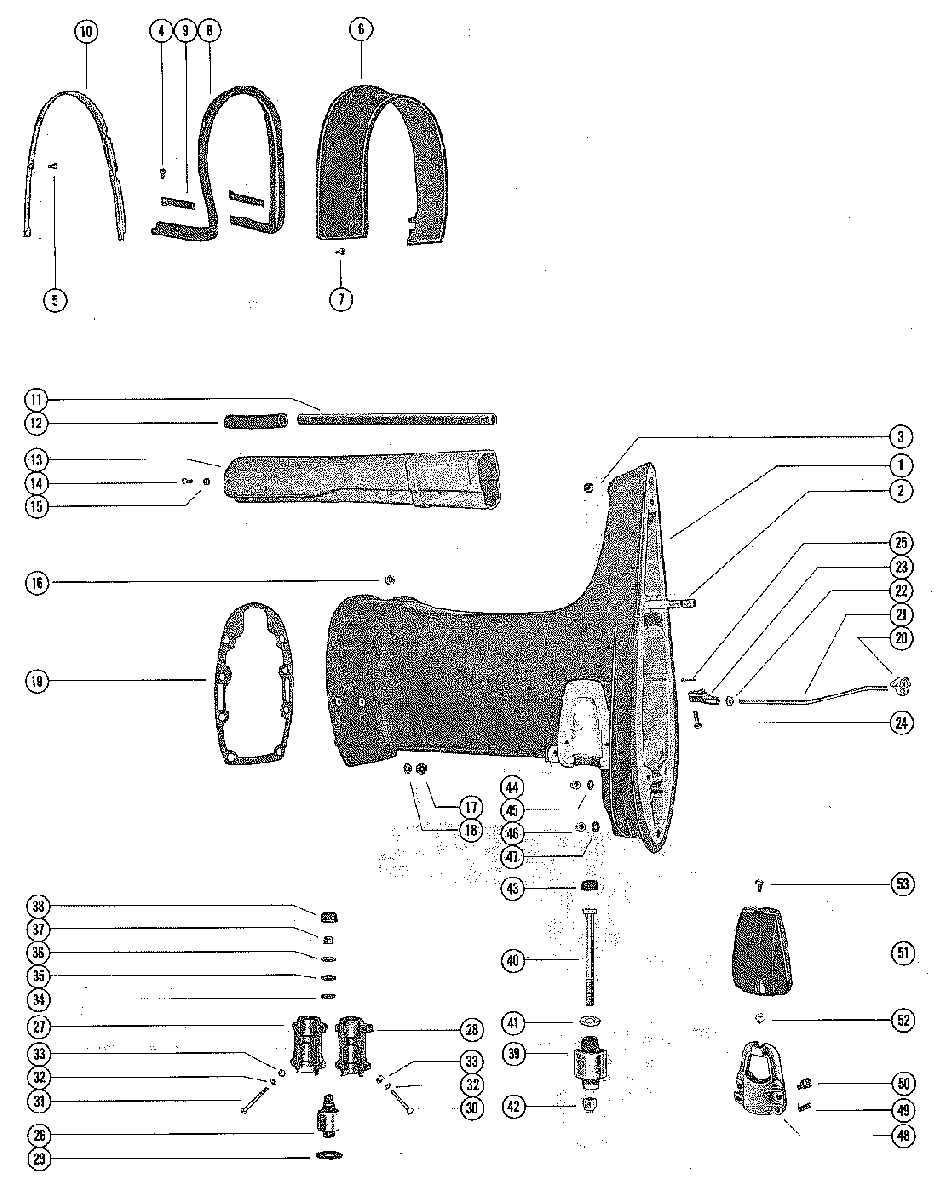

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 1250 2314956 THRU 2839368
-
№АртикулНазвание
-
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-47165 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
319-47579 PLUG, PLASTIC - TRIM TAB SCREW HOLE
PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIESPLUG, PLASTIC - TRIM TAB SCREW HOLE
PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIES -
410-48409 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIESSCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIES -
510-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIESSCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
PART OF A-1552-3670A3 AND A-151-3669A4 DRIVE SHAFT HOUSING ASSEMBLIES -
637417 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
710-37571 SCREW, TRIM COVER TO BOTTOM COWLSCREW, TRIM COVER TO BOTTOM COWL
-
837919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
937665 STRIP, RETAINING - COVER SEAL (SIDE)STRIP, RETAINING - COVER SEAL (SIDE)
-
1038052 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
1132-37446 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
1132-37438 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
1223-29591 SLEEVE, RUBBER - WATER INLET TUBESLEEVE, RUBBER - WATER INLET TUBE
-
1338469 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
1338470 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
1410-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")
-
1511-35888 NUT, EXHAUST TUBE SCREWNUT, EXHAUST TUBE SCREW
-
1611-82670911 NUT, POWERHEAD STUDS (5/16-24)NUT, POWERHEAD STUDS (5/16-24)
-
1711-8M0042636 NUT, POWERHEAD STUDS (3/8-24)NUT, POWERHEAD STUDS (3/8-24)
-
1711-23161 NUT, POWERHEAD STUDS (3/8-24)NUT, POWERHEAD STUDS (3/8-24)
-
1812-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1927-48801 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
2052887 GUIDE, PUSH ROD - REVERSE LOCKINGGUIDE, PUSH ROD - REVERSE LOCKING
-
2052887 GUIDE, PUSH ROD - REVERSE LOCKINGGUIDE, PUSH ROD - REVERSE LOCKING
-
2147591 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
2147558 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
2211-69254 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
2347559 YOKE, PUSH RODYOKE, PUSH ROD
-
2424-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
2518-25191 COTTER PIN, PUSH ROD PINCOTTER PIN, PUSH ROD PIN
-
2675296 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2675297 MOUNT, RUBBER - UPPER (HEAVY DUTY)MOUNT, RUBBER - UPPER (HEAVY DUTY)
-
2749239 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2853141 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2853141 COVER, UPPER MOUNT - INSIDE HALFCOVER, UPPER MOUNT - INSIDE HALF
-
2924929 PACKING, "U" CUPPACKING, "U" CUP
-
3010-20012 SCREW, UPPER MOUNT COVER (1 5/8")SCREW, UPPER MOUNT COVER (1 5/8")
-
3110-28775 SCREW, UPPER MOUNT COVER (2 1/8")SCREW, UPPER MOUNT COVER (2 1/8")
-
3212-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3311-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3412-31262 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3512-47840 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3612-31263 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3711-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3831264 CAP, RUBBER - UPPER MOUNT BOLTCAP, RUBBER - UPPER MOUNT BOLT
-
3949455 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
3975299 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
3975300 MOUNT, RUBBER - LOWER (HEAVY DUTY)MOUNT, RUBBER - LOWER (HEAVY DUTY)
-
4010-75284 SCREW, LOWER MOUNT (5 1/2")SCREW, LOWER MOUNT (5 1/2")
-
4112-49339 WASHER, LOWER MOUNT SCREWWASHER, LOWER MOUNT SCREW
-
4211-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
4325067 BUMPER, RUBBER - LOWER MOUNTING SCREWBUMPER, RUBBER - LOWER MOUNTING SCREW
-
4411-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4512-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4611-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4712-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4835608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4924-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
5010-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSINGSCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
-
5135474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
5211-35521 NUT, LOWER MOUNT CLAMP COVERNUT, LOWER MOUNT CLAMP COVER
-
5310-29722 SCREW, COVER TO LOWER CLAMP MOUNTSCREW, COVER TO LOWER CLAMP MOUNT
