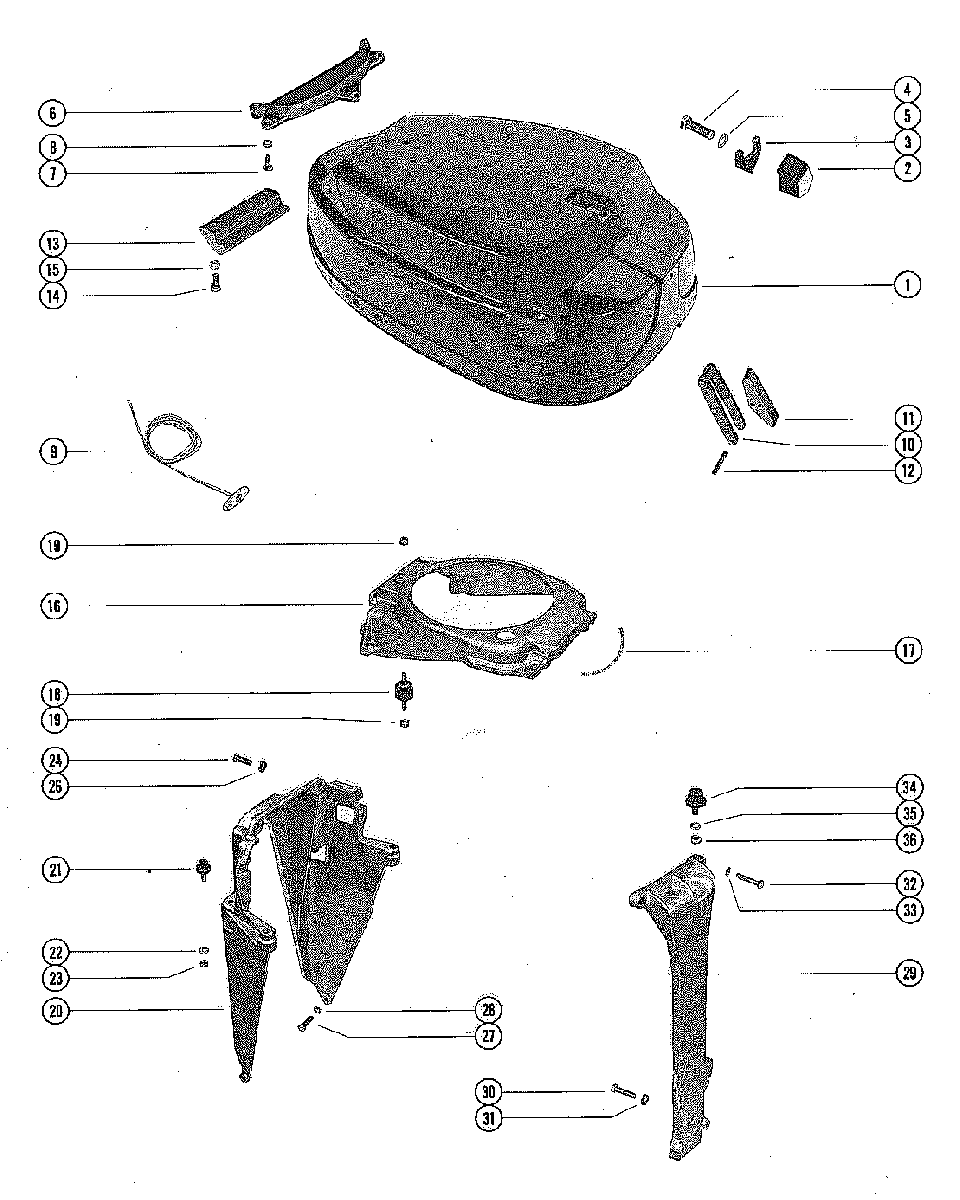

TOP COWL AND SUPPORT BRACKETS для Mercury - 1150, 115 8051950 THRU 8061119

  • №
    Артикул
    Название
  • 1
    2114-7934T TOP (WITHOUT DECALS)
    TOP (WITHOUT DECALS)
  • 2
    52733A9 RETAINER ASSEMBLY, TOP COWL
    RETAINER ASSEMBLY, TOP COWL
  • 3
    35496 PAD, BUMPER - TP CPW: RETAOMER
    PAD, BUMPER - TP CPW: RETAOMER
  • 4
    10-74824 SCREW, RETAINER TO TOP COL (1 14")
    SCREW, RETAINER TO TOP COL (1 14")
  • 5
    13-39107 LOCKWASHER, RETAINER TO TOP COWL SCREW
    LOCKWASHER, RETAINER TO TOP COWL SCREW
  • 6
    76370 SHIELD, TOP COWL - REAR
    SHIELD, TOP COWL - REAR
  • 7
    10-37370 SCREW, SHIELD TO TOP COWL (5/8")
    SCREW, SHIELD TO TOP COWL (5/8")
  • 8
    13-37371 LOCKWASHER, SHIELD SCREW
    LOCKWASHER, SHIELD SCREW
  • 9
    47341A11 ROPE, STARTER (FOR MANUAL STARTING ONLY)
    ROPE, STARTER (FOR MANUAL STARTING ONLY)
  • 10
    52739 HINGE, COWL LATCH - TOP COWL
    HINGE, COWL LATCH - TOP COWL
  • 11
    94918F1 LEVER, COWL LATCH HINGE
    LEVER, COWL LATCH HINGE
  • 12
    17-58998 PIN, ROLL - COWL LATCH LEVER TO HINGE
    PIN, ROLL - COWL LATCH LEVER TO HINGE
  • 13
    55455 HOOK, TOP COWL LATCH - REAR
    HOOK, TOP COWL LATCH - REAR
  • 14
    10-22956 SCREW. REAR HOOK TO TOP COWL (7/8")
    SCREW. REAR HOOK TO TOP COWL (7/8")
  • 15
    13-26992 LOCKWASHER REAR HOOK MOUNTING SCREW
    LOCKWASHER REAR HOOK MOUNTING SCREW
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 5168573 AND BELOW
    AUSTRALIA 8056944 AND BELOW
    CANADA 7123762 AND BELOW
    FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 5168573 AND BELOW
    AUSTRALIA 8056944 AND BELOW
    CANADA 7123762 AND BELOW
  • 16
    79897A4 FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 5168574 AND UP
    AUSTRALIA 8056945 AND UP
    CANADA 7123763 AND UP
    FRAME ASSEMBLY, TOP COWL SUPPORT
    UNITED STATES 5168574 AND UP
    AUSTRALIA 8056945 AND UP
    CANADA 7123763 AND UP
  • 17
    37-73291 DECAL, TIMING (FLYWHEEL)
    DECAL, TIMING (FLYWHEEL)
  • 18
    90435 MOUNT, RUBBER - TOP COWL FRAME
    MOUNT, RUBBER - TOP COWL FRAME
  • 18
    46096 MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
    MOUNT, RUBBER - TOP COWL FRAME (HEAVY DUTY)
  • 19
    11-35888 NUT, RUBBER MOUNT TO TOP COWL FRAME
    NUT, RUBBER MOUNT TO TOP COWL FRAME
  • 20
    86472 BRACKET, TOP COWL SUPPORT - REAR
    BRACKET, TOP COWL SUPPORT - REAR
  • 21
    31014 MOUNT, RUBBER - REAR SUPPORT BRACKET
    MOUNT, RUBBER - REAR SUPPORT BRACKET
  • 22
    13-26992 LOCWASHER
    RUBBER MOUNT TO REAR SUPPORT BRACKET
    LOCWASHER
    RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 23
    11-29598 NUT
    RUBBER MOUNT TO REAR SUPPORT BRACKET
    NUT
    RUBBER MOUNT TO REAR SUPPORT BRACKET
  • 24
    10-37562 SCREW, REAR BRACKET TO FRAME (1")
    SCREW, REAR BRACKET TO FRAME (1")
  • 26
    13-26993 LOCKWASHER, REAR BRACKET SCREW
    LOCKWASHER, REAR BRACKET SCREW
  • 27
    10-37562 SCREW, REAR BRACKET TO BOTTOM COWL (1")
    SCREW, REAR BRACKET TO BOTTOM COWL (1")
  • 28
    13-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREW
    LOCKWASHER, REAR SUPPORT BRACKET SCREW
  • 29
    42706A1 BRACKET ASSEMBLY, TOP COWL - FRONT
    BRACKET ASSEMBLY, TOP COWL - FRONT
  • 30
    10-60411 SCREW
    FRONT BRACKET TO BOTTOM COWL (1 1/4")
    SCREW
    FRONT BRACKET TO BOTTOM COWL (1 1/4")
  • 31
    13-26992 LOCKWASHER
    FRNOT SUPPORT BRACKET SCREW
    LOCKWASHER
    FRNOT SUPPORT BRACKET SCREW
  • 32
    10-55511 SCREW
    FRONT BRACKET TO TOP COWL FRAME (11/2")
    SCREW
    FRONT BRACKET TO TOP COWL FRAME (11/2")
  • 33
    13-26993 LOCKWASHER, FRONT BRACKET SCREW
    LOCKWASHER, FRONT BRACKET SCREW
  • 34
    37640 MOUNT, RUBBER FRONT SUPPORT BRACKET
    MOUNT, RUBBER FRONT SUPPORT BRACKET
  • 35
    13-26993 LOCKWASHER
    RUBBER MOUNT TO FRONT SUPPORT BRACKET
    LOCKWASHER
    RUBBER MOUNT TO FRONT SUPPORT BRACKET
  • 36
    11-28770 NUT
    RUBBER MOUNT TO FRONT SUPPORT BRACKET
    NUT
    RUBBER MOUNT TO FRONT SUPPORT BRACKET
