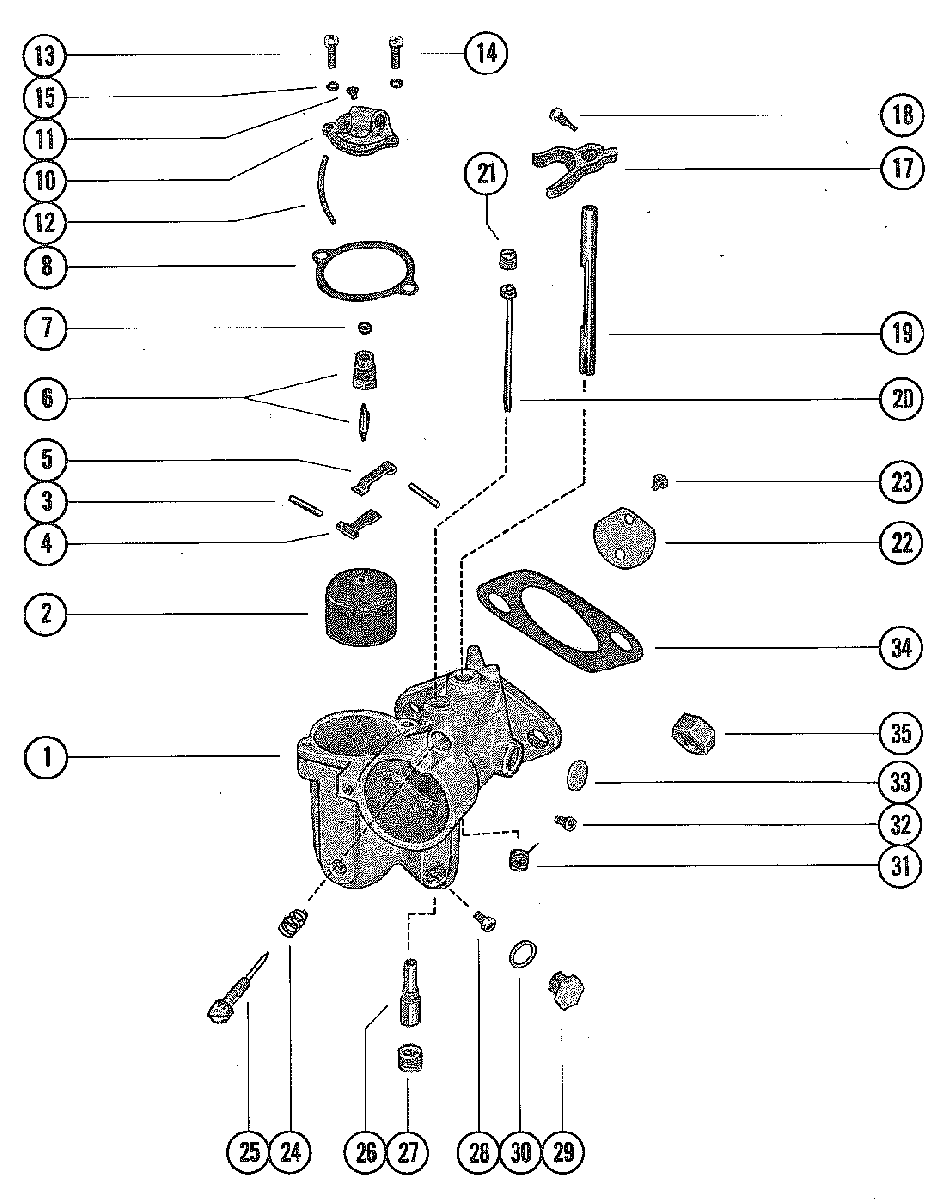

CARBURETOR ASSEMBLY для Mercury - 1150, 115 8051950 THRU 8061119

  • №
    Артикул
    Название
  • 1
    1368-5702A19 CARBURETOR ASSEMBLY
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
    CARBURETOR ASSEMBLY
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
  • 1
    1368-5702A19 CARBURETOR ASSEMBLY
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
    CARBURETOR ASSEMBLY
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
  • 2
    1395-8673 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 3
    90-8M0143356 PIN, FLOAT LEVER PINION
    PIN, FLOAT LEVER PINION
  • 4
    90-8M0143356 LEVER, FLOAT (LOWER)
    LEVER, FLOAT (LOWER)
  • 5
    90-8M0143356 LEVER, FLOAT (UPPER)
    LEVER, FLOAT (UPPER)
  • 6
    1395-83181 INLET NEDDLE, SEAT AND GASKET
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
    INLET NEDDLE, SEAT AND GASKET
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
  • 6
    1395-83181 INLET NEEDLE, SEAT AND GASKET
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
    INLET NEEDLE, SEAT AND GASKET
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
  • 7
    90-8M0143356 GASKET, INLET SEAT
    GASKET, INLET SEAT
  • 8
    90-8M0143356 GASKET, FLOAT BOWL COVER
    GASKET, FLOAT BOWL COVER
  • 10
    1395-5680 COVER, FLOAT BOWL
    COVER, FLOAT BOWL
  • 11
    1395-5733 JET, BOWL VENT (.092)
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
    JET, BOWL VENT (.092)
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
  • 11
    1399-6249 JET, BOWL VENT (.96)
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
    JET, BOWL VENT (.96)
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
  • 12
    32-892024122 HOSE, ECONOMIZER
    HOSE, ECONOMIZER
  • 13
    10-52195 SCREW, FLOAT BOWL COVER
    SCREW, FLOAT BOWL COVER
  • 14
    1395-4804 SCREW, FLOAT BOWL COVER
    SCREW, FLOAT BOWL COVER
  • 15
    13-26995 LOCKWASHER, FLOAT BOWL COVER SCREW
    LOCKWASHER, FLOAT BOWL COVER SCREW
  • 17
    8146791 LEVER, THROTTLE (SEE NOT BELOW)
    LEVER, THROTTLE (SEE NOT BELOW)
  • 18
    1395-6027 SCREW, THROTTLE STOP LEVER (SEE FOOT NOTE BELOW)
    SCREW, THROTTLE STOP LEVER (SEE FOOT NOTE BELOW)
  • 19
    1395-7942 SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 20
    90-8M0143356 TUBE, IDLE
    TUBE, IDLE
  • 21
    1395-4540 SCREW, BODY (IDLE TUBE)
    SCREW, BODY (IDLE TUBE)
  • 22
    1395-5108 SHUTTER, THROTTLE
    SHUTTER, THROTTLE
  • 23
    90-8M0143356 SCREW AND LOCKWASHER, THROTTLE SHUTTER
    SCREW AND LOCKWASHER, THROTTLE SHUTTER
  • 24
    90-8M0143356 SPRING, IDLE ADJUSTMENT SCREW
    SPRING, IDLE ADJUSTMENT SCREW
  • 25
    1399-3515 SCREW, IDLE ADJUSTMENT
    SCREW, IDLE ADJUSTMENT
  • 26
    90-8M0143356 NOZZLE, MAIN
    NOZZLE, MAIN
  • 27
    1395-4542 SCREW, PLUG-MAIN NOZZLE
    SCREW, PLUG-MAIN NOZZLE
  • 28
    1399-3794 JET, MAIN FUEL (.074)-STANDARD
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
    JET, MAIN FUEL (.074)-STANDARD
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
  • 28
    1395-6207 JET, MAIN FUEL (.072)-STANDARD
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
    JET, MAIN FUEL (.072)-STANDARD
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
  • 28
    1395-6030 JET, MAIN FUEL (.070)
    JET, MAIN FUEL (.070)
  • 28
    1395-6029 JET, MAIN FUEL (.068)
    JET, MAIN FUEL (.068)
  • 29
    1395-4541 SCREW,PLUG-MAIN FUEL JET CHANNEL
    SCREW,PLUG-MAIN FUEL JET CHANNEL
  • 30
    90-8M0143356 GASKET, JET CHANNEL PLUG SCREW
    GASKET, JET CHANNEL PLUG SCREW
  • 31
    90-8M0143356 SPRING, THROTTLE SHAFT RETURN
    SPRING, THROTTLE SHAFT RETURN
  • 32
    1395-4543 SCREW, BODY CHANNEL
    SCREW, BODY CHANNEL
  • 33
    90-8M0143356 WELCH PLUG, BODY CANNEL
    WELCH PLUG, BODY CANNEL
  • --
    1395-879194024 GASKET AND PACKING SET ( 1 PER CARBURETOR)
    GASKET AND PACKING SET ( 1 PER CARBURETOR)
  • --
    1395-51091 REPAIR PARTS KIT (1 CARBURETOR)
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
    REPAIR PARTS KIT (1 CARBURETOR)
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
  • --
    1395-51091 REPAIR PARTS KIT(1 PER CARBURETOR)
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
    REPAIR PARTS KIT(1 PER CARBURETOR)
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
  • 34
    27-481641 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 35
    11-64809 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
  • --
    27-85653A87 GASKET SET
    GASKET SET
