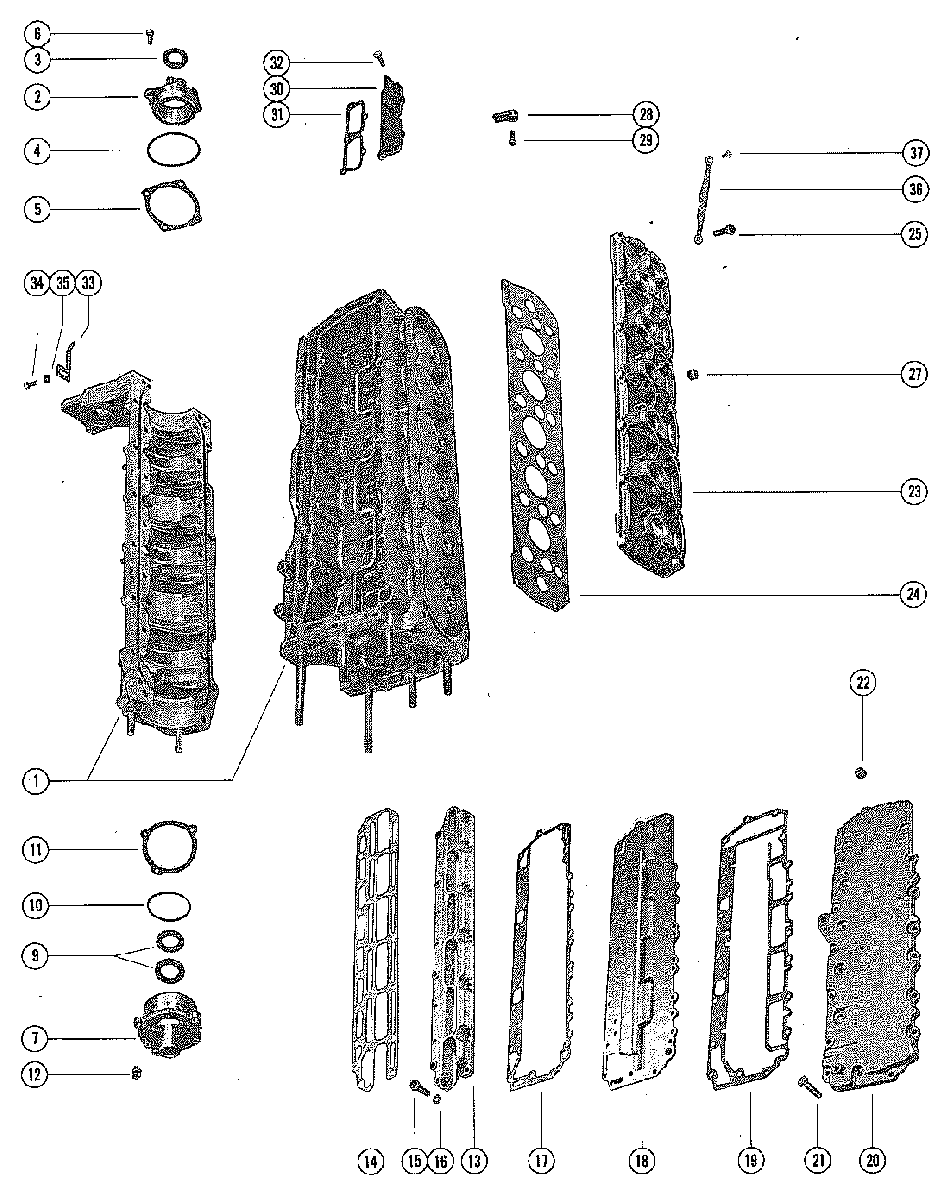

END CAP,MANIFOLD AND EXHAUST COVERS для Mercury - 1150, 115 8051950 THRU 8061119

  • №
    Артикул
    Название
  • 1
    852-7401A2 CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
  • 1
    852-7401A2 CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
    CYLINDER BLOCK AND CRANKCASE ASS'Y
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
  • 2
    1134-3197A1 END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 3
    26-41953 OIL SEAL,END CAP
    OIL SEAL,END CAP
  • 4
    25-47254 "O"RING
    "O"RING
  • 5
    15-47248A1 SHIM,END CAP TO CRANKCASE(.006-8-10)
    SHIM,END CAP TO CRANKCASE(.006-8-10)
  • 6
    10-30225 SCREW,END CAP MOUNTING
    SCREW,END CAP MOUNTING
  • 7
    1148-5410T1 END CAP ASSEMBLY,LOWER
    END CAP ASSEMBLY,LOWER
  • 9
    26-41953 OIL SEAL,END CAP
    OIL SEAL,END CAP
  • 10
    25-32546 "O" RING, END CAP
    "O" RING, END CAP
  • 11
    15-20085A1 SHIM, END CAP TO CRANKCASE(.002-3-5-10)
    SHIM, END CAP TO CRANKCASE(.002-3-5-10)
  • 12
    10-30225 SCREW,END CAP MOUNTING (1")
    SCREW,END CAP MOUNTING (1")
  • 13
    71808 COVER,WATER JACKET-CYLINDER BLOCK
    COVER,WATER JACKET-CYLINDER BLOCK
  • 14
    27-721421 GASKET,WATER JACKET COVER
    GASKET,WATER JACKET COVER
  • 15
    10-53167T SCREW
    WATER JACKET COVER TO CYLINDER BLOCK (7/8")
    SCREW
    WATER JACKET COVER TO CYLINDER BLOCK (7/8")
  • 16
    12-8M0042642 WASHER
    WATER JACKET COVER FASTENING SCREW
    WASHER
    WATER JACKET COVER FASTENING SCREW
  • 17
    27-854952 GASKET,CYLINDER BLOCK TO BAFFLE PLATE
    GASKET,CYLINDER BLOCK TO BAFFLE PLATE
  • 18
    757781 PLATE,BAFFLE-EXHAUST MANIFOLD
    PLATE,BAFFLE-EXHAUST MANIFOLD
  • 19
    27-854972 GASKET
    BAFFLE PLATE TO EXHAUST MANIFOLD COVER
    GASKET
    BAFFLE PLATE TO EXHAUST MANIFOLD COVER
  • 20
    99896A1 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 21
    10-53576 SCREW, MANIFOLD COVER MOUNTING
    SCREW, MANIFOLD COVER MOUNTING
  • 22
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD COVER
    PLUG, PIPE - EXHAUST MANIFOLD COVER
  • 23
    1023-8368A1 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
  • 24
    27-981853 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
  • 25
    10-76630 SCREW, COVER MOUNT (1")
    SCREW, COVER MOUNT (1")
  • 27
    22-68307 PLUG, PIPE - CYLINDER BLOCK COVER
    PLUG, PIPE - CYLINDER BLOCK COVER
  • 28
    37440 BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
    BRACKET, MOUNT SUPPORT - CYLINDER BLOCK
  • 29
    10-35386 SCREW, BRACKET TO CYLINDER BLOCK (1")
    SCREW, BRACKET TO CYLINDER BLOCK (1")
  • 30
    62301 COVER, TRANSFER PORT (TOP/MIDDLE)
    COVER, TRANSFER PORT (TOP/MIDDLE)
  • 30
    66094 COVER, TRANSFER PORT (BOTTOM)
    COVER, TRANSFER PORT (BOTTOM)
  • 31
    27-64941 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
  • 32
    10-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")
    SCREW, TRANSFER PORT COVER MOUNTING (1")
  • 32
    10-28636 SCREW, TRANSFER PORT COVER MOUNTING (3/4")
    SCREW, TRANSFER PORT COVER MOUNTING (3/4")
  • 33
    43352 POINTER, TIMING
    POINTER, TIMING
  • 34
    10-28636 SCREW, TIMING POINTER ATTACHING (3/4")
    SCREW, TIMING POINTER ATTACHING (3/4")
  • 35
    12-35462 WASHER, TIMING POINTER SCREW
    WASHER, TIMING POINTER SCREW
  • 36
    46933A3 GROUND STRAP ASSEMBLY, EXHAUST COVER
    GROUND STRAP ASSEMBLY, EXHAUST COVER
  • 37
    10-62568 SCREW, GROUND STRAP ATTACHING (3/8")
    SCREW, GROUND STRAP ATTACHING (3/8")
  • -
    27-85653A87 GASKET SET
    GASKET SET
