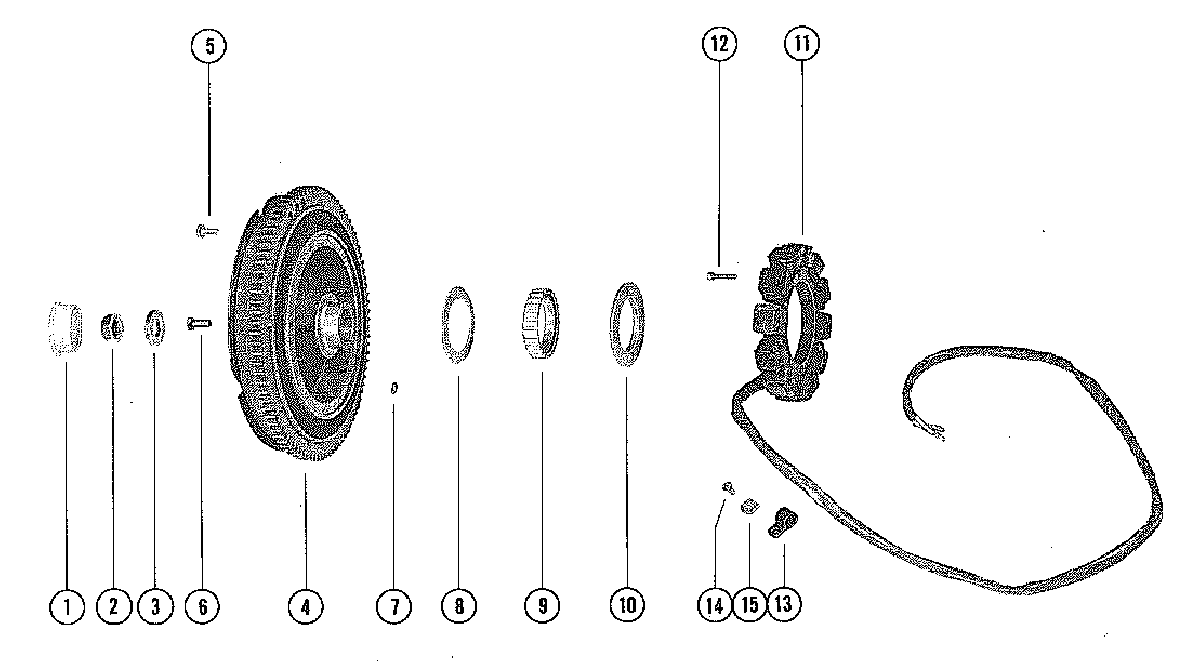

FLYWHEEL ASSEMBLY AND STATOR для Mercury - 1150, 115 8051950 THRU 8061119

  • №
    Артикул
    Название
  • 1
    19-45907 PLUG, FLYWHEEL PULLER THREADS
    PLUG, FLYWHEEL PULLER THREADS
  • 2
    11-52901 NUT
    FLYWHEEL (PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)
    NUT
    FLYWHEEL (PART OF A-436-6646A2 CRANKSHAFT ASSEMBLY)
  • 3
    12-33001 WASHER, FLYWHEEL NUT
    WASHER, FLYWHEEL NUT
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5168573 AND BELOW
    AUSTRALIA 8056944 AND BELOW
    CANADA 7123762 AND BELOW
    FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5168573 AND BELOW
    AUSTRALIA 8056944 AND BELOW
    CANADA 7123762 AND BELOW
  • 4
    225-2494A37 FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5168574 AND UP
    AUSTRALIA 8056945 AND UP
    CANADA 7123763 AND UP
    FLYWHEEL ASSEMBLY, COMPLETE
    UNITED STATES 5168574 AND UP
    AUSTRALIA 8056945 AND UP
    CANADA 7123763 AND UP
  • 5
    10-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
    SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
  • 6
    10-68997 SCREW, PLATE/HUB TO FLEX. PLATE
    SCREW, PLATE/HUB TO FLEX. PLATE
  • 7
    17-26618 PIN, DOWEL - PULLEY TO FLYWHEEL
    PIN, DOWEL - PULLEY TO FLYWHEEL
  • 8
    29788 FLANGE, FLYWHEEL PULLEY
    FLANGE, FLYWHEEL PULLEY
  • 9
    30306 PULLEY, FLYWHEEL
    PULLEY, FLYWHEEL
  • 10
    29787 HUB, FLYWHEEL PULLEY
    HUB, FLYWHEEL PULLEY
  • 11
    398-4793 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 12
    10-75840 SCREW, STATOR TO UPPER END CAP (7/8")
    SCREW, STATOR TO UPPER END CAP (7/8")
  • 13
    54-24871 CLIP, STATOR LEAD FASTENING (5/8")
    CLIP, STATOR LEAD FASTENING (5/8")
  • 13
    54-22627 CLIP
    STATOR/WIRING HARNESS LEADS FASTENING (1/2")
    CLIP
    STATOR/WIRING HARNESS LEADS FASTENING (1/2")
  • 14
    10-62568 SCREW, STATOR LEAD CLIP FASTENING (3/8")
    SCREW, STATOR LEAD CLIP FASTENING (3/8")
  • 15
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
