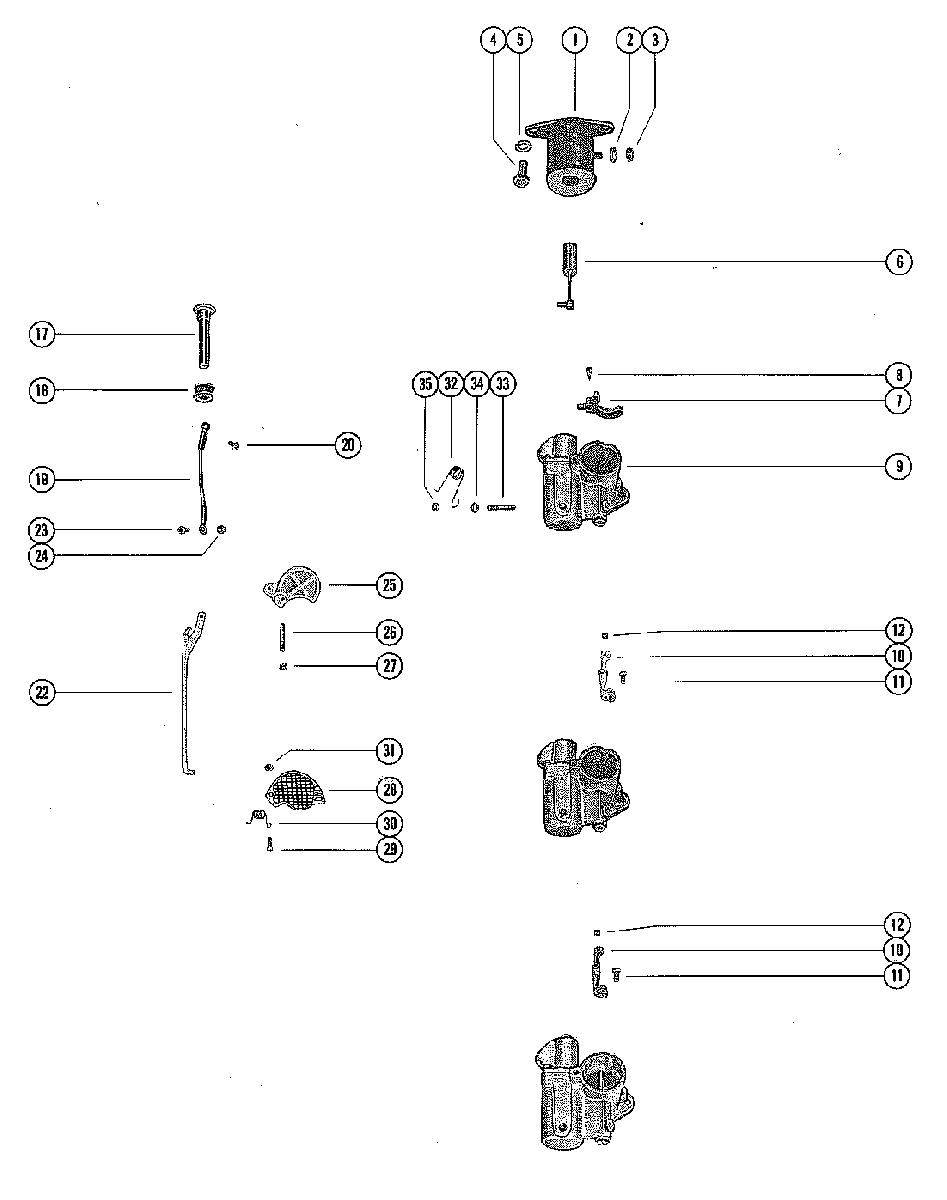

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1150, 115 8051950 THRU 8061119

  • №
    Артикул
    Название
  • 1
    54293A10 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, SOLENOID TERMINAL
    LOCKWASHER, SOLENOID TERMINAL
  • 3
    11-68219 NUT, SOLENOID TERMINAL
    NUT, SOLENOID TERMINAL
  • 4
    10-25299 SCREW, CHOKE SOLENOID (3/4")
    SCREW, CHOKE SOLENOID (3/4")
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 6
    90548A1 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
    PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
  • 7
    52518 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
    CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
  • 8
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 9
    1368-5702A19 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5050791 AND BELOW
    AUSTRALIA 8054754 AND BELOW
    CANADA 7118922 AND BELOW
  • 9
    1368-5702A19 CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
    CARBURETOR ASSEMBLY, COMPLETE
    UNITED STATES 5050792 AND UP
    AUSTRALIA 8054755 AND UP
    CANADA 7118923 AND UP
  • 10
    53720A2 THROTTLE PICK-UP BRACKET ASSEMBLY
    THROTTLE PICK-UP BRACKET ASSEMBLY
  • 11
    10-66104 SCREW, THROTTLE BRACKET MOUNTING
    SCREW, THROTTLE BRACKET MOUNTING
  • 12
    28-89694 INSERT, THROTTLE COUPLING
    INSERT, THROTTLE COUPLING
  • 17
    90242A1 KNOB, SHCOLE ROD
    KNOB, SHCOLE ROD
  • 18
    25-20116 BROMMET, CHOKE ROD
    BROMMET, CHOKE ROD
  • 19
    49589 STRAP, CHOKE KNOB TO CHOKE ROD
    STRAP, CHOKE KNOB TO CHOKE ROD
  • 20
    10-77137 SCRE, STRAP TO CHOKE KNOB (5/8")
    SCRE, STRAP TO CHOKE KNOB (5/8")
  • 22
    48203 ROD, CHOKE
    ROD, CHOKE
  • 23
    10-48591 SCREW, STRAP TO CHILE RDO ( 1/2")
    SCREW, STRAP TO CHILE RDO ( 1/2")
  • 24
    11-46438 NUT, STRAP TO CHOKE ROD SCREW
    NUT, STRAP TO CHOKE ROD SCREW
  • 25
    48152 SHUTTER, CHOKE-CARBURETOR
    SHUTTER, CHOKE-CARBURETOR
  • 26
    16-69037 STUD, CARBURETOR-CHOKE SHUTTER PIVOT
    STUD, CARBURETOR-CHOKE SHUTTER PIVOT
  • 27
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 28
    35-57819 SCREEN ASSEMBLY, FILTER-CARBURETOR
    SCREEN ASSEMBLY, FILTER-CARBURETOR
  • 29
    10-22523 SCREW
    LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")
    SCREW
    LOWER CARBURETOR FILTER SCREEN TO CARB. (5/8")
  • 29
    10-23015 SCREW
    UPPER CARBURETOR FILTER SCREEN TO CARB. (1")
    SCREW
    UPPER CARBURETOR FILTER SCREEN TO CARB. (1")
  • 30
    24-57818 SPRING, UPPER FILTER SCREEN SCREW
    SPRING, UPPER FILTER SCREEN SCREW
  • 31
    11-20110 NUT
    CARBURETOR FILTER SCREEN FASTENING SCREW
    NUT
    CARBURETOR FILTER SCREEN FASTENING SCREW
  • 32
    24-48230 SPRING, CHOKE ROD TENSION
    SPRING, CHOKE ROD TENSION
  • 33
    10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR
    STUD, CHOKE ROD SPRING TO CARBURETOR
  • 34
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SPACER, CHOKE ROD SPRING STUD
  • 35
    11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
