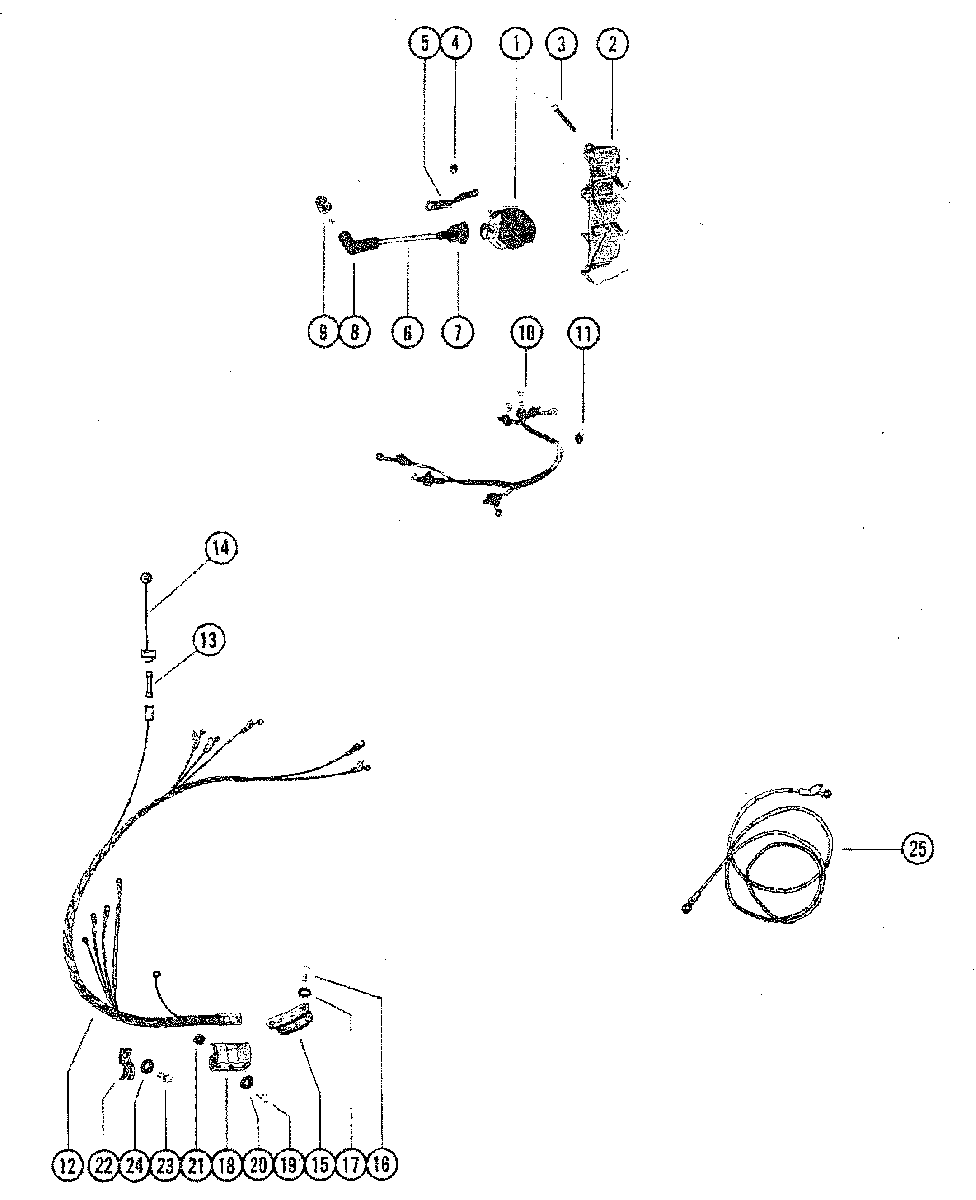

WIRING HARNESS AND IGNITION COIL для Mercury - 115 (6 CYL.) 5600967 THRU 6436122

  • №
    Артикул
    Название
  • 1
    339-832757A4 IGNITION COIL
    IGNITION COIL
  • 2
    43542 COVER, IGNITION COIL
    COVER, IGNITION COIL
  • 3
    10-88856 SCREW, IGNITION COIL COVER (2")
    SCREW, IGNITION COIL COVER (2")
  • 4
    11-45076 NUT, IGNITION COIL TERMINAL
    NUT, IGNITION COIL TERMINAL
  • 5
    84-60466A1 CABLE ASSEMBLY, IGNITION COIL (BLACK)
    CABLE ASSEMBLY, IGNITION COIL (BLACK)
  • 6
    84-813715A1 CABLE, HIGH TENSION
    CABLE, HIGH TENSION
  • 7
    332-2854T01 BOOT, COIL END
    BOOT, COIL END
  • 8
    85-63709A1 PROTECTOR, SPARK PLUG END
    PROTECTOR, SPARK PLUG END
  • 9
    33-97180Q SPARK PLUG (CHAMPION #L76-V)
    SPARK PLUG (CHAMPION #L76-V)
  • 10
    84-85537A2 HARNESS, COIL TO SWITCH BOX (#2, 4 AND 6)
    HARNESS, COIL TO SWITCH BOX (#2, 4 AND 6)
  • 10
    84-85537A1 HARNESS, COIL TO SWITCH BOX (#1, 3 AND 5)
    HARNESS, COIL TO SWITCH BOX (#1, 3 AND 5)
  • 11
    54-63153 CLIP, HARNESS TO COIL COVER
    CLIP, HARNESS TO COIL COVER
  • 12
    84-96188A4 WIRING HARNESS
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
    WIRING HARNESS
    UNITED STATES 6051525 AND BELOW
    AUSTRALIA 8071274 AND BELOW
    CANADA 7186572 AND BELOW
  • 12
    84-96188A4 WIRING HARNESS
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    WIRING HARNESS
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 13
    88-79091 FUSE
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    FUSE
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 14
    84-95084A2 WIRE, FUSE HOLDER
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    WIRE, FUSE HOLDER
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 15
    54-88608 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 16
    10-28636 SCREW, WIRING HARNESS CLAMP
    SCREW, WIRING HARNESS CLAMP
  • 17
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 18
    89047 BRACKET, WIRING HARNESS
    BRACKET, WIRING HARNESS
  • 19
    10-24637 SCREW, WIRING HARNESS BRACKET
    SCREW, WIRING HARNESS BRACKET
  • 20
    12-38833 WASHER, BRACKET SCREW
    WASHER, BRACKET SCREW
  • 21
    11-20110 NUT, BRACKET SCREW
    NUT, BRACKET SCREW
  • 22
    88751 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 23
    10-28636 SCREW, WIRING HARNESS CLAMP
    SCREW, WIRING HARNESS CLAMP
  • 24
    12-20533 WASHER, CLAMP SCREW
    WASHER, CLAMP SCREW
  • 25
    84-88439A3 BATTERY CABLE (POSITIVE)
    BATTERY CABLE (POSITIVE)
  • 25
    84-88439A4 BATTERY CABLE (NEGATIVE)
    BATTERY CABLE (NEGATIVE)
