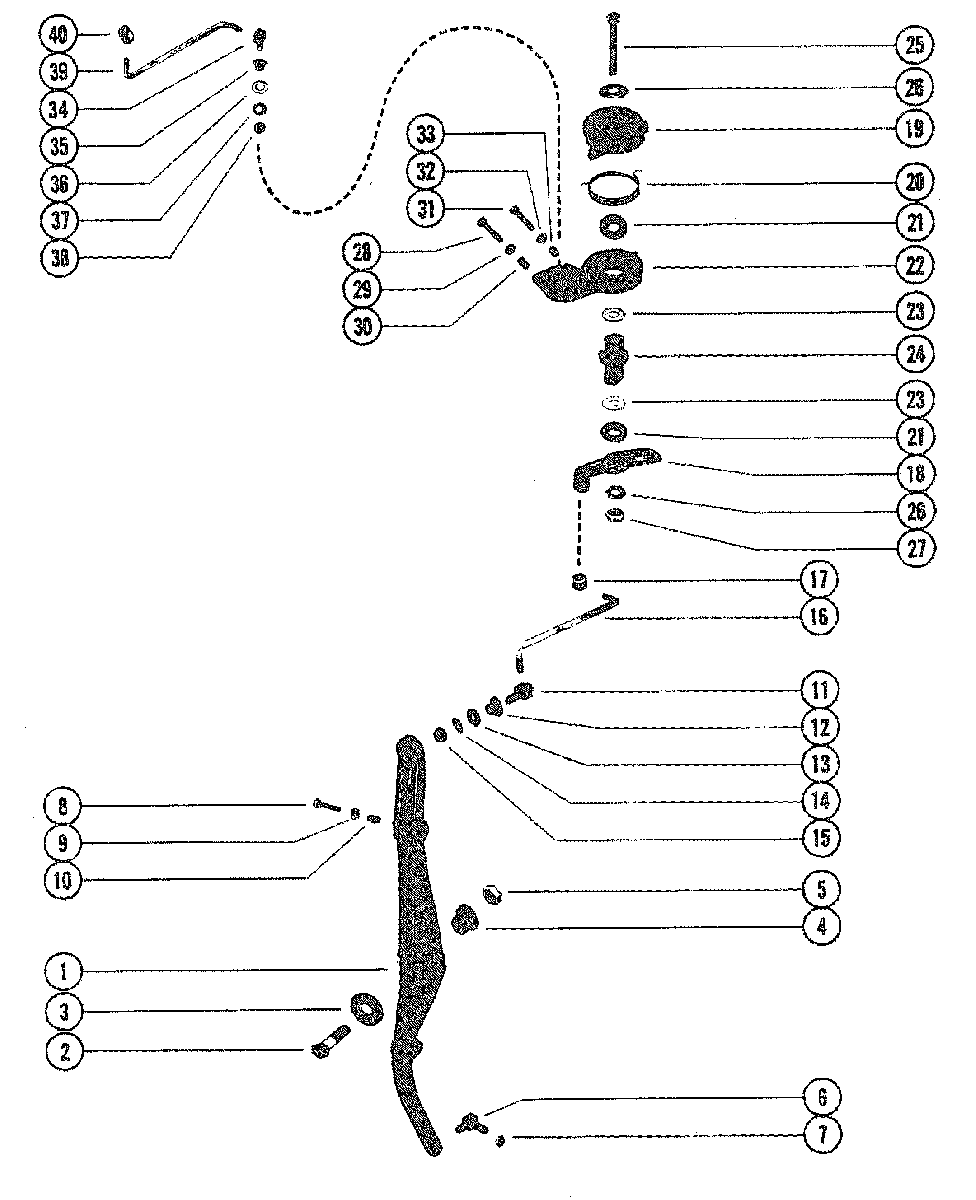

THROTTLE LEVER AND LINK RODS для Mercury - 115 (6 CYL.) 5600967 THRU 6436122

  • №
    Артикул
    Название
  • 1
    79900 LEVER, THROTTLE
    LEVER, THROTTLE
  • 2
    10-31830 SCREW, THROTTLE LEVER TO EXHAUST COVER
    SCREW, THROTTLE LEVER TO EXHAUST COVER
  • 3
    12-8M0042641 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 4
    23-45818 BUSHING, THROTTLE LEVER SCREW
    BUSHING, THROTTLE LEVER SCREW
  • 5
    11-8M0042636 NUT, THROTTLE LEVER SCREW
    NUT, THROTTLE LEVER SCREW
  • 6
    37587 SWIVEL, THROTTLE LEVER TO THROTTLE CABLE
    SWIVEL, THROTTLE LEVER TO THROTTLE CABLE
  • 7
    11-35888 NUT, THROTTLE CABLE TO SWIVEL
    NUT, THROTTLE CABLE TO SWIVEL
  • 8
    10-75168 SCREW, ADJUSTING-THROTTLE LEVER
    SCREW, ADJUSTING-THROTTLE LEVER
  • 9
    11-29598 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 10
    52023 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 11
    77013A1 SWIVEL ASSEMBLY, THROTTLE LEVER
    SWIVEL ASSEMBLY, THROTTLE LEVER
  • 12
    23-26856 BUSHING, SWIVEL
    BUSHING, SWIVEL
  • 13
    12-73288 WASHER, SWIVEL
    WASHER, SWIVEL
  • 14
    13-29402 WAVE WASHER, SWIVEL
    WAVE WASHER, SWIVEL
  • 15
    11-45774 NUT, SWIVERL TO THROTTLE LEVER
    NUT, SWIVERL TO THROTTLE LEVER
  • 16
    85300 LINK ROD, THROTTLE
    LINK ROD, THROTTLE
  • 17
    23-74213 SWIVEL, LINK ROD TO THROTTLE CAM
    SWIVEL, LINK ROD TO THROTTLE CAM
  • 18
    85441 THROTTLE CAM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
    THROTTLE CAM
    UNITED STATES 5829463 AND BELOW
    AUSTRALIA 8071134 AND BELOW
    CANADA 7171252 AND BELOW
  • 18
    88754 THROTTLE CAM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
    THROTTLE CAM
    UNITED STATES 5829464 AND UP
    AUSTRALIA 8071135 AND UP
    CANADA 7171253 AND UP
  • 19
    85082 HOUSING, THROTTLE-UPPER
    HOUSING, THROTTLE-UPPER
  • 20
    24-95721 SPRING, TORSION-SHAFT
    SPRING, TORSION-SHAFT
  • 21
    12-85303 WASHER, PLASTIC-THROTTLE CAM
    WASHER, PLASTIC-THROTTLE CAM
  • 22
    79903F1 HOUSING, THROTTLE-LOWER
    HOUSING, THROTTLE-LOWER
  • 23
    13-86498 WAVE WASHER, SHAFT
    WAVE WASHER, SHAFT
  • 24
    87937 SHAFT, THROTTLE AND SPARK ADVANCE
    SHAFT, THROTTLE AND SPARK ADVANCE
  • 25
    10-28239 SCREW, THROTTLE HOUSING
    SCREW, THROTTLE HOUSING
  • 26
    12-35462 WASHER, THROTTLE HOUSING SCREW
    WASHER, THROTTLE HOUSING SCREW
  • 27
    11-8267088 NUT, THROTTLE HOUSING SCREW
    NUT, THROTTLE HOUSING SCREW
  • 28
    10-75168 SCREW, ADJUSTING-LOWER HOUSING (2-1/4")
    SCREW, ADJUSTING-LOWER HOUSING (2-1/4")
  • 29
    11-29598 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 30
    52023 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 31
    10-60464 SCREW, ADJUSTING-LOWER HOUSING (2-1/8")
    SCREW, ADJUSTING-LOWER HOUSING (2-1/8")
  • 32
    11-68219 NUT, ADJUSTING SCREW
    NUT, ADJUSTING SCREW
  • 33
    48039 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 34
    77013A1 SWIVEL ASSEMBLY, SPARK LINK
    SWIVEL ASSEMBLY, SPARK LINK
  • 35
    23-26856 BUSHING, SWIVEL
    BUSHING, SWIVEL
  • 36
    12-73288 WASHER, SWIVEL
    WASHER, SWIVEL
  • 37
    13-29402 WAVE WASHER, SWIVEL
    WAVE WASHER, SWIVEL
  • 38
    11-45774 NUT, SWIVEL
    NUT, SWIVEL
  • 39
    85301 SPARK LINK
    SPARK LINK
  • 40
    74897T BARREL, SPARK LINK TO TRIGGER
    BARREL, SPARK LINK TO TRIGGER
