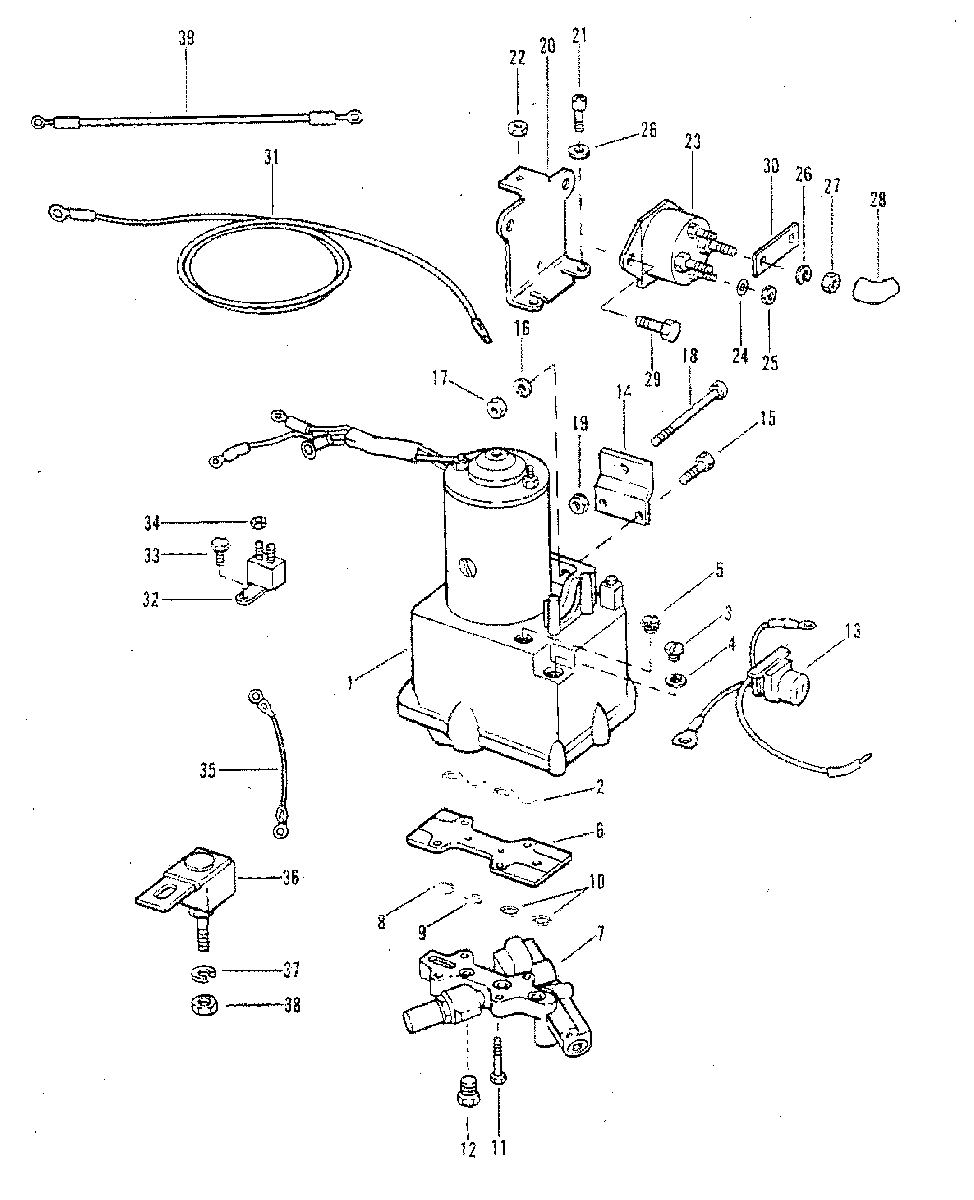

POWER TRIM COMPONENTS (WITH CIRCUIT BREAKER AND FUSE) для Mercury - 115 (6 CYL.) 5600967 THRU 6436122

№

Артикул

Название
1

92975A32 HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR)

HYDRAULIC PUMP ASS'Y (PLASTIC RESERVOIR)

130 600 ₽
2

25-48171 "O"RING, MANIFOLD PLATE

"O"RING, MANIFOLD PLATE

130 ₽
3

10-79953Q04 SCREW, FILLER - HYDRAULIC PUMP

SCREW, FILLER - HYDRAULIC PUMP

1 000 ₽
4

12-191833 WASHER, SEALING - FILLER SCREW

WASHER, SEALING - FILLER SCREW

60 ₽
5

10-62269 SCREW, VENT - HYDRAULIC PUMP

SCREW, VENT - HYDRAULIC PUMP

0 ₽
6

45336 PLATE, MANIFOLD

PLATE, MANIFOLD

0 ₽
7

45197A2 CONTROL VALVE ASSEMBLY

CONTROL VALVE ASSEMBLY

0 ₽
--

25-48171 "O"RING, MANIFOLD PLATE (SEE REF. #2)

"O"RING, MANIFOLD PLATE (SEE REF. #2)

130 ₽
8

25-45254 "O"RING, CONTROL VALVE (3/4" O.D.)

"O"RING, CONTROL VALVE (3/4" O.D.)

150 ₽
9

25-48171 "O"RING, CONTROL VALVE (1/2" O.D.)

"O"RING, CONTROL VALVE (1/2" O.D.)

130 ₽
10

25-45253 "O"RING, CONTROL VALVE (5/8"O.D.)

"O"RING, CONTROL VALVE (5/8"O.D.)

120 ₽
11

10-56500 SCREW
VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")

SCREW
VALVE AND MANIFOLD PLATE TO PUMP (1-1/4")

210 ₽
12

22-46008 PLUG, CONTROL VALVE (1/2-20")

PLUG, CONTROL VALVE (1/2-20")

450 ₽
13

84-79147A3 CONNECTOR AND HARNESS

CONNECTOR AND HARNESS

9 340 ₽
14

45377T BRACKET, MOUNTING

BRACKET, MOUNTING

0 ₽
15

10-35386 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1")

SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP (1")

90 ₽
16

13-39107 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW

120 ₽
17

11-21908 NUT, MOUNTING BRACKET SCREW

NUT, MOUNTING BRACKET SCREW

180 ₽
18

10-68298 BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")

BOLT, HYDRAULIC PUMP TO BOAT (3-1/4")

0 ₽
19

11-82671112 NUT, HYDRAULIC PUMP BOLT

NUT, HYDRAULIC PUMP BOLT

230 ₽
20

94279 BRACKET, MOUNTING - STARTER SOLENOID

BRACKET, MOUNTING - STARTER SOLENOID

0 ₽
21

10-28638 SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP

SCREW
MOUNTING BRACKET TO HYDRAULIC PUMP

150 ₽
22

11-24656 NUT
MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

NUT
MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

0 ₽
23

89-96158T STARTER SOLENOID

STARTER SOLENOID

2 950 ₽
24

13-26995 LOCKWASHER, SOLENOID TERMINAL (#8)

LOCKWASHER, SOLENOID TERMINAL (#8)

60 ₽
25

11-26419 NUT, SOLENOID TERMINAL (8-32)

NUT, SOLENOID TERMINAL (8-32)

120 ₽
26

13-26992 LOCKWASHER, SOLENOID TERMINAL (1/4)

LOCKWASHER, SOLENOID TERMINAL (1/4)

70 ₽
27

11-94330 NUT, SOLENOID TERMINAL (1/4-20)

NUT, SOLENOID TERMINAL (1/4-20)

120 ₽
28

85-861680 BOOT, RUBBER - STARTER SOLENOID TERMINAL

BOOT, RUBBER - STARTER SOLENOID TERMINAL

710 ₽
29

10-41508 SCREW
STARTER SOLENOID TO MOUNTING BRACKET

SCREW
STARTER SOLENOID TO MOUNTING BRACKET

260 ₽
30

94275 LINK, SOLENOID TO SOLENOID

LINK, SOLENOID TO SOLENOID

710 ₽
31

84-79139A13 BATTERY LEAD (POSITIVE)

BATTERY LEAD (POSITIVE)

4 620 ₽
31

84-79138A1 BATTERY LEAD (NEGATIVE)

BATTERY LEAD (NEGATIVE)

0 ₽
32

88-8M0085705 CIRCUIT BREAKER (20 AMP.)

CIRCUIT BREAKER (20 AMP.)

3 560 ₽
33

10-8M0113176 SCREW, CIRCUIT BREAKER

SCREW, CIRCUIT BREAKER

0 ₽
34

11-45076 NUT, CIRCUIT BREAKER TERMINAL (10-32)

NUT, CIRCUIT BREAKER TERMINAL (10-32)

120 ₽
35

84-87379A5 WIRE, SOLENOID TO CIRCUIT BREAKER (RED)

WIRE, SOLENOID TO CIRCUIT BREAKER (RED)

0 ₽
36

88-79023T90 FUSE ASSEMBLY (90 AMP.)

FUSE ASSEMBLY (90 AMP.)

2 420 ₽
37

12-96457 WASHER, FUSE TERMINAL

WASHER, FUSE TERMINAL

130 ₽
38

11-21825 NUT, FUSE TERMINAL (1/4-28)

NUT, FUSE TERMINAL (1/4-28)

130 ₽
39

84-61600A9 WIRE, STARTER SOLENOID (BLACK)

WIRE, STARTER SOLENOID (BLACK)

0 ₽
