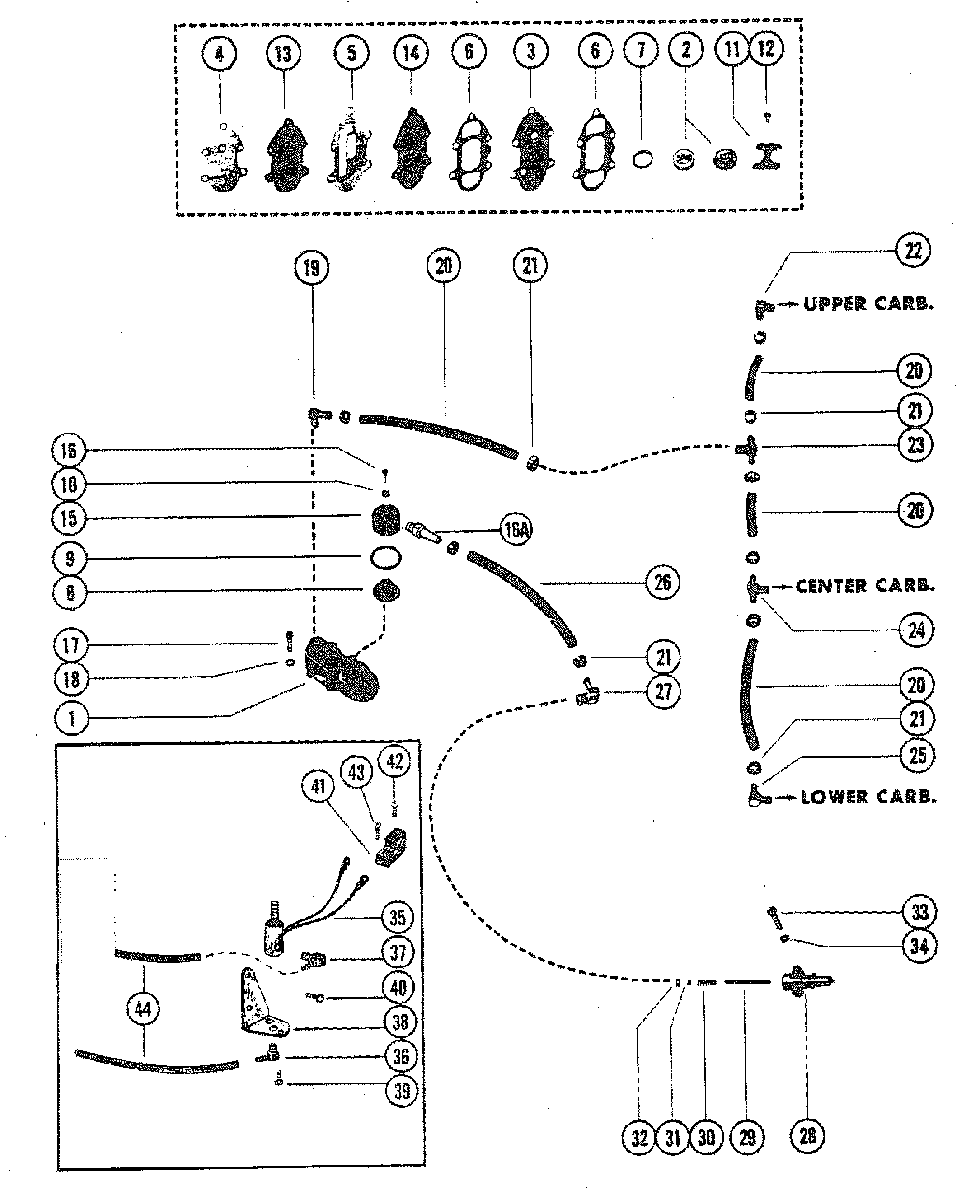

FUEL PUMP AND FUEL LINE ASSEMBLY для Mercury - 115 (6 CYL.) 5600967 THRU 6436122

  • №
    Артикул
    Название
  • 1
    13527A1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    21-8M0084277 CHECK VALVE ASSEMBLY
    CHECK VALVE ASSEMBLY
  • 3
    89031A3 DIAPHRAGM ASSEMBLY
    DIAPHRAGM ASSEMBLY
  • 4
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 5
    90-8M0143356 GASKET, PULSE CHAMBER
    GASKET, PULSE CHAMBER
  • 6
    90-8M0143356 GASKET, FUEL PUMP
    GASKET, FUEL PUMP
  • 7
    90-8M0143356 GASKET, CHECK VALVE TO HOUSING
    GASKET, CHECK VALVE TO HOUSING
  • 8
    35-59072 SCREEN, FUEL INLET
    SCREEN, FUEL INLET
  • 9
    25-35480 "O" RING, FUEL INLET COVER
    "O" RING, FUEL INLET COVER
  • 10
    25-38933 GASKET, COVER SCREW
    GASKET, COVER SCREW
  • 11
    23004 RETAINER, CHECK VALVE
    RETAINER, CHECK VALVE
  • 12
    10-43725 SCREW, RETAINER
    SCREW, RETAINER
  • 13
    86295 BASE, FUEL PUMP
    BASE, FUEL PUMP
  • 14
    879901 PULSE CHAMBER, FUEL PUMP
    PULSE CHAMBER, FUEL PUMP
  • 15
    35-91078A1 COVER, FUEL INLET
    COVER, FUEL INLET
  • 16
    10-89766 SCREW, FUEL FILTER COVER (5/8")
    SCREW, FUEL FILTER COVER (5/8")
  • 16A
    22-64705 FITTING, INLET COVER
    FITTING, INLET COVER
  • 17
    10-73013 SCREW, FUEL PUMP (1-1/2")
    SCREW, FUEL PUMP (1-1/2")
  • 18
    13-26996 LOCKWASHER, FUEL PUMP SCREW
    LOCKWASHER, FUEL PUMP SCREW
  • 19
    22-19688 FITTING,FUEL OUTLET
    FITTING,FUEL OUTLET
  • 20
    32-8M0108355 FUEL LINE, FUEL PUMP TO CARBURETOR
    FUEL LINE, FUEL PUMP TO CARBURETOR
  • 21
    54-68424 CLAMP, FUEL LINE ATTACHING
    CLAMP, FUEL LINE ATTACHING
  • 22
    22-19688 FITTING, ELBOW-UPPR CARBURETOR
    FITTING, ELBOW-UPPR CARBURETOR
  • 23
    22-73318 TEE, FUEL LINE
    TEE, FUEL LINE
  • 24
    22-64706001 FITTING, TEE-CENTER CARBURETOR
    FITTING, TEE-CENTER CARBURETOR
  • 25
    22-19688 FITTING, ELBOW-LOWER CARBURETOR
    FITTING, ELBOW-LOWER CARBURETOR
  • 26
    32-8M0108355 FUEL LINE, ADAPTOR TO FUEL PUMP (11")
    FUEL LINE, ADAPTOR TO FUEL PUMP (11")
  • 27
    22-63981 ELBOW, FUEL LINE TO ADAPTOR
    ELBOW, FUEL LINE TO ADAPTOR
  • 28
    22833 ADAPTOR, CHECK UNIT (FUEL LINE)
    -IDENTIFIED BY 73419 CASTING ON REF. #28
    ADAPTOR, CHECK UNIT (FUEL LINE)
    -IDENTIFIED BY 73419 CASTING ON REF. #28
  • 29
    23069 STEM, CHECK UNIT ADAPTOR
    -IDENTIFIED BY 73419 CASTING ON REF. #28
    STEM, CHECK UNIT ADAPTOR
    -IDENTIFIED BY 73419 CASTING ON REF. #28
  • 30
    24-23067T SPRING, ADAPTOR STEM
    -IDENTIFIED BY 73419 CASTING ON REF. #28
    SPRING, ADAPTOR STEM
    -IDENTIFIED BY 73419 CASTING ON REF. #28
  • 28
    30186 ADAPTOR, CHECK UNIT (FUEL LINE)
    -IDENTIFIED BY 30186 CASTING ON REF. #28
    ADAPTOR, CHECK UNIT (FUEL LINE)
    -IDENTIFIED BY 30186 CASTING ON REF. #28
  • 29
    30185Q3 STEM, CHECK UNIT ADAPTOR
    -IDENTIFIED BY 30186 CASTING ON REF. #28
    STEM, CHECK UNIT ADAPTOR
    -IDENTIFIED BY 30186 CASTING ON REF. #28
  • 30
    24-30189 SPRING, ADAPTOR STEM
    -IDENTIFIED BY 30186 CASTING ON REF. #28
    SPRING, ADAPTOR STEM
    -IDENTIFIED BY 30186 CASTING ON REF. #28
  • 31
    25-16524 "O" RING, ADAPTOR STEM
    "O" RING, ADAPTOR STEM
  • 32
    30188 CUP WASHER, ADAPTOR
    CUP WASHER, ADAPTOR
  • 33
    10-36154 SCREW, ADAPTOR BOTTOM COWL (1-3/8")
    SCREW, ADAPTOR BOTTOM COWL (1-3/8")
  • 34
    11-36069 NUT, ADAPTOR SCREW
    NUT, ADAPTOR SCREW
  • 35
    42859A2 VALVE, ENRICHER
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    VALVE, ENRICHER
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 36
    22-90275 CONNECTOR, ENRICHER VALVE (BOTTOM)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    CONNECTOR, ENRICHER VALVE (BOTTOM)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 37
    22-73817 CONNECTOR, ENRICHER VALVE (SIDE)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    CONNECTOR, ENRICHER VALVE (SIDE)
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 38
    90345 BRACKET, ENRICHER VALVE
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    BRACKET, ENRICHER VALVE
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 39
    10-89075 SCREW, VALVE TO BRACKET
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    SCREW, VALVE TO BRACKET
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 40
    10-73286 SCREW, BRACKET TO REED BLOCK HOUSING (1/2")
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    SCREW, BRACKET TO REED BLOCK HOUSING (1/2")
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 41
    86-45915 TERMINAL BLOCK, REED BLOCK HOUSING
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    TERMINAL BLOCK, REED BLOCK HOUSING
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 42
    10-69079 SCREW TERMINAL BLOCK
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    SCREW TERMINAL BLOCK
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 43
    10-20411 SCREW, WIRE TO TERMINAL BLOCK
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    SCREW, WIRE TO TERMINAL BLOCK
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
  • 44
    32-9912688 FUEL LINE, ENRICHER VALVE
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
    FUEL LINE, ENRICHER VALVE
    UNITED STATES 6051526 AND UP
    CANADA 7186573 AND UP
