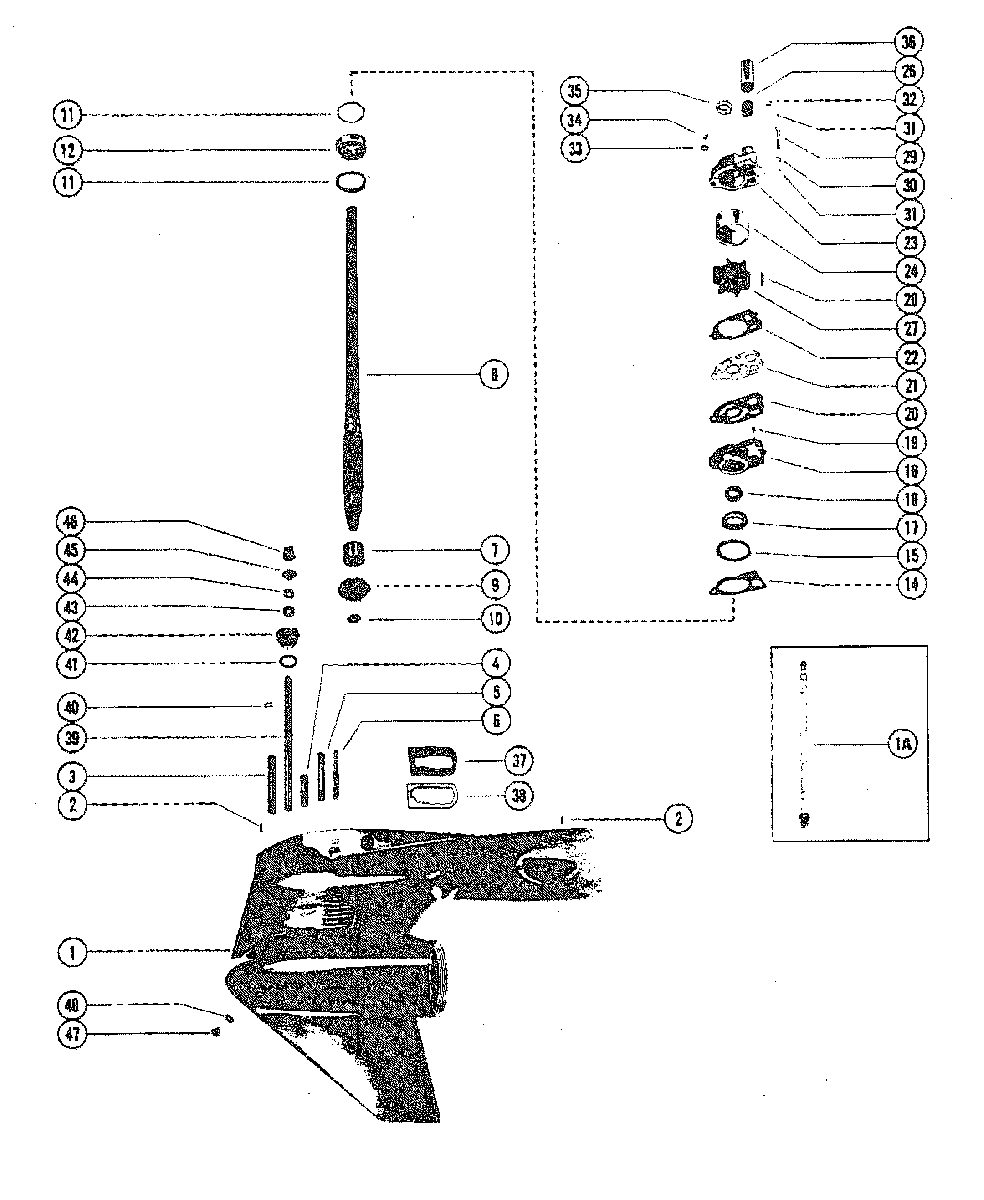

GEAR HOUSING (DRIVE SHAFT) для Mercury - 115 (6 CYL.) 5600967 THRU 6436122

  • №
    Артикул
    Название
  • -
    1655-7333T24 GEAR HOUSING ASS'Y. COMPLETE (LONG SHAFT)
    GEAR HOUSING ASS'Y. COMPLETE (LONG SHAFT)
  • -
    1655-7333A26 GEAR HOUSING ASS'Y. COMPLETE
    (EXTRA LONG SHAFT)
    GEAR HOUSING ASS'Y. COMPLETE
    (EXTRA LONG SHAFT)
  • 1
    1655-7333T23 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1A
    22-85822A10 CONNECTOR ASSEMBLY. SPEEDOMETER
    CONNECTOR ASSEMBLY. SPEEDOMETER
  • 2
    17-8M0084726 DOWEL PIN. GEAR HOUSING LOCATING
    DOWEL PIN. GEAR HOUSING LOCATING
  • 3
    16-57921 STUD, GEAR HOUSING (4") (LONG SHAFT)
    STUD, GEAR HOUSING (4") (LONG SHAFT)
  • 3
    16-77169 STUD, GEAR HOUSING (9") (EXTRA LONG SHAFT)
    STUD, GEAR HOUSING (9") (EXTRA LONG SHAFT)
  • 4
    16-8M0133358 STUD, GEAR HOUSING (2-1/6") (LONG SHAFT)
    STUD, GEAR HOUSING (2-1/6") (LONG SHAFT)
  • 4
    16-74730 STUD, GEAR HOUSING (7") (EXTRA LONG SHAFT)
    STUD, GEAR HOUSING (7") (EXTRA LONG SHAFT)
  • 5
    16-8M0034463 STUD, WATER PUMP (3-3/8")
    STUD, WATER PUMP (3-3/8")
  • 6
    16-69501 STUD, WATER PUMP (3-1/8")
    STUD, WATER PUMP (3-1/8")
  • 7
    31-32898T ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 8
    45-42646 DRIVE SHAFT (LONG SHAFT)
    DRIVE SHAFT (LONG SHAFT)
  • 8
    45-42645 DRIVE SHAFT (EXTRA LONG SHAFT)
    DRIVE SHAFT (EXTRA LONG SHAFT)
  • 9
    43-68548T3 PINION GEAR, DRIVE SHAFT
    PINION GEAR, DRIVE SHAFT
    Производитель Mercury-Mercruiser
  • 10
    11-35921 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 11
    23-70412 SPACER, BALL BEARING
    SPACER, BALL BEARING
  • 11
    15-57007A1 SHIM, BALL BEARING
    SHIM, BALL BEARING
  • 12
    31-69220T ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 14
    27-856704 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 15
    25-33145 "O" RING, WATER PUMP
    "O" RING, WATER PUMP
  • 16
    46-96146A5 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 17
    26-94038 OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 18
    26-16977 OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 19
    17-8M0084627 DOWEL PIN, WATER PUMP
    DOWEL PIN, WATER PUMP
  • 20
    27-8M0090319 GASKET, LOWER-WATER PUMP TO FACE PLATE
    GASKET, LOWER-WATER PUMP TO FACE PLATE
  • 21
    324351 FACE PLATE
    FACE PLATE
  • 22
    27-858524 GASKET, UPPER-FACE PLATE TO WATER PUMP
    GASKET, UPPER-FACE PLATE TO WATER PUMP
  • 23
    46-96148T1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 24
    48752T INSERT, WATER PUMP
    INSERT, WATER PUMP
  • 26
    26-38970 SEAL, RUBBER-WATER INLET TUBE
    SEAL, RUBBER-WATER INLET TUBE
  • 27
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 28
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 29
    10-30720 SCREW, WATER PUMP (1/4-20-HEX HEAD)
    SCREW, WATER PUMP (1/4-20-HEX HEAD)
  • 29
    10-96411 SCREW, WATER PUMP (14-8-HEX WASHER HEAD)
    SCREW, WATER PUMP (14-8-HEX WASHER HEAD)
  • 30
    13-26992 LOCKWASHER, WATER PUMP SCREW
    LOCKWASHER, WATER PUMP SCREW
  • 31
    12-29245 WASHER, WATER PUMP SCREW AND STUD
    WASHER, WATER PUMP SCREW AND STUD
  • 32
    11-35888 NUT, WATER PUMP SCREW
    NUT, WATER PUMP SCREW
  • 33
    12-36001 WASHER, WATER PUMP STUD
    WASHER, WATER PUMP STUD
  • 34
    11-82670911 NUT, WATER PUMP STUD
    NUT, WATER PUMP STUD
  • 35
    25-30271 RING, RUBBER-DRIVE SHAFT
    RING, RUBBER-DRIVE SHAFT
  • 36
    23-29804T SLEEVE, GUIDE-WATER INLET TUBE
    SLEEVE, GUIDE-WATER INLET TUBE
  • 37
    37641001 SEAL, EXHAUST
    SEAL, EXHAUST
  • 38
    38051 PLATE, SUPPORT-EXHAUST TUBE SEAL
    PLATE, SUPPORT-EXHAUST TUBE SEAL
  • 39
    77122 SHAFT, SHIFT-LOWER (EXTRA LONG SHAFT)
    SHAFT, SHIFT-LOWER (EXTRA LONG SHAFT)
  • 39
    76062A1 SHAFT ASSEMBLY, SHIFT-LOWER (LONG SHAFT)
    SHAFT ASSEMBLY, SHIFT-LOWER (LONG SHAFT)
  • 40
    53-29641 "E" RING, RETAINING-SHIFT SHAFT
    "E" RING, RETAINING-SHIFT SHAFT
  • 41
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-8164641 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 44
    12-77674 WASHER, RUBBER-SHIFT SHAFT BUSHING
    WASHER, RUBBER-SHIFT SHAFT BUSHING
  • 45
    78036 SPACER
    LOWER-NOT USED WITH FULL POWER TRIM
    SPACER
    LOWER-NOT USED WITH FULL POWER TRIM
  • 46
    43308T1 CAM
    REVERSE LOCKING -NOT USED WITH FULL POWER TRIM
    CAM
    REVERSE LOCKING -NOT USED WITH FULL POWER TRIM
  • 47
    10-79953Q04 SCREW, GREASE FILLER AND VENT HOLE
    SCREW, GREASE FILLER AND VENT HOLE
  • 47
    22-8M0058389 PLUG, DRAIN (MAGNETIC)
    PLUG, DRAIN (MAGNETIC)
  • 48
    12-191833 WASHER
    GREASE FILLER AND VENT HOLE SCREW
    WASHER
    GREASE FILLER AND VENT HOLE SCREW
  • -
    27-85653A87 GASKET SET
    GASKET SET
  • -
    46-96148A8 WATER PUMP REPAIR KIT
    WATER PUMP REPAIR KIT
  • -
    26-55682A1 SEAL REPAIR KIT
    SEAL REPAIR KIT
  • -
    53168A1 HEAVY DUTY WATER PUMP KIT
    HEAVY DUTY WATER PUMP KIT
