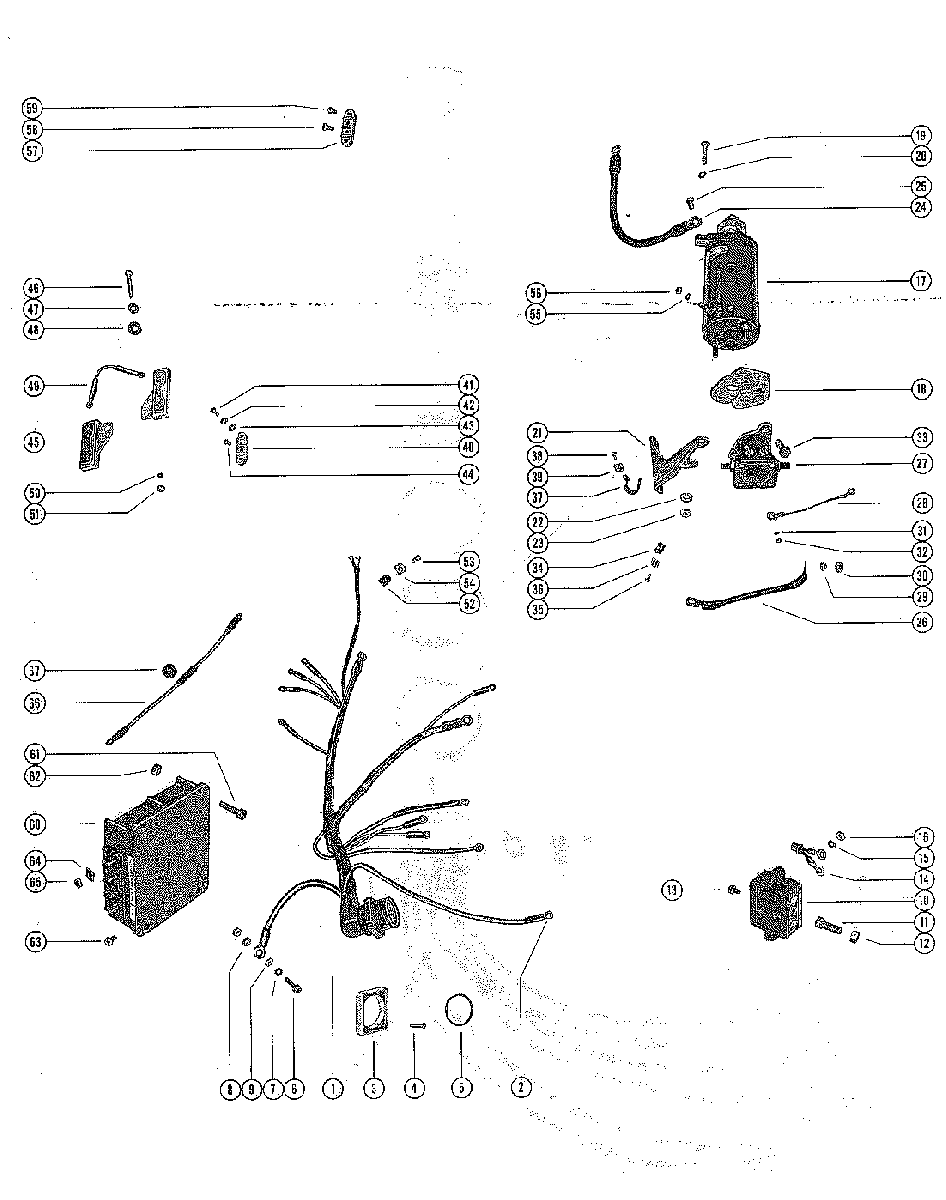

STR MTR,STR SOLENOID,RECTIFIER AND WIRING HARNES(MERC 1100E) для Mercury - 1100 1870204 THRU 2314955

  • №
    Артикул
    Название
  • 1
    39177 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 1
    45070 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 2
    30050 TERMINAL, HARNESS AND MERCURY SWITCH LEADS
    TERMINAL, HARNESS AND MERCURY SWITCH LEADS
  • 3
    26079A2 PLATE, WIRING HARNESS TO BOTTOM COWL
    PLATE, WIRING HARNESS TO BOTTOM COWL
  • 4
    10-45893 SCREW, HARNESS PLATE FASTENING
    SCREW, HARNESS PLATE FASTENING
  • 5
    24-28975 SPRING, GARTER - INTERNAL WIRING HARNESS
    SPRING, GARTER - INTERNAL WIRING HARNESS
  • 6
    10-45087 SCREW, GROUND WIRE TO BOTTOM COWL
    SCREW, GROUND WIRE TO BOTTOM COWL
  • 7
    13-25244 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 8
    13-24669 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 9
    11-20088 NUT, GROUND WIRE SCREW
    NUT, GROUND WIRE SCREW
  • 10
    32177A2 RECTIFIER ASSEMBLY
    RECTIFIER ASSEMBLY
  • 11
    10-26065 SCREW, RECTIFIER TO MOUNTING BRACKET
    SCREW, RECTIFIER TO MOUNTING BRACKET
  • 12
    11-29250 NUT, RECTIFIER MOUNTING SCREW
    NUT, RECTIFIER MOUNTING SCREW
  • 13
    10-35400 SCREW, HARNESS TERMINAL LEAD TO RECTIFIER
    SCREW, HARNESS TERMINAL LEAD TO RECTIFIER
  • 14
    332-2910A2 CLIPPER, SHORTING
    CLIPPER, SHORTING
  • 15
    13-26996 LOCKWASHER, RECTIFIER STATOR LEAD TERMINALS
    LOCKWASHER, RECTIFIER STATOR LEAD TERMINALS
  • 16
    11-68219 NUT, FASTENING - RECTIFIER STATOR LEADS
    NUT, FASTENING - RECTIFIER STATOR LEADS
  • 17
    50-45822A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 18
    45125 PLATE, SPACER - STARTER MOTOR
    PLATE, SPACER - STARTER MOTOR
  • 18
    45125 PLATE, SPACER - STARTER MOTOR
    PLATE, SPACER - STARTER MOTOR
  • 19
    10-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE
    SCREW, STARTER MOTOR TO CRANKCASE FLANGE
  • 20
    13-26993 LOCKWASHER, STARTER MOTOR FASTENING SCREW
    LOCKWASHER, STARTER MOTOR FASTENING SCREW
  • 21
    38747 BRACKET, SUPPORT - STARTER MOTOR
    BRACKET, SUPPORT - STARTER MOTOR
  • 22
    13-24669 LOCKWASHER, THRU BOLT
    LOCKWASHER, THRU BOLT
  • 23
    11-20890 NUT, THRU BOLT - BRACKET TO STARTER MOTOR
    NUT, THRU BOLT - BRACKET TO STARTER MOTOR
  • 24
    84-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
    CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
  • 25
    10-69035 SCREW, HARNESS GROUND LEAD TO STARTER MOTOR
    SCREW, HARNESS GROUND LEAD TO STARTER MOTOR
  • 26
    84-93388A14 CABLE, WIRE - STARTER MOTOR TO SOLENOID
    CABLE, WIRE - STARTER MOTOR TO SOLENOID
  • 27
    32082 SOILENOID, STARTER
    SOILENOID, STARTER
  • 28
    32278A1 GROUND STRAP ASSEMBLY, STARTER SOLENOID
    GROUND STRAP ASSEMBLY, STARTER SOLENOID
  • 29
    13-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")
    LOCKWASHER, SOLENOID TERMINAL (5/16")
  • 30
    11-22053 NUT, SOLENOID TERMINAL (5/16")
    NUT, SOLENOID TERMINAL (5/16")
  • 31
    13-26996 LOCKWASHER, SOLENOID TERMINAL (#10)
    LOCKWASHER, SOLENOID TERMINAL (#10)
  • 32
    11-68219 NUT, SOLENOID TERMINAL (#10)
    NUT, SOLENOID TERMINAL (#10)
  • 33
    10-29282 SCREW, SOLENOID TO STARTER MOTOR
    SCREW, SOLENOID TO STARTER MOTOR
  • 34
    54-24836 CLIP, LEAD WIRES TO SUPPORT BRACKET
    CLIP, LEAD WIRES TO SUPPORT BRACKET
  • 35
    10-62568 SCREW, LEAD WIRE CLIP FASTENING
    SCREW, LEAD WIRE CLIP FASTENING
  • 36
    8M0084613 "D" WASHER, CLIP FASTENING SCREW
    "D" WASHER, CLIP FASTENING SCREW
  • 37
    54-24871 CLAMP, WIRING HARNESS TO SUPPORT BRACKET
    CLAMP, WIRING HARNESS TO SUPPORT BRACKET
  • 38
    10-62568 SCREW, HARNESS CLAMP FASTENING
    SCREW, HARNESS CLAMP FASTENING
  • 39
    8M0084613 "D" WASHER, HARNESS CLAMP
    "D" WASHER, HARNESS CLAMP
  • 40
    30212 BLOCK, TERMINAL - UPPER FUEL PUMP PAD
    BLOCK, TERMINAL - UPPER FUEL PUMP PAD
  • 41
    10-22245 SCREW, TERMINAL BLOCK FASTENING
    SCREW, TERMINAL BLOCK FASTENING
  • 42
    13-26996 LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
    LOCKWASHER, TERMINAL BLOCK FASTENING SCREW
  • 43
    12-26014 WASHER, TERMINAL BLOCK FASTENING SCREW
    WASHER, TERMINAL BLOCK FASTENING SCREW
  • 44
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 45
    82-72878A1 BALLAST, IGNITION COIL
    BALLAST, IGNITION COIL
  • 46
    10-28666 SCREW, BALLAST AND PORT COVER MOUNTING (1")
    SCREW, BALLAST AND PORT COVER MOUNTING (1")
  • 47
    13-26992 LOCKWASHER, BALLAST AND PORT COVER MOUNTING
    LOCKWASHER, BALLAST AND PORT COVER MOUNTING
  • 48
    12-69057 WASHER, BALLAST AND PORT COVER MOUNTING
    WASHER, BALLAST AND PORT COVER MOUNTING
  • 49
    39181 JUMPER, BALLAST TO BALLAST
    JUMPER, BALLAST TO BALLAST
  • 50
    13-26995 LOCKWASHER, BALLAST JUMPER LEAD TERMINALS
    LOCKWASHER, BALLAST JUMPER LEAD TERMINALS
  • 51
    11-21923T NUT, BALLAST JUMPER LEADS FASTENING
    NUT, BALLAST JUMPER LEADS FASTENING
  • 52
    54-24836 CLIP, WIRING HARNESS TO CRANKCASE FLANGE
    CLIP, WIRING HARNESS TO CRANKCASE FLANGE
  • 53
    10-8M0113176 SCREW, HARNESS CLIP FASTENING
    SCREW, HARNESS CLIP FASTENING
  • 54
    8M0084613 'D' WASHER, HARNESS CLIP
    'D' WASHER, HARNESS CLIP
  • 55
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 56
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 57
    30212 BLOCK, TERMINAL - EXHAUST COVER
    BLOCK, TERMINAL - EXHAUST COVER
  • 58
    10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK
    SCREW, HARNESS LEADS TO TERMINAL BLOCK
  • 59
    10-72169 SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
    SCREW, TERMINAL BLOCK TO EXHAUST MANIFOLD COVER
  • 60
    332-2986A5 SWITCH BOX ASSEMBLY
    NO LONGER AVAILABLE FOR REPLACEMENT, ORDER A-332-2986A5 SWITCH BOX KIT, WHICH INCLUDES THE FOLLOWING PARTS: A-332-2986A4 SWITCH BOX ASS'Y (1) A-393-2799A9 DISTRIBUTOR ASS'Y (1) A-332-2910A2 RECTIFIER ASS'Y (1)
    SWITCH BOX ASSEMBLY
    NO LONGER AVAILABLE FOR REPLACEMENT, ORDER A-332-2986A5 SWITCH BOX KIT, WHICH INCLUDES THE FOLLOWING PARTS: A-332-2986A4 SWITCH BOX ASS'Y (1) A-393-2799A9 DISTRIBUTOR ASS'Y (1) A-332-2910A2 RECTIFIER ASS'Y (1)
  • 61
    10-64278 SCREW, SWITCH BOX TO FRONT BRACKET
    SCREW, SWITCH BOX TO FRONT BRACKET
  • 62
    11-24652 NUT, SWITCH BOX SCREW
    NUT, SWITCH BOX SCREW
  • 63
    10-45218 SCREW, SWITCH BOX
    SCREW, SWITCH BOX
  • 64
    12-45075 WASHER, SWITCH BOX TERMINAL
    WASHER, SWITCH BOX TERMINAL
  • 65
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 66
    45146 WIRE, RECTIFER TO SWITCH BOX
    WIRE, RECTIFER TO SWITCH BOX
  • 67
    25-26547 GROMMET, RECTIFIER TO SWITCH BOX WIRE
    GROMMET, RECTIFIER TO SWITCH BOX WIRE
