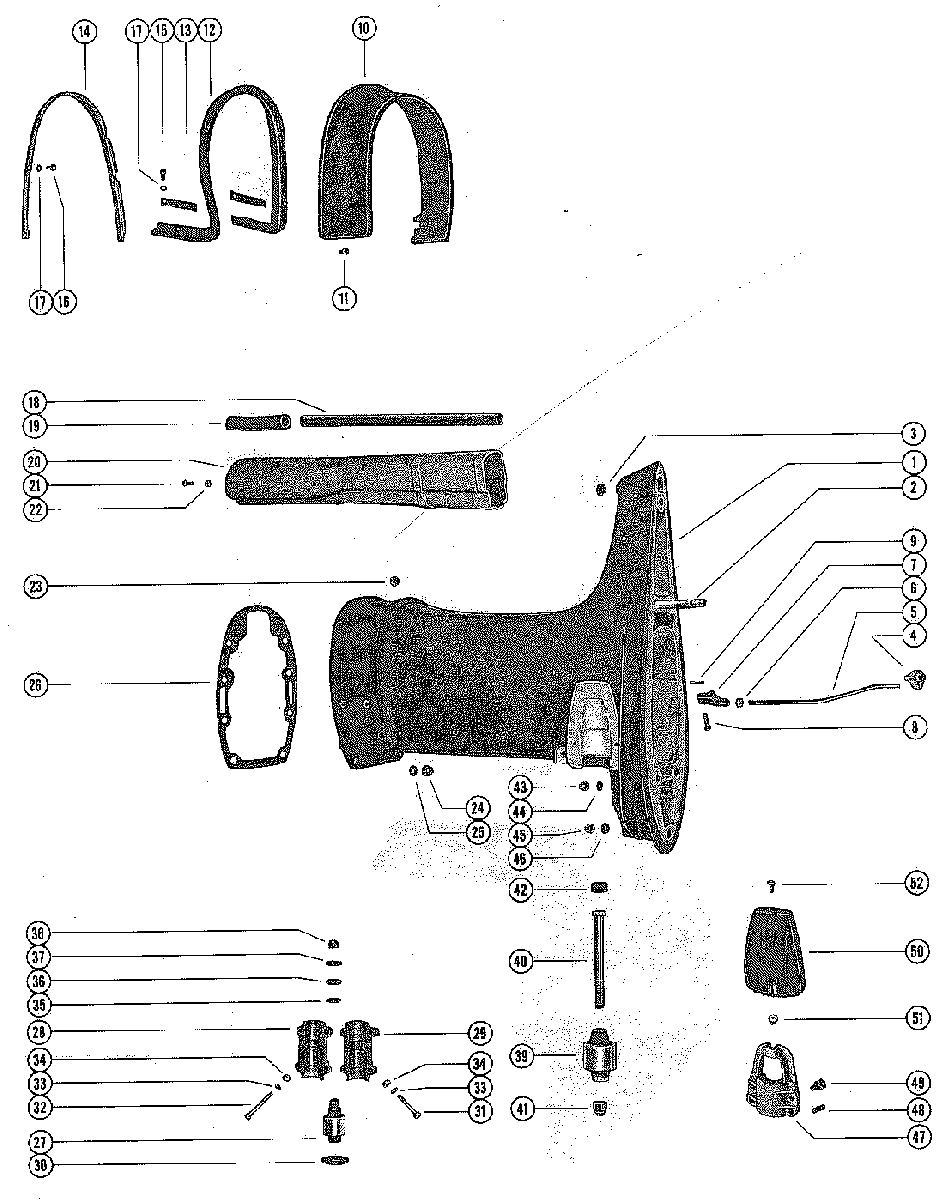

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 1100 1870204 THRU 2314955

  • №
    Артикул
    Название
  • 1
    1552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
  • 1
    1551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
    DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 3
    19-32298 PLUG, PLASTIC - TRIM TAB SCREW HOLE
    PLUG, PLASTIC - TRIM TAB SCREW HOLE
  • 4
    52887 GUIDE, PUSH ROD - REVERSE LOCKING
    SERIAL 00000000-02208677
    GUIDE, PUSH ROD - REVERSE LOCKING
    SERIAL 00000000-02208677
  • 5
    47591A1 ROD, PUSH - REVERSE LOCK(SHORT SHAFT)
    SERIAL 00000000-02208677
    ROD, PUSH - REVERSE LOCK(SHORT SHAFT)
    SERIAL 00000000-02208677
  • 5
    47558A2 ROD, PUS - REVERSE LOCK(LONG SHAFT)
    SERIAL 00000000-02208677
    ROD, PUS - REVERSE LOCK(LONG SHAFT)
    SERIAL 00000000-02208677
  • 6
    11-29250 NUT, JAM - PUSH ROD
    SERIAL 00000000-02208677
    NUT, JAM - PUSH ROD
    SERIAL 00000000-02208677
  • 7
    39022 YOKE, PUSH ROD
    SERIAL 00000000-02208677
    YOKE, PUSH ROD
    SERIAL 00000000-02208677
  • 4
    52887 GUIDE, PUSH ROD - REVERSE LOCKING
    SERIAL 02208678-09999999
    GUIDE, PUSH ROD - REVERSE LOCKING
    SERIAL 02208678-09999999
  • 5
    47591 ROD, PUSH - REVERSE LOCK(SHOFT SHAFT)
    SERIAL 02208678-09999999
    ROD, PUSH - REVERSE LOCK(SHOFT SHAFT)
    SERIAL 02208678-09999999
  • 5
    47558 ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    SERIAL 02208678-09999999
    ROD, PUSH - REVERSE LOCK (LONG SHAFT)
    SERIAL 02208678-09999999
  • 6
    11-69254 NUT, JAM - PUSH ROD
    SERIAL 02208678-09999999
    NUT, JAM - PUSH ROD
    SERIAL 02208678-09999999
  • 7
    47559 YOKE, PUSH ROD
    SERIAL 02208678-09999999
    YOKE, PUSH ROD
    SERIAL 02208678-09999999
  • 8
    24-78203A2 PIN, PUSH ROD TO RECERSE LOCK
    PIN, PUSH ROD TO RECERSE LOCK
  • 9
    18-25191 COTTER PIN, PUSH ROD PIN
    COTTER PIN, PUSH ROD PIN
  • 10
    37417 COVER, TRIM - DRIVE SHAFT HOUSING
    COVER, TRIM - DRIVE SHAFT HOUSING
  • 11
    10-37571 SCREW, TRIM COVER TO BOTTOM COWL
    SCREW, TRIM COVER TO BOTTOM COWL
  • 12
    37919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
    SEAL, TRIM COVER TO DRIVE SHAFT HOUSING
  • 13
    37665 STRIP, RETAINING - TRIM COVER SEAL (SIDE)
    STRIP, RETAINING - TRIM COVER SEAL (SIDE)
  • 14
    38052 STRIP, RETAINING - TRIM COVER SEAL (REAR)
    STRIP, RETAINING - TRIM COVER SEAL (REAR)
  • 15
    10-38055 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
    SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
  • 16
    10-37571 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
    SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
  • 17
    12-30164 WASHER, RETAINING STRIP SCREW
    WASHER, RETAINING STRIP SCREW
  • 18
    32-37446 TUBE, WATER INLET(SHORT SHAFT)
    TUBE, WATER INLET(SHORT SHAFT)
  • 18
    32-37438 TUBE, WATER INLET(LONG SHAFT)
    TUBE, WATER INLET(LONG SHAFT)
  • 19
    23-29591 SLEEVE, RUBBER - WATER INLET TUBE
    SLEEVE, RUBBER - WATER INLET TUBE
  • 20
    38469 TUBE, EXHAUST(SHORT SHAFT)
    TUBE, EXHAUST(SHORT SHAFT)
  • 20
    38470 TUBE, EXHAUST(LONG SHAFT)
    TUBE, EXHAUST(LONG SHAFT)
  • 21
    10-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE
    SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE
  • 22
    11-35888 NUT, EXHAUST TUBE SCREW
    NUT, EXHAUST TUBE SCREW
  • 23
    11-23161 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 24
    11-8M0042636 NUT, POWERHEAD STUDS
    NUT, POWERHEAD STUDS
  • 25
    12-20086 WASHER, POWERHEAD STUDS
    WASHER, POWERHEAD STUDS
  • 26
    27-38471 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
    GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
  • 27
    75296 MOUNT, RUBBER - UPPER
    MOUNT, RUBBER - UPPER
  • 27
    75297 MOUNT, RUBBER - UPPER(HEAVY DUTY)
    MOUNT, RUBBER - UPPER(HEAVY DUTY)
  • 28
    31260 COVER, UPPER MOUNT - OUTSIDE HALF
    COVER, UPPER MOUNT - OUTSIDE HALF
  • 29
    37712 COVER, UPPER MOUNT - INSIDE HALF
    COVER, UPPER MOUNT - INSIDE HALF
  • 30
    24929 PACKING, "U" CUP
    PACKING, "U" CUP
  • 31
    10-20012 SCREW, UPPER MOUNT COVER (1 5/8")
    SCREW, UPPER MOUNT COVER (1 5/8")
  • 32
    10-28775 SCREW, UPPER MOUNT COVER (2 1/8")
    SCREW, UPPER MOUNT COVER (2 1/8")
  • 33
    12-29245 WASHER, UPPER MOUNT COVER SCREW
    WASHER, UPPER MOUNT COVER SCREW
  • 34
    11-35888 NUT, SUPPER MOUNT COVER SCREW
    NUT, SUPPER MOUNT COVER SCREW
  • 35
    12-31262 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 36
    12-31261 WASHER, RUBBER - UPPER MOUNT BOLT
    WASHER, RUBBER - UPPER MOUNT BOLT
  • 37
    12-31263 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 38
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 39
    37399 MOUNT, RUBBER - LOWER
    MOUNT, RUBBER - LOWER
  • 39
    75300 MOUNT, RUBBER - LOWER (HEAVY DUTY)
    MOUNT, RUBBER - LOWER (HEAVY DUTY)
  • 40
    10-75284 SCREW, UPPER MOUNT (5 1/2")
    SCREW, UPPER MOUNT (5 1/2")
  • 41
    11-25096 NUT, MOUNT SCREW
    NUT, MOUNT SCREW
  • 42
    25067 BUMPER, RUBBER - MOUNTING SCREW
    BUMPER, RUBBER - MOUNTING SCREW
  • 43
    11-34933 NUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDS
    NUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDS
  • 44
    12-45176 WASHER, GEAR HSG. TO DRIVE SHAFT HSG. STUDS
    (PART TO GEAR HOUSING ASSEMBLY)
    WASHER, GEAR HSG. TO DRIVE SHAFT HSG. STUDS
    (PART TO GEAR HOUSING ASSEMBLY)
  • 45
    11-29489 NUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDS
    NUT, GEAR HSG. AND DRIVE SHAFT HSG. STUDS
  • 46
    12-45176 WASHER, GEAR HSG. TO DRIVE SHAFT HSG. STUDS
    (PART TO GEAR HOUSING ASSEMBLY)
    WASHER, GEAR HSG. TO DRIVE SHAFT HSG. STUDS
    (PART TO GEAR HOUSING ASSEMBLY)
  • 47
    35608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HSG.
    CLAMP, LOWER MOUNT TO DRIVE SHAFT HSG.
  • 48
    24-35522 SPRING, TENSION - LOWER MOUNT CLAMP
    SPRING, TENSION - LOWER MOUNT CLAMP
  • 49
    10-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
    SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING
  • 50
    35474T COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 51
    11-35521 NUT, LOWER MOUNT CLAMP COVER
    NUT, LOWER MOUNT CLAMP COVER
  • 52
    10-29722 SCREW, COVER TO LOWER CLAMP MOUNT
    SCREW, COVER TO LOWER CLAMP MOUNT
