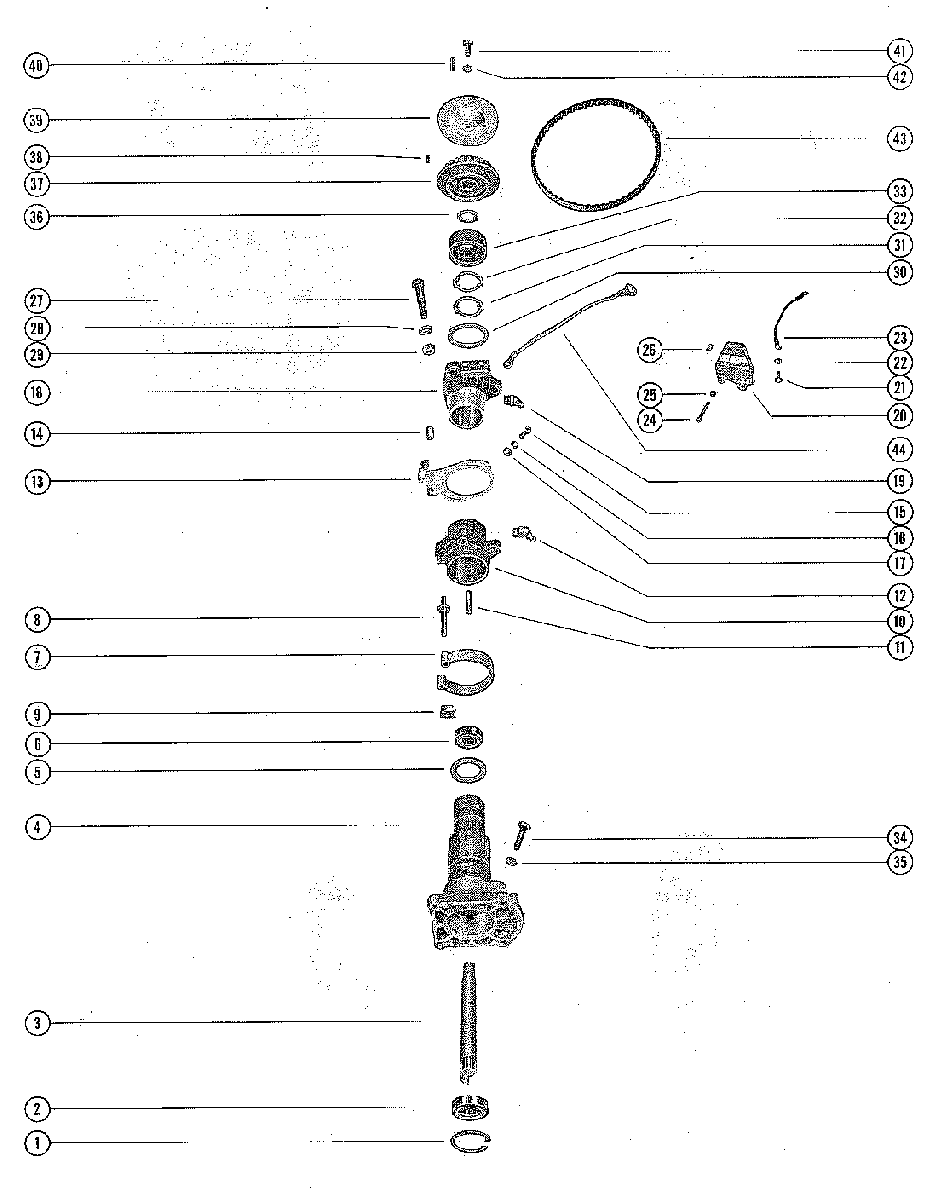

DISTRIBUTOR ADAPTOR AND PILOT ASSEMBLY для Mercury - 1100 1870204 THRU 2314955
-
№АртикулНазвание
-
153-26406 RING, SNAP - BALL BEARING RETAININGRING, SNAP - BALL BEARING RETAINING
-
230-26379 BEARING, BALL - DRIVE SHAFTBEARING, BALL - DRIVE SHAFT
-
345-30573 DRIVE SHAFT< DISTRIBUTORDRIVE SHAFT< DISTRIBUTOR
-
445960A1 PILOT ASSEMBLY, DISTRIBUTOR
SERIAL 00000000-02101742PILOT ASSEMBLY, DISTRIBUTOR
SERIAL 00000000-02101742 -
445960A1 PILOT ASSEMBLY, DISTRIBUTOR
SERIAL 00210743-09999999PILOT ASSEMBLY, DISTRIBUTOR
SERIAL 00210743-09999999 -
512-46246 WASHER, DISTRIBUTOR TO PILOTWASHER, DISTRIBUTOR TO PILOT
-
445960A1 PILOT ASSEMBLY, DISTRIBUTORPILOT ASSEMBLY, DISTRIBUTOR
-
630-20066 BEARING, BALL - DISTRIBUTOR PILOTBEARING, BALL - DISTRIBUTOR PILOT
-
724-29275 SPRING, HORSESHOESPRING, HORSESHOE
-
817-27962 PIN, SPRING TERMINALPIN, SPRING TERMINAL
-
932197 STOP, SPRING TERMINAL PINSTOP, SPRING TERMINAL PIN
-
1055804A1 ECONOMIZER COLLAR AND PIN ASSEMBLYECONOMIZER COLLAR AND PIN ASSEMBLY
-
1117-27961 PIN, SPRING RETAINERPIN, SPRING RETAINER
-
1222-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
1332044A1 THROTTLE ACTUATOR ASSEMBLYTHROTTLE ACTUATOR ASSEMBLY
-
1423-26602 BUSHING, NYLON - THROTTLE ACTUATORBUSHING, NYLON - THROTTLE ACTUATOR
-
1510-69022 SCREW, THROTTLE ACTUATOR TO SECTOR GEARSCREW, THROTTLE ACTUATOR TO SECTOR GEAR
-
1613-26996 LOCKWASHER, THROTTLE ACTUATOR FASTENING SCREWLOCKWASHER, THROTTLE ACTUATOR FASTENING SCREW
-
1712-847883 WASHER, THROTTLE ACTUCATOR FASTENING SCREWWASHER, THROTTLE ACTUCATOR FASTENING SCREW
-
1830645 ADAPTOR, DISTRIBUTORADAPTOR, DISTRIBUTOR
-
1922-25094 FITTING, GREASE - ADAPTORFITTING, GREASE - ADAPTOR
-
2055805 BRACKET, STOPBRACKET, STOP
-
2110-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTORSCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR
-
2212-20533 WASHER, STOP BRACKET FASTENING SCREWWASHER, STOP BRACKET FASTENING SCREW
-
2337747 GROUND STRAP, STOP BRACKET TO FRONT SUPPORT BRACKETGROUND STRAP, STOP BRACKET TO FRONT SUPPORT BRACKET
-
2410-24228 SCREW, STOP BRACKET ADJUSTINGSCREW, STOP BRACKET ADJUSTING
-
2511-20890 NUT, STOP BRACKET ADJUSTING SCREWNUT, STOP BRACKET ADJUSTING SCREW
-
2626852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
2710-78841 SCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGESCREW, ADAPTOR AND PILOT TO CRANKCASE FLANGE
-
2812-20084 WASHER, ADAPTOR AND PILOT FASTENING SCREWWASHER, ADAPTOR AND PILOT FASTENING SCREW
-
2911-22053 NUT, ADAPTOR AND PILOT FASTENING SCREWNUT, ADAPTOR AND PILOT FASTENING SCREW
-
3012-27939 WASHER, THRUST - DISTRIBUTOR PILOTWASHER, THRUST - DISTRIBUTOR PILOT
-
3114-27960 TAB WASHER, CAP LOCKINGTAB WASHER, CAP LOCKING
-
3213-27959 WASHER, WAVE - TAP WASHER TENSIONWASHER, WAVE - TAP WASHER TENSION
-
3327955 CAP, ADAPTOR AND PILOT FASTENINGCAP, ADAPTOR AND PILOT FASTENING
-
3410-28668 SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (7/8")SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (7/8")
-
3410-28667 SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (1 1/8")SCREW, ADAPTOR AND PILOT TO DISTRIBUTOR (1 1/8")
-
3513-26992 LOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREWLOCKWASHER, ADAPTOR AND PILOT TO DISTRIBUTOR SCREW
-
3623-29909 SPACER, DRIVEN PULLEYSPACER, DRIVEN PULLEY
-
3729906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
3817-29908 PIN, DRIVE PULLEYPIN, DRIVE PULLEY
-
3929907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
4028-29910 KEY, MAGNETO DRIVINGKEY, MAGNETO DRIVING
-
4110-41506 SCREW, PULLEY CLAMPINGSCREW, PULLEY CLAMPING
-
4213-26996 LOCKWASHER, PULLEY CLAMPING SCREWLOCKWASHER, PULLEY CLAMPING SCREW
-
4320140 BELT, TIMINGBELT, TIMING
-
4430109 GROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASEGROUND STRAP ASSEMBLY, ADAPTOR TO CRANKCASE
