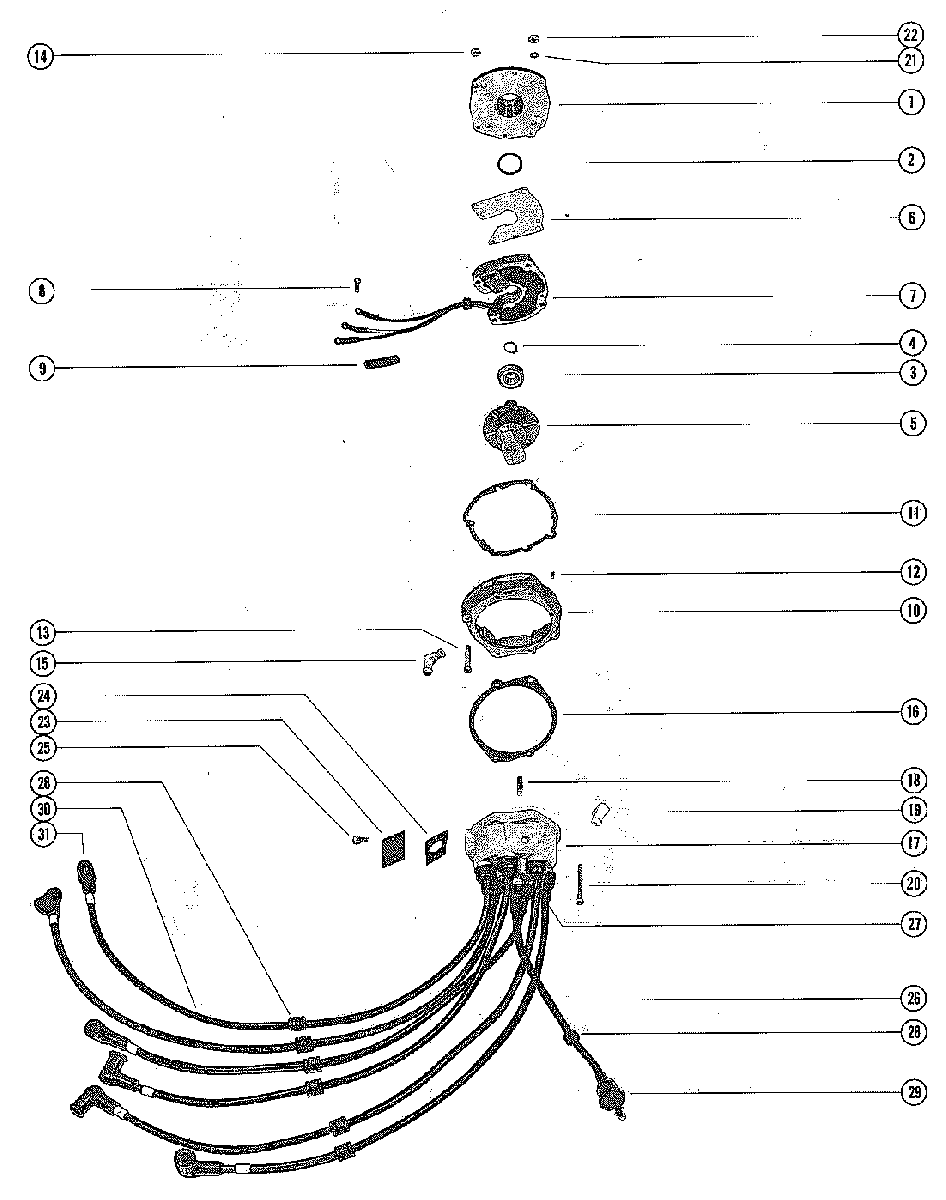

DISTRIBUTOR ASSEMBLY, COMPLETE (MERC 1100E-SS-1) для Mercury - 1100 1870204 THRU 2314955

  • №
    Артикул
    Название
  • -
    393-2799A9 DISTRIBUTOR ASSEMBLY, COMPLETE
    SERIAL 00000000-02210387
    DISTRIBUTOR ASSEMBLY, COMPLETE
    SERIAL 00000000-02210387
  • -
    393-2799A9 DISTRIBUTOR ASSEMBLY, COMPLETE
    SERIAL 02210388-09999999
    DISTRIBUTOR ASSEMBLY, COMPLETE
    SERIAL 02210388-09999999
  • 1
    393-2799A21 HOUSING, PRIMARY
    HOUSING, PRIMARY
  • 2
    13-26917 WASHER, WAVE - PRIMARY HOUSING
    WASHER, WAVE - PRIMARY HOUSING
  • 3
    30-26379 BEARING, BALL - ROTOR SHAFT
    BEARING, BALL - ROTOR SHAFT
  • 4
    53-45906 RING, RETAINER - ROTOR SHAFT BALL BEARING
    RING, RETAINER - ROTOR SHAFT BALL BEARING
  • 5
    393-2921A7 ROTOR SHAFT ASSEMBLY
    SERIAL 00000000-02210387
    ROTOR SHAFT ASSEMBLY
    SERIAL 00000000-02210387
  • 5
    393-2921A7 ROTOR SHAFT ASSEMBLY
    SERIAL 02210388-09999999
    ROTOR SHAFT ASSEMBLY
    SERIAL 02210388-09999999
  • 6
    393-2795 SHIM, TRIGGER HOUSING TO PRIMARY HOUSING
    SHIM, TRIGGER HOUSING TO PRIMARY HOUSING
  • 7
    393-2918A6 TRIGGER HOUSING ASSEMBLY
    TRIGGER HOUSING ASSEMBLY
  • 8
    10-38055 SCREW, SHIM AND TRIGGER HOUSING TO PRIMARY HOUSING
    SCREW, SHIM AND TRIGGER HOUSING TO PRIMARY HOUSING
  • 9
    85-623594 SLEEVE, TRIGGER HOUSING CABLES
    SLEEVE, TRIGGER HOUSING CABLES
  • 10
    393-3014A2 ADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAP
    ADAPTOR ASSEMBLY, HOUSING TO DISTRIBUTOR CAP
  • 11
    27-46351 GASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOW
    GASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOW
  • 11
    27-45910 GASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOW
    GASKET, ADAPTOR TO PRIMARY HOUSING SEE NOTE BELOW
  • 12
    17-20032 DOWEL PIN, ADAPTOR TO PRIMARY HOUSING
    DOWEL PIN, ADAPTOR TO PRIMARY HOUSING
  • 13
    10-32627 SCREW, ADAPTOR TO HOUSING
    SCREW, ADAPTOR TO HOUSING
  • 14
    11-46438 NUT, ADAPTOR TO HOUSING SCREW
    NUT, ADAPTOR TO HOUSING SCREW
  • 15
    22-31521A1 ELBOW ASSEMBLY, VENT HOUSE - ADAPTOR HOSUING
    ELBOW ASSEMBLY, VENT HOUSE - ADAPTOR HOSUING
  • 16
    27-36268 GASKET, DISTRIBUTOR TO ADAPTOR
    GASKET, DISTRIBUTOR TO ADAPTOR
  • 17
    393-1927A9 DISTRIBUTOR CAP ASSEMBLY
    DISTRIBUTOR CAP ASSEMBLY
  • 18
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 19
    22-31521 ELBOW, VEN HOSE - DISTRIBUTOR CAP
    ELBOW, VEN HOSE - DISTRIBUTOR CAP
  • 20
    10-60464 SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING (2")
    SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING (2")
  • 21
    12-89302 WASHER, DISTRIBUTOR CAP FASTENING SCREW
    WASHER, DISTRIBUTOR CAP FASTENING SCREW
  • 22
    11-46438 NUT, DISTRIBUTOR CAP FASTENING SCREW
    NUT, DISTRIBUTOR CAP FASTENING SCREW
  • 23
    393-2725 COVER, SIDE INLET - DISTRIBUTOR
    COVER, SIDE INLET - DISTRIBUTOR
  • 24
    27-26447 GASKET, SIDE INLET COVER TO DISTRIBUTOR CAP
    GASKET, SIDE INLET COVER TO DISTRIBUTOR CAP
  • 25
    10-45380 SCREW, SIDE INLET COVER TO DISTRIBUTOR CAP
    SCREW, SIDE INLET COVER TO DISTRIBUTOR CAP
  • 26
    393-2729A1 HIGH TENSION CABLE ASSEMBLY - DISTRIBUTOR TO COIL
    HIGH TENSION CABLE ASSEMBLY - DISTRIBUTOR TO COIL
  • --
    8M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)
    CONNECTOR, HIGH TENSION CABLE (CAP END)
  • 27
    85-94589 SLEEVE, TERMINAL COVER
    SLEEVE, TERMINAL COVER
  • 28
    25-26547 GROMMET, HIGH TENSION CABLE
    GROMMET, HIGH TENSION CABLE
  • 29
    332-2854T01 BOOT, HIGH TENSION CABLE TO COIL
    BOOT, HIGH TENSION CABLE TO COIL
  • 27
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • 28
    25-26547 GROMMET, SPARK PLUG LEAD
    GROMMET, SPARK PLUG LEAD
  • 30
    84-813715A1 SPARK PLUG LEAD ASSEMBLY (#3, #4 AND #5)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MEARKERS
    SPARK PLUG LEAD ASSEMBLY (#3, #4 AND #5)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MEARKERS
  • 30
    84-813715A1 SPARK PLUG LEAD ASSEMBLY (#2 AND #6)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MEARKERS
    SPARK PLUG LEAD ASSEMBLY (#2 AND #6)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MEARKERS
  • 30
    84-813715A1 SPARK PLUG LEAD ASSEMBLY (#1)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MEARKERS
    SPARK PLUG LEAD ASSEMBLY (#1)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MEARKERS
  • --
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 31
    85-63709A1 PROTECTOR, SPARK PLUG LEAD
    PROTECTOR, SPARK PLUG LEAD
