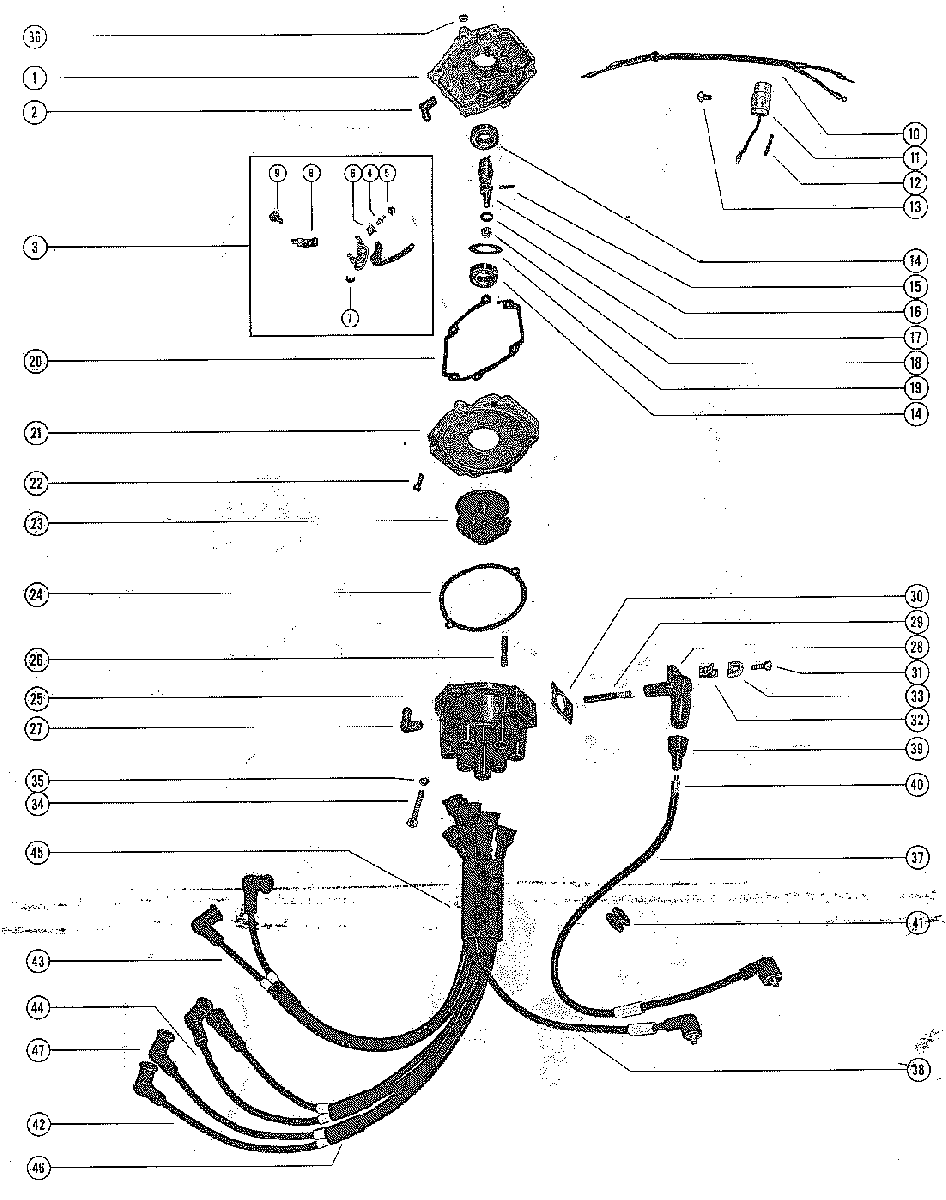

DISTRIBUTOR ASSEMBLY, COMPLETE (MERC 1100E & MERC 1100E-SS) для Mercury - 1100 1870204 THRU 2314955

  • №
    Артикул
    Название
  • -
    393-1282A17 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • -
    393-1282A22 DISTRIBUTOR ASSEMBLY, COMPLETE
    DISTRIBUTOR ASSEMBLY, COMPLETE
  • 1
    393-1282 HOUSING, PRIMARY
    HOUSING, PRIMARY
  • 2
    22-25885A1 ELBOW ASSEMBLY, VENT HOSE - PRIMARY HOUSING
    ELBOW ASSEMBLY, VENT HOSE - PRIMARY HOUSING
  • 3
    393-1504A11 BREAKER ASSEMBLY, COMPLETE
    BREAKER ASSEMBLY, COMPLETE
  • 4
    16-29230 STUD, PRIMARY LEAD AND TENSION SPRING
    STUD, PRIMARY LEAD AND TENSION SPRING
  • 5
    11-29236 NUT, PRIMARY LEAD FASTENING
    NUT, PRIMARY LEAD FASTENING
  • 6
    393-1586 GROMMET, PLATIC - BREAKER ASSEMBLY
    GROMMET, PLATIC - BREAKER ASSEMBLY
  • 7
    53-21058 "E" RING, BREAKER TO PIVOT PIN
    "E" RING, BREAKER TO PIVOT PIN
  • 8
    393-1287A2 CAM WICK AND HOLDER ASSEMBLY
    CAM WICK AND HOLDER ASSEMBLY
  • 9
    10-20597 SCREW, BREAKER HOLDER TO HOUSING
    SCREW, BREAKER HOLDER TO HOUSING
  • 10
    393-1656 WIRE, PRIMARY GROUND
    WIRE, PRIMARY GROUND
  • 11
    393-1283A1 ,CONDENSER
    ,CONDENSER
  • --
    23-45006 SPACER
    SPACER
  • --
    393-2730 BRACKET, SPACER MOUNTING
    BRACKET, SPACER MOUNTING
  • 12
    38700 SNUBBER, CONDENSER AND SPACER
    SNUBBER, CONDENSER AND SPACER
  • 13
    10-29434 SCREW, CONDENSER AND SPACER TO HOUSING
    SCREW, CONDENSER AND SPACER TO HOUSING
  • 14
    30-26379 ,BEARING, BALL - CAL SHAFT
    ,BEARING, BALL - CAL SHAFT
  • 15
    17-25319 PIN, ROLL - CAM SHAFT
    PIN, ROLL - CAM SHAFT
  • 16
    393-1779A2 SHAFT ASSEMBLY- DISTRIBUTOR CAM
    SHAFT ASSEMBLY- DISTRIBUTOR CAM
  • 16
    332-2802A2 SHAFT ASSEMBLY - DISTRIBUTOR CAM
    SHAFT ASSEMBLY - DISTRIBUTOR CAM
  • 17
    25-26543 "O" RING, CAM SHAFT
    "O" RING, CAM SHAFT
  • 18
    23-28933 BUSHING, DISTRIBUTOR CAM SHAFT
    BUSHING, DISTRIBUTOR CAM SHAFT
  • 19
    13-26917 WASHER, WAVE - BALL BEARING TENSION
    WASHER, WAVE - BALL BEARING TENSION
  • 20
    27-26412 GASKET, HOUSING TO ADAPTOR
    GASKET, HOUSING TO ADAPTOR
  • 21
    393-1278 ADAPTOR, HOUSING TO DISTRIBUTOR CAP
    ADAPTOR, HOUSING TO DISTRIBUTOR CAP
  • 22
    10-32651 SCREW, ADAPTOR TO HOUSING
    SCREW, ADAPTOR TO HOUSING
  • 23
    393-1280A1 ROTOR, DISTRIBUTOR
    ROTOR, DISTRIBUTOR
  • 24
    27-36268 GASKET, DISTRIBUTOR CAP TO ADAPTOR
    GASKET, DISTRIBUTOR CAP TO ADAPTOR
  • 25
    393-1927A9 DISTRIBUTOR CAP ASSEMBLY
    DISTRIBUTOR CAP ASSEMBLY
  • 25
    393-1927A9 DISTRIBUTOR CAP ASSEMBLY
    DISTRIBUTOR CAP ASSEMBLY
  • 26
    393-1293A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 27
    22-31521 ELBOW, VENT HOSE - DISTRIBUTOR CAP
    ELBOW, VENT HOSE - DISTRIBUTOR CAP
  • 28
    F1277 SLIED INLET COVER ASSEMBLY
    SLIED INLET COVER ASSEMBLY
  • 29
    393-1292A1 BRUSH AND SPRING ASSEMBLY
    BRUSH AND SPRING ASSEMBLY
  • 28
    393-2725 COVER, SIDE INLET (NOT AS SHOWN)
    COVER, SIDE INLET (NOT AS SHOWN)
  • 30
    27-26447 GASKET, SIDE INLET TO DISTRIBUTOR CAP
    GASKET, SIDE INLET TO DISTRIBUTOR CAP
  • 31
    10-29167 SCREW, SIDE INLET TO DISTRIBUTOR CAP
    SCREW, SIDE INLET TO DISTRIBUTOR CAP
  • 31
    10-45380 SCREW, SIDE INLET COVER TO DISTRIBUTOR CAP
    SCREW, SIDE INLET COVER TO DISTRIBUTOR CAP
  • 32
    54-24836 CLIP, DISTRIBUTOR LEAD WIRE TO SWITCH BOX
    CLIP, DISTRIBUTOR LEAD WIRE TO SWITCH BOX
  • 33
    8M0084613 "D" WASHER, SIDE INLET COVER SCREW
    "D" WASHER, SIDE INLET COVER SCREW
  • 34
    10-29158 SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING
    SCREW, DISTRIBUTOR CAP TO ADAPTOR TO HOUSING
  • 35
    12-89302 WASHER, DISTRIBUTOR CAP FASTENING SCREW
    WASHER, DISTRIBUTOR CAP FASTENING SCREW
  • 36
    11-21806 NUT, DISTRIBUTOR CAP FASTENING SCREW
    NUT, DISTRIBUTOR CAP FASTENING SCREW
  • 37
    84-821945A37 HIGH TENSION CABLE ASSEMBLY (COIL #2)
    HIGH TENSION CABLE ASSEMBLY (COIL #2)
  • 38
    84-821945A27 HIGH TENSION CABLE ASSEMBLY (COIL #1)
    HIGH TENSION CABLE ASSEMBLY (COIL #1)
  • 38
    393-2729A1 HIGH TENSION CABLE ASSEMBLY
    HIGH TENSION CABLE ASSEMBLY
  • 39
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • 39
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • --
    332-2854T01 BOOT, TERMINAL END COVER
    BOOT, TERMINAL END COVER
  • 40
    8M0084600 CONNECTOR, HIGH TENSION CABLE (CAP END)
    CONNECTOR, HIGH TENSION CABLE (CAP END)
  • 41
    25-26547 GROMMET, HIGH TENSION CABLE
    GROMMET, HIGH TENSION CABLE
  • 41
    25-26547 GROMMET, SPARK PLUG LEAD
    GROMMET, SPARK PLUG LEAD
  • 42
    84-813715A1 SPARK PLUG LEAD ASSEMBLY (#3, 4 AND 5)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SPARK PLUG LEAD ASSEMBLY (#3, 4 AND 5)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • 43
    84-813715A1 SPARK PLUG LEAD ASSEMBLY (#2 AND 6)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SPARK PLUG LEAD ASSEMBLY (#2 AND 6)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • 44
    84-813715A1 SPARK PLUGG LEAD ASSEMBLY (#1)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
    SPARK PLUGG LEAD ASSEMBLY (#1)
    ORDER A-36549A1 KIT FOR REPLACEMENT OF LEAD WIRE MARKERS
  • 40
    8M0084600 CONNECTOR, SPARK PLUG LEAD
    CONNECTOR, SPARK PLUG LEAD
  • 39
    85-94589 SLEEVE, TERMINAL END COVER
    SLEEVE, TERMINAL END COVER
  • 45
    32-30574 SLEEVE, SPARK PLUG LEAD
    SLEEVE, SPARK PLUG LEAD
  • 46
    32-46768 SLEEVE, SPARK PLUG LEAD (1 1/2")
    SLEEVE, SPARK PLUG LEAD (1 1/2")
  • 46
    32-46768 SLEEVE, SPARK PLUG LEAD (5 1/8")
    SLEEVE, SPARK PLUG LEAD (5 1/8")
  • 47
    85-63709A1 PROTECTOR, SPARK PLUG LEAD
    PROTECTOR, SPARK PLUG LEAD
