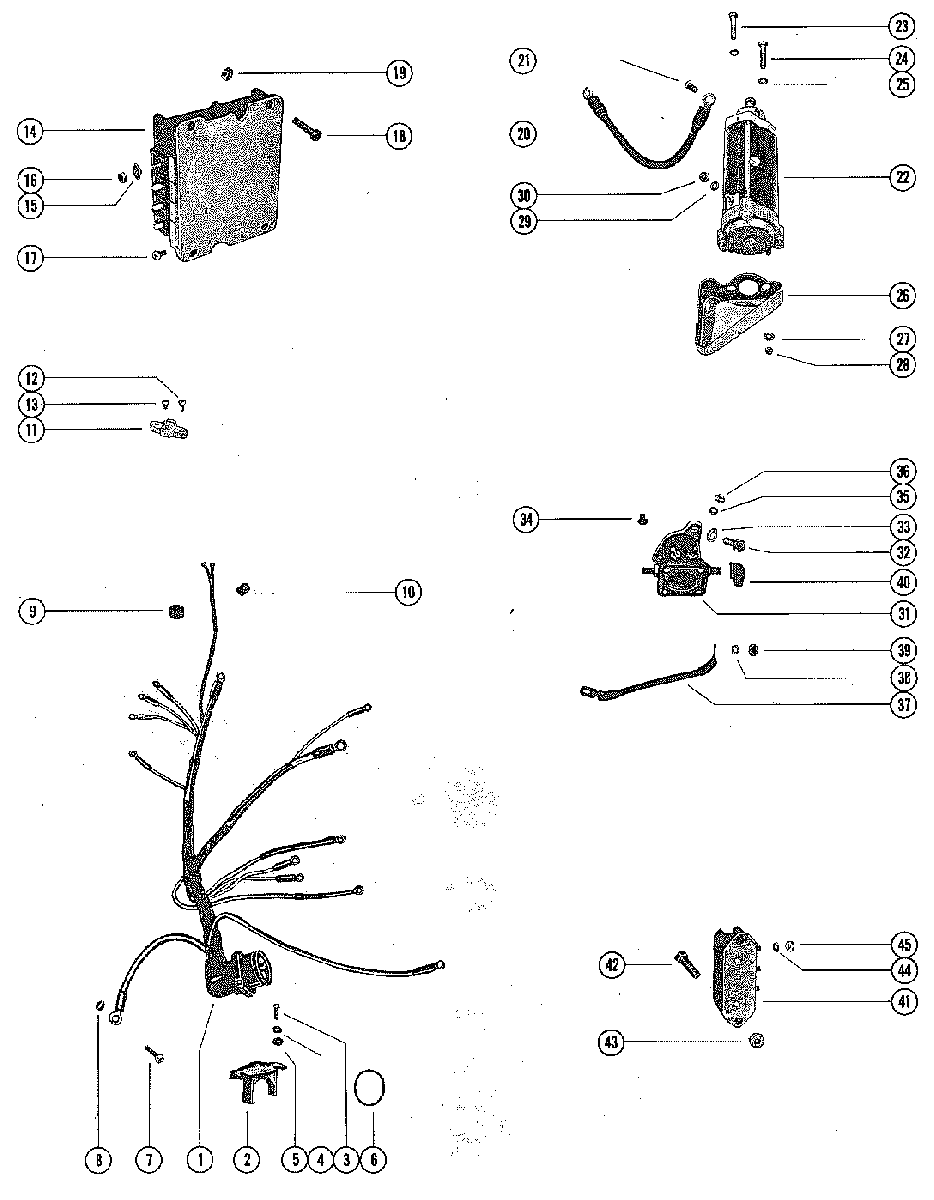

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 1000BP 2641855 THRU 3253111
-
№АртикулНазвание
-
184-69236A1 WIRING HARNESS, INTERNALWIRING HARNESS, INTERNAL
-
254-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
310-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
413-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
512-847883 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
624-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
710-98256 SCREW, GROUND WIRE TO BOTTOM COWL (1/2")SCREW, GROUND WIRE TO BOTTOM COWL (1/2")
-
813-24669 LOCKWASHER, GROUND WIRE SCREWLOCKWASHER, GROUND WIRE SCREW
-
925-26547 GROMMET, RECTIFIER TO SWITCH BOX WIREGROMMET, RECTIFIER TO SWITCH BOX WIRE
-
1054-648552 CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")CLIP, WIRING HARNESS TO FRONT BRACKET (1/8")
-
1145559 TERMINAL BLOCK, STATOR LEADSTERMINAL BLOCK, STATOR LEADS
-
1210-48409 SCREW, TERMINAL BLOCK FASTENING (5/8")SCREW, TERMINAL BLOCK FASTENING (5/8")
-
1310-62568 SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")SCREW, STATOR LEADS TO TERMINAL BLOCK (3/8")
-
14332-2986A9 SWITCH BOX ASSEMBLY (MERC 1000BP)SWITCH BOX ASSEMBLY (MERC 1000BP)
-
14332-2986A7 SWITCH BOX ASSEMBLY (MERC 1250BP)SWITCH BOX ASSEMBLY (MERC 1250BP)
-
1512-45075 WASHER, SWITCH BOX TERMINALWASHER, SWITCH BOX TERMINAL
-
1611-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1710-45218 SCREW, SWITCH BOX (3/8")SCREW, SWITCH BOX (3/8")
-
1810-64279 SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")SCREW, SWITCH BOX TO FRONT MOUNTING BRACKET (1")
-
1911-20184 NUT, SWITCH BOX SCREWNUT, SWITCH BOX SCREW
-
2084-93389A12 CABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKETCABLE, WIRE - STARTER MOTOR TO FRONT SUPPORT BRACKET
-
2110-69035 SCREW, WIRE CABLE TO STARTER MOTORSCREW, WIRE CABLE TO STARTER MOTOR
-
2250-55304A1 STARTER MOTOR ASSEMBLY (SEE E14 FOR BREAKDOWN)STARTER MOTOR ASSEMBLY (SEE E14 FOR BREAKDOWN)
-
2310-73657 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2")
-
2410-31984 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8")
-
2513-26993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
2653507 BRACKET, STARTER MOTOR SUPPORTBRACKET, STARTER MOTOR SUPPORT
-
2712-26168 WASHER, STARTER MOTOR MOUNTING STUDWASHER, STARTER MOTOR MOUNTING STUD
-
2811-82670911 NUT, STARTER MOTOR MOUNTING STUDNUT, STARTER MOTOR MOUNTING STUD
-
2913-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
3011-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
3125661T1 SOLENOID, STARTERSOLENOID, STARTER
-
321397-2125 SCREW, SOLENOID TO COIL BRACKET (3/4")SCREW, SOLENOID TO COIL BRACKET (3/4")
-
3313-26992 LOCKWASHER, STARTER SOLENOID FASTENING SCREWLOCKWASHER, STARTER SOLENOID FASTENING SCREW
-
34269011 BUMPER, RUBBER - STARTER SOLENOIDBUMPER, RUBBER - STARTER SOLENOID
-
3513-26996 LOCKWASTER, SOLENOID TERMINAL (#10)LOCKWASTER, SOLENOID TERMINAL (#10)
-
3611-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
3748396 CABLE, WIRE - STARTER MOTOR TO SOLENOIDCABLE, WIRE - STARTER MOTOR TO SOLENOID
-
3813-26993 LOCKWASHER, SOLENOID TERMINAL ( 5/16")LOCKWASHER, SOLENOID TERMINAL ( 5/16")
-
3911-22053 NUT, SOLENOID TERMINAL (5/16")NUT, SOLENOID TERMINAL (5/16")
-
4046265 BOOT, SOLENOID TERMINALBOOT, SOLENOID TERMINAL
-
4178614A1 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
4210-64278 SCREW, RECTIFIER TO MOUNTING BRACTER (1")SCREW, RECTIFIER TO MOUNTING BRACTER (1")
-
4311-20184 NUT, RECTIFIER MOUNTING SCREWNUT, RECTIFIER MOUNTING SCREW
-
4412-45075 WASHER, RECTIFIER STATOR LEAD TERMINALWASHER, RECTIFIER STATOR LEAD TERMINAL
-
4511-45076 NUT, FASTENING - RECTIFIER STATOR LEADSNUT, FASTENING - RECTIFIER STATOR LEADS
