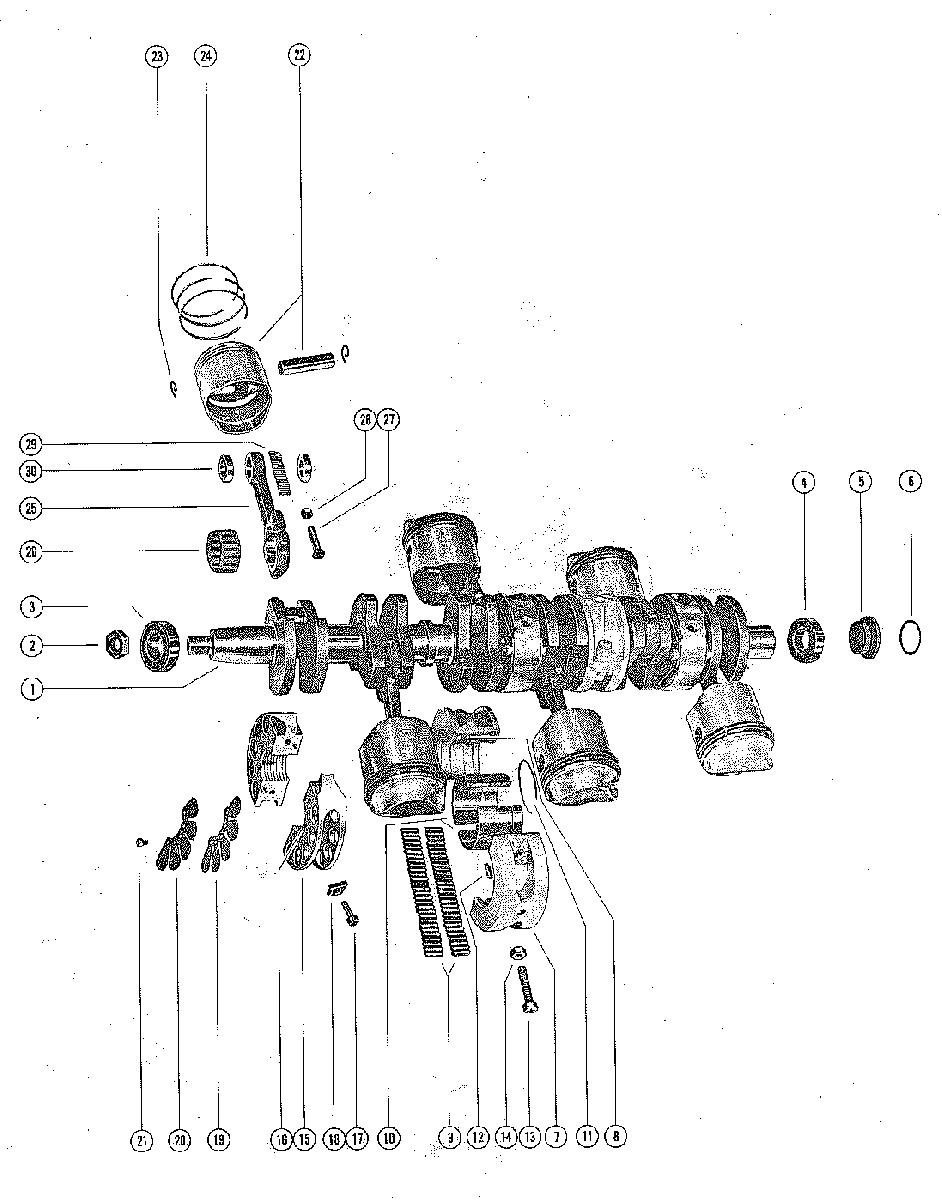

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 1000BP 2641855 THRU 3253111

  • №
    Артикул
    Название
  • 1
    436-3760A2 CRANKSHAFT ASSEMBLY (MERC 1000BP) - NOT AS SHOWN
    CRANKSHAFT ASSEMBLY (MERC 1000BP) - NOT AS SHOWN
  • 1
    436-3803A2 CRANKSHAFT ASSEMBLY (MERC 1250BP) - NOT AS SHOWN
    CRANKSHAFT ASSEMBLY (MERC 1250BP) - NOT AS SHOWN
  • 2
    11-52901 NUT, FLYWHEEL TO CRANKSHAFT
    NUT, FLYWHEEL TO CRANKSHAFT
  • 3
    30-62567T BEARING, BALL - UPPER
    BEARING, BALL - UPPER
  • 4
    30-63742T BEARING, BALL - LOWER
    BEARING, BALL - LOWER
  • 5
    54196A6 CARRIER, "O" RING - CRANKSHAFT
    CARRIER, "O" RING - CRANKSHAFT
  • 6
    25-35126 "O" RING, CARRIER
    "O" RING, CARRIER
  • 7
    535-3190A2 CENTER MAIN BEARING ASSEMBLY
    CENTER MAIN BEARING ASSEMBLY
  • 8
    17-20032 DOWEL PIN, CENTER MAIN BEARING
    DOWEL PIN, CENTER MAIN BEARING
  • 9
    29-714221 BEARING, NEEDLE - OUTER RACE
    BEARING, NEEDLE - OUTER RACE
  • 10
    26113T RACE, OUTER (PAIR)
    RACE, OUTER (PAIR)
  • 11
    53-26933 RING, SNAP - OUTER RACE
    RING, SNAP - OUTER RACE
  • 12
    17-47246 DOWEL PIN, STEPPED
    DOWEL PIN, STEPPED
  • 13
    10-22968 SCREW, CENTER MAIN BEARING CLAMPING (1 1/4")
    SCREW, CENTER MAIN BEARING CLAMPING (1 1/4")
  • 14
    11-20184 NUT, BEARING CLAMPING SCREW
    NUT, BEARING CLAMPING SCREW
  • 15
    540-7238A2 MAIN BEARING ASSEMBLY, VALVE TYPE
    MAIN BEARING ASSEMBLY, VALVE TYPE
  • 16
    17-20032 DOWEL PIN, MAIN BEARING
    DOWEL PIN, MAIN BEARING
  • 17
    10-45775 SCREW, MAIN BEARING CLAMPING (9/16")
    SCREW, MAIN BEARING CLAMPING (9/16")
  • 18
    11-45774 NUT, MAIN BEARING CLAMPING SCREW
    NUT, MAIN BEARING CLAMPING SCREW
  • 19
    34-56007A1 REED SET, MATCHED - MAIN BEARING
    REED SET, MATCHED - MAIN BEARING
  • 20
    34-48081 REED STOP, MAIN BEARING REED VALVES
    REED STOP, MAIN BEARING REED VALVES
  • 21
    10-20597 SCREW, REED STOP MOUNTING (3/8")
    SCREW, REED STOP MOUNTING (3/8")
  • 22
    745-3759A2 PISTON AND PIN ASSEMBLY (MERC 1000BP)
    PISTON AND PIN ASSEMBLY (MERC 1000BP)
  • 22
    774-9137A12 PISTON AND PISTON PIN ASSEMBLY (MERC 1250BP)
    PISTON AND PISTON PIN ASSEMBLY (MERC 1250BP)
  • 23
    53-857196 LOCK RING, PISTON PIN
    LOCK RING, PISTON PIN
  • 24
    39-48834A12 RING, PISTON (1/16")
    RING, PISTON (1/16")
  • 25
    624-8101A3 CONNECTING ROD AND CAP ASSEMBLY (MERC 1000BP)
    CONNECTING ROD AND CAP ASSEMBLY (MERC 1000BP)
  • 25
    624-8101A3 CONNECTING ROD AND CAP ASSEMBLY (MERC 1250BP)
    CONNECTING ROD AND CAP ASSEMBLY (MERC 1250BP)
  • 26
    31-62596A1 BEARING ASSEMBLY, CRANKPIN (MERC 1000BP)
    BEARING ASSEMBLY, CRANKPIN (MERC 1000BP)
  • 26
    31-62596A1 BEARING ASSEMBLY, CRANKPIN (MERC 1250BP)
    BEARING ASSEMBLY, CRANKPIN (MERC 1250BP)
  • 27
    10-54803 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 28
    11-49091 NUT, CONNECTING ROD SCREW
    NUT, CONNECTING ROD SCREW
  • 29
    29-47270 BEARING, NEEDLE - PISTON PIN
    BEARING, NEEDLE - PISTON PIN
  • 30
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • --
    745-3851A1 PISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1000BP
    PISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1000BP
  • --
    774-9137A13 PISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1250BP
    PISTON AND PISTON PIN ASS'Y (.015 OVERSIZE) - MERC 1250BP
  • --
    39-49839A12 RING, PISTON (.015 OVERSIZE) - 1/16" THICK
    RING, PISTON (.015 OVERSIZE) - 1/16" THICK
