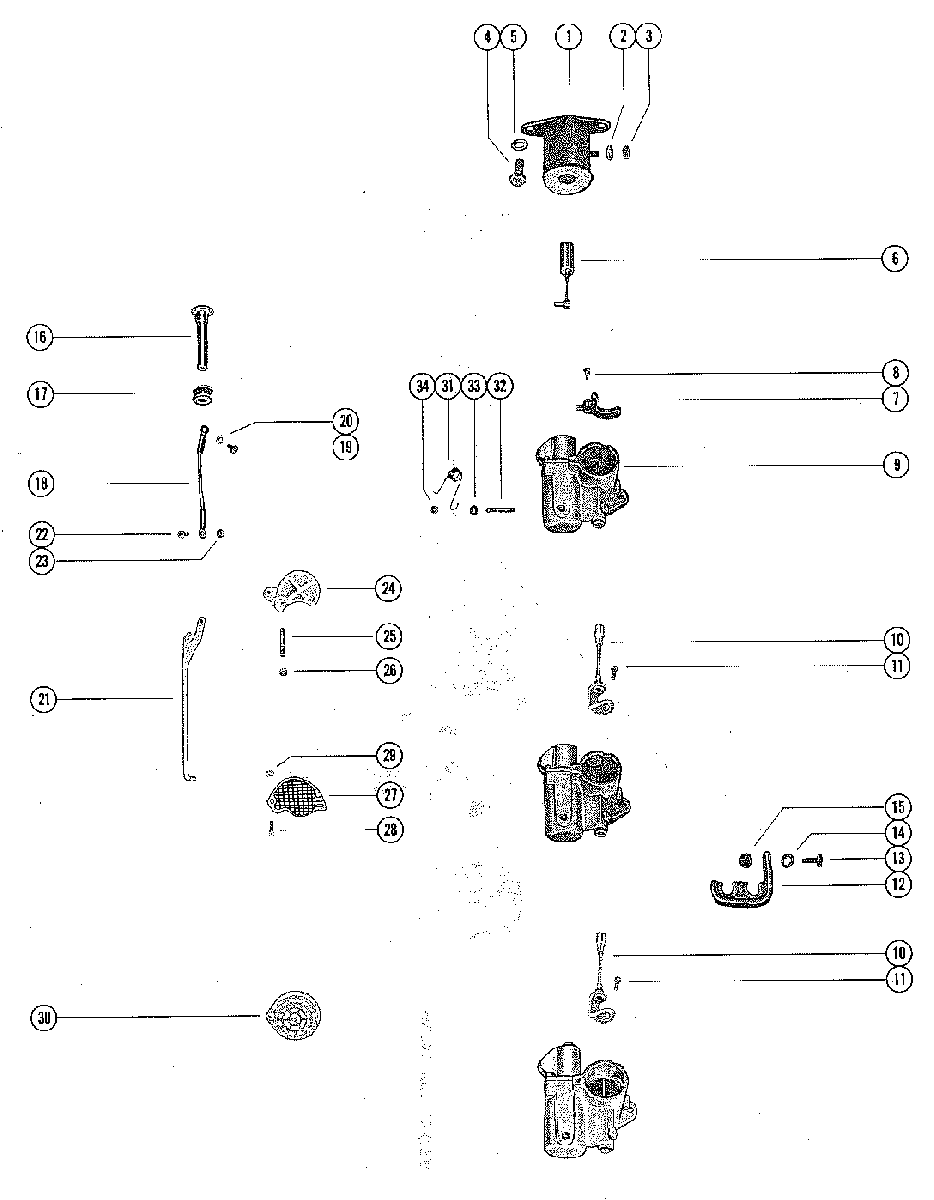

CARBURETOR LINKAGE AND CHOKE SOLENOID для Mercury - 1000BP 2641855 THRU 3253111

  • №
    Артикул
    Название
  • 1
    48187 CHOKE SOLENOID
    CHOKE SOLENOID
  • 2
    13-26996 LOCKWASHER, SOLENOID TERMINAL
    LOCKWASHER, SOLENOID TERMINAL
  • 3
    11-68219 NUT, SOLENOID TERMINAL
    NUT, SOLENOID TERMINAL
  • 4
    10-25299 SCREW, CHOKE SOLENOID (3/4")
    SCREW, CHOKE SOLENOID (3/4")
  • 5
    13-26993 LOCKWASHER, CHOKE SOLENOID SCREW
    LOCKWASHER, CHOKE SOLENOID SCREW
  • 6
    48315A2 PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
    PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID
  • 7
    52518 CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
    CLUSTER, THROTTLE LEVER (UPPER CARBURETOR)
  • 8
    1395-6027 SCREW, CLUSTER TO THROTTLE LEVER
    SCREW, CLUSTER TO THROTTLE LEVER
  • 9
    1354-3857 CARBURETOR ASSEMBLY, COMPLETE (KD-3A)
    CARBURETOR ASSEMBLY, COMPLETE (KD-3A)
  • 10
    53720A2 THROTTLE PICK-UP BRACKET ASSEMBLY
    THROTTLE PICK-UP BRACKET ASSEMBLY
  • 11
    10-53651 SCREW,THROTTLE BRACKET MOUNTING (1/2")
    SCREW,THROTTLE BRACKET MOUNTING (1/2")
  • 12
    59757 BRACKET, COIL LEAD RETAINER
    BRACKET, COIL LEAD RETAINER
  • 13
    10-64278 SCREW, COIL BRACKET (1")
    SCREW, COIL BRACKET (1")
  • 14
    12-29245 WASHER, COIL BRACKET SCREW
    WASHER, COIL BRACKET SCREW
  • 15
    11-20184 NUT, COIL BRACKET SCREW
    NUT, COIL BRACKET SCREW
  • 16
    11-22496 KNOB, CHOKE ROD
    KNOB, CHOKE ROD
  • 17
    25-20116 GROMMET, CHOKE ROD
    GROMMET, CHOKE ROD
  • 18
    49589 STRAP, CHOKE KNOB TO CHOKE ROD
    STRAP, CHOKE KNOB TO CHOKE ROD
  • 19
    10-48591 SCREW, STRAP TO CHOKE KNOB (1/2")
    SCREW, STRAP TO CHOKE KNOB (1/2")
  • 20
    13-26996 LOCKWASHER, STRAP SCREW
    LOCKWASHER, STRAP SCREW
  • 21
    48203 ROD, CHOKE
    ROD, CHOKE
  • 22
    10-48591 SCREW, STRAP TO CHOKE ROD (1/2")
    SCREW, STRAP TO CHOKE ROD (1/2")
  • 23
    11-46438 NUT, STRAP TO CHOKE ROD SCREW
    NUT, STRAP TO CHOKE ROD SCREW
  • 24
    48152 SHUTTER, CHOKE - CARBURETOR
    SHUTTER, CHOKE - CARBURETOR
  • 25
    16-69037 STUD, CARBURETOR - CHOKE SHUTTER PIVOT
    STUD, CARBURETOR - CHOKE SHUTTER PIVOT
  • 26
    11-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUD
    NUT, CHOKE SHUTTER TO CARBURETOR STUD
  • 27
    35-57819A1 SCREEN, FILTER - CARBURETOR (MIDDLE AND TOP)
    SCREEN, FILTER - CARBURETOR (MIDDLE AND TOP)
  • 28
    10-22523 SCREW, CARBURETOR FILTER SCREEN TO CARBURETOR (3/4")
    SCREW, CARBURETOR FILTER SCREEN TO CARBURETOR (3/4")
  • 29
    11-20110 NUT, CARBURETOR FILTER SCREEN FASTENING SCREW
    NUT, CARBURETOR FILTER SCREEN FASTENING SCREW
  • 30
    35-48406 SCREEN, FILTER -CARBURETOR (LOWER)
    SCREEN, FILTER -CARBURETOR (LOWER)
  • 31
    24-48230 SPRING, CHOKE ROD TENSION
    SPRING, CHOKE ROD TENSION
  • 32
    10-657461 STUD, CHOKE ROD SPRING TO CARBURETOR
    STUD, CHOKE ROD SPRING TO CARBURETOR
  • 33
    23-32427 SPACER, CHOKE ROD SPRING STUD
    SPACER, CHOKE ROD SPRING STUD
  • 34
    11-20184 NUT, CHOKE ROD SPRING TO CARBURETOR STUD
    NUT, CHOKE ROD SPRING TO CARBURETOR STUD
