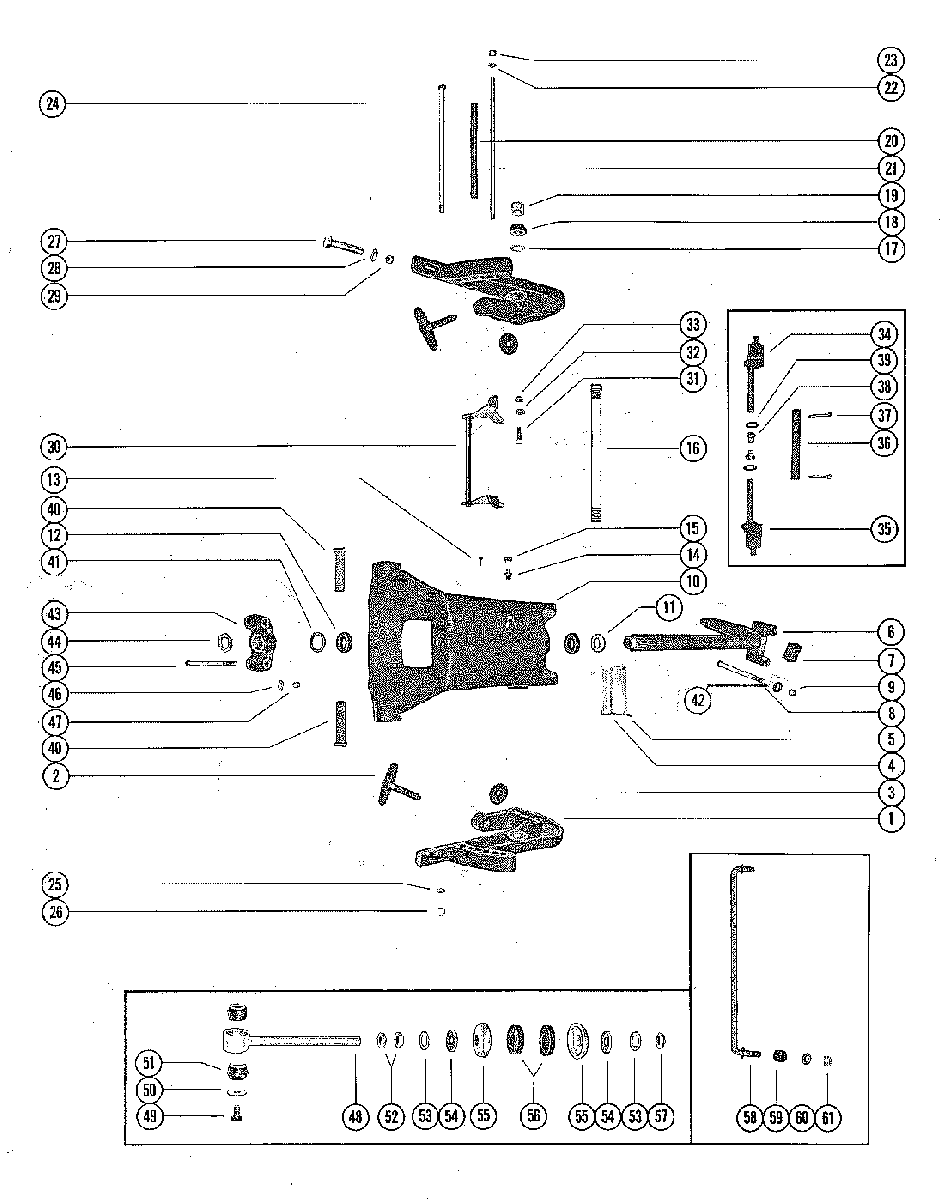

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 1000BP 2641855 THRU 3253111

  • №
    Артикул
    Название
  • 1
    1440-3296A1 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    28403A3 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-28404 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    38-56267 SERIAL PLATE
    SERIAL PLATE
  • 5
    10-25612 SCREW, SERIAL PLATE TO SWIVEL BRACKET
    SCREW, SERIAL PLATE TO SWIVEL BRACKET
  • 6
    17-48883A1 SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
    SWIVEL PIN AND STEERING ARM ASSEMBLY (SHORT SHAFT)
  • 6
    17-53776A1 SWIVEL PIN AND STEERING ARM ASEEMBLY (LONG SHAFT)
    SWIVEL PIN AND STEERING ARM ASEEMBLY (LONG SHAFT)
  • 7
    26-52924 SEAL, RUBBER - SWIVEL PIN
    SEAL, RUBBER - SWIVEL PIN
  • 8
    10-49373 BOLT, STEERING ARM TO UPPER MOUNT
    BOLT, STEERING ARM TO UPPER MOUNT
  • 9
    11-34933 NUT, STEERING ARM BOLT
    NUT, STEERING ARM BOLT
  • 10
    1453-4673A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
    SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
  • 10
    1464-3859A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
    SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
  • 11
    26-37448 OIL SEAL, SWIVEL BRACKET
    OIL SEAL, SWIVEL BRACKET
  • 12
    23-54191 BUSHING SWIVEL BRACKET
    BUSHING SWIVEL BRACKET
  • 13
    10-47828 SCREW, DRIVE - SWIVEL BRACKET
    SCREW, DRIVE - SWIVEL BRACKET
  • 14
    22-69059 FITTING, GREASE - SWIVEL BRACKET
    FITTING, GREASE - SWIVEL BRACKET
  • 15
    19-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTING
    LUBRICAP, SWIVEL BRACKET GREASE FITTING
  • 16
    8M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
    TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
  • 17
    12-52864 WASHER, CLAMP BRACKET TILT TUBE
    WASHER, CLAMP BRACKET TILT TUBE
  • 18
    11-858869 NUT, TILT TUBE FASTENING
    NUT, TILT TUBE FASTENING
  • 19
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 20
    23-59624 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 21
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 22
    12-24812 WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 23
    11-862902 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 24
    10-49369 SCREW, TILT LOCK PIN (9 3/8")
    SCREW, TILT LOCK PIN (9 3/8")
  • 25
    12-37828 WASHER, TILT LOCK PIN SCREW
    WASHER, TILT LOCK PIN SCREW
  • 26
    11-82671013 NUT, TILT LOCK PIN SCREW
    NUT, TILT LOCK PIN SCREW
  • 27
    10-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 27
    10-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM
    BOLT, CLAMP BRACKET TO BOAT TRANSOM
  • 28
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 28
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 29
    11-82670912 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 30
    30126A1 TILT STOP LEVER ASSEMBLY (SHORT SHAFT)
    TILT STOP LEVER ASSEMBLY (SHORT SHAFT)
  • 31
    10-30128 SCREW, TILT STOP LEVER TO CLAMP BRACKET (SHORT SHAFT)
    SCREW, TILT STOP LEVER TO CLAMP BRACKET (SHORT SHAFT)
  • 32
    13-31030 WASHER, WAVE - TILT STOP LEVER SCREW (SHORT SHAFT)
    WASHER, WAVE - TILT STOP LEVER SCREW (SHORT SHAFT)
  • 33
    11-29250 NUT, TILT STOP LEVER SCREW (SHORT SHAFT)
    NUT, TILT STOP LEVER SCREW (SHORT SHAFT)
  • 34
    76386 TILT LOCK ASSEMBLY, STARBOARD (LONG SHAFT)
    TILT LOCK ASSEMBLY, STARBOARD (LONG SHAFT)
  • 35
    76385T TILT LOCK ASSEMBLY, PORT (LONG SHAFT)
    TILT LOCK ASSEMBLY, PORT (LONG SHAFT)
  • 36
    47802 TUBE, TILT LOCK (LONG SHAFT)
    TUBE, TILT LOCK (LONG SHAFT)
  • 37
    18-47959 COTTER PIN, TILT LOCK TUBE (LONG SHAFT)
    COTTER PIN, TILT LOCK TUBE (LONG SHAFT)
  • 38
    23-47803 BUSHING, TILT LOCK TUBE (LONG SHAFT)
    BUSHING, TILT LOCK TUBE (LONG SHAFT)
  • 39
    13-69150 WASHER, WAVE - TILT LOCK TUBE (LONG SHAFT)
    WASHER, WAVE - TILT LOCK TUBE (LONG SHAFT)
  • 40
    55-49577 PIN, LOWER EYE BOLT MOUNTING (SHORT SHAFT)
    PIN, LOWER EYE BOLT MOUNTING (SHORT SHAFT)
  • 40
    55-28414 PIN, LOWER EYE BOLT MOUNTING (LONG SHAFT)
    PIN, LOWER EYE BOLT MOUNTING (LONG SHAFT)
  • --
    10-28424 SCREW, LOWER EYE BOLT MOUNTING PIN (2 1/8") (LONG SHAFT)
    SCREW, LOWER EYE BOLT MOUNTING PIN (2 1/8") (LONG SHAFT)
  • --
    11-20184 NUT, LOWER EYE BOLT MOUNTING PIN SCREW (LONG SHAFT)
    NUT, LOWER EYE BOLT MOUNTING PIN SCREW (LONG SHAFT)
  • 41
    12-37429 WASHER, SWIVEL PIN
    WASHER, SWIVEL PIN
  • 42
    12-48926 WASHER
    WASHER
  • 43
    48884 YOKE, BOTTOM
    YOKE, BOTTOM
  • 44
    11-37424 NUT, SWIVEL PIN RETAINING
    NUT, SWIVEL PIN RETAINING
  • 45
    10-48924 SCREW, YOKE TO DRIVE SHAFT HOUSING - LOWER (3 1/2")
    SCREW, YOKE TO DRIVE SHAFT HOUSING - LOWER (3 1/2")
  • 46
    12-24501 WASHER, YOKE SCREW
    WASHER, YOKE SCREW
  • 47
    11-35000 NUT, YOKE SCREW
    NUT, YOKE SCREW
  • 48
    49982A1 EYE BOLT ASSEMBLY
    EYE BOLT ASSEMBLY
  • 49
    10-69375A1 SCREW, NYLOK - -LOWER EYE BOLT MOUNTING PIN (3/4")
    SCREW, NYLOK - -LOWER EYE BOLT MOUNTING PIN (3/4")
  • 50
    12-28421 WASHER, LOWER BUSHING RETAINER
    WASHER, LOWER BUSHING RETAINER
  • 51
    23-28198 BUSHING, RUBBER - EYE BOLT
    BUSHING, RUBBER - EYE BOLT
  • 52
    11-20739 NUT, EYE BOLT
    NUT, EYE BOLT
  • 53
    12-52601 WASHER, PLAIN - EYEBOLT
    WASHER, PLAIN - EYEBOLT
  • 54
    27-49985 GASKEY, EYE BOLT (3/16" NEOPRENE)
    GASKEY, EYE BOLT (3/16" NEOPRENE)
  • 55
    12-49983 WASHER, CUPPED - EYE BOLT
    WASHER, CUPPED - EYE BOLT
  • 56
    27-49984 GASKET, EYE BOLT (1/2" NEOPRENE)
    GASKET, EYE BOLT (1/2" NEOPRENE)
  • 57
    11-8M2014641 NUT, EYE BOLT
    NUT, EYE BOLT
  • 58
    52131 ROD, STEERING
    ROD, STEERING
  • 59
    23-52169 SLEEVE, STEERING ROD
    SLEEVE, STEERING ROD
  • 60
    12-20086 WASHER, STEERING ROD
    WASHER, STEERING ROD
  • 61
    11-8M0042636 NUT, STEERING ROD
    NUT, STEERING ROD
