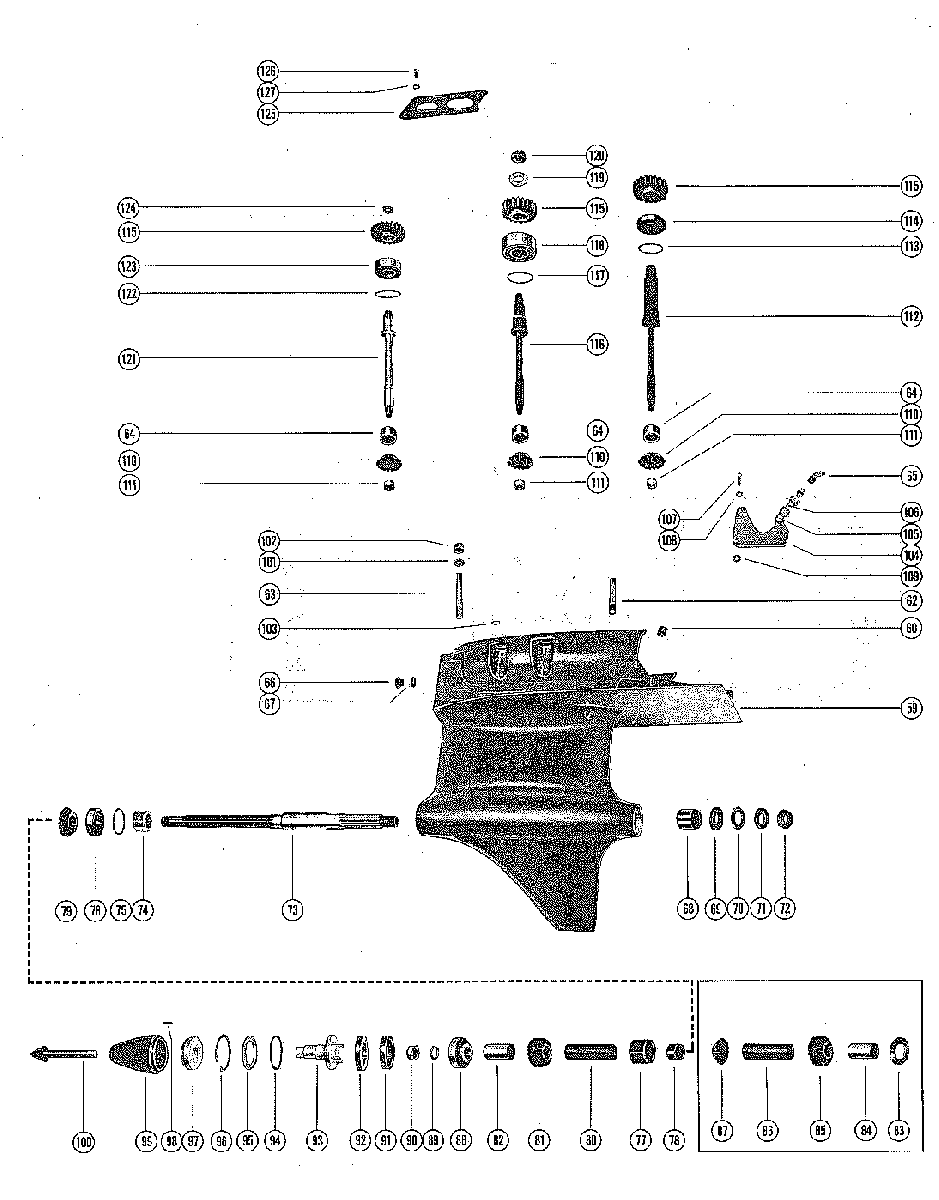

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 1000BP 2641855 THRU 3253111
-
№АртикулНазвание
-
--1638-4109A3 GEAR HOUSING ASSEMBLY, COMPLETE
RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLY, COMPLETE
RIGHT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
--1638-4108A3 GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1000BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
--1638-4109A4 GEAR HOUSING ASSEMBLY, COMPLETE
RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLY, COMPLETE
RIGHT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
--1638-4108A4 GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6GEAR HOUSING ASSEMBLY, COMPLETE
LEFT HAND ROTATION-MERC 1250BP NOTE: GEAR HOUSING ASSEMBLIES, COMPLETE, INCLUDE ALL PARTS FROM REFERENCE #4 THRU REFERENCE #127 AS LISTED ON G4 AND G6 -
591638-4109A1 GEAR HOUSING ASSEMBLY (MERC 1000BP)GEAR HOUSING ASSEMBLY (MERC 1000BP)
-
591638-4108A1 GEAR HOUSING ASSEMBLY (MERC 1250BP)GEAR HOUSING ASSEMBLY (MERC 1250BP)
-
6022-73379 PLUG, PIPE (1/4-18 THREAD)PLUG, PIPE (1/4-18 THREAD)
-
6216-32129 STUD, GEAR HOUSING TO SPACER (2 3/8")STUD, GEAR HOUSING TO SPACER (2 3/8")
-
6316-49082 STUD,GEAR HOUSING TO SPACER (3 3/4")STUD,GEAR HOUSING TO SPACER (3 3/4")
-
6431-48937 ROLLER BEARING, DRIVE SHAFTROLLER BEARING, DRIVE SHAFT
-
6522-49523 ELBOW, OIL TUBE (45 )ELBOW, OIL TUBE (45 )
-
6610-79953Q04 SCREW, VENT AND FILLINGSCREW, VENT AND FILLING
-
6712-191833 WASHER, SEALING-VENT AND FILLING SCREWWASHER, SEALING-VENT AND FILLING SCREW
-
6831-30956T ROLLER BEARING, PROPELLER SHAFTROLLER BEARING, PROPELLER SHAFT
-
6926-55285 OIL SEAL, PROPELLER SHAFTOIL SEAL, PROPELLER SHAFT
-
7012-39701 WASHER, SPLINED-PROPELLER NUTWASHER, SPLINED-PROPELLER NUT
-
7112-39698 WASHER, PLAIN-PROPELLER NUTWASHER, PLAIN-PROPELLER NUT
-
7211-859126 NUT, PROPELLERNUT, PROPELLER
-
7344-48882 PROPELLER SHAFTPROPELLER SHAFT
-
7423-56802 SPACER, PROPELLER SHAFTSPACER, PROPELLER SHAFT
-
7515-20929A1 SHIM ASSEMBLY, PROPELLER SHAFTSHIM ASSEMBLY, PROPELLER SHAFT
-
7631-38146A1 ROLLER BEARING ASSEMBLY, TAPERED-REARROLLER BEARING ASSEMBLY, TAPERED-REAR
-
7757206A1 ADATPOR ASSEMBLY, PROPELLER SHAFTADATPOR ASSEMBLY, PROPELLER SHAFT
-
7831-54043 ROLLER BEARING ADAPTORROLLER BEARING ADAPTOR
-
7831-54043 ROLLER BEARING, ADAPTORROLLER BEARING, ADAPTOR
-
7943-48885 GEAR, PROPELLER SHAFT-REAR
RIGHT HAND ROTATIONGEAR, PROPELLER SHAFT-REAR
RIGHT HAND ROTATION -
8023-57205 SPACER, PROPELLER SHAFT-LONG
RIGHT HAND ROTATIONSPACER, PROPELLER SHAFT-LONG
RIGHT HAND ROTATION -
8143-48890 GEAR, DOUBLE BEVEL-PROPELLER SHAFT
RIGHT HAND ROTATIONGEAR, DOUBLE BEVEL-PROPELLER SHAFT
RIGHT HAND ROTATION -
8223-48934 SPACER, PROPELLER SHAFT-SHORT
RIGHT HAND ROTATIONSPACER, PROPELLER SHAFT-SHORT
RIGHT HAND ROTATION -
8312-49808 WASHER, PROPELLER SHAFT
LEFT HAND ROTATIONWASHER, PROPELLER SHAFT
LEFT HAND ROTATION -
8423-49809 SPACER, PROPELLER SHAFT-SHORT
LEFT HAND ROTATIONSPACER, PROPELLER SHAFT-SHORT
LEFT HAND ROTATION -
8543-48890 GEAR, DOUBLE BEVEL-PROPELLER SHAFT
LEFT HAND ROTATIONGEAR, DOUBLE BEVEL-PROPELLER SHAFT
LEFT HAND ROTATION -
8623-57205 SPACER, PROPELLER SHAFT-LONG
LEFT HAND ROTATIONSPACER, PROPELLER SHAFT-LONG
LEFT HAND ROTATION -
8743-48949 GEAR, PROPELLER SHAFT
LEFT HAND ROTATIONGEAR, PROPELLER SHAFT
LEFT HAND ROTATION -
8831-38135A1 ROLLER BEARING ASSEMBLY, TAPERED-PROPELLER SHAFTROLLER BEARING ASSEMBLY, TAPERED-PROPELLER SHAFT
-
8912-48933 WASHER, PROPELLER SHAFTWASHER, PROPELLER SHAFT
-
9011-8M2014641 NUT, PROPELLER SHAFTNUT, PROPELLER SHAFT
-
9123-48932 SPACER, BEARING RETAINER TO GEAR HOUSINGSPACER, BEARING RETAINER TO GEAR HOUSING
-
9211-48931 NUT, BEARING RETAINERNUT, BEARING RETAINER
-
9348942 ANCHOR STUD, BEARING RETAINERANCHOR STUD, BEARING RETAINER
-
9425-30224 "O" RING, ANCHOR STUD"O" RING, ANCHOR STUD
-
9512-48930 WASHER, ANCHOR STUDWASHER, ANCHOR STUD
-
9653-48928 RING, SNAP-ANCHOR STUD TO GEAR HOUSINGRING, SNAP-ANCHOR STUD TO GEAR HOUSING
-
9748929 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
9817-30282 PIN, NOSE CONE LOCATINGPIN, NOSE CONE LOCATING
-
9948904 CONE, NOSE-GEAR HOUSINGCONE, NOSE-GEAR HOUSING
-
10010-39703 SCREW, NOSE CONE TO GEAR HOUSINGSCREW, NOSE CONE TO GEAR HOUSING
-
10112-45176 WASHER, GEAR HOUSING STUDSWASHER, GEAR HOUSING STUDS
-
10211-34933 NUT, GEAR HOUSING STUDSNUT, GEAR HOUSING STUDS
-
10325-45719 "O" RING, GEAR HOUSINF STUD"O" RING, GEAR HOUSINF STUD
-
10449526A1 PLATE ASSEMBLY, COVERPLATE ASSEMBLY, COVER
-
10522-49521 ELBOW, PLATE TO OIL TUBE (90 )ELBOW, PLATE TO OIL TUBE (90 )
-
10632-54989 TUBE, OIL-GEAR HOUSING TO COVER PLATETUBE, OIL-GEAR HOUSING TO COVER PLATE
-
10710-49527 SCREW, COVER PLATE TO GEAR HOUSEING (1")SCREW, COVER PLATE TO GEAR HOUSEING (1")
-
10813-21272 LOCKWASHER, COVER PLATE SCREWLOCKWASHER, COVER PLATE SCREW
-
10912-39143 WASHER, COVER PLATE SCREWWASHER, COVER PLATE SCREW
-
11043-48886 GEAR, PINION-DRIVE SHAFT(LOWER)GEAR, PINION-DRIVE SHAFT(LOWER)
-
11111-49253 NUT, LOCK-PINION GEAR TO DRIVE SHAFTNUT, LOCK-PINION GEAR TO DRIVE SHAFT
-
11245-48880 DRIVE SHAFT, REARDRIVE SHAFT, REAR
-
11315-8M0063268 SHIM ASSEMBLY, REAR DRIVE SHAFTSHIM ASSEMBLY, REAR DRIVE SHAFT
-
11431-48939A1 ROLLER BEARING ASSEMBLY, TAPERED-REAR DRIVE SHAFTROLLER BEARING ASSEMBLY, TAPERED-REAR DRIVE SHAFT
-
11543-48887A1 GEAR ASSMBLY, DRIVE SHAFTSGEAR ASSMBLY, DRIVE SHAFTS
-
11645-48879 DRIVE SHAFT, CENTERDRIVE SHAFT, CENTER
-
11715-24542A1 SHIM ASSEMBLY, CENTER DRIVE SHAFTSHIM ASSEMBLY, CENTER DRIVE SHAFT
-
11830-53280 BALL BEARING, CENTER DRIVE SHAFTBALL BEARING, CENTER DRIVE SHAFT
-
11912-35981 WASHER, CENTER DRIVE SHAFTWASHER, CENTER DRIVE SHAFT
-
12011-22339 NUT, GEAR TO CENTER DRIVE SHAFTNUT, GEAR TO CENTER DRIVE SHAFT
-
12145-48878 DRIVE SHAFT, FRONTDRIVE SHAFT, FRONT
-
12215-20929A1 SHIM ASSEMBLY, FRONT DRIVE SHAFTSHIM ASSEMBLY, FRONT DRIVE SHAFT
-
12330-53279 BALL BEARING, FRONT DRIVE SHAFTBALL BEARING, FRONT DRIVE SHAFT
-
12411-30932 NUT, GEAR TO FRONT DRIVE SHAFTNUT, GEAR TO FRONT DRIVE SHAFT
-
12548891 RETAINER, BEARINGRETAINER, BEARING
-
12610-53099 SCREW, BEARING RETAINER TO GEAR HOUSING (3/4")SCREW, BEARING RETAINER TO GEAR HOUSING (3/4")
-
12713-26992 LOCKWASHER, BEARING RETAINER SCREWLOCKWASHER, BEARING RETAINER SCREW
