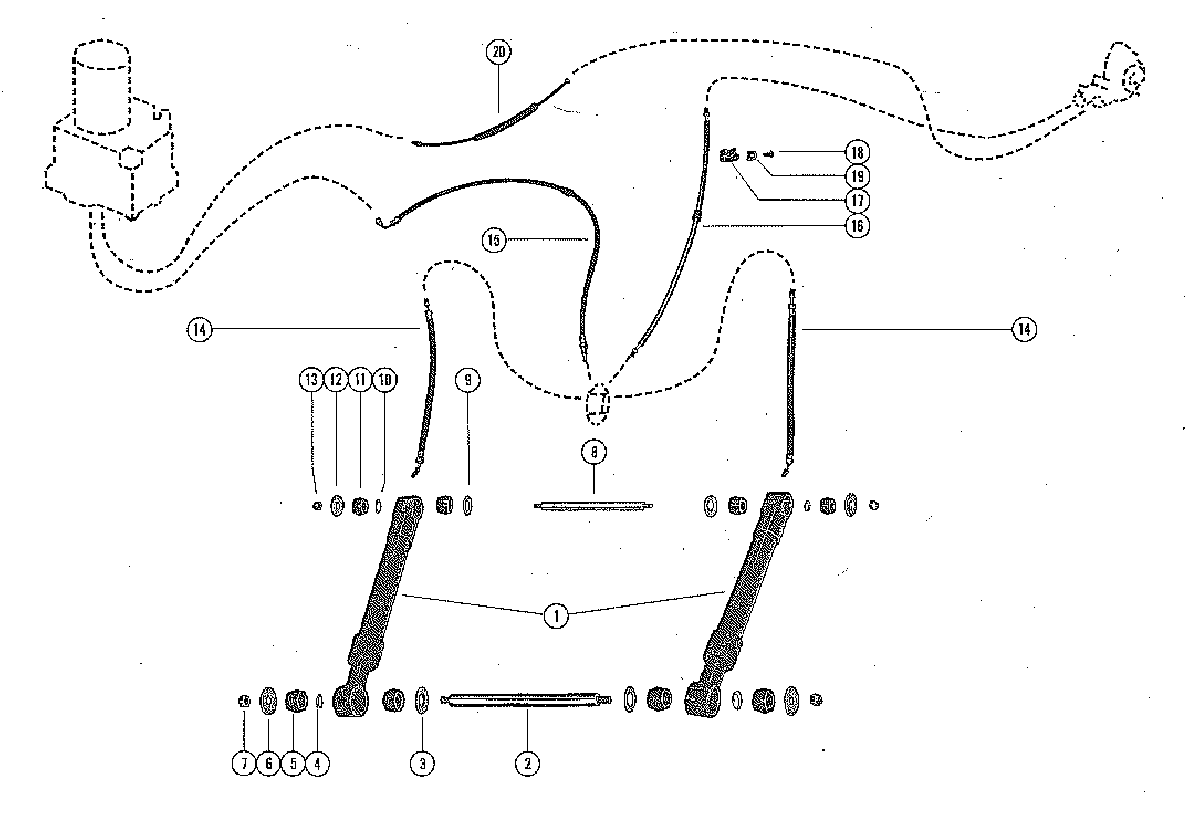

TRIM CYLINDER AND HYRAULIC HOSES для Mercruiser - III 1968-1972 2373127 THRU 3002613

  • №
    Артикул
    Название
  • 1
    47342A23 TRIM CYLINDER ASSEMBLY, COMPLETE (POWER TRIM)
    TRIM CYLINDER ASSEMBLY, COMPLETE (POWER TRIM)
  • 1
    47342A23 TRIM CYLINDER ASSMEBLY, COLPETE (POWER TRIM WITH INDICATOR)
    TRIM CYLINDER ASSMEBLY, COLPETE (POWER TRIM WITH INDICATOR)
  • 2
    17-47375 PIN, ANCHOR - DRIVE SHAFT HOUSING (11 13/16")
    PIN, ANCHOR - DRIVE SHAFT HOUSING (11 13/16")
  • 3
    12-89664 WASHER, DRIVE DSHAFT HOUSING ANCHOR PIN (59/64" I.D.)
    WASHER, DRIVE DSHAFT HOUSING ANCHOR PIN (59/64" I.D.)
  • 4
    24-49593 SPRING, DRIVE SHAFT HOUSING ANCHOR PIN
    SPRING, DRIVE SHAFT HOUSING ANCHOR PIN
  • 5
    23-90203 BUSHING, RUBBER - DRIVE SHAFT HOUSING ANCHOR PIN
    BUSHING, RUBBER - DRIVE SHAFT HOUSING ANCHOR PIN
  • 6
    12-89665 WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)
    WASHER, DRIVE SHAFT HOUSING ANCHOR PIN (33/64" I.D.)
  • 7
    11-35000 NUT, DRIVE SHAFT HOUSING ANCHOR PIN
    NUT, DRIVE SHAFT HOUSING ANCHOR PIN
  • 8
    17-14875A1 PIN, ANCHOR - TRIM CYLINDER TO GIMBAL RING (13 1/4")
    PIN, ANCHOR - TRIM CYLINDER TO GIMBAL RING (13 1/4")
  • 9
    12-89664 WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)
    WASHER, GIMBAL RING ANCHOR PIN (59/64" I.D.)
  • 10
    24-49593 SPRING, GIMBAL RING ANCHOR PIN
    SPRING, GIMBAL RING ANCHOR PIN
  • 11
    23-90203 BUSHING, RUBBER - GIMBAL RING ANCHOR PIN
    BUSHING, RUBBER - GIMBAL RING ANCHOR PIN
  • 12
    12-89665 WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)
    WASHER, GIMBAL RING ANCHOR PIN (33/64" I.D.)
  • 13
    11-35000 NUT, GIMBAL RING ANCHOR PIN
    NUT, GIMBAL RING ANCHOR PIN
  • 14
    32-86036Q HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
    HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
  • 15
    32-47399 HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (33")
    HOSE, HYDRAULIC - CONNECTOR TO HYDRAULIC PUMP (33")
  • 16
    32-47399 HOSE, HYDRAULIC - CONNECTOR TO REVERSE LOCK VALVE (34")
    HOSE, HYDRAULIC - CONNECTOR TO REVERSE LOCK VALVE (34")
  • 17
    54-22740 CLIP, HYDRAULIC HOSE TO TRANSOM PLATE (3/8")
    CLIP, HYDRAULIC HOSE TO TRANSOM PLATE (3/8")
  • 17
    54-39844A1 CLIP ASSEMBLY, HYDRAULIC HOSE TO TRANSOM PLATE (1/2")
    CLIP ASSEMBLY, HYDRAULIC HOSE TO TRANSOM PLATE (1/2")
  • 18
    10-62568 SCREW, HYDRAULIC HOSE CLIP
    SCREW, HYDRAULIC HOSE CLIP
  • 19
    8M0084613 "D" WASHER, HYDRAULIC HOSE CLIP SCREW
    "D" WASHER, HYDRAULIC HOSE CLIP SCREW
  • 20
    32-48327A2 TUBE ASS'Y, PUMP TO REVERSE LOCK VALVE (17 1/2") (#32-48327A2)
    TUBE ASS'Y, PUMP TO REVERSE LOCK VALVE (17 1/2") (#32-48327A2)
