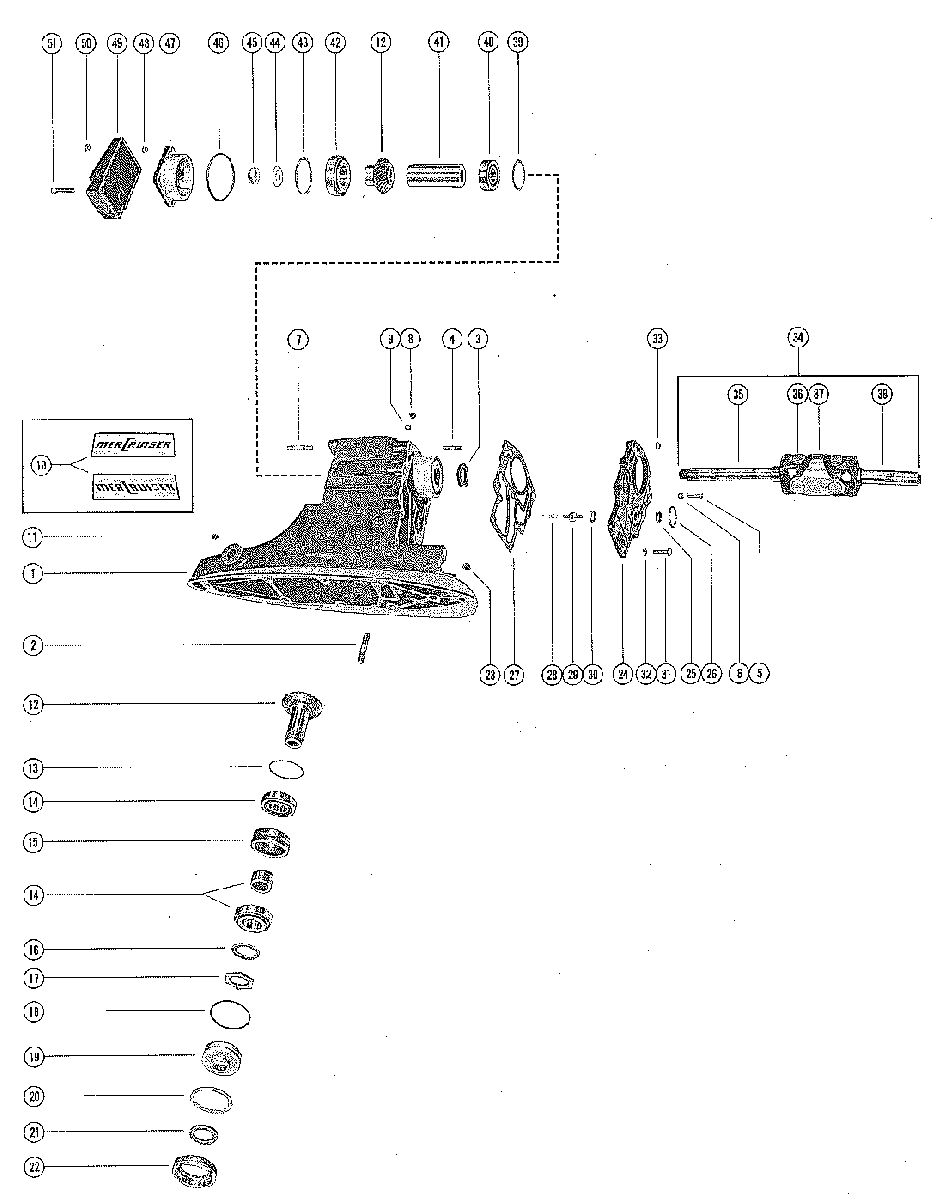

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - III 1968-1972 2373127 THRU 3002613

  • №
    Артикул
    Название
  • 1
    1567-3152A37 DRIVE SHAFT HOUSING ASSEMBLY
    SERIAL 00000000-30010963
    DRIVE SHAFT HOUSING ASSEMBLY
    SERIAL 00000000-30010963
  • 2
    1567-3152A37 DRIVE SHAFT HOUSING ASSEMBLY
    SERIAL 30010964-09999999
    DRIVE SHAFT HOUSING ASSEMBLY
    SERIAL 30010964-09999999
  • 2
    16-57985 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 13/16")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 13/16")
  • 3
    26-38105 OIL SEAL, DRIVE SHAFT HOUSING (UNIVERSAL JOINT)
    OIL SEAL, DRIVE SHAFT HOUSING (UNIVERSAL JOINT)
  • 4
    16-8M0022145 STUD, DRIVE SHAFT HOUSING TO FRONT COVER (1 3/4)
    SERIAL 00000000-03001963
    STUD, DRIVE SHAFT HOUSING TO FRONT COVER (1 3/4)
    SERIAL 00000000-03001963
  • 5
    10-58642 SCREW, FRONT COVER TO DRIVE SHAFT HOUSING (1 1/2")
    SERIAL 03001964-09999999
    SCREW, FRONT COVER TO DRIVE SHAFT HOUSING (1 1/2")
    SERIAL 03001964-09999999
  • 6
    13-58643 LOCKWASHER, FRONT COVER SCREW
    SERIAL 03001964-09999999
    LOCKWASHER, FRONT COVER SCREW
    SERIAL 03001964-09999999
  • 7
    16-57984 STUD, DRIVE SHAFT HOUSING TO RETAINER AND REAR COVER (2 3/8)
    STUD, DRIVE SHAFT HOUSING TO RETAINER AND REAR COVER (2 3/8)
  • 7
    16-57983 STUD, DRIVE SHAFT HOUSING TO RETAINER AND REAR COVER (2 7/8)
    STUD, DRIVE SHAFT HOUSING TO RETAINER AND REAR COVER (2 7/8)
  • 8
    10-79953Q04 SCREW, VENT - DRIVE SHAFT HOUSING
    SCREW, VENT - DRIVE SHAFT HOUSING
  • 9
    12-191833 WASHER, SEAL - VENT SCREW
    WASHER, SEAL - VENT SCREW
  • 10
    37-56036A2 DECAL SET, DRIVE SHAFT HOUSING
    SERIAL 00000000-27610141
    DECAL SET, DRIVE SHAFT HOUSING
    SERIAL 00000000-27610141
  • 10
    37-56036A2 DECAL SET, DRIVE SHAFT HOUSING
    SERIAL 02761142-03001963
    DECAL SET, DRIVE SHAFT HOUSING
    SERIAL 02761142-03001963
  • 10
    37-56036A2 DECAL SET, DRIVE SHAFT HUSING
    SERIAL 03001964-09999999
    DECAL SET, DRIVE SHAFT HUSING
    SERIAL 03001964-09999999
  • 11
    19-47579 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
    PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
  • 12
    43-813941A2 GEAR ASSEMBLY, COMPLETE (1.5:1 GEAR RATIO)
    GEAR ASSEMBLY, COMPLETE (1.5:1 GEAR RATIO)
  • 12
    43-47237A1 GEAR ASSEMBLY, COMPLETE (2:1 GEAR RATIO)
    GEAR ASSEMBLY, COMPLETE (2:1 GEAR RATIO)
  • 13
    15-34800A1 SHIM ASS'Y, ROLLER BEARING TO DRIVE SHAFT HOUSING (.002-3-5-)
    SHIM ASS'Y, ROLLER BEARING TO DRIVE SHAFT HOUSING (.002-3-5-)
  • 14
    31-34804T4 TAPERED ROLLER BEARING ASSEMBLY, COMPLETE
    TAPERED ROLLER BEARING ASSEMBLY, COMPLETE
  • 15
    23-47285 SPACER, TAPERED ROLLER BEARING CUPS
    SPACER, TAPERED ROLLER BEARING CUPS
  • 16
    12-47451 WASHER, TAPERED ROLLER BEARING TO DRIVEN GEAR
    WASHER, TAPERED ROLLER BEARING TO DRIVEN GEAR
  • 17
    11-47449 NUT, TAPERED ROLLER BEARING TO DRIVEN GEAR
    NUT, TAPERED ROLLER BEARING TO DRIVEN GEAR
  • 18
    25-47288 "O" RING, TAPERED ROLLER BEARING ADAPTOR
    "O" RING, TAPERED ROLLER BEARING ADAPTOR
  • 19
    47303 ADAPTOR, TAPERED ROLLER BEARING
    ADAPTOR, TAPERED ROLLER BEARING
  • 20
    12-47289 WASHER, TAPERED ROLLER BEARING ADAPTOR
    WASHER, TAPERED ROLLER BEARING ADAPTOR
  • 21
    27-47290 GASKET, TAPERED ROLLER BEARING ADAPTOR
    GASKET, TAPERED ROLLER BEARING ADAPTOR
  • 22
    47304 RETAINER, TAPERED ROLLER BEARING TO DRIVE SHAFT HOUSING
    RETAINER, TAPERED ROLLER BEARING TO DRIVE SHAFT HOUSING
  • 23
    11-47302 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (9/16-18)
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (9/16-18)
  • 23
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (7/16-20)
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD (7/16-20)
  • 24
    48125A1 COVER ASSEMBLY, FRONT - DRIVE SHAFT HOUSING
    SERIAL 00000000-28105891
    COVER ASSEMBLY, FRONT - DRIVE SHAFT HOUSING
    SERIAL 00000000-28105891
  • 24
    58619A1 COVER ASSEMBLY, FRONT - DRIVE SHAFT HOUSING
    SERIAL 02815892-09999999
    COVER ASSEMBLY, FRONT - DRIVE SHAFT HOUSING
    SERIAL 02815892-09999999
  • 25
    26-48443 OIL SEAL, FRONT COVER
    OIL SEAL, FRONT COVER
  • 26
    25-26722 "O" RING, FRONT COVER
    "O" RING, FRONT COVER
  • 27
    27-48407 GASKET, FRONT COVER
    GASKET, FRONT COVER
  • 28
    24-48442 SPRING, TENSION - OIL RELEASE CHECK VALVE
    SPRING, TENSION - OIL RELEASE CHECK VALVE
  • 29
    20-48219 CHECK VALVE, OIL RELEASE
    CHECK VALVE, OIL RELEASE
  • 30
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 31
    10-47658 SCREW, FRONT COVER TO DRIVE SHAFT HOUSING
    SCREW, FRONT COVER TO DRIVE SHAFT HOUSING
  • 32
    13-47659 LOCKWASHER, FRONT COVER SCREW
    LOCKWASHER, FRONT COVER SCREW
  • 33
    11-8M0042636 NUT, FRONT COVER STUD
    SERIAL 00000000-30001963
    NUT, FRONT COVER STUD
    SERIAL 00000000-30001963
  • 34
    44253T1 UNIVERSAL JOINT ASSEMBLY, PINION GEAR
    UNIVERSAL JOINT ASSEMBLY, PINION GEAR
  • 35
    44271 YOKE, UNIVERSAL JOINT (GEAR END)
    YOKE, UNIVERSAL JOINT (GEAR END)
  • 36
    8M0085593 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
    CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
  • 37
    63575T SOCKET, CENTER - UNIVERSAL JOINT
    SOCKET, CENTER - UNIVERSAL JOINT
  • 38
    44253 YOKE, UNIVERSAL JOINT (COUPLING END)
    YOKE, UNIVERSAL JOINT (COUPLING END)
  • 39
    15-36178A02 SHIM ASS'Y, ROLLER BEARING TO DRIVE SHAFT HOUSING (.022-3-5-)
    SHIM ASS'Y, ROLLER BEARING TO DRIVE SHAFT HOUSING (.022-3-5-)
  • 40
    31-39908T1 TAPERED ROLLER BEARING ASSEBMLY, UNIVERSAL JOINT
    TAPERED ROLLER BEARING ASSEBMLY, UNIVERSAL JOINT
  • 41
    23-8M0050924 SPACER, TAPERED ROLLER BEARING
    SPACER, TAPERED ROLLER BEARING
  • 42
    31-34804T3 TAPERED ROLLER BEARING ASSEMBLY, PINION GEAR
    TAPERED ROLLER BEARING ASSEMBLY, PINION GEAR
  • 43
    15-34822A1 SHIM ASSEMBLY, TAPERED ROLLER BEARING TO RETAINER (.002-3-5-)
    SHIM ASSEMBLY, TAPERED ROLLER BEARING TO RETAINER (.002-3-5-)
  • 44
    12-53212 WASHER, PINION GEAR TO UNIVERSAL JOINT
    SERIAL 00000000-02529424
    WASHER, PINION GEAR TO UNIVERSAL JOINT
    SERIAL 00000000-02529424
  • 44
    12-53212 WASHER, PINION GEAR TO UNIVERSAL JOINT
    SERIAL 02529425-09999999
    WASHER, PINION GEAR TO UNIVERSAL JOINT
    SERIAL 02529425-09999999
  • 45
    11-82671327 NUT, PINION GEAR TO UNIVERSAL JOINT
    NUT, PINION GEAR TO UNIVERSAL JOINT
  • 46
    25-47291 "O" RING, TAPERED ROLLER BEARING RETAINER
    "O" RING, TAPERED ROLLER BEARING RETAINER
  • 47
    47314 RETAINER, TAPERED ROLLER BEARING
    RETAINER, TAPERED ROLLER BEARING
  • 48
    11-35053 NUT, RETAINER TO DRIVE SHAFT HOUSING STUD
    NUT, RETAINER TO DRIVE SHAFT HOUSING STUD
  • 49
    47322 COVER, REAR - DRIVE SHAFT HOUSING
    SERIAL 00000000-03001963
    COVER, REAR - DRIVE SHAFT HOUSING
    SERIAL 00000000-03001963
  • 49
    58645 COVER, REAR - DRIVE SHAFT HOUSING
    SERIAL 03001964-09999999
    COVER, REAR - DRIVE SHAFT HOUSING
    SERIAL 03001964-09999999
  • 50
    11-35053 NUT, REAR COVER TO DRIVE SHAFT HOUSING STUD
    NUT, REAR COVER TO DRIVE SHAFT HOUSING STUD
  • 51
    10-842787 SCREW, REAR COVER TO DRIVE SHAFT HOUSING (2")
    SERIAL 00000000-03001963
    SCREW, REAR COVER TO DRIVE SHAFT HOUSING (2")
    SERIAL 00000000-03001963
