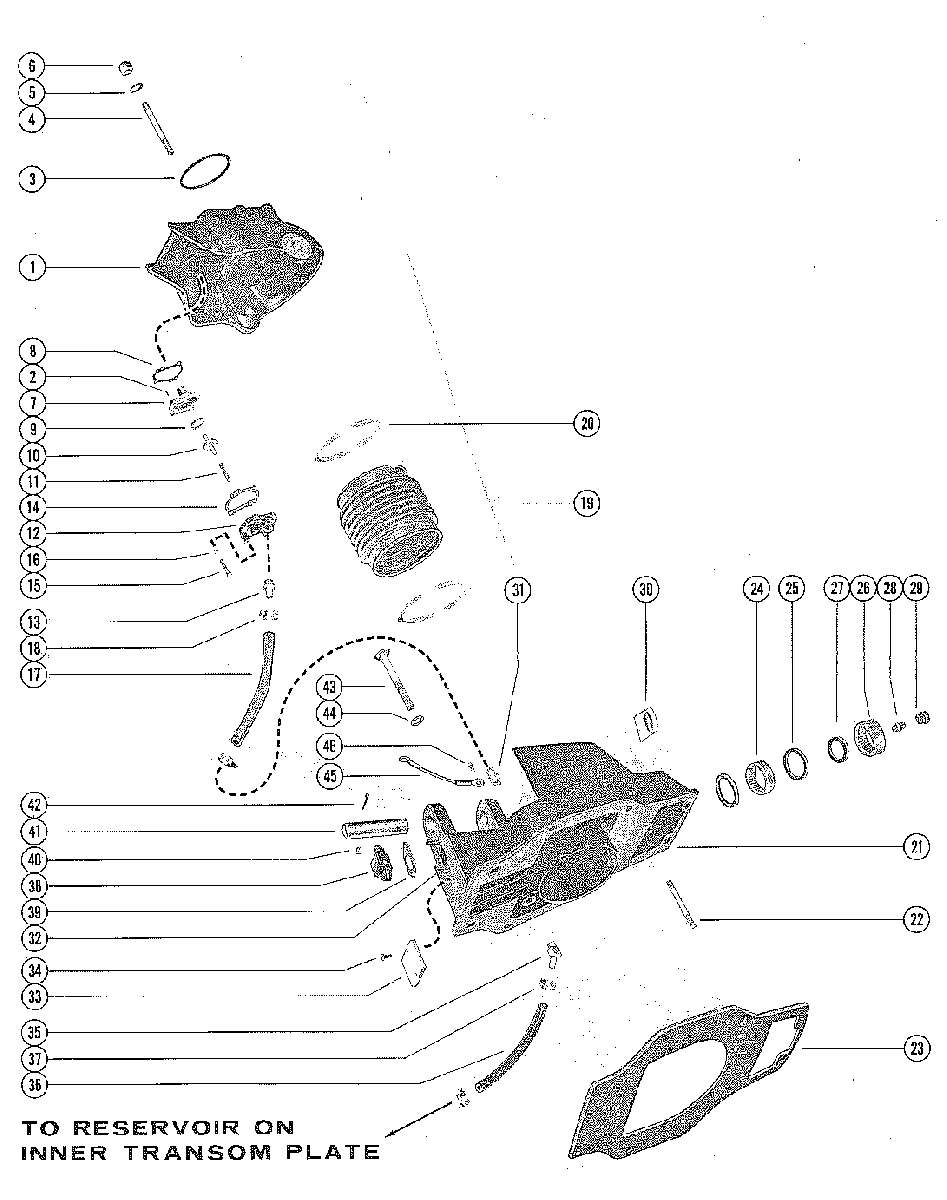

GIMBAL HOUSING AND BELL HOUSING для Mercruiser - III 1968-1972 2373127 THRU 3002613

  • №
    Артикул
    Название
  • 1
    69112A3 BELL HOUSING ASSEMBLY
    BELL HOUSING ASSEMBLY
  • 2
    17-48450 PIN, DOWEL - BELL HOUSING
    PIN, DOWEL - BELL HOUSING
  • 3
    25-31534 "O" RING, BELL HOUSING
    "O" RING, BELL HOUSING
  • 4
    16-57987 STUD, BELL HOUSING TO DRIVE SHAFT HOUSING (4 5/16")
    STUD, BELL HOUSING TO DRIVE SHAFT HOUSING (4 5/16")
  • 5
    12-47428 WASHER, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
    WASHER, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
  • 6
    11-47379 NUT, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
    NUT, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
  • 7
    48124 GUIDE, CHECK VALVE - BELL HOUSING
    GUIDE, CHECK VALVE - BELL HOUSING
  • 8
    27-48363 GASKET, CHECK VALVE GUIDE
    GASKET, CHECK VALVE GUIDE
  • 9
    25-48452 QUAD RING, OIL RELEASE CHECK VALVE
    QUAD RING, OIL RELEASE CHECK VALVE
  • 10
    20-48219 CHECK VALVE, OIL RELEASE
    CHECK VALVE, OIL RELEASE
  • 11
    24-48442 SPRING, TENSION - OIL RELEASE CHECK VALVE
    SPRING, TENSION - OIL RELEASE CHECK VALVE
  • 12
    48163A1 COVER ASSEMBLY, CHECK VALVE GUIDE
    COVER ASSEMBLY, CHECK VALVE GUIDE
  • 13
    22-47841 CONNECTOR, CHECK VALVE GUIDE COVER
    CONNECTOR, CHECK VALVE GUIDE COVER
  • 14
    27-48363 GASKET, CHECK VALVE GUIDE COVER
    GASKET, CHECK VALVE GUIDE COVER
  • 15
    10-36154 SCREW, CHECK VALVE GUIDE COVER TO BELL HOUSING (1 3/8")
    SCREW, CHECK VALVE GUIDE COVER TO BELL HOUSING (1 3/8")
  • 16
    13-26992 LOCKWASHER, CHECK VALVE GUIDE COVER SCREW
    LOCKWASHER, CHECK VALVE GUIDE COVER SCREW
  • 17
    32-48458 HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (10")
    HOSE, OIL - BELL HOUSING TO GIMBAL HOUSING (10")
  • 18
    54-815504310 CLAMP, OIL HOSE TO BELL HOUSING AND GIMBAL HOUSING
    CLAMP, OIL HOSE TO BELL HOUSING AND GIMBAL HOUSING
  • 19
    47370A1 BELLOWS, ASSEMBLY, UNIVERSAL JOINT
    BELLOWS, ASSEMBLY, UNIVERSAL JOINT
  • 20
    54-815504388 CLAMP, BELLOWS TO GIMBAL HOUSING AND BELL HOUSING
    CLAMP, BELLOWS TO GIMBAL HOUSING AND BELL HOUSING
  • 21
    815228T19 GIMBAL HOUSING ASSEMBLY
    GIMBAL HOUSING ASSEMBLY
  • 22
    16-57988 STUD GIMBAL HOUSING TO TRANSOM PLATE (5 3/8")
    STUD GIMBAL HOUSING TO TRANSOM PLATE (5 3/8")
  • 23
    27-47366T GASKET, GIMBAL HOUSING TO TRANSOM
    GASKET, GIMBAL HOUSING TO TRANSOM
  • 24
    31-30457 BEARING, ROLLER - ROLLER HOUSING (LOWER)
    BEARING, ROLLER - ROLLER HOUSING (LOWER)
  • 25
    26-31851 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
  • 26
    31-21638 BEARING, ROLLER - GIMBAL HOUSING (UPPER)
    BEARING, ROLLER - GIMBAL HOUSING (UPPER)
  • 27
    26-32121 OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
  • 28
    22-74036 FITTING, GREASE - GIMBAL HOUSING
    FITTING, GREASE - GIMBAL HOUSING
  • 29
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
  • 30
    37-1368211 EMBLEM, GIMBAL HOUSING
    EMBLEM, GIMBAL HOUSING
  • 31
    22-47841 CONNECTOR, GIMBAL HOUSING (OIL HOSE)
    CONNECTOR, GIMBAL HOUSING (OIL HOSE)
  • 32
    16-56766 STUD, GIMBAL HOUSING TO HYDRAULIC CONNECTOR (1 3/8")
    STUD, GIMBAL HOUSING TO HYDRAULIC CONNECTOR (1 3/8")
  • 33
    34762A1 PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
    PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
  • 34
    10-34763 SCREW, INHIBITOR PLATE TO GIMBAL HOUSING (3/4")
    SCREW, INHIBITOR PLATE TO GIMBAL HOUSING (3/4")
  • 35
    22-38565 ELBOW, GIMBAL HOUSING (OIL HOSE) - 45 DEGREES
    ELBOW, GIMBAL HOUSING (OIL HOSE) - 45 DEGREES
  • 36
    32-8M0062669 HOSE, OIL - GIMBAL HOUSING TO TRANSOM PLATE (8 1/4")
    HOSE, OIL - GIMBAL HOUSING TO TRANSOM PLATE (8 1/4")
  • 37
    54-815504310 CLAMP, OIL HOSE TO GIMBAL HOUSING AND TRANSOM PLATE
    CLAMP, OIL HOSE TO GIMBAL HOUSING AND TRANSOM PLATE
  • 38
    47347 CONNECTOR, HYDRAULIC - GIMBAL HOUSING
    CONNECTOR, HYDRAULIC - GIMBAL HOUSING
  • 39
    27-476441 GASKET, HYDRAULIC CONNECTOR
    GASKET, HYDRAULIC CONNECTOR
  • 40
    11-35888 NUT, GIMBAL HOUSING TO HUDRAULIC CONNECTOR STUD
    NUT, GIMBAL HOUSING TO HUDRAULIC CONNECTOR STUD
  • 41
    17-814646 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 42
    18-47381 COTTER PIN, RETAINING - LOWER SWIVEL PIN
    COTTER PIN, RETAINING - LOWER SWIVEL PIN
  • 43
    10-34879 SCREW, BELL HOUSING TO TRANSOM PLATE (4 3/4")
    SCREW, BELL HOUSING TO TRANSOM PLATE (4 3/4")
  • 44
    12-32620 WASHER, RUBBER - BELL HOUSING SCREW
    WASHER, RUBBER - BELL HOUSING SCREW
  • 45
    52670 JUMPER CABLE, GIMBAL HOUSING TO CHECK VALVE GUIDE COVER
    JUMPER CABLE, GIMBAL HOUSING TO CHECK VALVE GUIDE COVER
  • 46
    10-47225 SCREW, JUMPER CABLE
    SCREW, JUMPER CABLE
