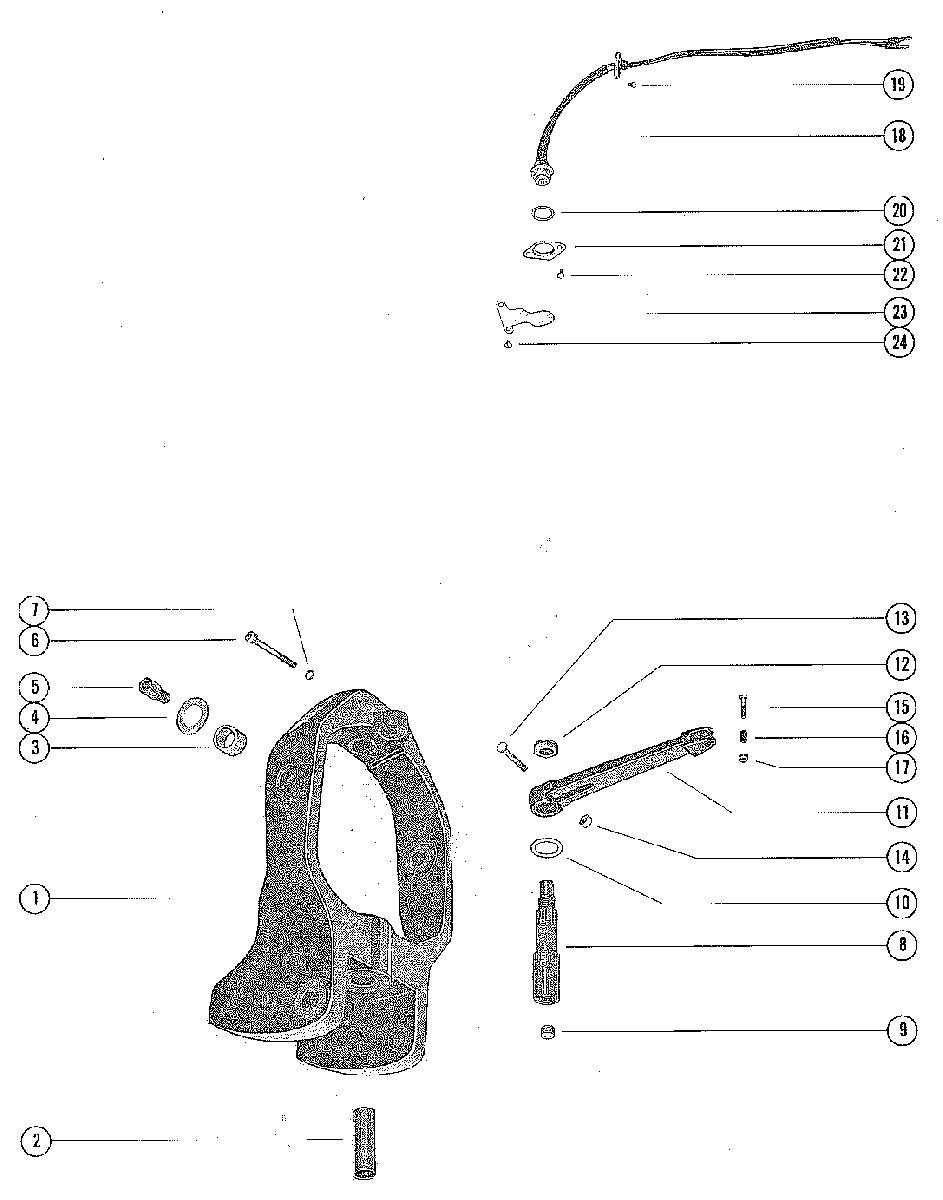

GIMBAL RING AND STEERING LEVER для Mercruiser - III 1968-1972 2373127 THRU 3002613

  • №
    Артикул
    Название
  • 1
    69112A3 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 2
    23-814645 BUSHING, GIMBAL RING (SWIVEL PIN)
    BUSHING, GIMBAL RING (SWIVEL PIN)
  • 3
    23-48311 BUSHING, GIMBAL RING (HINGE PIN)
    BUSHING, GIMBAL RING (HINGE PIN)
  • 4
    12-48313 WASHER, ANTI-GALLING - BELL HOUSING (HINGE PIN)
    WASHER, ANTI-GALLING - BELL HOUSING (HINGE PIN)
  • 5
    17-48312 PIN, HINGE - GIMBAL RING TO GIMBAL HOUSING
    PIN, HINGE - GIMBAL RING TO GIMBAL HOUSING
  • 6
    10-47450 SCREW, UPPER SWIVEL SHAFT RETAINING - GIMBAL RING (4")
    SCREW, UPPER SWIVEL SHAFT RETAINING - GIMBAL RING (4")
  • 7
    12-47538 WASHER, UPPER SWIVEL SHAFT RETAINING SCREW
    WASHER, UPPER SWIVEL SHAFT RETAINING SCREW
  • 8
    47645 SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING
    SHAFT, UPPER SWIVEL - GIMBAL RING TO GIMBAL HOUSING
  • 9
    22-47540 PLUG, PIPE - UPPER SWIVEL SHAFT
    PLUG, PIPE - UPPER SWIVEL SHAFT
  • 2
    12-34858 WASHER, UPPER SWIVEL SHAFT
    WASHER, UPPER SWIVEL SHAFT
  • 11
    74163A1 LEVER, STEERING - UPPER SWIVEL SHAFT
    LEVER, STEERING - UPPER SWIVEL SHAFT
  • 12
    11-858869 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT
    NUT, STEERING LEVER TO UPPER SWIVEL SHAFT
  • 13
    10-54193 SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2 1/2")
    SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2 1/2")
  • 14
    11-23161 NUT, STEERING LEVER SCREW
    NUT, STEERING LEVER SCREW
  • 15
    10-24644 SCREW, STEERING CABLE TO STEERING AREM (1 3/8")
    SCREW, STEERING CABLE TO STEERING AREM (1 3/8")
  • 16
    23-47643 SPACER, STEERING CALBE SCREW
    SPACER, STEERING CALBE SCREW
  • 17
    11-8267089 NUT, STEERING CABLE SCREW
    NUT, STEERING CABLE SCREW
  • 18
    47438A1 TILT STOP SWITCH ASSEMBLY, GIMBAL RING
    TILT STOP SWITCH ASSEMBLY, GIMBAL RING
  • 19
    10-20367 SCREW, TILT STOP SWITCH COVER ATTACHING (7/16")
    SCREW, TILT STOP SWITCH COVER ATTACHING (7/16")
  • 20
    23-31902 SPACER, TILT STOP SWITCH
    SPACER, TILT STOP SWITCH
  • 21
    31899 PLATE, RETAINER - TILT STOP SWITCH TO GIMBAL RING
    PLATE, RETAINER - TILT STOP SWITCH TO GIMBAL RING
  • 22
    10-20055 SCREW, RETAINER PLATE TO GIMBAL RING (3/8")
    SCREW, RETAINER PLATE TO GIMBAL RING (3/8")
  • 23
    49343 LEVER, ACTUATING - TILT STOP SWITCH
    LEVER, ACTUATING - TILT STOP SWITCH
  • 24
    10-31903 SCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
    SCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
