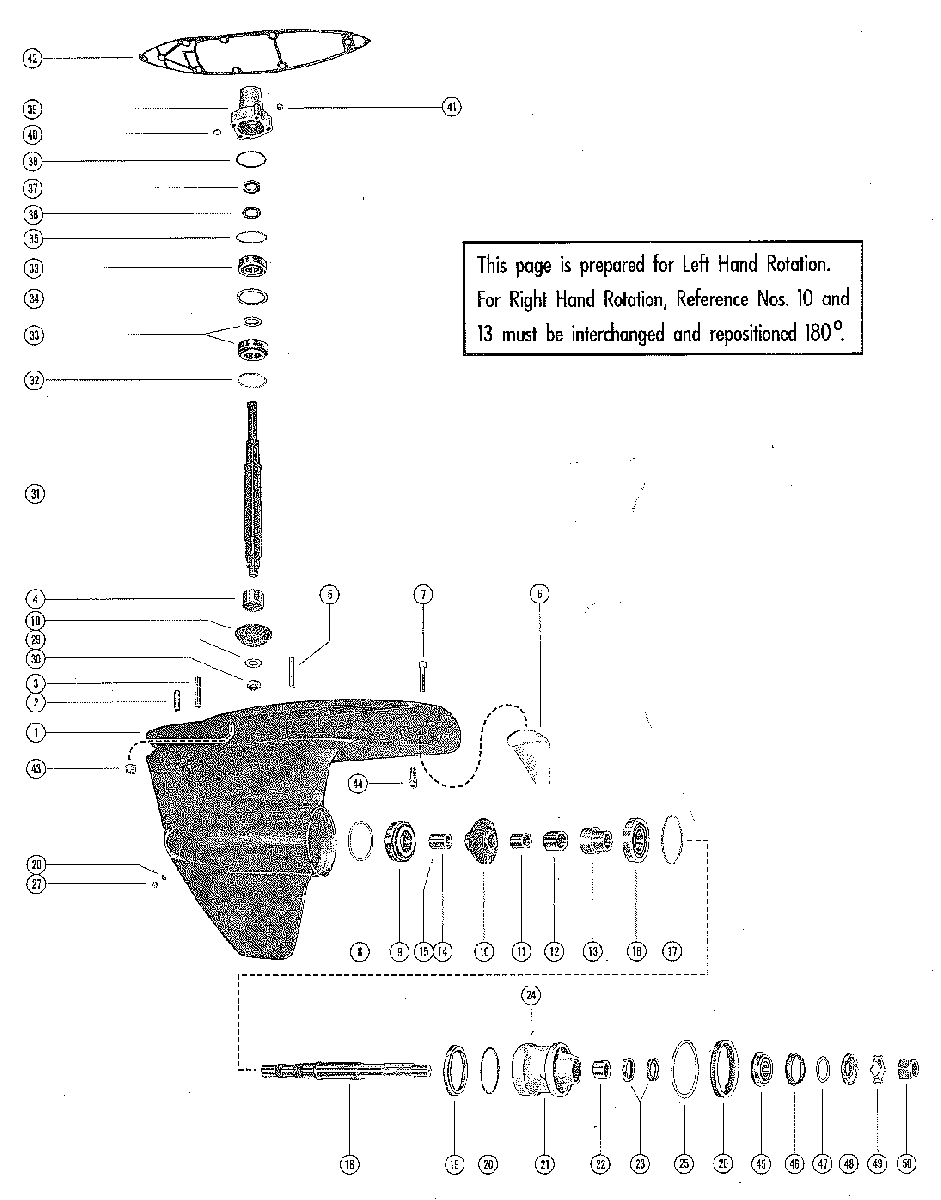

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - III 1968-1972 2373127 THRU 3002613

  • №
    Артикул
    Название
  • 1636-4354A5 GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    SERIAL 00000000-02815891
    GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    SERIAL 00000000-02815891
  • 1636-4354A4 GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
    SERIAL 00000000-02815891
    GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
    SERIAL 00000000-02815891
  • 1636-4354A5 GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    SERIAL 02815892-09999999
    GEAR HOUSING ASSEMBLY, COMPLETE (LEFT HAND ROTATION)
    SERIAL 02815892-09999999
  • 1636-4354A4 GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
    SERIAL 02815892-09999999
    GEAR HOUSING ASSEMBLY, COMPLETE (RIGHT HAND ROTATION)
    SERIAL 02815892-09999999
  • 1
    1636-4354A3 GEAR HOUSING ASSEMBLY
    SERIAL 00000000-02815891
    GEAR HOUSING ASSEMBLY
    SERIAL 00000000-02815891
  • 1
    1636-4354A3 GEAR HOUSING ASSEMBLY
    SERIAL 02815892-09999999
    GEAR HOUSING ASSEMBLY
    SERIAL 02815892-09999999
  • 2
    16-8M0041668 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 7/8")
  • 3
    16-57985 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 9/16")
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 9/16")
  • 4
    31-35246 ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 5
    16-57981 STUD, BEARING RETAINER TO GEAR HOUSING (3")
    STUD, BEARING RETAINER TO GEAR HOUSING (3")
  • 6
    34127T2 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 7
    10-41350 SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
    SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
  • 8
    15-47295A1 SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
  • 9
    31-47484A1 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER GEAR
  • 10
    43-53572A2 GEAR ASSEMBLY (DRIVE AND PINION)
    GEAR ASSEMBLY (DRIVE AND PINION)
  • 11
    23-48016 SPACER, SPLIT - PROPELLER SHAFT
    SPACER, SPLIT - PROPELLER SHAFT
  • 12
    23-48015 SPACER, PROPELLER SHAFT
    SPACER, PROPELLER SHAFT
  • 13
    53516 ADAPTOR ASSEMBLY, TAPERED ROLLER BEARING
    SERIAL 00000000-02529424
    ADAPTOR ASSEMBLY, TAPERED ROLLER BEARING
    SERIAL 00000000-02529424
  • 13
    53516 ADAPTOR, TAPERED ROLLER BEARING
    SERIAL 02529425-09999999
    ADAPTOR, TAPERED ROLLER BEARING
    SERIAL 02529425-09999999
  • 14
    23-48011 SLEEVE, TAPERED ROLLER BEARING ADAPTOR
    SLEEVE, TAPERED ROLLER BEARING ADAPTOR
  • 15
    17-53308 PIN, DOWEL - ADAPTOR SLEEVE
    PIN, DOWEL - ADAPTOR SLEEVE
  • 16
    31-47484A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 17
    15-47297A1 SHIM ASSEMBLY, ROLLER BEARING TO THRUST RING (.002-3-5-10)
    SHIM ASSEMBLY, ROLLER BEARING TO THRUST RING (.002-3-5-10)
  • 18
    44-53185A1 PROPELLER SHAFT (1 1/4-7 THREAD)
    PROPELLER SHAFT (1 1/4-7 THREAD)
  • 18
    44-53185A1 PROPELLER SHAFT ASSEMBLY (1 14-12 THREAD)
    PROPELLER SHAFT ASSEMBLY (1 14-12 THREAD)
  • 19
    47307 RING, THRUST - BEARING CARRIER
    RING, THRUST - BEARING CARRIER
  • 20
    25-47298 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 21
    52623A2 BEARING CARRIER ASSEMBLY
    SERIAL 00000000-02529424
    BEARING CARRIER ASSEMBLY
    SERIAL 00000000-02529424
  • 21
    52623A2 BEARING CARRIER ASSEMBLY
    SERIAL 02529425-09999999
    BEARING CARRIER ASSEMBLY
    SERIAL 02529425-09999999
  • 22
    31-47946 BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 23
    26-19473 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 24
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 25
    14-52553 WASHER, THRUST - GEAR HOUSING COVER
    SERIAL 00000000-02529424
    WASHER, THRUST - GEAR HOUSING COVER
    SERIAL 00000000-02529424
  • 26
    52622 COVER, GEAR HOUSING
    SERIAL 00000000-02529424
    COVER, GEAR HOUSING
    SERIAL 00000000-02529424
  • 25
    14-52553 TAB WASHER, GEAR HOUSING COVER
    SERIAL 02529425-09999999
    TAB WASHER, GEAR HOUSING COVER
    SERIAL 02529425-09999999
  • 26
    52622 COVER, GEAR HOUSING
    SERIAL 02529425-09999999
    COVER, GEAR HOUSING
    SERIAL 02529425-09999999
  • 27
    10-79953Q04 SCREW, VENT - GEAR HOUSING
    SCREW, VENT - GEAR HOUSING
  • 28
    12-191833 WASHER, SEAL - VENT SCREW
    WASHER, SEAL - VENT SCREW
  • 29
    12-32073 WASHER, PINION GEAR TO DRIVE SHAFT
    WASHER, PINION GEAR TO DRIVE SHAFT
  • 30
    11-858869 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 31
    45-47323 DRIVE SHAFT
    DRIVE SHAFT
  • 32
    15-39808A1 SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM ASSEMBLY, ROLLER BEARING TO GEAR HOUSING (.002-3-5-10)
  • 33
    31-47669A2 TAPERED ROLLER BEARING ASSEMBLY, COMPLETE (DRIVE SHAFT)
    TAPERED ROLLER BEARING ASSEMBLY, COMPLETE (DRIVE SHAFT)
  • 34
    23-47603 SPACER, TAPERED ROLLER BEARING CUPS
    SPACER, TAPERED ROLLER BEARING CUPS
  • 35
    15-39808A1 SHIM ASSEMBLY, ROLLER BEARING TO RETAINER (.002-3-5-10)
    SHIM ASSEMBLY, ROLLER BEARING TO RETAINER (.002-3-5-10)
  • 36
    12-56042 WASHER, TAPERED ROLLER BEARING TO DRIVE SHAFT
    WASHER, TAPERED ROLLER BEARING TO DRIVE SHAFT
  • 37
    11-34826 NUT, TAPERED ROLLER BEARING TO DRIVE SHAFT
    NUT, TAPERED ROLLER BEARING TO DRIVE SHAFT
  • 38
    25-20081 "O" RING, BEARING RETAINER (LARGE)
    "O" RING, BEARING RETAINER (LARGE)
  • 39
    47315 RETAINER, TAPERED ROLLER BEARING
    RETAINER, TAPERED ROLLER BEARING
  • 40
    25-45711 "O" RING, BEARING RETAINER (SMALL)
    "O" RING, BEARING RETAINER (SMALL)
  • 41
    11-82671013 NUT, BEARING RETAINER TO GEAR HOUSING STUD
    NUT, BEARING RETAINER TO GEAR HOUSING STUD
  • 42
    27-47317 GASKET, GEAR HOUSING TO DRIVE SHAFT HOUSING
    GASKET, GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 43
    11-47302 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
  • 44
    10-47557 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 1/2")
  • 45
    48018A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 46
    12-31642 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 47
    12-37763 WASHER, THRUST - BEARING CARRIER
    WASHER, THRUST - BEARING CARRIER
  • 48
    12-48014 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 49
    14-48012 TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 50
    11-52846 NUT, PROPELLER (1 1/4-7 THREAD)
    NUT, PROPELLER (1 1/4-7 THREAD)
  • 50
    11-17844 NUT, PROPELLER (1 1/4-12 THREAD)
    PART OF B-44-53185A1 PROPELLER SHAFT ASSEMBLY
    NUT, PROPELLER (1 1/4-12 THREAD)
    PART OF B-44-53185A1 PROPELLER SHAFT ASSEMBLY
