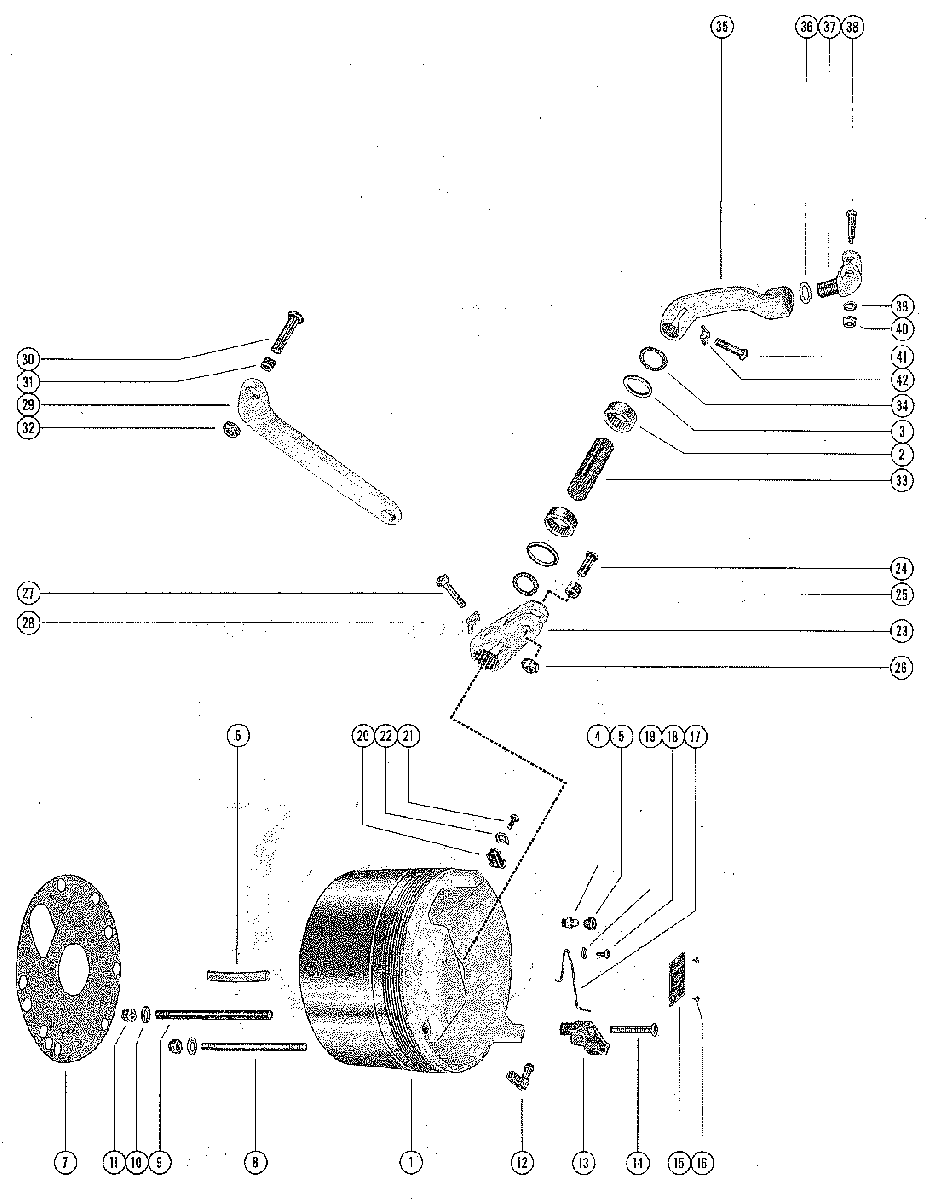

STEERING LEVER HOUSING ASSEMBLY для Mercruiser - II 1964-1967 1602186 THRU 2278488
-
№АртикулНазвание
-
132420A2 STEERING LEVER HOUSING ASSEMBLYSTEERING LEVER HOUSING ASSEMBLY
-
231-30457 BEARING, ROLLER-STEERING LEVER HOUSINGBEARING, ROLLER-STEERING LEVER HOUSING
-
326-31851 OIL SEAL, STEERING LEVER HOUSINGOIL SEAL, STEERING LEVER HOUSING
-
422-69059 FITTING, GREASE-STEERING LEVER HOUSINGFITTING, GREASE-STEERING LEVER HOUSING
-
519-77633Q LUBRICAP, STEERING LEVER HOUSING GREASE FITTINGLUBRICAP, STEERING LEVER HOUSING GREASE FITTING
-
632-31879 TUBE, NYLON-SHIFT ACTUATING CABLE GUIDETUBE, NYLON-SHIFT ACTUATING CABLE GUIDE
-
727-32423 GASKET, STEERING LEVER HOUSING TO GIMBAL HOUSINGGASKET, STEERING LEVER HOUSING TO GIMBAL HOUSING
-
816-32422 STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (6 5/8")STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (6 5/8")
-
916-32421 STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (7 1/4")STUD, STEERING LEVER HOUSING TO GIMBAL HOUSING (7 1/4")
-
1012-20959 WASHER, STEERING LEVER HOUSING STUDWASHER, STEERING LEVER HOUSING STUD
-
1111-898832 NUT, STEERING LEVER HOUSING STUDNUT, STEERING LEVER HOUSING STUD
-
1222-996642 ELBOW, STEERING LEVER HOUSINGELBOW, STEERING LEVER HOUSING
-
1335249 LATCH, STEERING LEVER HOUSINGLATCH, STEERING LEVER HOUSING
-
1410-31972 SCREW, LATCH TO STEERING LEVER HOUSINGSCREW, LATCH TO STEERING LEVER HOUSING
-
1538-31042 SERIAL PLATE USE FROM SERIAL
SERIAL 01602186-01941218SERIAL PLATE USE FROM SERIAL
SERIAL 01602186-01941218 -
1610-22290 SCREW, DRIVE-SERIAL PLATE ATTACHING
SERIAL 01602186-01941218SCREW, DRIVE-SERIAL PLATE ATTACHING
SERIAL 01602186-01941218 -
1637-39395 DECAL, SERIAL NUMBER (STARTED WITH)
SERIAL 01941219-02278488DECAL, SERIAL NUMBER (STARTED WITH)
SERIAL 01941219-02278488 -
1724-34381 SPRING, TORSION-LATCHSPRING, TORSION-LATCH
-
1810-29762 SCREW, TORSION SPRING TO STEERING LEVER HOUSINGSCREW, TORSION SPRING TO STEERING LEVER HOUSING
-
1912-28001 WASHER, TORSION SPRING SCREWWASHER, TORSION SPRING SCREW
-
2054-24836 CLIP, TILT STOP SWITCH LEADS TO STEERING LEVER HOUSINGCLIP, TILT STOP SWITCH LEADS TO STEERING LEVER HOUSING
-
2110-32031 SCREW, TILT STOP SWITCH LEADS CLIP TO STEERING LEVER HOUSINGSCREW, TILT STOP SWITCH LEADS CLIP TO STEERING LEVER HOUSING
-
228M0084613 "D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW"D" WASHER, TILT STOP SWITCH LEADS CLIP SCREW
-
2334903 ARM, STEERING-LOWERARM, STEERING-LOWER
-
2410-34954 BOLT, LINK ROD TO LOWER STEERING ARM (1 5/16")BOLT, LINK ROD TO LOWER STEERING ARM (1 5/16")
-
2523-31853 BUSHING, LINK ROD BOLTBUSHING, LINK ROD BOLT
-
2611-826709117 NUT, LINK ROD BOLTNUT, LINK ROD BOLT
-
2710-31830 SCREW, LOWER STEERING ARM TO STEERING SHAFT (1 3/4")SCREW, LOWER STEERING ARM TO STEERING SHAFT (1 3/4")
-
2814-43589 TAB WASHER, LOWER STEERING ARM SCREWTAB WASHER, LOWER STEERING ARM SCREW
-
2934009 LINK ROD, LOWER STEERING ARM TO GIMBAL RINGLINK ROD, LOWER STEERING ARM TO GIMBAL RING
-
3010-31846 BOLT, LINK ROD TO GIMBAL RINGBOLT, LINK ROD TO GIMBAL RING
-
3123-31853 BUSHING, LINK ROD BOLTBUSHING, LINK ROD BOLT
-
3211-826709117 NUT, LINK ROD BOLTNUT, LINK ROD BOLT
-
3331844 SHAFT, STEERING-STEERING LEVER HOUSINGSHAFT, STEERING-STEERING LEVER HOUSING
-
3412-31829 WASHER, NYLON-UPPER AND LOWER STEERING ARMS TO SHAFTWASHER, NYLON-UPPER AND LOWER STEERING ARMS TO SHAFT
-
3533775 ARM, STEERING-UPPERARM, STEERING-UPPER
-
3612-35685 WASHER, UPPER STEERINTG ARM YOKEWASHER, UPPER STEERINTG ARM YOKE
-
3753213A1 YOKE, UPPER STEERING ARMYOKE, UPPER STEERING ARM
-
3810-35095 SCREW, STEERING CABLE TO UPPER STEERING ARM YOKESCREW, STEERING CABLE TO UPPER STEERING ARM YOKE
-
3912-20084 WASHER, STEERING CABLE SCREWWASHER, STEERING CABLE SCREW
-
4011-826709111 NUT, STEERING CABLE SCREWNUT, STEERING CABLE SCREW
-
4110-31830 SCREW, UPPER STEERING ARM TO STEERING SHAFT (1 3/4")SCREW, UPPER STEERING ARM TO STEERING SHAFT (1 3/4")
-
4214-43589 TAB WASHER, UPPER STEERING ARM SCREWTAB WASHER, UPPER STEERING ARM SCREW
-
--37-33737 DECAL, NAME PLATE (POWERED BY MERCRUISER DRIVE)DECAL, NAME PLATE (POWERED BY MERCRUISER DRIVE)
