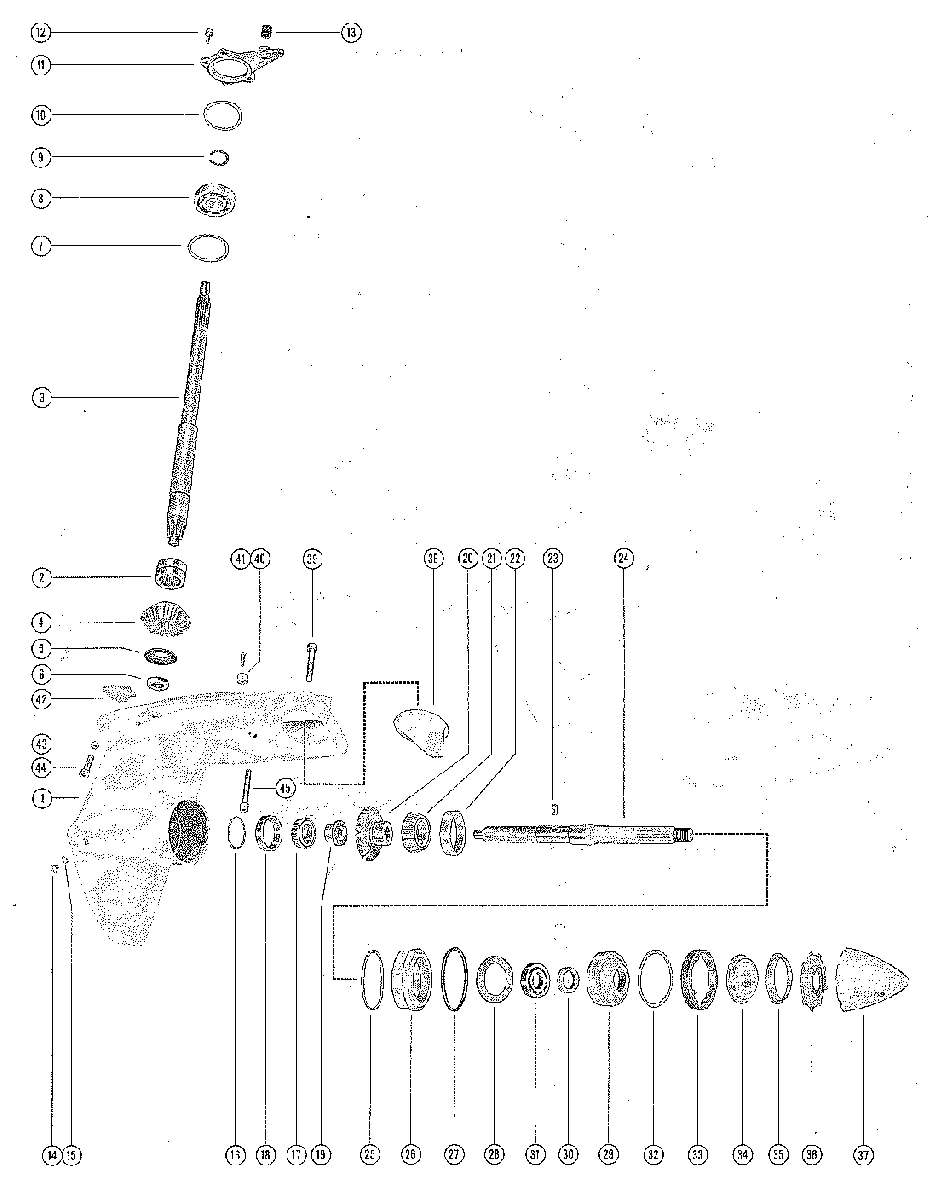

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - II 1964-1967 1602186 THRU 2278488

  • №
    Артикул
    Название
  • -
    1625-3503A3 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1625-2007A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    31-31544 BEARING, ROLLER - DRIVE SHAFT
    BEARING, ROLLER - DRIVE SHAFT
  • 3
    45-37253 DRIVE SHAFT
    DRIVE SHAFT
  • 4
    43-31527 GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 5
    34953 SHIELD, OIL
    SHIELD, OIL
  • 6
    11-31538 NUT, PINION
    NUT, PINION
  • 7
    15-20928A1 SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING TO GEAR HOUSING (.002-3-5-10)
  • 8
    30-32165 BEARING, BALL - DRIVE SHAFT
    BEARING, BALL - DRIVE SHAFT
  • 9
    53-31539 RING, SNAP - BALL BEARING TO GEAR HOUSING
    RING, SNAP - BALL BEARING TO GEAR HOUSING
  • 10
    15-20928A1 SHIM, DRIVE SHAFT BALL BEARING TO RETAINER
    SHIM, DRIVE SHAFT BALL BEARING TO RETAINER
  • 11
    34956 RETAINER, BALL BEARING - DRIVE SHAFT
    RETAINER, BALL BEARING - DRIVE SHAFT
  • 12
    10-30225 SCREW, BALL BEARING RETAINER TO HOUSING (1")
    SCREW, BALL BEARING RETAINER TO HOUSING (1")
  • 13
    26-33613 SEAL, OIL TUBE - BALL BEARING RETAINER
    SEAL, OIL TUBE - BALL BEARING RETAINER
  • 14
    10-79953Q04 SCREW, GEAR HOUSING GREASE FILLER HOLE
    SCREW, GEAR HOUSING GREASE FILLER HOLE
  • 15
    12-191833 WASHER, GEAR HOUSING GREASE FILLER HOLE SCREW
    WASHER, GEAR HOUSING GREASE FILLER HOLE SCREW
  • 16
    15-31154A1 SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING CUP TO GEAR HOUSING (.002-3-5-10)
  • 17
    31-31215A1 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER SHAFT
  • 18
    31-31216 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 19
    31556 ADAPTOR, TAPERED ROLLER BEARING TO PROPELLER SHAFT
    ADAPTOR, TAPERED ROLLER BEARING TO PROPELLER SHAFT
  • 20
    43-31526 GEAR, PROPELLER - PROPELLER SHAFT
    GEAR, PROPELLER - PROPELLER SHAFT
  • 21
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY, PROPELLER SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, PROPELLER SHAFT
  • 22
    31-31092 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 23
    17-31537 PIN, DOWEL - PROPELLER GEAR TO PROPELLER SHAFT
    PIN, DOWEL - PROPELLER GEAR TO PROPELLER SHAFT
  • 24
    44-32245 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 25
    15-31535A1 SHIM, BEARING CARRIER TO GEAR HOUSING (.002-3-5-10)
    SHIM, BEARING CARRIER TO GEAR HOUSING (.002-3-5-10)
  • 26
    34955 CARRIER, BEARING - PROPELLER GEAR ROLLER BEARING
    CARRIER, BEARING - PROPELLER GEAR ROLLER BEARING
  • 27
    25-31534 "O"RING, BEARING CARRIER TO GEAR HOUSING COVER
    "O"RING, BEARING CARRIER TO GEAR HOUSING COVER
  • 28
    32248 RING, BALL BEARING TO GEAR HOUSING COVER
    RING, BALL BEARING TO GEAR HOUSING COVER
  • 29
    32244A1 COVER ASEMBLY, GEAR HOUSING
    COVER ASEMBLY, GEAR HOUSING
  • 30
    26-31554 OIL SEAL, GEAR HOUSING COVER
    OIL SEAL, GEAR HOUSING COVER
  • 31
    30-20840 BEARING, BALL - GEAR HOUSING COVER
    BEARING, BALL - GEAR HOUSING COVER
  • 32
    12-31536 WASHER, GEAR HOUSING COVER TO RETAINER
    WASHER, GEAR HOUSING COVER TO RETAINER
  • 33
    32247 RETAINER, GEAR HOUSING COVER
    RETAINER, GEAR HOUSING COVER
  • 34
    31643A1 THRUST HUB AND WASHER ASSEMBLY, PROPELLER SHAFT
    THRUST HUB AND WASHER ASSEMBLY, PROPELLER SHAFT
  • 35
    12-31642 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 36
    14-31644 TAB WASHER, PROPELLER SHAFT
    TAB WASHER, PROPELLER SHAFT
  • 37
    11-31608 NUT, PROPELLER
    NUT, PROPELLER
  • 38
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 39
    10-41350 SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
    SCREW, TRIM TAB TO GEAR HOUSING (2 1/2")
  • 40
    32209 MAGNET, GEAR HOUSING
    MAGNET, GEAR HOUSING
  • 41
    10-24878 SCREW, MAGNET TO GEAR HOUSING (1 1/4")
    SCREW, MAGNET TO GEAR HOUSING (1 1/4")
  • 42
    35-32250 SCREEN, FILTER - GEAR HOUSING
    SCREEN, FILTER - GEAR HOUSING
  • 43
    11-34933 NUT, DRIVE SHAFT HOUSING STUDS
    NUT, DRIVE SHAFT HOUSING STUDS
  • 44
    10-32470 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 3/4")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 3/4")
  • 45
    10-31717 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 1/8")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 1/8")
