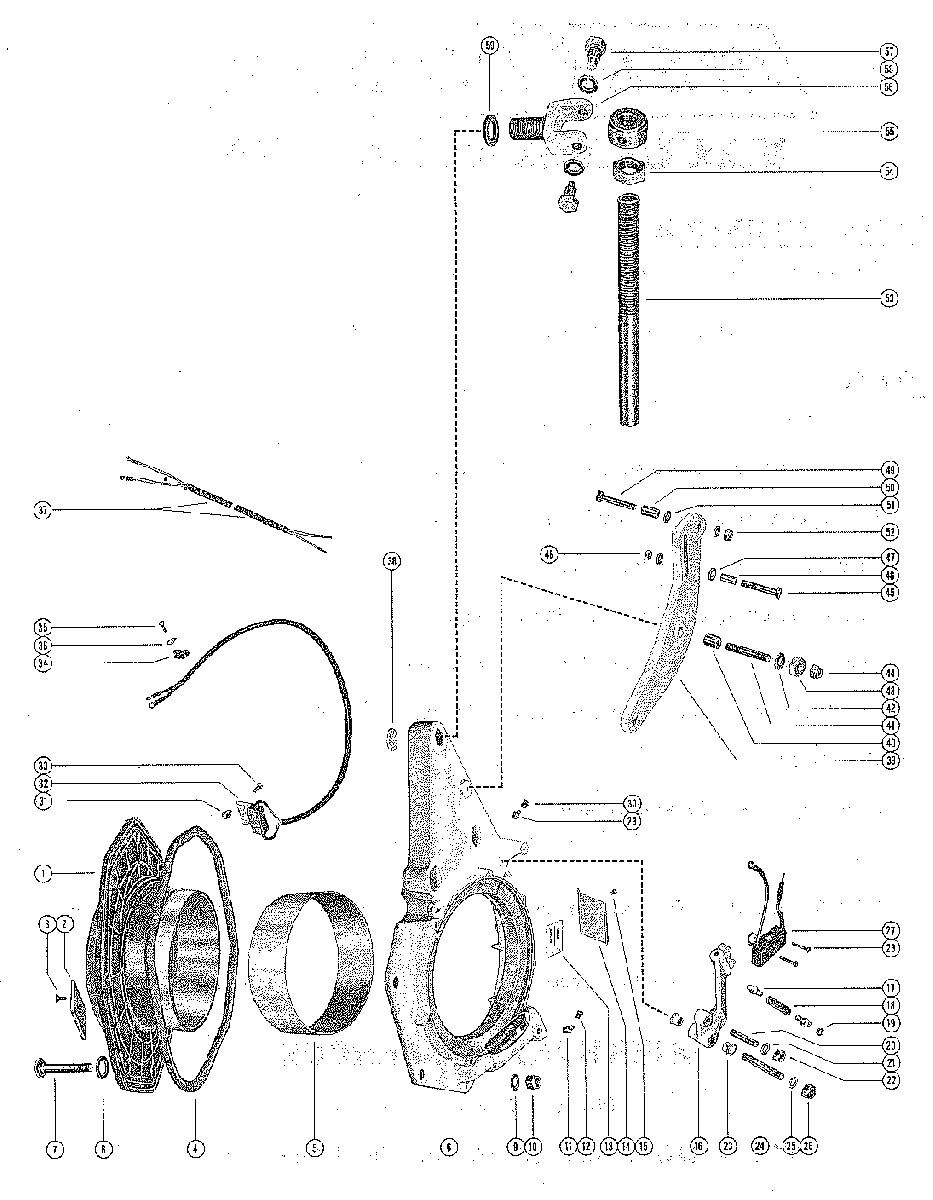

INNER AND OUTER TRANSOM PLATE AND SHIFT ARM для Mercruiser - II 1964-1967 1602186 THRU 2278488

  • №
    Артикул
    Название
  • 1
    32276A2 PLATE ASSEMBLE, TRANSOM-OUTER
    PLATE ASSEMBLE, TRANSOM-OUTER
  • 2
    34762A1 PLATE ASSEMBLY, INHIBITOR-OUTER TRANSOM PLATE
    PLATE ASSEMBLY, INHIBITOR-OUTER TRANSOM PLATE
  • 3
    10-34763 SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
    SCREW, INHIBITOR PLATE TO OUTER TRANSOM PLATE
  • 4
    31636 SEAL, RUBBER-OUTER TRANSOM PLATE TO TRANSOM
    SEAL, RUBBER-OUTER TRANSOM PLATE TO TRANSOM
  • 5
    32795 LINER, OUTER TRANSOM PLATE
    LINER, OUTER TRANSOM PLATE
  • 6
    34193 PLATE, TRANSOM-INNER
    PLATE, TRANSOM-INNER
  • 7
    10-43691 BOLT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (4")
    BOLT, OUTER TRANSOM PLATE TO INNER TRANSOM PLATE (4")
  • 8
    12-32620 WASHER, RUBBER-OUTER TRANSOM PLATE BOLT
    WASHER, RUBBER-OUTER TRANSOM PLATE BOLT
  • 9
    12-21900 WASHER, OUTER TRANSOM PLATE BOLT
    WASHER, OUTER TRANSOM PLATE BOLT
  • 10
    11-34087 NUT, OUTER TRANSOM PLATE BOLT
    NUT, OUTER TRANSOM PLATE BOLT
  • 11
    22-25094 FITTING, GREASE (45)- INNER TRANSOM PLATE
    FITTING, GREASE (45)- INNER TRANSOM PLATE
  • 12
    19-77633Q LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
    LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
  • 13
    37-32049 LABEL, ENGINE ROTATION-INNER TRANSOM PLATE
    LABEL, ENGINE ROTATION-INNER TRANSOM PLATE
  • 14
    34056 COVER, LOCK-IN LIMIT SWITCH-INNER TRANSOM PLATE
    COVER, LOCK-IN LIMIT SWITCH-INNER TRANSOM PLATE
  • 15
    10-26668 SCREW, COVER TO INNER TRANSOM PLATE
    SCREW, COVER TO INNER TRANSOM PLATE
  • 16
    32463A2 ARM ASSEMBLY, CUT-OUT SWITCH ACTUATING-INNER TRANSOM PLATE
    ARM ASSEMBLY, CUT-OUT SWITCH ACTUATING-INNER TRANSOM PLATE
  • 17
    32464 PLUNGER, SWITCH ACTUATING ARM
    PLUNGER, SWITCH ACTUATING ARM
  • 18
    24-32922 SPRING, COMPRESSION-SWITCH ACTUATING ARM PLUNGER TENSION
    SPRING, COMPRESSION-SWITCH ACTUATING ARM PLUNGER TENSION
  • 19
    33501 RETAINER, SPRING AND PLUNGER TO SWITCH ACTUATING ARM
    RETAINER, SPRING AND PLUNGER TO SWITCH ACTUATING ARM
  • 20
    16-20075 STUD, SHIFT ACTUATING CABLE TO SWITCH ACTUATING ARM
    STUD, SHIFT ACTUATING CABLE TO SWITCH ACTUATING ARM
  • 21
    12-29245 WASHER, SWITCH ACTUATING ARM CABLE STUD
    WASHER, SWITCH ACTUATING ARM CABLE STUD
  • 22
    11-8267089 NUT, SWITCH ACTUATING ARM CABLE STUD
    NUT, SWITCH ACTUATING ARM CABLE STUD
  • 23
    23-26841 BUSHING, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
    BUSHING, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
  • 24
    16-66373 STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 5/16")
    STUD, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE (2 5/16")
  • 25
    12-20546 WASHER, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
    WASHER, SWITCH ACTUATING ARM TO INNER TRANSOM PLATE STUD
  • 26
    11-82670911 NUT, SWITCH ACTUATING ARM TO TO INNER TRANSOM PLATE STUD
    NUT, SWITCH ACTUATING ARM TO TO INNER TRANSOM PLATE STUD
  • 27
    30866A2 SWITCH ASSEMBLY, CUT-OUT-INNER TRANSOM PLATE
    BOLT AND NUT DISCONNECT
    SWITCH ASSEMBLY, CUT-OUT-INNER TRANSOM PLATE
    BOLT AND NUT DISCONNECT
  • 28
    39670A28 SWITCH ASSEMBLY, CUT-OUT-INNER TRANSOM PLATE
    QUICK-DISCONNECT
    SWITCH ASSEMBLY, CUT-OUT-INNER TRANSOM PLATE
    QUICK-DISCONNECT
  • 28
    10-30902 SCREW, CUT-OUT SWITCH TO INNER TRANSOM PLATE
    SCREW, CUT-OUT SWITCH TO INNER TRANSOM PLATE
  • 29
    22-69059 FITTING, GREASE-INNER TRANSOM PLATE
    FITTING, GREASE-INNER TRANSOM PLATE
  • 30
    19-77633Q LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
    LUBRICAP, INNER TRANSOM PLATE GREASE FITTING
  • 31
    34060 PLUNGER, OUTER TRANSOM PLATE
    PLUNGER, OUTER TRANSOM PLATE
  • 32
    34051A3 SWITCH ASSEMBLY, LOCK-IN LIMIT-OUTER TRANSOM PLATE
    SWITCH ASSEMBLY, LOCK-IN LIMIT-OUTER TRANSOM PLATE
  • 33
    10-20665 SCREW, LOCK-IN LIMIT SWITCH TO OUTER TRANSOM PLATE
    SCREW, LOCK-IN LIMIT SWITCH TO OUTER TRANSOM PLATE
  • 34
    54-24836 CLIP, LOCK-IN LIMIT SWITCH LEADS TO INNER TRANSOM PLATE
    CLIP, LOCK-IN LIMIT SWITCH LEADS TO INNER TRANSOM PLATE
  • 35
    10-32031 SCREW, LOCK-IN LIMIT SWITCH LEADS CLIP TO INNER TRANSOM PLAT
    SCREW, LOCK-IN LIMIT SWITCH LEADS CLIP TO INNER TRANSOM PLAT
  • 36
    8M0084613 "D" WASHER, LOCK-IN LIMIT SWITCH LEADS CLIP SCREW
    "D" WASHER, LOCK-IN LIMIT SWITCH LEADS CLIP SCREW
  • 37
    39672A2 EXTENSION HARNESS ASSEMBLY, TILT SWITCH (QUICK DISCONNECT)
    EXTENSION HARNESS ASSEMBLY, TILT SWITCH (QUICK DISCONNECT)
  • 38
    19-35684 WELCH PLUG, INNER TRANSOM PLATE
    WELCH PLUG, INNER TRANSOM PLATE
  • 39
    49406A1 ARM, SHIFT CABLE MOUNTING-STEERING BRACKET
    ARM, SHIFT CABLE MOUNTING-STEERING BRACKET
  • 40
    23-31758 SPACER, SHIFT CABLE MOUNTING ARM STUD
    SPACER, SHIFT CABLE MOUNTING ARM STUD
  • 41
    16-68201 STUD, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
    STUD, SHIFT CABLE MOUNTING ARM TO STEERING CABLE BRACKET
  • 42
    12-26825 WASHER, SHIFT CABLE MOUNTING ARM STUD
    WASHER, SHIFT CABLE MOUNTING ARM STUD
  • 43
    23-27818 SPACER, SHIFT CABLE MOUNTING ARM STUD
    SPACER, SHIFT CABLE MOUNTING ARM STUD
  • 44
    11-82670911 NUT, SHIFT CABLE MOUNTING ARM STUD
    NUT, SHIFT CABLE MOUNTING ARM STUD
  • 45
    10-22659 SCREW, SHIFT ACTUATING CABLE TO SHIFT CABLE ARM (1 5/8")
    SCREW, SHIFT ACTUATING CABLE TO SHIFT CABLE ARM (1 5/8")
  • 46
    23-31866 SPACER, SHIFT ACTUATING CABLE SCREW
    SPACER, SHIFT ACTUATING CABLE SCREW
  • 47
    12-39143 WASHER, SHIFT ACTUATING CABLE SCREW
    WASHER, SHIFT ACTUATING CABLE SCREW
  • 48
    11-8267089 NUT, SHIFT ACTUATING CABLE SCREW
    NUT, SHIFT ACTUATING CABLE SCREW
  • 49
    10-22659 SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CABLE ARM (1 5/8")
    SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CABLE ARM (1 5/8")
  • 50
    23-31866 SPACER, SHIFT CABLE ASSEMBLY SCREW
    SPACER, SHIFT CABLE ASSEMBLY SCREW
  • 51
    12-39143 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 52
    11-8267089 NUT, SHIFT CABLE ASSEMBLY SCREW
    NUT, SHIFT CABLE ASSEMBLY SCREW
  • 53
    71565A2 TUBE, STEERING CABLE GUIDE
    TUBE, STEERING CABLE GUIDE
  • 54
    11-8M0041651 NUT, JAM-STEERING CABLE GUIDE TUBE
    NUT, JAM-STEERING CABLE GUIDE TUBE
  • 55
    35221 RING, SWIVEL-CABLE GUIDE TUBE PIVOT YOKE
    RING, SWIVEL-CABLE GUIDE TUBE PIVOT YOKE
  • 56
    34125 YOKE, CABLE GUIDE TUBE PIVOT-STEERING CABLE BRACKET
    YOKE, CABLE GUIDE TUBE PIVOT-STEERING CABLE BRACKET
  • 57
    10-31832 BOLT, PIVOT-PIVOT YOKE TO SWIVEL RING
    BOLT, PIVOT-PIVOT YOKE TO SWIVEL RING
  • 58
    13-31848 LOCKWASHER, PIVOT YOKE TO SWIVEL RING PIVOT BOLT
    LOCKWASHER, PIVOT YOKE TO SWIVEL RING PIVOT BOLT
  • 59
    12-35683 WASHER, CABLE GUIDE PIVOT YOKE
    WASHER, CABLE GUIDE PIVOT YOKE
