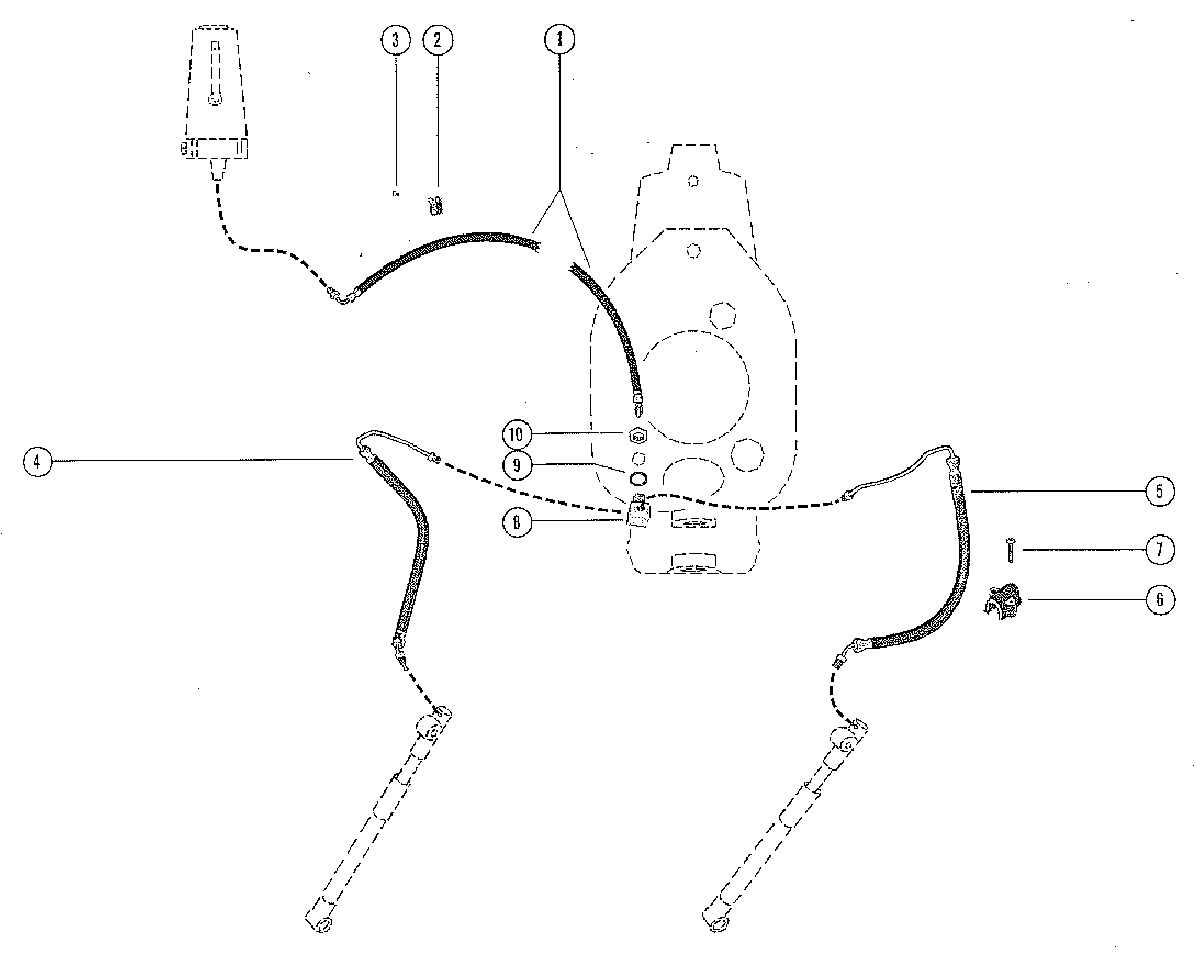

MERCRUISER IA,IB AND IC (E-Z SHIFT WITH FULL POWER TILT PART для Mercruiser - IA/IB/IC (EZ-SHIFT) 1965-1966 1776349 THRU 2065189

  • №
    Артикул
    Название
  • 1
    32-37991 HOSE, LIFT - HYDRAULIC PUMP TO GIMBAL HOUSING (24")
    HOSE, LIFT - HYDRAULIC PUMP TO GIMBAL HOUSING (24")
  • 2
    54-22627 CLIP, LIFT HOSE TO TRANSOM PLATE
    CLIP, LIFT HOSE TO TRANSOM PLATE
  • 3
    10-31903 SCREW, LIFT HOSE TO TRANSOM (3/8")
    SCREW, LIFT HOSE TO TRANSOM (3/8")
  • 4
    32-36085 HOSE, COMMECTING - GIMBAL HSG. TO TILT CYLINDER (PORT)
    HOSE, COMMECTING - GIMBAL HSG. TO TILT CYLINDER (PORT)
  • 5
    32-36086 HOSE, COMMECTING - GIMBAL HSG. TO TILT CYLINDER (STARBOARD)
    HOSE, COMMECTING - GIMBAL HSG. TO TILT CYLINDER (STARBOARD)
  • 6
    36011 COVER, CONNECTING HOSE TO GIMBAL HOUSING
    COVER, CONNECTING HOSE TO GIMBAL HOUSING
  • 7
    10-36070 SCREW, COVER TO GIMBAL HOUSING (1 1/4")
    SCREW, COVER TO GIMBAL HOUSING (1 1/4")
  • 8
    22-36033 CONNECTOR, GIMBAL HOUSING
    CONNECTOR, GIMBAL HOUSING
  • 9
    27-36043 GASKET, GIMBAL HOUSING CONNECTOR
    GASKET, GIMBAL HOUSING CONNECTOR
  • 10
    11-22339 NUT, GIMBAL HOUSING CONNECTOR
    NUT, GIMBAL HOUSING CONNECTOR
