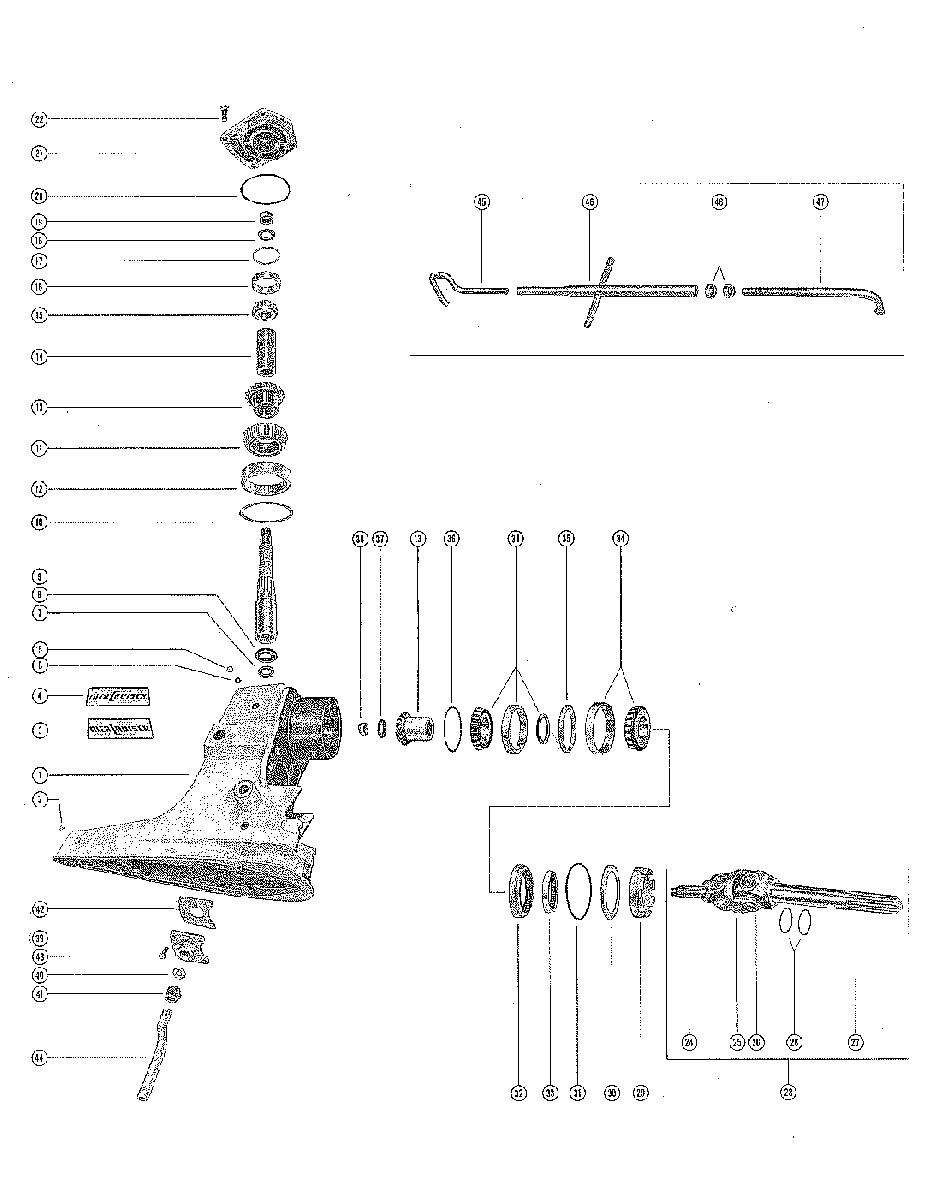

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - IA/IB/IC (EZ-SHIFT) 1965-1966 1776349 THRU 2065189

  • №
    Артикул
    Название
  • 1
    1547-2411A17 DRIVE SHAFT HOUSING ASSEMBLY (SEE PAGE 7 FOR PARTS BREAKDOWN)
    DRIVE SHAFT HOUSING ASSEMBLY (SEE PAGE 7 FOR PARTS BREAKDOWN)
  • 2
    19-29850 PLUG, TRIM TAB HOLE-DRIVE SHAFT HOUSING
    PLUG, TRIM TAB HOLE-DRIVE SHAFT HOUSING
  • 3
    37-56480A1 DECAL, DRIVE SHAFT HOUSING-PORT EARLY STYLE
    DECAL, DRIVE SHAFT HOUSING-PORT EARLY STYLE
  • 4
    37-56480A1 DECAL, DRIVE SHAFT HOUSING- STARBOARD EARLY STYLE
    DECAL, DRIVE SHAFT HOUSING- STARBOARD EARLY STYLE
  • 3&4
    37-56480A1 DECAL SET, DRIVE SHAFT HOUSING LATE STYLE
    DECAL SET, DRIVE SHAFT HOUSING LATE STYLE
  • 5
    10-79953Q04 SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE
    SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE
  • 6
    12-191833 WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE
    WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE
  • 7
    26-965031 OIL SEAL, DRIVE SHAFT HOUSING-LOWER
    OIL SEAL, DRIVE SHAFT HOUSING-LOWER
  • 8
    26-32511 OIL SEAL, GEAR CHAMBER-DRIVE SHAFT HOUSING
    OIL SEAL, GEAR CHAMBER-DRIVE SHAFT HOUSING
  • 9
    45-32583 DRIVE SHAFT, UPPER
    DRIVE SHAFT, UPPER
  • 10
    15-36178A02 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
  • 11
    31-35990A1 TAPERED ROLLER BEARING ASSEMBLY, PINION GEAR
    TAPERED ROLLER BEARING ASSEMBLY, PINION GEAR
  • 12
    31-35991 CUP TAPERED ROLLER BEARING
    CUP TAPERED ROLLER BEARING
  • 13
    43-36342A1 GEAR ASSEMBLY, COMPLETE- MERCRUISE IA (21-23 GEAR RATIO)
    GEAR ASSEMBLY, COMPLETE- MERCRUISE IA (21-23 GEAR RATIO)
  • 13
    43-36219A1 GEAR ASSEMBLY, COMPLETE- MERCRUISE IB (20-24 GEAR RATIO)
    GEAR ASSEMBLY, COMPLETE- MERCRUISE IB (20-24 GEAR RATIO)
  • 13
    43-35994A2 GEAR ASSEMBLY, COMPLETE- MERCRUISE (24-24 GEAR RATIO)
    GEAR ASSEMBLY, COMPLETE- MERCRUISE (24-24 GEAR RATIO)
  • 14
    23-32591 SPACER, UPPER DRIVE SHAFT
    SPACER, UPPER DRIVE SHAFT
  • 15
    31-32575T1 TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
    TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
  • 16
    31-32576 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 17
    15-32563A1 SHIM, BEARING CUP TO TOP COVER
    SHIM, BEARING CUP TO TOP COVER
  • 18
    12-32506 WASHER, GEAR AND BEARING TO UPPER DRIVE SHAFT
    WASHER, GEAR AND BEARING TO UPPER DRIVE SHAFT
  • 19
    11-22339 NUT, GEAR AND BEARING TO UPPER DRIVE SHAFT
    NUT, GEAR AND BEARING TO UPPER DRIVE SHAFT
  • 20
    25-32546 "O" RING, TOP COVER SEALING
    "O" RING, TOP COVER SEALING
  • 21
    32491A1 COVER, TOP-DRIVE SHAFT HOUSING
    COVER, TOP-DRIVE SHAFT HOUSING
  • 22
    10-90073 SCREW, TOP COVER TO DRIVE SHAFT HOUSING
    SCREW, TOP COVER TO DRIVE SHAFT HOUSING
  • 23
    58858A1 UNIVERSAL JOINT SAAEMBLY
    UNIVERSAL JOINT SAAEMBLY
  • 24
    46020T02 YORK, UNIVERSAL JOINT-GEAR END ( SHORT)
    YORK, UNIVERSAL JOINT-GEAR END ( SHORT)
  • 25
    393831 SOCKET, CENTER-UNIVERSAL JOINT
    SOCKET, CENTER-UNIVERSAL JOINT
  • 26
    75832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
    CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
  • 27
    39385A1 YORK ASSEMBLY-UNIVERSAL JOINT-COUPLING END (LONG)
    YORK ASSEMBLY-UNIVERSAL JOINT-COUPLING END (LONG)
  • 28
    25-25439 "O" RING, UNIVERSAL JOINT
    "O" RING, UNIVERSAL JOINT
  • 29
    8168112 RETAINER, TAPERED ROLLER BEARING BEARING-UNIVERSAL JOINT
    RETAINER, TAPERED ROLLER BEARING BEARING-UNIVERSAL JOINT
  • 30
    35983 RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
    RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
  • 31
    25-70937 "O" RING, OIL SEAL CARRIER
    "O" RING, OIL SEAL CARRIER
  • 32
    66081A2 CARRIER ASSEMBLY, OIL SEAL
    CARRIER ASSEMBLY, OIL SEAL
  • 33
    26-823894 OIL SEAL, CARRIER
    OIL SEAL, CARRIER
  • 34
    31-35988A12 TAPERED ROLLER BERAING ASSEMBLY, DRIVE GEAR
    TAPERED ROLLER BERAING ASSEMBLY, DRIVE GEAR
  • 35
    23-35985 SPACER, DRIVE GEAR ROLLER BEARING CUPS
    SPACER, DRIVE GEAR ROLLER BEARING CUPS
  • 36
    15-35980A1 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
  • 37
    12-35981 WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT
    WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT
  • 38
    11-22339 NUT, DRIVE GEAR TO UNIVERSAL JOINT
    NUT, DRIVE GEAR TO UNIVERSAL JOINT
  • 39
    42724A3 COVER ASSEMBLY, WATER POCKET-DRIVE SHAFT HOUSING
    COVER ASSEMBLY, WATER POCKET-DRIVE SHAFT HOUSING
  • 40
    12-36446 WASHER, WATER POCKET COVER EARLY STYLE
    WASHER, WATER POCKET COVER EARLY STYLE
  • 41
    26-36557 SEAL, RUBBER-WATER POCKET COVER EARLY STYLE
    SEAL, RUBBER-WATER POCKET COVER EARLY STYLE
  • 41
    26-38970 SEAL, RUBBER-WATER POCKET COVER LATE STYLE
    SEAL, RUBBER-WATER POCKET COVER LATE STYLE
  • 42
    27-32569 GASKET, WATER POCKET COVER
    GASKET, WATER POCKET COVER
  • 43
    10-28636 SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING
    SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING
  • 44
    32-32587 TUBE, WATER-WATER POCKET COVER
    TUBE, WATER-WATER POCKET COVER
  • --
    32657A2 TURNBUCKLE ASSEMBLY, COMPLETE
    NOT USED WITH FULL POWER TILT
    TURNBUCKLE ASSEMBLY, COMPLETE
    NOT USED WITH FULL POWER TILT
  • 45
    32650 HOOK, TURNBUCKLE-LOWER (DRIVE SHAFT HOUSING)
    NOT USED WITH FULL POWER TILT
    HOOK, TURNBUCKLE-LOWER (DRIVE SHAFT HOUSING)
    NOT USED WITH FULL POWER TILT
  • 46
    32657A1 TURNBUCKLE - LOWER(DRIVE SHAFT HOUSING)
    NOT USED WITH FULL POWER TILT
    TURNBUCKLE - LOWER(DRIVE SHAFT HOUSING)
    NOT USED WITH FULL POWER TILT
  • 47
    32656 HOOK, TURNBUCKLE-UPPER (GIMBAL HOUSING)
    NOT USED WITH FULL POWER TILT
    HOOK, TURNBUCKLE-UPPER (GIMBAL HOUSING)
    NOT USED WITH FULL POWER TILT
  • 48
    11-21612 NUT, ADJUSTING-UPPER HOOK
    NOT USED WITH FULL POWER TILT
    NUT, ADJUSTING-UPPER HOOK
    NOT USED WITH FULL POWER TILT
  • --
    37-33737 DECAL, NAME PLATE (POWERED BY MERCRUISE DRIVE)
    DECAL, NAME PLATE (POWERED BY MERCRUISE DRIVE)
