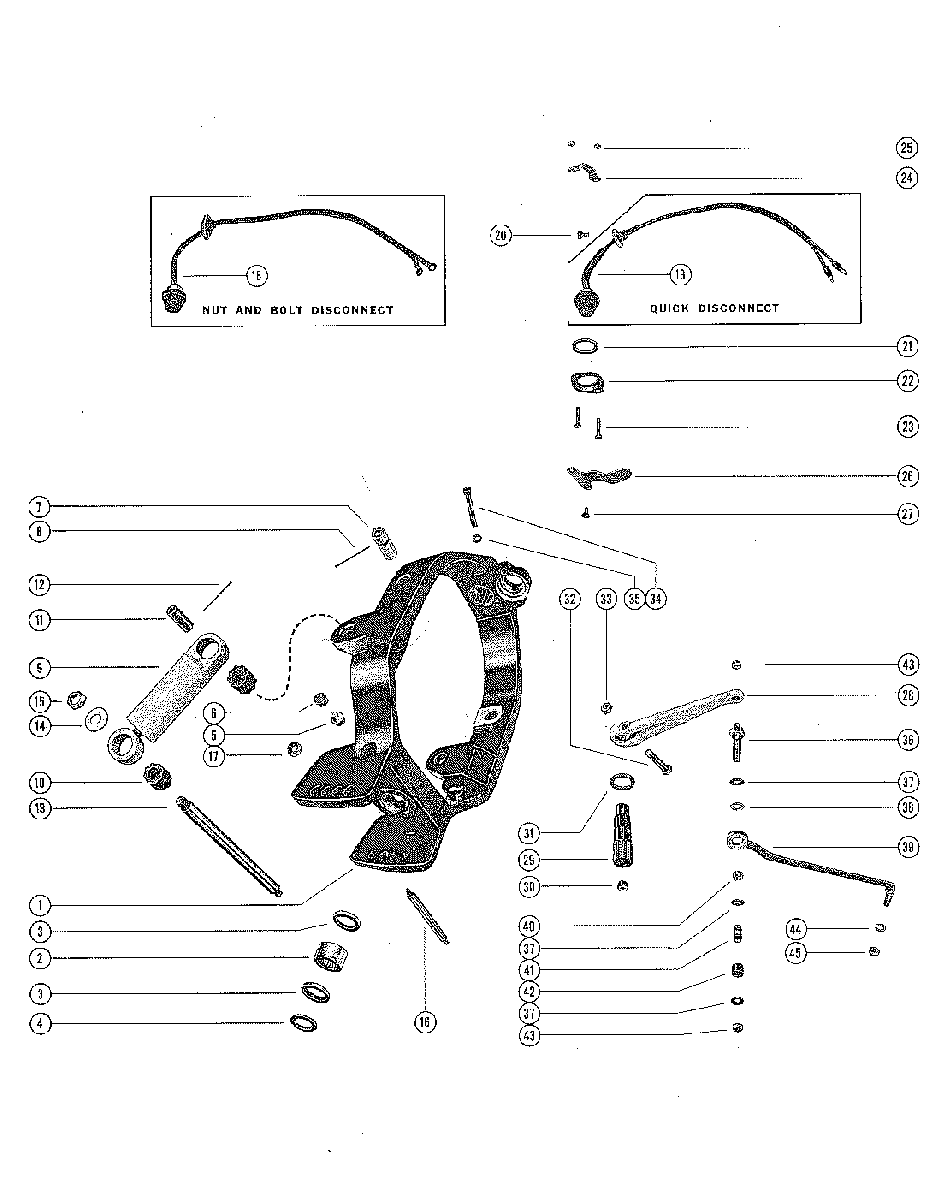

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - IA/IB/IC (EZ-SHIFT) 1965-1966 1776349 THRU 2065189

  • №
    Артикул
    Название
  • 1
    78293A1 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 2
    31-32538 BEARING, ROLLER-GIMBAL RING
    BEARING, ROLLER-GIMBAL RING
  • 3
    26-32541 OIL SEAL, GIMBAL RING
    OIL SEAL, GIMBAL RING
  • 4
    23-39273 SPACER, GIMBAL RING
    SPACER, GIMBAL RING
  • 5
    22-69059 FITTING, GREASE-GIMBAL RING
    FITTING, GREASE-GIMBAL RING
  • 6
    19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING
    LUBRICAP, GIMBAL RING GREASE FITTING
  • 7
    17-77361A1 PIN, HINGE-GIMBAL RING TO BELL HOUSING
    PIN, HINGE-GIMBAL RING TO BELL HOUSING
  • 8
    17-77039 PIN, HINGE PIN RETAINING-GIMBAL RING
    PIN, HINGE PIN RETAINING-GIMBAL RING
  • 9
    55-67356A1 SHOCK ABSORBER
    SHOCK ABSORBER
  • 10
    23-32848 BUSHING, RUBBER-SHOCK ABSORBER
    BUSHING, RUBBER-SHOCK ABSORBER
  • 11
    55-32607 PIN, SHOCK ABSORBER TO GIMBAL RING
    PIN, SHOCK ABSORBER TO GIMBAL RING
  • 12
    17-77039 PIN, SHOCK ABSORBER PIN REATAINING-GIMBAL RING
    PIN, SHOCK ABSORBER PIN REATAINING-GIMBAL RING
  • 13
    17-35779A1 PIN ASSEMBLY, SHOCK ABSOBER TO DRIVE SHAFT HOUSING
    PIN ASSEMBLY, SHOCK ABSOBER TO DRIVE SHAFT HOUSING
  • 14
    12-35777 WASHER, SHOCK ABSORBER TO DRIVE SHAFT HOUSING PIN
    WASHER, SHOCK ABSORBER TO DRIVE SHAFT HOUSING PIN
  • 15
    11-826709117 NUT, SHOCK ABSORBER TO DRIVE SHAFT HOUSING PIN
    NUT, SHOCK ABSORBER TO DRIVE SHAFT HOUSING PIN
  • 16
    17-35813A1 TILT PIN ASSEMBLY, GIMBAL RING NOT USED WITH FULL POWER TILT
    TILT PIN ASSEMBLY, GIMBAL RING NOT USED WITH FULL POWER TILT
  • 17
    11-82670911 NUT, TILT ADJUSTMENT PIN NOT USED WITH FULL POWER TILT
    NUT, TILT ADJUSTMENT PIN NOT USED WITH FULL POWER TILT
  • 18
    32688A1 TILT STOP SWITCH ASSEMBLY, GIMBAL RING
    (BOLT AND NUT DISCONNECT
    TILT STOP SWITCH ASSEMBLY, GIMBAL RING
    (BOLT AND NUT DISCONNECT
  • 19
    39672A1 TILT STOP SWITCH ASSEMBLY, GIMBAL RING
    (QUICK-DISCONNECT)
    TILT STOP SWITCH ASSEMBLY, GIMBAL RING
    (QUICK-DISCONNECT)
  • 20
    10-20367 SCREW, TILT STOP SWITCH COVER TO GIMBAL RING
    SCREW, TILT STOP SWITCH COVER TO GIMBAL RING
  • 21
    23-31902 SPACER, TILT STOP SWITCH TO RETAINING PLATE
    SPACER, TILT STOP SWITCH TO RETAINING PLATE
  • 22
    31899 PLATE, RETAINING-TILT STOP SWITCH TO GIMBAL RING
    PLATE, RETAINING-TILT STOP SWITCH TO GIMBAL RING
  • 23
    10-34994 SCREW, RETAINING PLATE AND STRAP TO GIMBAL RING
    SCREW, RETAINING PLATE AND STRAP TO GIMBAL RING
  • 24
    32637 STRAP, TILT STOP SWITCH RETAINING
    STRAP, TILT STOP SWITCH RETAINING
  • 25
    11-20110 NUT, RETAINING PLATE AND STRAP SCREW
    NUT, RETAINING PLATE AND STRAP SCREW
  • 26
    49343 LEVER, TILT STOP SWITCH ACTUATING-GIMBAL RING
    LEVER, TILT STOP SWITCH ACTUATING-GIMBAL RING
  • 27
    10-31903 SCREW, TILT STOP SWITCH ACTUATING LEVER TO GIMBAL RING
    SCREW, TILT STOP SWITCH ACTUATING LEVER TO GIMBAL RING
  • 28
    88771A1 LEVER, STEERING-UPPER SWIVEL SHAFT
    LEVER, STEERING-UPPER SWIVEL SHAFT
  • 29
    32582 SHAFT, UPPER SWIVEL-GIMBAL RING TO GIMBAL HOUSING
    SHAFT, UPPER SWIVEL-GIMBAL RING TO GIMBAL HOUSING
  • 30
    22-32561 PLUG, PIPE-UPPER SWIVEL SHAFT
    PLUG, PIPE-UPPER SWIVEL SHAFT
  • 31
    12-32996 WASHER, UPPER SWIVEL SHAFT (.015)
    WASHER, UPPER SWIVEL SHAFT (.015)
  • 31
    12-32997 WASHER, UPPER SWIVEL SHAFT (.063)
    WASHER, UPPER SWIVEL SHAFT (.063)
  • 32
    10-807204 SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT
    SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT
  • 33
    11-20696 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
    NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
  • 34
    10-33022 SCREW, UPPER SWIVEL SHAFT RETAINING-GIMBAL RING
    SCREW, UPPER SWIVEL SHAFT RETAINING-GIMBAL RING
  • 35
    12-20546 WASHER, UPPER SWIVEL SHAFT RETAINING SCREW
    WASHER, UPPER SWIVEL SHAFT RETAINING SCREW
  • 36
    16-32568 STUD, PIVOT-STEERING LEVER
    STUD, PIVOT-STEERING LEVER
  • 37
    12-25909 WASHER, STEERING LEVER PIVOT STUD
    WASHER, STEERING LEVER PIVOT STUD
  • 38
    12-29330 WASHER, NYLON-STEERING LEVER PIVOT STUD
    WASHER, NYLON-STEERING LEVER PIVOT STUD
  • 39
    79278 ROD, STEERING LINK-STEERING LEVER PIVOT STUD
    ROD, STEERING LINK-STEERING LEVER PIVOT STUD
  • 40
    29698 BALL, STEEL-STEERING LEVER PIVOT STUD
    BALL, STEEL-STEERING LEVER PIVOT STUD
  • 41
    24-20510 SPRING, STEERING LEVER PIVOT STUD
    SPRING, STEERING LEVER PIVOT STUD
  • 42
    23-31293 BUSHING, STEERING LEVER PIVOT STUD
    BUSHING, STEERING LEVER PIVOT STUD
  • 43
    11-8M0042636 NUT, STEERING LEVER PIVOT STUD
    NUT, STEERING LEVER PIVOT STUD
  • 44
    12-20086 WASHER, STEERING LINK ROD
    WASHER, STEERING LINK ROD
  • 45
    11-8M0042636 NUT, STEERING LINK ROD
    NUT, STEERING LINK ROD
