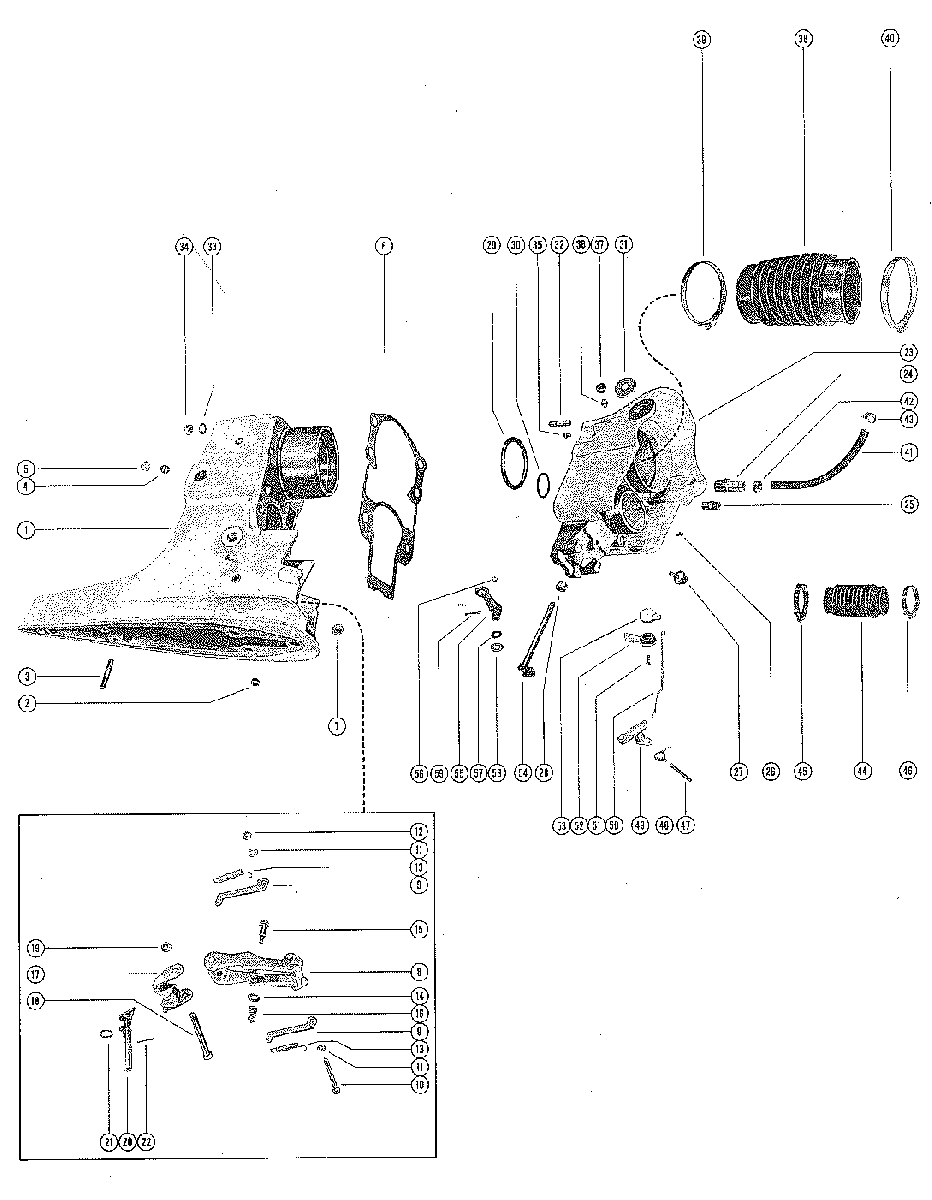

DRIVE SHAFT HOUSING ASSEMBLY AND BELL HOUSING ASSEMBLY для Mercruiser - IA/IB/IC (EZ-SHIFT) 1965-1966 1776349 THRU 2065189

  • №
    Артикул
    Название
  • 1
    1547-2411A17 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    23-32632 BUSHING, DRIVE SHAFT HOUSING
    BUSHING, DRIVE SHAFT HOUSING
  • 3
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
  • 4
    22-31704 PLUG, PIPE-DRIVE SHAFT HOUSING (WATER POCKET)
    PLUG, PIPE-DRIVE SHAFT HOUSING (WATER POCKET)
  • 5
    19-32652 WELCH PLUG, DRIVE SHAFT HOUSING
    WELCH PLUG, DRIVE SHAFT HOUSING
  • 6
    27-35996A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
    GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
  • 7
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
  • 8
    37829A2 ARM ASSEMBLY, REVERSE HOOK-DRIVE SHAFT HOUSING
    ARM ASSEMBLY, REVERSE HOOK-DRIVE SHAFT HOUSING
  • 9
    32520 HOOK, REVERSE
    HOOK, REVERSE
  • 10
    10-32527 SCREW, REVERSE HOOKS TO REVERSE HOOK ARM
    SCREW, REVERSE HOOKS TO REVERSE HOOK ARM
  • 11
    12-29245 WASHER, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
    WASHER, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
  • 12
    11-826709109 NUT, REVERSE HOOKS TO REVESE HOOK ARM SCREW
    NUT, REVERSE HOOKS TO REVESE HOOK ARM SCREW
  • 13
    24-37827 SPRING, TENSION-REVERSE HOOK TO REVERSE HOOK ARM
    SPRING, TENSION-REVERSE HOOK TO REVERSE HOOK ARM
  • 14
    12-34931 WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
    WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
  • 15
    10-32694 SCREW, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING
    SCREW, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING
  • 16
    24-32659 SPRING, TENSION-REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCRE
    SPRING, TENSION-REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCRE
  • 17
    32588A1 STOP ASSEMBLY, REVERSE HOOK ARM
    STOP ASSEMBLY, REVERSE HOOK ARM
  • 18
    10-32524 SCREW, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM
    SCREW, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM
  • 19
    11-33826 NUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREW
    NUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREW
  • 20
    32628T SHAFT, SHIFT-INTERMEDIATE
    SHAFT, SHIFT-INTERMEDIATE
  • 21
    12-32666 WASHER, INTERMEDIATE SHIFT SHAFT
    WASHER, INTERMEDIATE SHIFT SHAFT
  • 22
    18-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
    COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
  • 23
    38002A1 BELL HOUSING ASSEMBLY
    BELL HOUSING ASSEMBLY
  • --
    27-35996A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
    (SEE REFERENCE #6)
    GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
    (SEE REFERENCE #6)
  • 24
    22-33066 CONNECTOR, WATER HOSE TO BELL HOUSING
    CONNECTOR, WATER HOSE TO BELL HOUSING
  • 25
    22-32125 CONNECTORM SHIFT ACTUATING CABLE-BELL HOUSING
    CONNECTORM SHIFT ACTUATING CABLE-BELL HOUSING
  • 26
    10-25612 SCREW, DRIVE-BELL HOUSING FLANGE
    SCREW, DRIVE-BELL HOUSING FLANGE
  • 27
    31014 BUMPER, BELL HOUSING
    BUMPER, BELL HOUSING
  • 28
    23-814308 BUSHING, UPPER SHIFT SHAFT-BELL HOUSING
    BUSHING, UPPER SHIFT SHAFT-BELL HOUSING
  • 29
    27-35982 GASKET, RUBBER-BELL HOUSING
    GASKET, RUBBER-BELL HOUSING
  • 30
    25-33504 "O" RING, BELL HOUSING
    "O" RING, BELL HOUSING
  • 31
    12-38000 WASHER, SYNTHANE-BELL HOUSING
    WASHER, SYNTHANE-BELL HOUSING
  • 32
    16-59579 STUD, BELL HOUSING TO DRIVE SHAFT HOUSING
    STUD, BELL HOUSING TO DRIVE SHAFT HOUSING
  • 33
    12-35935 WASHER, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
    WASHER, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
  • 34
    11-34933 NUT, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
    NUT, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
  • 35
    10-36398 SCREW, PLUG-BELL HOUSING (1/4")
    SCREW, PLUG-BELL HOUSING (1/4")
  • 36
    22-74036 FITTING, GREASE-BELL HOUSING
    FITTING, GREASE-BELL HOUSING
  • 37
    19-77633Q LUBRICAP, BELL HOUSING GREASE FITTING
    LUBRICAP, BELL HOUSING GREASE FITTING
  • 38
    36223A2 BELLOWS ASSEMBLY, UNIVERSAL JOINT
    BELLOWS ASSEMBLY, UNIVERSAL JOINT
  • 39
    54-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING
    CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING
  • 40
    54-815504372 CLAMP,UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING
    CLAMP,UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING
  • 41
    32-32461 HOSE, WATER-BELL HOUSING TO GIMBAL HOUSING
    HOSE, WATER-BELL HOUSING TO GIMBAL HOUSING
  • 42
    54-815504310 CLAMP, WATER HOSE TO BELL HOUSING CONNECTOR
    CLAMP, WATER HOSE TO BELL HOUSING CONNECTOR
  • 43
    54-815504310 CLAMP, WATER HOSE TO GIMBAL HOUSING WARER TUBE
    CLAMP, WATER HOSE TO GIMBAL HOUSING WARER TUBE
  • 44
    18654A1 BELLOWSM EXHAUST-BELL HOUSING TO GIMBAL HOUSING
    BELLOWSM EXHAUST-BELL HOUSING TO GIMBAL HOUSING
  • 45
    54-815504348 CLAMP, EXHAUST BELLOWS TO BELL HOUSING
    CLAMP, EXHAUST BELLOWS TO BELL HOUSING
  • 46
    54-815504348 CLAMP, EXHAUST BELLOWS TO GIMBAL HOUSING
    CLAMP, EXHAUST BELLOWS TO GIMBAL HOUSING
  • 47
    17-20302 PIN, PIVOT-REVERSE HOOK RELEASE LEVER TO BELL HOUSING
    PIN, PIVOT-REVERSE HOOK RELEASE LEVER TO BELL HOUSING
  • 48
    24-36102 SPRING, TORSION-REVERSE HOOK RELEASE LEVER
    SPRING, TORSION-REVERSE HOOK RELEASE LEVER
  • 49
    32629A1 LEVER ASSEMBLY, REVERSE HOOK RELEASE-BELL HOUSING
    LEVER ASSEMBLY, REVERSE HOOK RELEASE-BELL HOUSING
  • 50
    32745 LINK ROD, REVERSE HOOK RELEASE HANDLE TO REVERSE HOOK RELEAS
    LINK ROD, REVERSE HOOK RELEASE HANDLE TO REVERSE HOOK RELEAS
  • 51
    10-32651 SCREW, BELL CRANK AND HANDLE TO BELL HOUSING
    SCREW, BELL CRANK AND HANDLE TO BELL HOUSING
  • 52
    32626 HANDLE, REVERSE HOOK RELEASE-BELL HOUSING
    HANDLE, REVERSE HOOK RELEASE-BELL HOUSING
  • 53
    32625 CRANK, BELL-REVERSE HOOK RELEASE LINK ROD
    CRANK, BELL-REVERSE HOOK RELEASE LINK ROD
  • 54
    36097A1 SHAFT ASSEMBLY, SHIFT-UPPER
    SHAFT ASSEMBLY, SHIFT-UPPER
  • 55
    38897A1 LEVER ASSEMBLY, UPPER SHIFT SHAFT
    LEVER ASSEMBLY, UPPER SHIFT SHAFT
  • 56
    19-32525 WELCH PLUG, UPPER SHIFT SHAFT LEVER
    WELCH PLUG, UPPER SHIFT SHAFT LEVER
  • 57
    12-38358 WASHER, UPPER SHIFT SHAFT LEVER SEALING
    WASHER, UPPER SHIFT SHAFT LEVER SEALING
  • 58
    12-32510 WASHER, UPPER SHIFT SHAFT LEVER
    WASHER, UPPER SHIFT SHAFT LEVER
  • 59
    18-328571 COTTER PIN, UPPER SHIFT SHAFT TO UPPER SHIFT SHAFT LEVER
    COTTER PIN, UPPER SHIFT SHAFT TO UPPER SHIFT SHAFT LEVER
