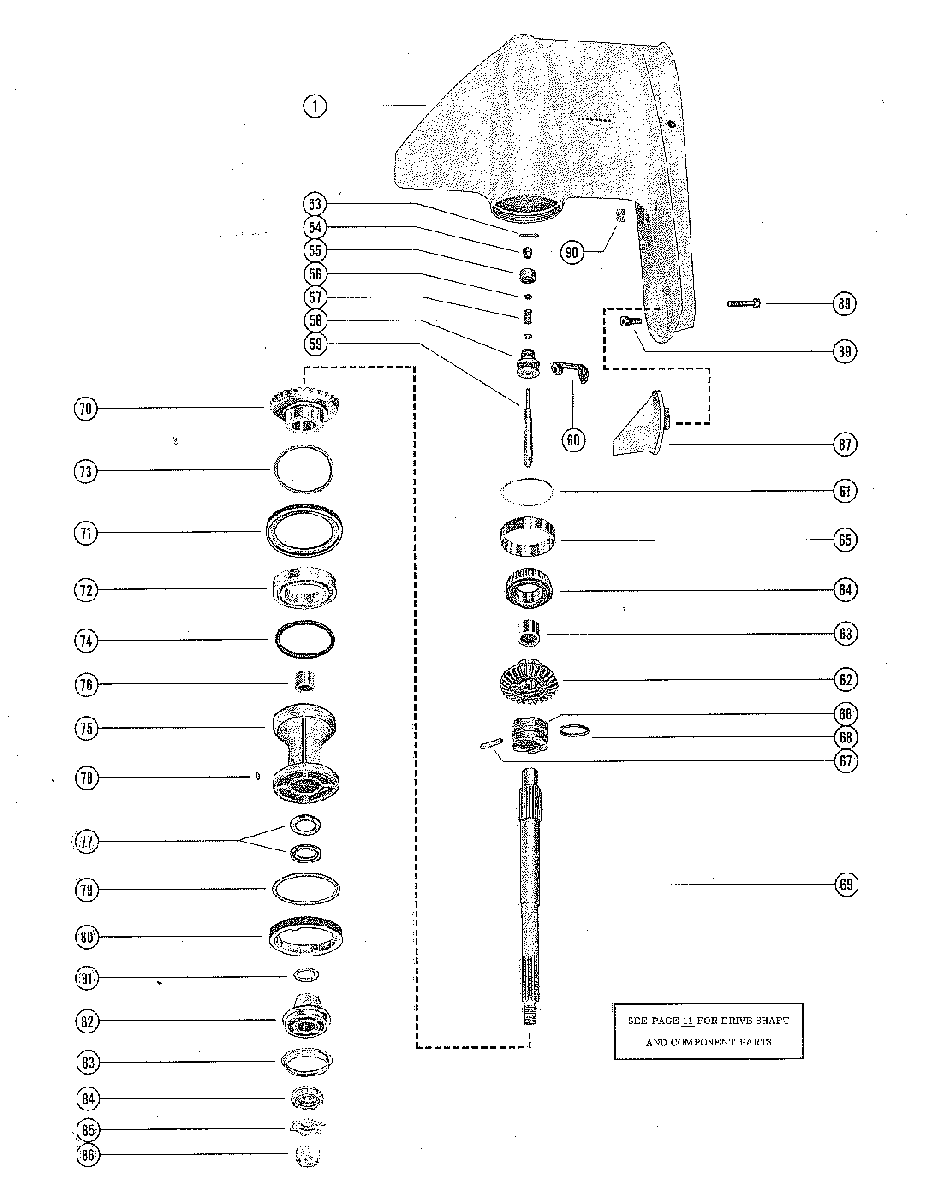

GEAR HOUSING ASSEMBLY для Mercruiser - IA/IB/IC (EZ-SHIFT) 1965-1966 1776349 THRU 2065189

  • №
    Артикул
    Название
  • -
    1623-2511A5 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1623-2511A1 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 53
    18-469501 COTTON PIN, CLUTCH ACTUATING SHAFT
    COTTON PIN, CLUTCH ACTUATING SHAFT
  • 54
    N.S.S. SLEEVE, ADJUSTING REPLCED BY 19755A4
    SLEEVE, ADJUSTING REPLCED BY 19755A4
  • 55
    N.S.S. RETAINER, SPRING REPLCED BY 19755A4
    RETAINER, SPRING REPLCED BY 19755A4
  • 56
    N.S.S. WASHER REPLCED BY 19755A4
    WASHER REPLCED BY 19755A4
  • 57
    N.S.S. SPRING REPLCED BY 19755A4
    SPRING REPLCED BY 19755A4
  • 58
    N.S.S. SPOOL REPLCED BY 19755A4
    SPOOL REPLCED BY 19755A4
  • 59
    N.S.S. SHAFT REPLCED BY 19755A4
    SHAFT REPLCED BY 19755A4
  • 60
    37966 SHIFT CRANK
    SHIFT CRANK
  • 61
    15-47397A1 SHIM
    SHIM
  • 62
    43-35930A2 FOWARD GEAR ASSEMBLY
    FOWARD GEAR ASSEMBLY
  • 63
    31-30895T ROLLER BEARING
    ROLLER BEARING
  • 64
    31-35928T1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 65
    31-35927 CUP, TAPERSD ROLLER BEARING
    CUP, TAPERSD ROLLER BEARING
  • 66
    52-37963 CLUTCH
    CLUTCH
  • 67
    17-8M0100263 CROSS PIN
    CROSS PIN
  • 68
    24-30893 SPRING, RETAINER - CROSS PIN
    SPRING, RETAINER - CROSS PIN
  • 69
    44-45452A2 PROP SHAFT
    PROP SHAFT
  • 69
    44-45452 PROP SHAFT (STAINLESS STEEL SPLINES)
    PROP SHAFT (STAINLESS STEEL SPLINES)
  • 70
    43-37964 REVERSE GEAR
    REVERSE GEAR
  • 71
    35915 THRUST RING, BEARING GEAR
    THRUST RING, BEARING GEAR
  • 72
    30-88957T BALL BEARING, REVERSE GEAR
    BALL BEARING, REVERSE GEAR
  • 73
    15-31535A1 SHIM
    SHIM
  • 74
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 75
    52835A2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 76
    31-30956T ROLLER BEARING
    ROLLER BEARING
  • 77
    26-76868 OIL SEAL
    OIL SEAL
  • 78
    28-30281 KEY
    KEY
  • 79
    12-31536 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 80
    8M2000347 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 81
    12-31013 THRUST WASHER, BEARING CARRIER (SPLIT)
    THRUST WASHER, BEARING CARRIER (SPLIT)
  • 82
    45451A2 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 83
    12-35965 WASHER, CUPPED
    WASHER, CUPPED
  • 81
    12-45450 THRUST WASHER (1/4) INCLUDED WITH 1623-2511A5
    THRUST WASHER (1/4) INCLUDED WITH 1623-2511A5
  • 82
    45451A1 THRUST HUB AND WASHER INCLUDED WITH 1623-2511A5
    THRUST HUB AND WASHER INCLUDED WITH 1623-2511A5
  • 83
    12-35965 WASHER, CUPPED INCLUDED WITH 1623-2511A5
    WASHER, CUPPED INCLUDED WITH 1623-2511A5
  • 84
    12-31211Q03 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 85
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 86
    11-29594 PROPELLER NUT
    PROPELLER NUT
  • 87
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 87
    34127T2 TRIM TAB ASSEMBLY, GEAR HOUSING (LONG)
    TRIM TAB ASSEMBLY, GEAR HOUSING (LONG)
  • 88
    10-32470 SCREW, TRIM TAB (1-3/4)
    SCREW, TRIM TAB (1-3/4)
  • 89
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 90
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
