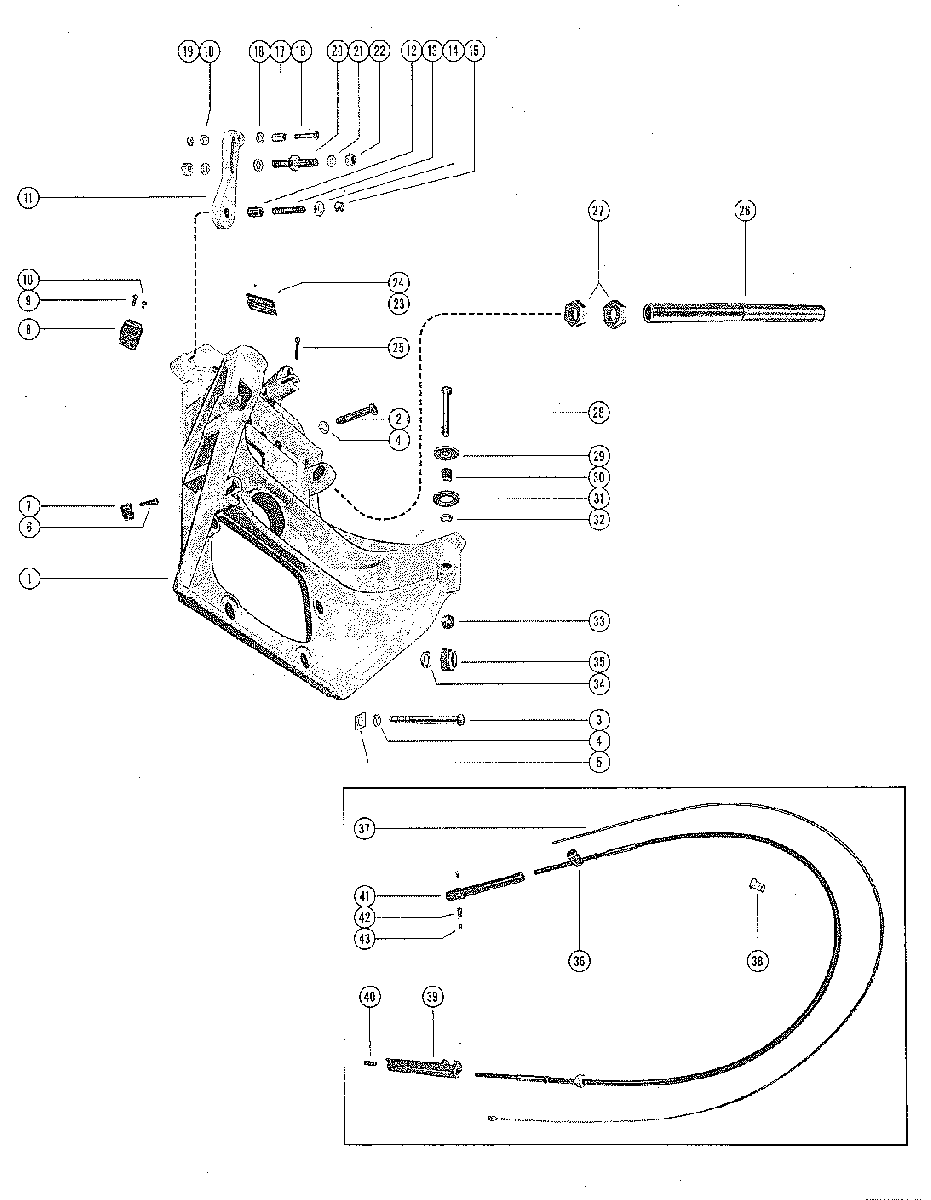

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - IA/IB/IC 1964 1684188 THRU 1777798

  • №
    Артикул
    Название
  • 1
    37278 PLATE, TRANSOM
    EARLY STYLE
    PLATE, TRANSOM
    EARLY STYLE
  • 2
    10-32695 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2 1/4")
    EARLY STYLE
    SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2 1/4")
    EARLY STYLE
  • 3
    10-46964 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 3/16")
    EARLY STYLE
    SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 3/16")
    EARLY STYLE
  • 4
    12-22248 WASHER, TRANSOM PLATE SCREW
    EARLY STYLE
    WASHER, TRANSOM PLATE SCREW
    EARLY STYLE
  • 1
    37278 PLATE, TRANSOM
    LATE STYLE
    PLATE, TRANSOM
    LATE STYLE
  • 2
    10-37269 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2")
    LATE STYLE
    SCREW, TRANSOM PLATE TO GIMBAL HOUSING (2")
    LATE STYLE
  • 3
    10-37268 SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")
    LATE STYLE
    SCREW, TRANSOM PLATE TO GIMBAL HOUSING (4 1/4")
    LATE STYLE
  • 4
    13-32993 LOCKWASHER, TRANSOM PLATE SCREW
    LATE STYLE
    LOCKWASHER, TRANSOM PLATE SCREW
    LATE STYLE
  • 5
    12-37271 WASHER, SQUARE - TRANSOM PLATE SCREW (LOWER)
    LATE STYLE
    WASHER, SQUARE - TRANSOM PLATE SCREW (LOWER)
    LATE STYLE
  • 6
    10-26668 SCREW, SHIFT ACTUANTING CABLE CLAMN TO TRANSOM PLATE
    SCREW, SHIFT ACTUANTING CABLE CLAMN TO TRANSOM PLATE
  • 7
    54-34050 CLAMP, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    CLAMP, SHIFT ACTUATING CABLE TO TRANSOM PLATE
  • 8
    30212 TERMINAL BLOCK, TRANSOM PLATE
    NOT AS SHOWN
    TERMINAL BLOCK, TRANSOM PLATE
    NOT AS SHOWN
  • 9
    10-33152 SCREW, TERMINAL BLOCK TO TRANSOM PLATE
    SCREW, TERMINAL BLOCK TO TRANSOM PLATE
  • 10
    10-62568 SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK
    SCREW, TILT STOP SWITCH LEADS TO TERMINAL BLOCK
  • 11
    32585 LEVER, SHIFT CONTROL - TRANSOM PLATE
    LEVER, SHIFT CONTROL - TRANSOM PLATE
  • 12
    23-31758 SPACER, SHIFT CONTROL LEVER STUD
    SPACER, SHIFT CONTROL LEVER STUD
  • 13
    16-32698 STUD, SHIFT CONTROL LEVER TO TRANSOM PLATE
    STUD, SHIFT CONTROL LEVER TO TRANSOM PLATE
  • 14
    12-26825 WASHER, SHIFT CONTROL LEVER STUD
    WASHER, SHIFT CONTROL LEVER STUD
  • 15
    11-82670911 NUT, SHIFT CONTROL LEVER TO TRANSOM PLATE STUD
    NUT, SHIFT CONTROL LEVER TO TRANSOM PLATE STUD
  • 16
    10-22659 SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER
    SCREW, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER
  • 17
    23-31866 SPACER, SHIFT CABLE ASSEMBLY SCREW
    SPACER, SHIFT CABLE ASSEMBLY SCREW
  • 18
    12-39143 WASHER, SHIFT CABLE ASSEMBLY SCREW
    WASHER, SHIFT CABLE ASSEMBLY SCREW
  • 19
    11-8267089 NUT, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER SCREW
    NUT, SHIFT CABLE ASSEMBLY TO SHIFT CONTROL LEVER SCREW
  • 20
    16-34069 STUD, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    STUD, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
  • 21
    12-39143 WASHER, SHIFT ACTUATING CABLE STUD 3
    WASHER, SHIFT ACTUATING CABLE STUD 3
  • 22
    11-8267089 NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
  • 23
    38-32738 NAME PLATE, TRANSOM PLATE
    NAME PLATE, TRANSOM PLATE
  • 24
    10-22290 SCREW, DRIVE - NAME PLATE TO TRANSOM PLATE
    SCREW, DRIVE - NAME PLATE TO TRANSOM PLATE
  • 25
    18-328571 COTTER PIN, SHIFT ACTUATING CABLE TO TRANSOM PLATE
    COTTER PIN, SHIFT ACTUATING CABLE TO TRANSOM PLATE
  • 26
    71565A2 TUBE, STEERING CABLE GUIDE (7/8" OD)
    TUBE, STEERING CABLE GUIDE (7/8" OD)
  • 27
    11-8M0041651 NUT, JAM - STEERING CABLE GUIDE TUBE
    NUT, JAM - STEERING CABLE GUIDE TUBE
  • 28
    10-97934 SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING (4 3/4")
    SCREW, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING (4 3/4")
  • 29
    12-28421 WASHER, TRANSOM PLATE SCREW
    WASHER, TRANSOM PLATE SCREW
  • 30
    23-99299 SPACER, TRANSOM PLATE SCREW
    SPACER, TRANSOM PLATE SCREW
  • 31
    12-32834 WASHER, TRANSOM PLATE SCREW
    WASHER, TRANSOM PLATE SCREW
  • 32
    13-33734 LOCKWASHER, TRANSOM PLATE SCREW
    LOCKWASHER, TRANSOM PLATE SCREW
  • 33
    11-82671317 NUT, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
    NUT, TRANSOM PLATE TO ENGINE FLYWHEEL HOUSING SCREW
  • 34
    12-21900 WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    WASHER, GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 35
    11-34087 NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
    NUT, GIMBAL HOUSING TO TRANSOM PLATE BOLT
  • 36
    73723A01 CABLE ASSEMBLY, SHIFT ACTUATING
    CABLE ASSEMBLY, SHIFT ACTUATING
  • 37
    38399A2 CORE WIRE AND ANCHOR ASSEMBLY, INNER SHIFT CABLE
    CORE WIRE AND ANCHOR ASSEMBLY, INNER SHIFT CABLE
  • 38
    14705 TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
    TUBE, NYLON - SHIFT ACTUATING CABLE GUIDE
  • 39
    865436A02 SLIDE, SHIFT ACTUATING CALBE
    SLIDE, SHIFT ACTUATING CALBE
  • 40
    10-31700 SCREW, SET - SHIFT ACTUATING CABLE TO SLIDE
    SCREW, SET - SHIFT ACTUATING CABLE TO SLIDE
  • 41
    43433 GUIDE, SHIFT ACTUATING CABLE END
    GUIDE, SHIFT ACTUATING CABLE END
  • 42
    20007 ANCHOR, SHIFT ACTUATING CABLE END GUIDE
    ANCHOR, SHIFT ACTUATING CABLE END GUIDE
  • 43
    10-20518 SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
    SCREW, SET - ANCHOR TO SHIFT ACTUATING CABLE END GUIDE
  • --
    91-32555 ROD, ALIGNMENT - TRANSOM PLATE TO ENGINE
    ROD, ALIGNMENT - TRANSOM PLATE TO ENGINE
