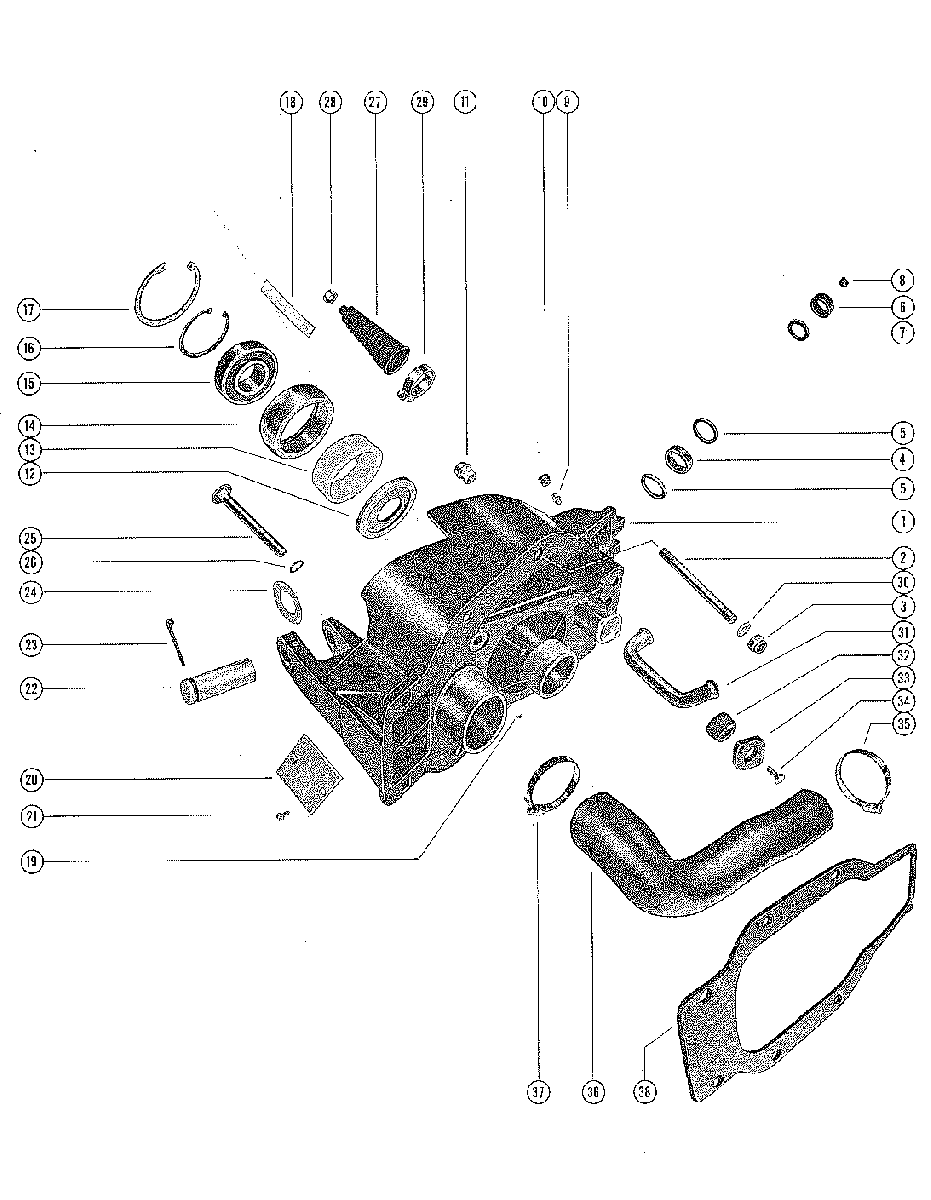

GIMBAL HOUSING ASSEMBLY AND EXHAUST HOSE для Mercruiser - IA/IB/IC 1964 1684188 THRU 1777798

  • №
    Артикул
    Название
  • 1
    38707A9 GIMBAL HOUSING ASSEMBLY (USE WITHOUT FULL POWER TILT)
    SEE NOTE EARLY STYLE
    GIMBAL HOUSING ASSEMBLY (USE WITHOUT FULL POWER TILT)
    SEE NOTE EARLY STYLE
  • 1
    38885A10 GIMBAL HOUSING ASSEMBLY (USE WITH FULL POWER TILT)
    SEE NOTE EARLY STYLE
    GIMBAL HOUSING ASSEMBLY (USE WITH FULL POWER TILT)
    SEE NOTE EARLY STYLE
  • 2
    16-36451 STUD, GIMBAL HOUSING TO TRANSOM PLATE (7/16-20 X 4 5/8")
    EARLY STYLE
    STUD, GIMBAL HOUSING TO TRANSOM PLATE (7/16-20 X 4 5/8")
    EARLY STYLE
  • 3
    11-34933 NUT, GIMBAL HOUSING STUD
    EARLY STYLE
    NUT, GIMBAL HOUSING STUD
    EARLY STYLE
  • 4
    31-32536 BEARING, ROLLER - GIMBAL HOUSING (LOWER)
    EARLY STYLE
    BEARING, ROLLER - GIMBAL HOUSING (LOWER)
    EARLY STYLE
  • 5
    26-32911 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    EARLY STYLE
    OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    EARLY STYLE
  • 6
    31-32535 BEARING, ROLLER - GIMBAL HOUSING (UPPER)
    EARLY STYLE
    BEARING, ROLLER - GIMBAL HOUSING (UPPER)
    EARLY STYLE
  • 7
    26-32540 OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    EARLY STYLE
    OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    EARLY STYLE
  • 8
    22-390721 PLUG, PIPE - GIMBAL HOUSING
    EARLY STYLE
    PLUG, PIPE - GIMBAL HOUSING
    EARLY STYLE
  • 9
    22-74036 FITTING, GREASE - GIMBAL HOUSING
    EARLY STYLE
    FITTING, GREASE - GIMBAL HOUSING
    EARLY STYLE
  • 10
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    EARLY STYLE
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
    EARLY STYLE
  • 11
    11-32522 NUT, SPLINED - TRANSOM PLATE TO GIMBAL HOUSING SCREW
    EARLY STYLE
    NUT, SPLINED - TRANSOM PLATE TO GIMBAL HOUSING SCREW
    EARLY STYLE
  • 12
    26-88416 SEAL, GREASE-GIMBAL HOUSING
    EARLY STYLE
    SEAL, GREASE-GIMBAL HOUSING
    EARLY STYLE
  • 13
    23-35130 ADAPTROR, BEARING CARRIER
    EARLY STYLE
    ADAPTROR, BEARING CARRIER
    EARLY STYLE
  • 14
    30-36418 CARRIER, BEARING - GIMBAL HOUSING BALL BEARING
    EARLY STYLE
    CARRIER, BEARING - GIMBAL HOUSING BALL BEARING
    EARLY STYLE
  • 15
    30-36418 BEARING, BALL - GIMBAL HOUSING
    EARLY STYLE
    BEARING, BALL - GIMBAL HOUSING
    EARLY STYLE
  • 16
    53-35129 RING, RETAINING - BALL BEARING (SMALL)
    EARLY STYLE
    RING, RETAINING - BALL BEARING (SMALL)
    EARLY STYLE
  • 17
    53-35128 RING, RETAINING - BEARING CARRIER (LARGE)
    EARLY STYLE
    RING, RETAINING - BEARING CARRIER (LARGE)
    EARLY STYLE
  • 18
    15-35244A1 SHIM, GIMBAL HOUSING BALL BEARING
    EARLY STYLE
    SHIM, GIMBAL HOUSING BALL BEARING
    EARLY STYLE
  • 19
    10-25612 SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
    EARLY STYLE
    SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
    EARLY STYLE
  • 1
    38707A9 GIMBAL HOUSING ASSEMBLY (USE WITHOUT FULL POWER TILT)
    LATE STYLE
    GIMBAL HOUSING ASSEMBLY (USE WITHOUT FULL POWER TILT)
    LATE STYLE
  • 1
    38885A10 GIMBAL HOUSING ASSEMBLY (USE WITH FULL POWER TILT)
    LATE STYLE
    GIMBAL HOUSING ASSEMBLY (USE WITH FULL POWER TILT)
    LATE STYLE
  • 2
    16-56296 STUD, GIMBAL HOUSING TO TRANSOM PLATE (7/16-14 X 4 3/4")
    LATE STYLE
    STUD, GIMBAL HOUSING TO TRANSOM PLATE (7/16-14 X 4 3/4")
    LATE STYLE
  • 3
    11-34933 NUT, GIMBAL HOUSING STUD
    LATE STYLE
    NUT, GIMBAL HOUSING STUD
    LATE STYLE
  • 4
    31-32536 BEARING, ROLLER - GIMBAL HOUSING (LOWER)
    LATE STYLE
    BEARING, ROLLER - GIMBAL HOUSING (LOWER)
    LATE STYLE
  • 5
    26-32911 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    LATE STYLE
    OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    LATE STYLE
  • 6
    31-32535 BEARING, ROLLER - GIMBAL HOUSING (UPPER)
    LATE STYLE
    BEARING, ROLLER - GIMBAL HOUSING (UPPER)
    LATE STYLE
  • 7
    26-32540 OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    LATE STYLE
    OIL SEAL, UPPER GIMBAL HOUSING ROLLER BEARING
    LATE STYLE
  • 8
    22-390721 PLUG, PIPE - GIMBAL HOUSING
    LATE STYLE
    PLUG, PIPE - GIMBAL HOUSING
    LATE STYLE
  • 9
    22-74036 FITTING, GREASE - GIMBAL HOUSING
    LATE STYLE
    FITTING, GREASE - GIMBAL HOUSING
    LATE STYLE
  • 10
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LATE STYLE
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LATE STYLE
  • 12
    26-88416 SEAL, GREASE - GIMBAL HOUSING
    LATE STYLE
    SEAL, GREASE - GIMBAL HOUSING
    LATE STYLE
  • 13
    23-35130 ADAPTOR, BEARING CARRIER
    LATE STYLE
    ADAPTOR, BEARING CARRIER
    LATE STYLE
  • 15
    30-36418 BEARING, BALL - GIMBAL HOUSING
    LATE STYLE
    BEARING, BALL - GIMBAL HOUSING
    LATE STYLE
  • 17
    53-35128 RING, RETAINING - BEARING CARRIER (LARGE)
    LATE STYLE
    RING, RETAINING - BEARING CARRIER (LARGE)
    LATE STYLE
  • 18
    15-35244A1 SHIM, GIMBAL HOUSING BALL BEARING
    LATE STYLE
    SHIM, GIMBAL HOUSING BALL BEARING
    LATE STYLE
  • 19
    10-25612 SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
    LATE STYLE
    SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
    LATE STYLE
  • 20
    34762A1 PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
    PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
  • 21
    10-34763 SCREW, INHIBITOR PLATE TO GIMBAL HOUSING
    SCREW, INHIBITOR PLATE TO GIMBAL HOUSING
  • 22
    17-32508 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 23
    18-34212 COTTER PIN, RETAINING - LOWER SWIVEL PIN
    COTTER PIN, RETAINING - LOWER SWIVEL PIN
  • 24
    12-32518 WASHER, GIMBAL HOUSING TO GIMBAL RING LOWER SWIVEL PIN
    WASHER, GIMBAL HOUSING TO GIMBAL RING LOWER SWIVEL PIN
  • 25
    10-43691 BOLT, GIMBAL HOUSING TO TRANSOM PLATE (4")
    BOLT, GIMBAL HOUSING TO TRANSOM PLATE (4")
  • 26
    12-32620 WASHER, GIMBAL HOUSING BOLT
    WASHER, GIMBAL HOUSING BOLT
  • 27
    74639A2 BELLOWS, SHIFT ACTUATING CABLE COVERING
    BELLOWS, SHIFT ACTUATING CABLE COVERING
  • 28
    54-20386 CLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
    CLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
  • 29
    54-815504320 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
    CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
  • 30
    12-22248 WASHER, GIMBAL HOUSING STUD
    PART OF B-37283A9 GIMBAL HOUSING ASSEMBLY
    WASHER, GIMBAL HOUSING STUD
    PART OF B-37283A9 GIMBAL HOUSING ASSEMBLY
  • 31
    32-41672A01 TUBE, WATER - GIMBAL HOUSING
    TUBE, WATER - GIMBAL HOUSING
  • 32
    23-28055 BUSHING, RUBBER - WATER TUBE SEALING
    BUSHING, RUBBER - WATER TUBE SEALING
  • 33
    32517 COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
    COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
  • 34
    10-28635 SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING
    SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING
  • 35
    54-815504352 CLAMP, EXHAUST HOSE TO ENGINE
    CLAMP, EXHAUST HOSE TO ENGINE
  • 36
    32-32787 HOSE, EXHAUST - GIMBAL HOUSING
    HOSE, EXHAUST - GIMBAL HOUSING
  • 37
    54-815504352 CLAMP, EXHAUST HOSE TO GIMBAL HOUSING
    CLAMP, EXHAUST HOSE TO GIMBAL HOUSING
  • 38
    27-70974 GASKET, GIMBAL HOUSING TO TRANSOM
    GASKET, GIMBAL HOUSING TO TRANSOM
  • --
    9233749 SEALER, EXHAUST HOSE TO GIMBAL HOUSING
    SEALER, EXHAUST HOSE TO GIMBAL HOUSING
