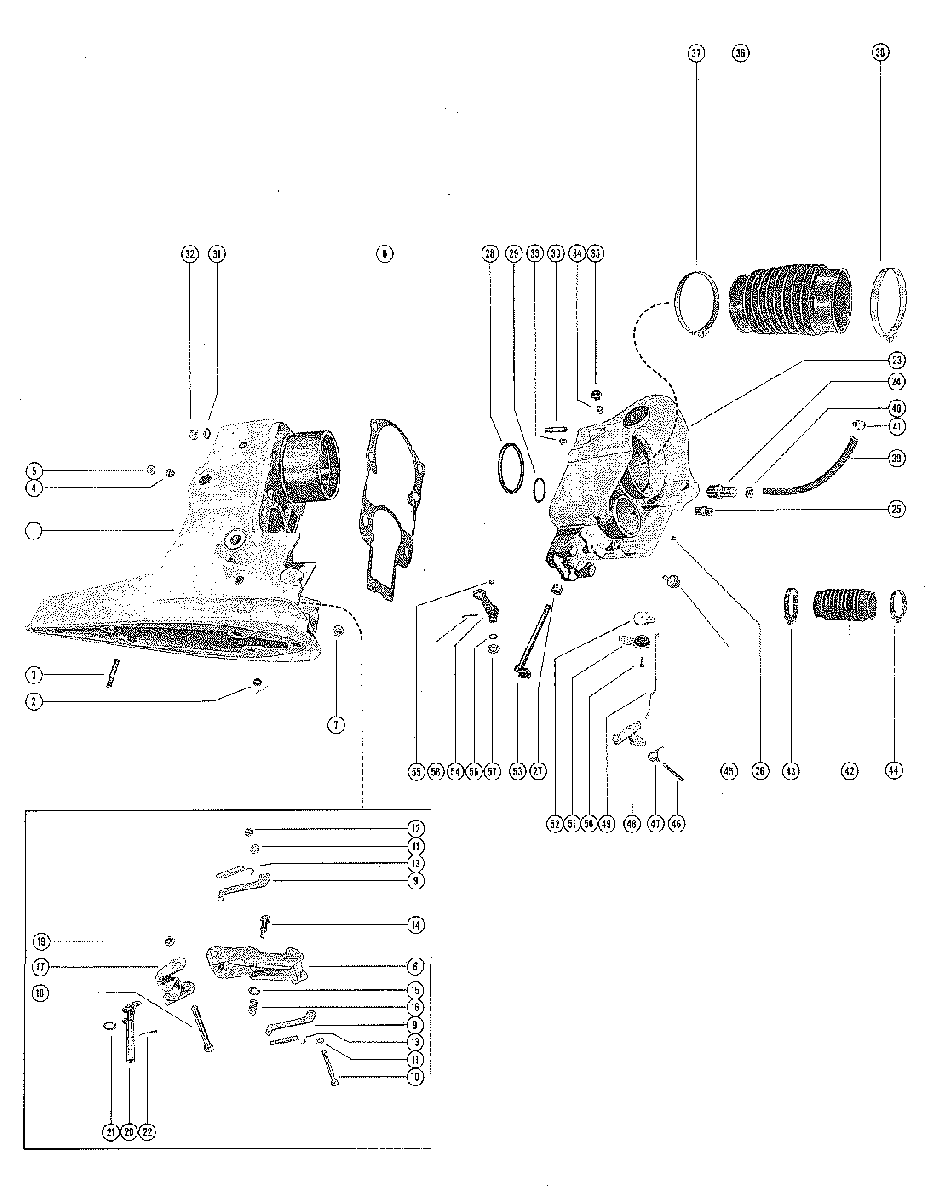

DRIVE SHAFT HOUSING ASSEMBLY AND BELL HOUSING ASSEMBLY для Mercruiser - IA/IB/IC 1964 1684188 THRU 1777798
-
№АртикулНазвание
-
11547-2411A17 DRIVE SHAFT HOUSING ASSEMBLYDRIVE SHAFT HOUSING ASSEMBLY
-
223-32632 BUSHING, DRIVE SHAFT HOUSINGBUSHING, DRIVE SHAFT HOUSING
-
316-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
422-31704 PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)
-
519-32652 WELCH PLUG, DRIVE SHAFT HOUSINGWELCH PLUG, DRIVE SHAFT HOUSING
-
627-35996A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSINGGASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
-
711-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
837829A2 ARM ASSEMBLY, REVERSE HOOK - DRIVE SHAFT HOUSINGARM ASSEMBLY, REVERSE HOOK - DRIVE SHAFT HOUSING
-
932520 HOOK, REVERSEHOOK, REVERSE
-
1010-32527 SCREW, REVERSE HOOKS TO REVERSE HOOK ARMSCREW, REVERSE HOOKS TO REVERSE HOOK ARM
-
1112-29245 WASHER, REVERSE HOOKS TO REVERSE HOOK ARM SCREWWASHER, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
-
1211-826709109 NUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREWNUT, REVERSE HOOKS TO REVERSE HOOK ARM SCREW
-
1324-33761 SPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARMSPRING, TENSION - REVERSE HOOK TO REVERSE HOOK ARM
-
1410-32694 SCREW, REVERSE HOOK ARM TO DRIVE SHAFT HOUSINGSCREW, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING
-
1512-34016 WASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREWWASHER, REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCREW
-
1624-32659 SPRING, TENSION - REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SCSPRING, TENSION - REVERSE HOOK ARM TO DRIVE SHAFT HOUSING SC
-
1732588A1 STOP ASSMEBLY, REVERSE HOOK ARMSTOP ASSMEBLY, REVERSE HOOK ARM
-
1810-32524 SCREW, REVERSE HOOK ARM STOP TO REVERSE HOOK ARMSCREW, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM
-
1911-33826 NUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREWNUT, REVERSE HOOK ARM STOP TO REVERSE HOOK ARM SCREW
-
2032628T SHAFT, SHIFT - INTERMEDIATESHAFT, SHIFT - INTERMEDIATE
-
2112-32666 WASHER, INTERMEDIATE SHIFT SHAFTWASHER, INTERMEDIATE SHIFT SHAFT
-
2218-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAININGCOTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
-
2338002A1 BELL HOUSING ASSMEBLYBELL HOUSING ASSMEBLY
-
2327-35996A1 GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6GASKET, DRIVE SHAFT HOUSING TO BELL HOUSING
SEE REFERENCE #6 -
2422-33066 CONNECTOR, WATER HOSE TO BELL HOUSINGCONNECTOR, WATER HOSE TO BELL HOUSING
-
2522-32125 CONNECTOR, SHIFT ACTUATING CABLE - BELL HOUSINGCONNECTOR, SHIFT ACTUATING CABLE - BELL HOUSING
-
2610-25612 SCREW, DRIVE - BELL HOUSING FLANGESCREW, DRIVE - BELL HOUSING FLANGE
-
2723-814308 BUSHING, UPPER SHIFT SHAFT - BELL HOUSINGBUSHING, UPPER SHIFT SHAFT - BELL HOUSING
-
2827-35982 GASKET, RUBBER - BELL HOUSINGGASKET, RUBBER - BELL HOUSING
-
2925-33504 "O" RING, BELL HOUSING"O" RING, BELL HOUSING
-
3016-59579 STUD, BELL HOUSING TO DRIVE SHAFT HOUSINGSTUD, BELL HOUSING TO DRIVE SHAFT HOUSING
-
3112-35935 WASHER, BELL HOUSING TO DRIVE SHAFT HOUSING STUDWASHER, BELL HOUSING TO DRIVE SHAFT HOUSING STUD
-
3211-34933 NUT, BELL HOUSING TO DRIVE HOUSING STUDNUT, BELL HOUSING TO DRIVE HOUSING STUD
-
3310-36398 SCREW, PLUG - BELL HOUSING (1/4")SCREW, PLUG - BELL HOUSING (1/4")
-
3422-74036 FITTING, GREASE - BELL HOUSINGFITTING, GREASE - BELL HOUSING
-
3519-77633Q LUBRICAP, BELL HOUSING GREASE FITTINGLUBRICAP, BELL HOUSING GREASE FITTING
-
3636223A2 BELLOWS ASSEMBLY, UNIVERSAL JOINT COVERINGBELLOWS ASSEMBLY, UNIVERSAL JOINT COVERING
-
3754-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSINGCLAMP, UNIVERSAL JOINT BELLOWS TO BELL HOUSING
-
3854-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSINGCLAMP, UNIVERSAL JOINT BELLOWS TO GIMBAL HOUSING
-
3932-32461 HOSE, WATER - BELL HOUSING TO GIMBAL HOUSINGHOSE, WATER - BELL HOUSING TO GIMBAL HOUSING
-
4054-815504310 CLAMP, WATER HOSE TO BELL HOUSING CCONNECTORCLAMP, WATER HOSE TO BELL HOUSING CCONNECTOR
-
4154-815504310 CLAMP, WATER HOSE TO GIMBAL HOUSING WATER TUBECLAMP, WATER HOSE TO GIMBAL HOUSING WATER TUBE
-
4218654A1 BELLOWS, EXHAUST - BELL HOUSING TO GIMBAL HOUSINGBELLOWS, EXHAUST - BELL HOUSING TO GIMBAL HOUSING
-
4354-815504348 CLAMP, EXHAUST BELLOWS TO BELL HOUSINGCLAMP, EXHAUST BELLOWS TO BELL HOUSING
-
4454-815504348 CLAMP, EXHAUST BELLOWS TO GIMBAL HOUSINGCLAMP, EXHAUST BELLOWS TO GIMBAL HOUSING
-
4531014 BUMPER, BELL HOUSINGBUMPER, BELL HOUSING
-
4617-20302 PIN, PIVOT - REVERSE HOOK RELEASE LEVER TO BELL HOUSINGPIN, PIVOT - REVERSE HOOK RELEASE LEVER TO BELL HOUSING
-
4724-36102 SPRING, TORSION - REVERSE HOOK RELEASE LEVERSPRING, TORSION - REVERSE HOOK RELEASE LEVER
-
4832629A1 LEVER ASSEMBLY, REVERSE HOOK RELEASE - BELL HOUSINGLEVER ASSEMBLY, REVERSE HOOK RELEASE - BELL HOUSING
-
4932745 LINK ROD, REVERSE HOOK RELEASE HANDLE TO REVERSE HOOK RELEASLINK ROD, REVERSE HOOK RELEASE HANDLE TO REVERSE HOOK RELEAS
-
5010-32651 SCREW, BELL CRANK AND HANDLE TO BELL HOUSINGSCREW, BELL CRANK AND HANDLE TO BELL HOUSING
-
5132626 HANDLE, REVERSE HOOK RELEASE - BELL HOUSINGHANDLE, REVERSE HOOK RELEASE - BELL HOUSING
-
5232625 CRANK, BELL - REVERSE HOOK RELEASE LINK RODCRANK, BELL - REVERSE HOOK RELEASE LINK ROD
-
5336097A1 SHAFT ASSEMBLY, SHIFT - UPPERSHAFT ASSEMBLY, SHIFT - UPPER
-
5438897A1 LEVER ASSEMBLY, UPPER SHIFT SHAFTLEVER ASSEMBLY, UPPER SHIFT SHAFT
-
5519-32525 WELCH PLUG, UPPER SHIFT SHAFT LEVERWELCH PLUG, UPPER SHIFT SHAFT LEVER
-
5625-32509 "O" RING, UPPER SHIFT SHAFT LEVER SEALING"O" RING, UPPER SHIFT SHAFT LEVER SEALING
-
5712-32510 WASHER, UPPER SHIFT SHAFT LEVERWASHER, UPPER SHIFT SHAFT LEVER
-
5818-328571 COTTER PIN, UPPER SHIFT SHAFT TO UPPER SHIFT SHAFT LEVERCOTTER PIN, UPPER SHIFT SHAFT TO UPPER SHIFT SHAFT LEVER
