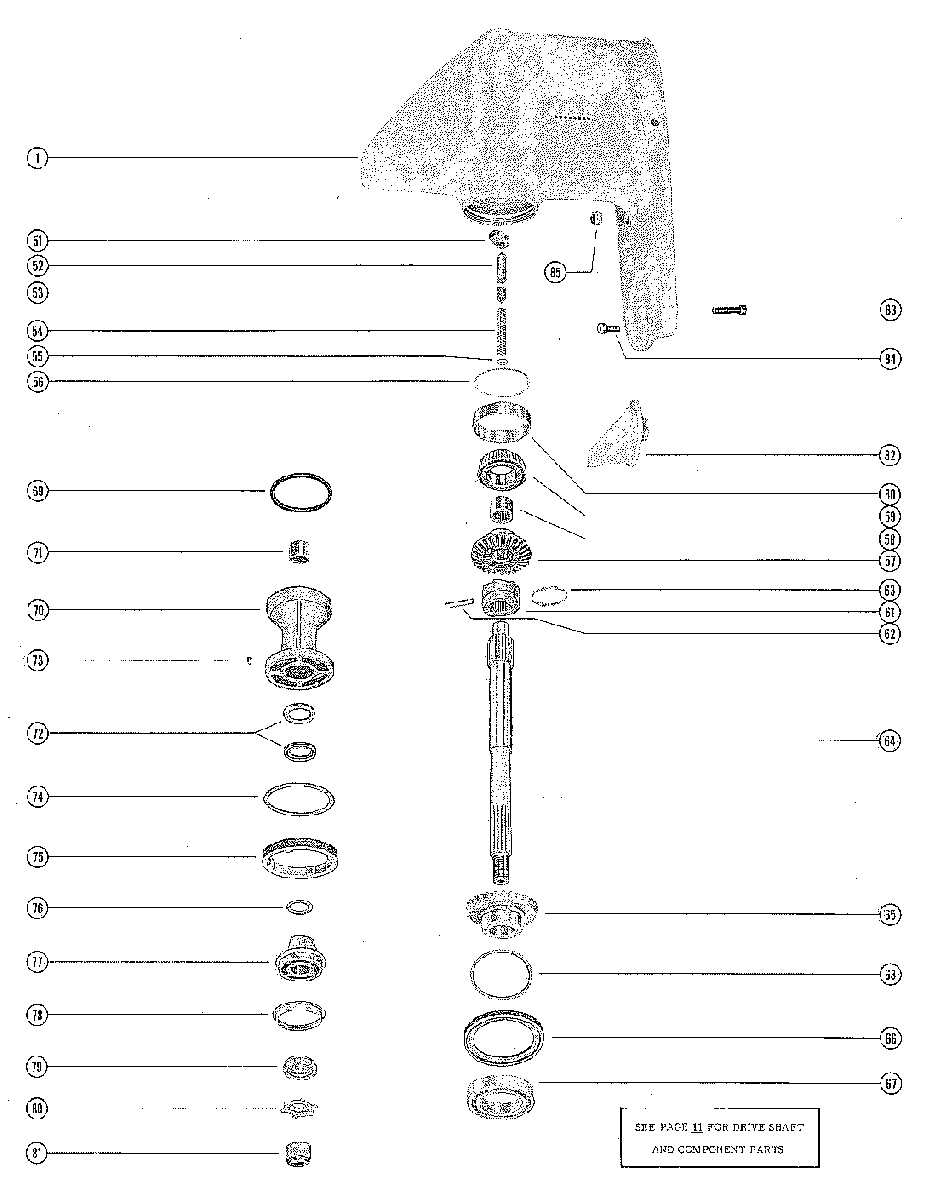

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercruiser - IA/IB/IC 1964 1684188 THRU 1777798

  • №
    Артикул
    Название
  • -
    1623-2511A5 GEAR HOUSING ASSEMBLY, COMPLETE
    SEE NOTE
    GEAR HOUSING ASSEMBLY, COMPLETE
    SEE NOTE
  • 1
    1623-2406A1 GEAR HOUSING ASSEMBLY
    SEE PAGE 11 FOR PARTS BREAKDOWN
    GEAR HOUSING ASSEMBLY
    SEE PAGE 11 FOR PARTS BREAKDOWN
  • 51
    760394 CAM, SHIFT
    CAM, SHIFT
  • 52
    35918 FOLLOWER, CAM
    FOLLOWER, CAM
  • 53
    30624 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 54
    24-37610A1 SPRING ASSEMBLY, COMPRESSION - CAM FOLLOWER
    SPRING ASSEMBLY, COMPRESSION - CAM FOLLOWER
  • 55
    12-20583 WASHER, CAM FOLLOWER SPRING
    WASHER, CAM FOLLOWER SPRING
  • 56
    15-47397A1 SHIM, BEARING CUP TO GEAR HSG.
    SHIM, BEARING CUP TO GEAR HSG.
  • 56
    43-35930A2 FOWARD GEAR ASSEMBLY, COMP.
    FOWARD GEAR ASSEMBLY, COMP.
  • 57
    43-35930A2 FOWARD GEAR ASSEMBLY
    FOWARD GEAR ASSEMBLY
  • 58
    31-30895T BEARING, ROLLER - FOWARD GEAR
    BEARING, ROLLER - FOWARD GEAR
  • 59
    31-35928T1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 60
    31-35927 CUP, TAPERED ROLLER BEARING
    CUP, TAPERED ROLLER BEARING
  • 61
    52-35919 CLUTCH, SLIDING
    CLUTCH, SLIDING
  • 62
    17-8M0100263 PIN, CROSS - SLIDING CLUTCH TO PROPELLER SHAFT
    PIN, CROSS - SLIDING CLUTCH TO PROPELLER SHAFT
  • 63
    24-30893 SSPRING, RETANING - CROSS PIN
    SSPRING, RETANING - CROSS PIN
  • 64
    44-45452A2 SHAFT, PROPELLER
    SHAFT, PROPELLER
  • 64
    43-35916 REVERSE GEAR ASSEMBLY, COMPLETE
    REVERSE GEAR ASSEMBLY, COMPLETE
  • 65
    43-35916 REVERSE GEAR ASSEMBLY
    REVERSE GEAR ASSEMBLY
  • 66
    35915 RING, THRUST - BEARING CARRIER TO GEAR HOUSING
    RING, THRUST - BEARING CARRIER TO GEAR HOUSING
  • 67
    30-88957T BEARING, BALL - REVERSE GEAR
    BEARING, BALL - REVERSE GEAR
  • 68
    15-31535A1 SHIM, THRUST RING TO GEAR HSG
    SHIM, THRUST RING TO GEAR HSG
  • 69
    25-31534 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 70
    52835A2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 71
    31-30956T BEARING, ROLLER - BEARING CARRIER
    BEARING, ROLLER - BEARING CARRIER
  • 72
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 73
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 74
    12-31536 WASHER, GEAR HOUSING COVER
    WASHER, GEAR HOUSING COVER
  • 75
    8M2000347 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 76
    12-31013 WASHER,THRUST - BEARING CARRIER
    WASHER,THRUST - BEARING CARRIER
  • 77
    45451A2 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 78
    12-35965 WASHER, CUPPED - THRUST HUB
    WASHER, CUPPED - THRUST HUB
  • 79
    12-31211Q03 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 80
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 81
    11-29594 NUT, PROPELLER
    NUT, PROPELLER
  • 82
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 82
    34127T2 TRIM TAB, GEAR HOUSING (LONG)
    TRIM TAB, GEAR HOUSING (LONG)
  • 83
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
  • 84
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 85
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
