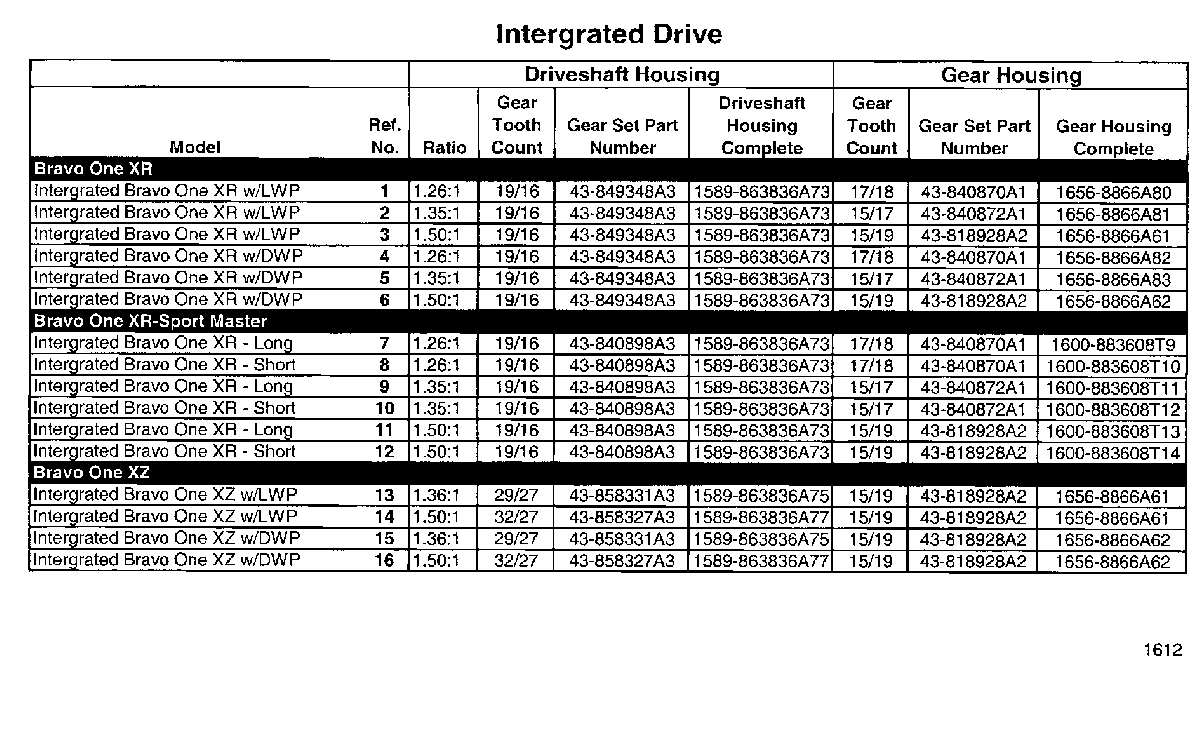

Sterndrive Unit Chart(Integrated) Bravo I (XR And XZ) для Mercruiser - BRAVO XR SPORTMASTER 0M052945 THRU 0M906877
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Integrated Bravo One XRNOT SOLD SEPARATE, Integrated Bravo One XR
-
15E36810NZ STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.26:1 Ratio) (With Low Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.26:1 Ratio) (With Low Water Pick-Up) -
11589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
143-840898A3 GEAR SET, (19/16)GEAR SET, (19/16)
-
11656-8866A80 GEAR HOUSING ASSEMBLY, (17/18), CompleteGEAR HOUSING ASSEMBLY, (17/18), Complete
-
143-8M0104359 GEAR SET, (17/18)GEAR SET, (17/18)
-
25E36910NZ STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.35:1 Ratio) (With Low Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.35:1 Ratio) (With Low Water Pick-Up) -
21589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
243-840898A3 GEAR SET, (19/16)GEAR SET, (19/16)
-
21656-8866A81 GEAR HOUSING ASSEMBLY, (15/17), CompleteGEAR HOUSING ASSEMBLY, (15/17), Complete
-
243-8M0104360 GEAR SET, (15/17)GEAR SET, (15/17)
-
35E36210NZ STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.50:1 Ratio) (With Low Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.50:1 Ratio) (With Low Water Pick-Up) -
31589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
343-840898A3 GEAR SET, (19/16)GEAR SET, (19/16)
-
31656-8866A61 GEAR HOUSING ASSEMBLY, (15/19), CompleteGEAR HOUSING ASSEMBLY, (15/19), Complete
-
3848928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
45E31810NZ STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.26:1 Ratio) (With Dual Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.26:1 Ratio) (With Dual Water Pick-Up) -
41589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
443-840898A3 GEAR SET, (19/16)GEAR SET, (19/16)
-
41656-8866A82 GEAR HOUSING ASSEMBLY, (17/18), CompleteGEAR HOUSING ASSEMBLY, (17/18), Complete
-
443-8M0104359 GEAR SET, (17/18)GEAR SET, (17/18)
-
55E31910NZ STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.35:1 Ratio) (With Dual Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.35:1 Ratio) (With Dual Water Pick-Up) -
51589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
543-840898A3 GEAR SET, (19/16)GEAR SET, (19/16)
-
51656-8866A83 GEAR HOUSING ASSEMBLY, (15/17), CompleteGEAR HOUSING ASSEMBLY, (15/17), Complete
-
543-8M0104360 GEAR SET, (15/17)GEAR SET, (15/17)
-
65E31210NZ STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.50:1 Ratio) (With Dual Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XR) (1.50:1 Ratio) (With Dual Water Pick-Up) -
61589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
643-840898A3 GEAR SET, (19/16)GEAR SET, (19/16)
-
61656-8866A62 GEAR HOUSING ASSEMBLY, (15/19), CompleteGEAR HOUSING ASSEMBLY, (15/19), Complete
-
643-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
-NSS NOT SOLD SEPARATE, Intregrated Bravo One XR, SportmasterNOT SOLD SEPARATE, Intregrated Bravo One XR, Sportmaster
-
75F36810HH STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Long) (1.26:1 Ratio) (Sportmaster)STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Long) (1.26:1 Ratio) (Sportmaster) -
71589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
743-840898A3 GEAR SET, (16/19)GEAR SET, (16/19)
-
71600-883608T49 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
743-8M0104359 GEAR SET, (17/18)GEAR SET, (17/18)
-
85G36810HH STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Short) (1.26:1 Ratio) (Sportmaster)STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Short) (1.26:1 Ratio) (Sportmaster) -
81589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
843-840898A3 GEAR SET, (16/19)GEAR SET, (16/19)
-
81600-883608T50 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
843-8M0104359 GEAR SET, (17/18)GEAR SET, (17/18)
-
95F36910HH STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Long) (1.35:1 Ratio) (Sportmaster)STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Long) (1.35:1 Ratio) (Sportmaster) -
91589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
943-840898A3 GEAR SET, (16/19)GEAR SET, (16/19)
-
91600-883608T51 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
943-8M0104360 GEAR SET, (15/17)GEAR SET, (15/17)
-
105G36910HH STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Short) (1.35:1 Ratio) (Sportmaster)STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Short) (1.35:1 Ratio) (Sportmaster) -
101589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1043-840898A3 GEAR SET, (16/19)GEAR SET, (16/19)
-
101600-883608T52 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1043-8M0104360 GEAR SET, (15/17)GEAR SET, (15/17)
-
115F36210HH STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Long) (1.50:1 Ratio) (Sportmaster)STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Long) (1.50:1 Ratio) (Sportmaster) -
111589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1143-840898A3 GEAR SET, (16/19)GEAR SET, (16/19)
-
111600-883608T53 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1143-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
125G36210HH STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Short) (1.50:1 Ratio) (Sportmaster)STERNDRIVE UNIT, Complete
(Intergrated Bravo One XR-Short) (1.50:1 Ratio) (Sportmaster) -
121589-863836A73 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1243-840898A3 GEAR SET, (16/19)GEAR SET, (16/19)
-
121600-883608T54 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
1243-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
-NSS NOT SOLD SEPARATE, Integrated Bravo One XZNOT SOLD SEPARATE, Integrated Bravo One XZ
-
135D36110PP STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.36:1 Ratio) (With Low Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.36:1 Ratio) (With Low Water Pick-Up) -
131589-863836A75 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1343-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
131656-8866A61 GEAR HOUSING ASSEMBLY, (15/19), CompleteGEAR HOUSING ASSEMBLY, (15/19), Complete
-
13848928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
145D36210PP STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.50:1 Ratio) (With Low Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.50:1 Ratio) (With Low Water Pick-Up) -
141589-863836A77 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1443-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
141656-8866A61 GEAR HOUSING ASSEMBLY, (15/19), CompleteGEAR HOUSING ASSEMBLY, (15/19), Complete
-
1443-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
155D31110PP STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.36:1 Ratio) (With Dual Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.36:1 Ratio) (With Dual Water Pick-Up) -
151589-863836A75 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1543-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
151656-8866A62 GEAR HOUSING ASSEMBLY, (15/19), CompleteGEAR HOUSING ASSEMBLY, (15/19), Complete
-
1543-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
-
165D31210PP STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.50:1 Ratio) (With Dual Water Pick-Up)STERNDRIVE UNIT, Complete
(Integrated Bravo One XZ) (1.50:1 Ratio) (With Dual Water Pick-Up) -
161589-863836A77 HOUSING ASSEMBLY, Driveshaft, CompleteHOUSING ASSEMBLY, Driveshaft, Complete
-
1643-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
161656-8866A62 GEAR HOUSING ASSEMBLY, (15/19), CompleteGEAR HOUSING ASSEMBLY, (15/19), Complete
-
1643-818928A2 GEAR SET, (15/19)GEAR SET, (15/19)
