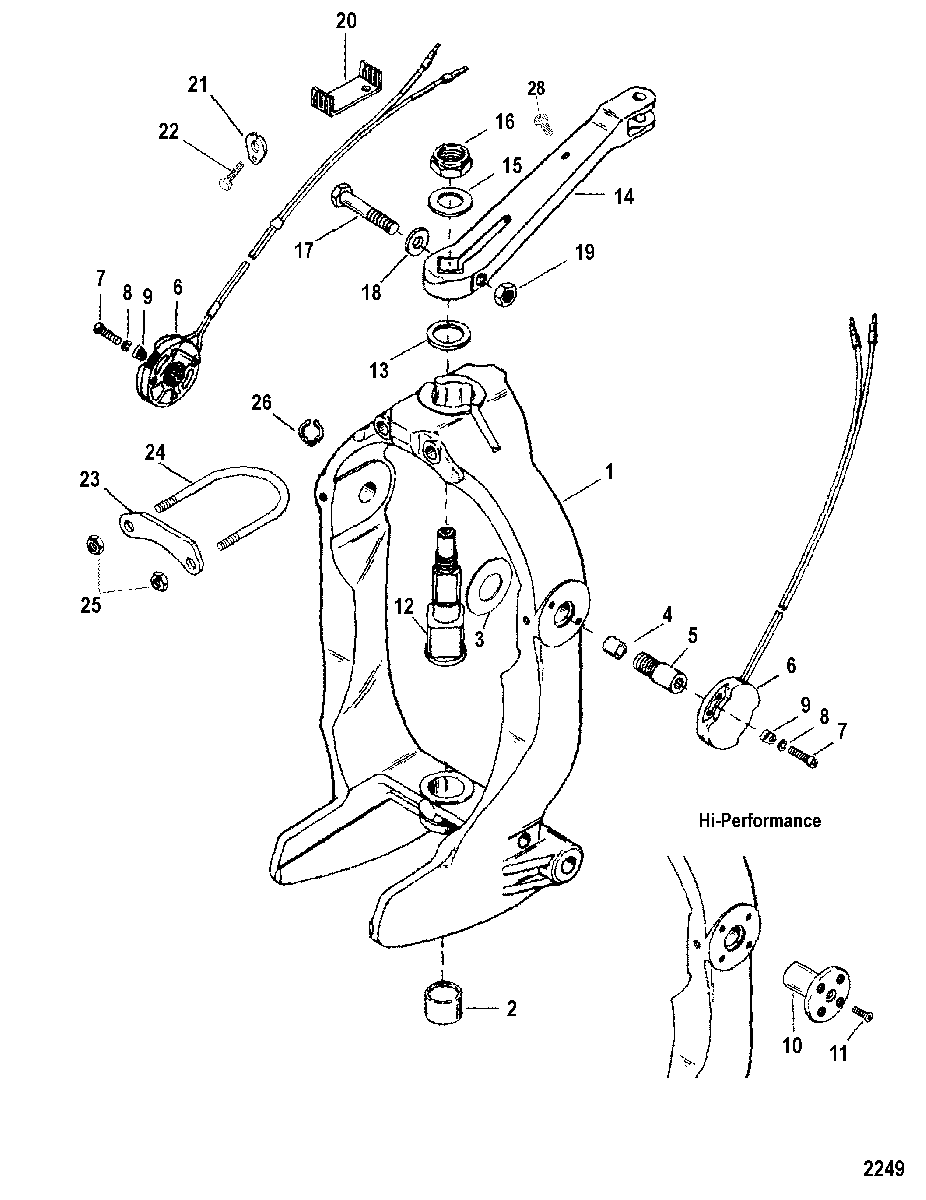

Gimbal Ring And Steering Lever для Mercruiser - BRAVO XR SPORTMASTER 0M052945 THRU 0M906877
-
№АртикулНазвание
-
1822374A17 GIMBAL RING ASSEMBLY
(Hi Performance) (With Or Without Trim Sender)GIMBAL RING ASSEMBLY
(Hi Performance) (With Or Without Trim Sender) -
223-847638 BUSHINGBUSHING
-
312-41721 WASHERWASHER
-
18M0062440 GIMBAL RING ASSEMBLY
(Magnum) (With Trim Sender)GIMBAL RING ASSEMBLY
(Magnum) (With Trim Sender) -
223-847638 BUSHINGBUSHING
-
312-41721 WASHERWASHER
-
423-847637 BUSHINGBUSHING
-
510-86801 SCREW, Hinge Pin
(Magnum) (With Trim Sender)SCREW, Hinge Pin
(Magnum) (With Trim Sender) -
6805320A03 SWITCH ASSEMBLY, Trim Sender/Trim Limit
(Magnum) (With Trim Sender)SWITCH ASSEMBLY, Trim Sender/Trim Limit
(Magnum) (With Trim Sender) -
NS805134A4 ROTOR KIT, Trim Sender
(For Use With Magnum Trim Sender)ROTOR KIT, Trim Sender
(For Use With Magnum Trim Sender) -
710-37978 SCREW, (#10-32 x .750) Stainless Steel
(Magnum) (With Trim Sender)SCREW, (#10-32 x .750) Stainless Steel
(Magnum) (With Trim Sender) -
813-26996 LOCKWASHER, (#10) Stainless Steel
(Magnum) (With Trim Sender)LOCKWASHER, (#10) Stainless Steel
(Magnum) (With Trim Sender) -
957008 RETAINER
(Magnum) (With Trim Sender)RETAINER
(Magnum) (With Trim Sender) -
10821997 PIN, Hinge
(Hi Performance) SN# 0M501067 & BelowPIN, Hinge
(Hi Performance) SN# 0M501067 & Below -
108219971 PIN, Hinge
(Hi Performance) SN# 0M501068 & UpPIN, Hinge
(Hi Performance) SN# 0M501068 & Up -
1110-821579 SCREW, (#10-24 x .500)
(Hi Performance) SN# 0M501067 & BelowSCREW, (#10-24 x .500)
(Hi Performance) SN# 0M501067 & Below -
1110-840907 SCREW, (.250-20 x .750)
(Hi Performance) SN# 0M501068 & UpSCREW, (.250-20 x .750)
(Hi Performance) SN# 0M501068 & Up -
1298230A1 SHAFT ASSEMBLY, Upper SwivelSHAFT ASSEMBLY, Upper Swivel
-
1312-98548 WASHER, (1.125 )WASHER, (1.125 )
-
14866322A01 LEVER ASSEMBLY, SteeringLEVER ASSEMBLY, Steering
-
1512-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
1611-8M2014641 NUT, (.750-16)NUT, (.750-16)
-
1710-807204 SCREW, (.437-20 x 2.00)SCREW, (.437-20 x 2.00)
-
1812-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
1911-8M2008293 NUT, (.437-20)NUT, (.437-20)
-
2079146 RETAINERRETAINER
-
2154-12078 CLAMPCLAMP
-
2210-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
23816510T BRACKETBRACKET
-
2410-805164 U BOLTU BOLT
-
2511-862903 NUT, (.375-24)NUT, (.375-24)
-
2654-818557 CLAMPCLAMP
-
2810-45742 SCREW, (.190-32 x .312)SCREW, (.190-32 x .312)
-
2810-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
NS805130A6 SENDER KIT, Dual StationSENDER KIT, Dual Station
