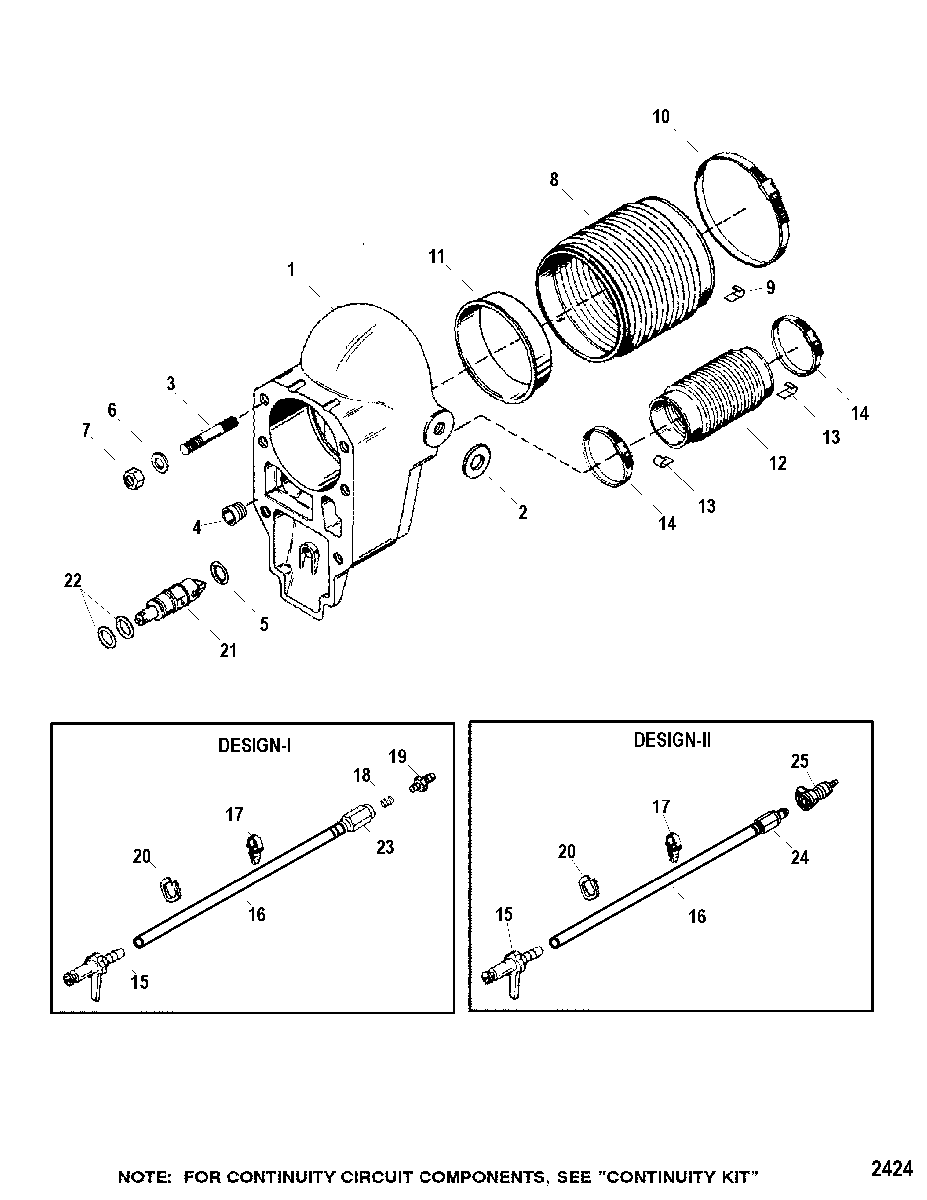

Bell Housing(Magnum Series Transom) для Mercruiser - BRAVO XR SPORTMASTER 0M052945 THRU 0M906877
-
№АртикулНазвание
-
141646A9 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
212-806241 WASHERWASHER
-
316-59579 STUD, (.437-14/.437-20 x 2.812)STUD, (.437-14/.437-20 x 2.812)
-
441674T INSERTINSERT
-
525-62705 O-RINGO-RING
-
612-35935 WASHER, (.435 x .875 x .105) Stainless SteelWASHER, (.435 x .875 x .105) Stainless Steel
-
711-859116 NUT, (.437-20)NUT, (.437-20)
-
88M0062406 BELLOWS ASSEMBLYBELLOWS ASSEMBLY
-
954-8M0126505 CLIP, GroundingCLIP, Grounding
-
1054-815504372 CLAMP, Worm GearCLAMP, Worm Gear
-
11862209 SLEEVESLEEVE
-
1218654A1 BELLOWS ASSEMBLYBELLOWS ASSEMBLY
-
1354-8M0126505 CLIP, GroundingCLIP, Grounding
-
1454-815504348 CLAMP, Worm GearCLAMP, Worm Gear
-
15815303T ADAPTORADAPTOR
-
1632-5495025 TUBING, (25.00 Feet Bulk), SpeedoTUBING, (25.00 Feet Bulk), Speedo
-
1754-12994 CLIPCLIP
-
1822-878089 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
1922-814382 CONNECTORCONNECTOR
-
2054-818557 CLAMPCLAMP
-
2118920A1 VALVE ASSEMBLY
(Use With Oil Reservoir)VALVE ASSEMBLY
(Use With Oil Reservoir) -
2225-48171 O-RING, (.364. x .070)
(Use With Oil Reservoir)O-RING, (.364. x .070)
(Use With Oil Reservoir) -
23865261 FITTING, Speedo Tube Assembly
(Design I) SN# 0M815601 & BelowFITTING, Speedo Tube Assembly
(Design I) SN# 0M815601 & Below -
24865391 FITTING ASSEMBLY, Speedometer, Male Quick Connect
(Design II) SN# 0M815602 & UpFITTING ASSEMBLY, Speedometer, Male Quick Connect
(Design II) SN# 0M815602 & Up -
2522-865417 FITTING, Female Quick Connect
(Design II) SN# 0M815602 & UpFITTING, Female Quick Connect
(Design II) SN# 0M815602 & Up
