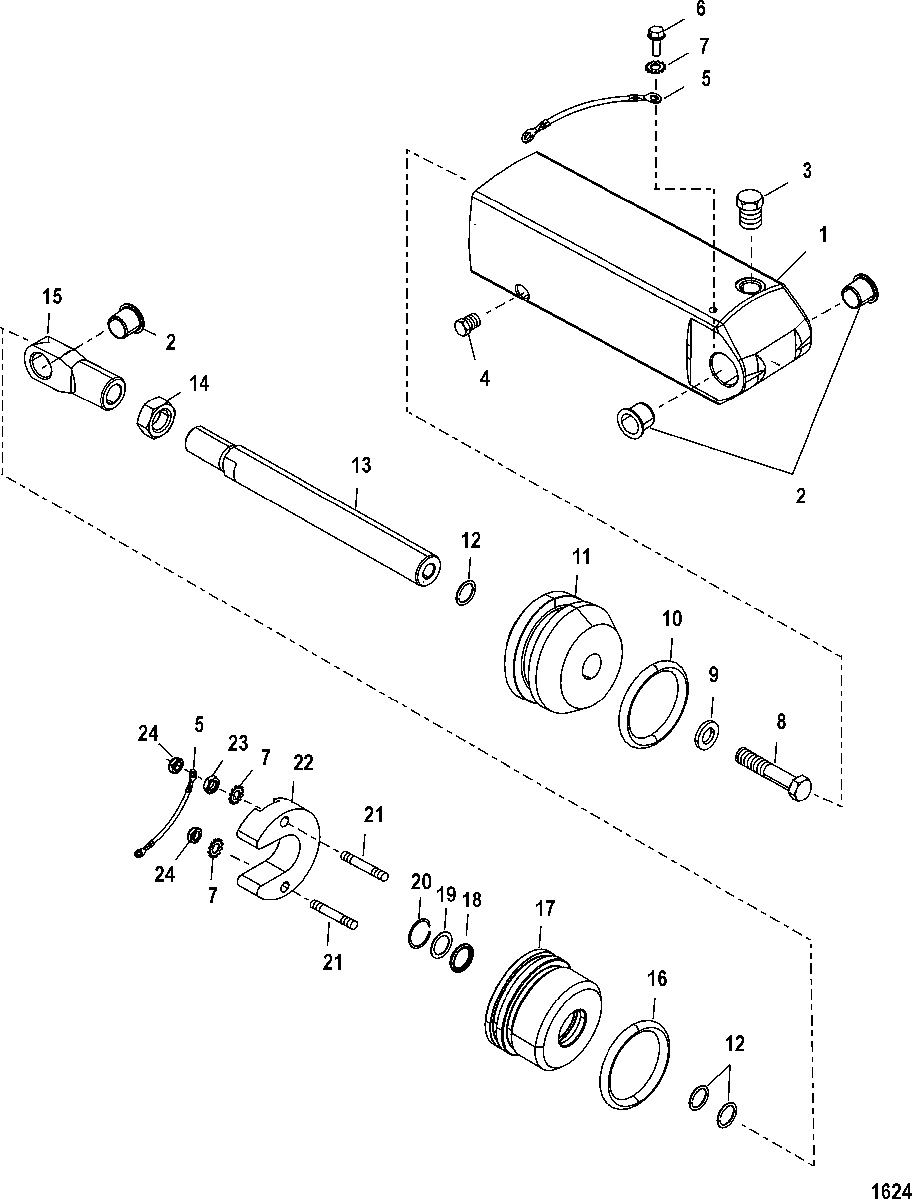

Steering Cylinder(Integrated Transom) для Mercruiser - BRAVO XR SPORTMASTER 0M052945 THRU 0M906877
-
№АртикулНазвание
-
1845760T3 CYLINDER ASSEMBLY, Steering, StarboardCYLINDER ASSEMBLY, Steering, Starboard
-
1845760T6 CYLINDER ASSEMBLY, Steering, PortCYLINDER ASSEMBLY, Steering, Port
-
223-8159501 BUSHINGBUSHING
-
3NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
4NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
5847062A1 BONDING KITBONDING KIT
-
610-68513 SCREW, (#10-32 x .375) Stainless SteelSCREW, (#10-32 x .375) Stainless Steel
-
713-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
810-35871 SCREW, (.375-24 x 1.500)SCREW, (.375-24 x 1.500)
-
912-27880 WASHERWASHER
-
10NSS NOT SOLD SEPARATE, O-Ring, Component Of Seal KitNOT SOLD SEPARATE, O-Ring, Component Of Seal Kit
-
11NSS NOT SOLD SEPARATE, PistonNOT SOLD SEPARATE, Piston
-
12NSS NOT SOLD SEPARATE, O-Ring, Component Of Seal KitNOT SOLD SEPARATE, O-Ring, Component Of Seal Kit
-
13NSS NOT SOLD SEPARATE, Piston RodNOT SOLD SEPARATE, Piston Rod
-
1411-845997 NUT, (.625-18)NUT, (.625-18)
-
15NSS NOT SOLD SEPARATE, Rod EndNOT SOLD SEPARATE, Rod End
-
16NSS NOT SOLD SEPARATE, O-Ring, Component Of Seal KitNOT SOLD SEPARATE, O-Ring, Component Of Seal Kit
-
178M0050236 END CAPEND CAP
-
18NSS NOT SOLD SEPARATE, Rod Scraper, Component Of Seal KitNOT SOLD SEPARATE, Rod Scraper, Component Of Seal Kit
-
19NSS NOT SOLD SEPARATE, Washer, Component Of Seal KitNOT SOLD SEPARATE, Washer, Component Of Seal Kit
-
20NSS NOT SOLD SEPARATE, Retaining Ring, Component Of Seal KitNOT SOLD SEPARATE, Retaining Ring, Component Of Seal Kit
-
2116-840854 STUD, (#10-32 x 1.22)STUD, (#10-32 x 1.22)
-
2297-806189Q1 ANODEANODE
-
2311-840853 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2411-859124 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
NS25-87298A1 SEAL KIT, Steering CylinderSEAL KIT, Steering Cylinder
