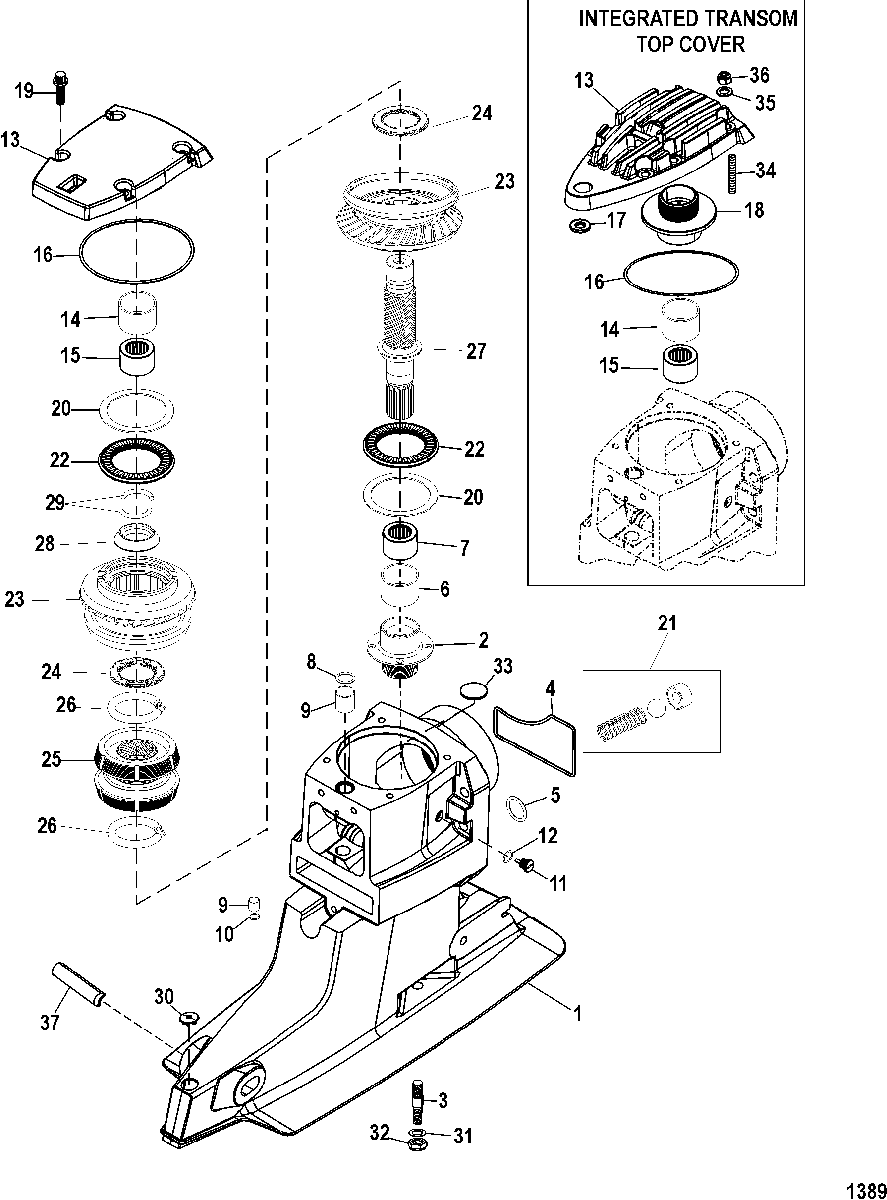

Drive Shaft Housing And Drive Gears(XR/XZ-Drive) для Mercruiser - BRAVO XR SPORTMASTER 0M052945 THRU 0M906877
-
№АртикулНазвание
-
11589-864571A70 HOUSING ASSEMBLY, Driveshaft
(Bravo One XR/XZ)HOUSING ASSEMBLY, Driveshaft
(Bravo One XR/XZ) -
2NSS NOT SOLD SEPARATE, Adaptor, BearingNOT SOLD SEPARATE, Adaptor, Bearing
-
316-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
416755Q1 SEALSEAL
-
525-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
631-861791 RACERACE
-
731-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
825-62705 O-RINGO-RING
-
923-861209A1 BUSHING KITBUSHING KIT
-
1026-127091 SEALSEAL
-
1122-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
1212-191833 WASHERWASHER
-
1392068A15 COVER ASSEMBLY, TopCOVER ASSEMBLY, Top
-
13840838T02 COVER ASSEMBLY, Top
(Use With Integrated Transom)COVER ASSEMBLY, Top
(Use With Integrated Transom) -
1431-861791 RACERACE
-
1531-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1625-97387 O-RINGO-RING
-
1712-41721 WASHERWASHER
-
188619361 ADAPTOR, Bearing
(Use With Intergrated Transom)ADAPTOR, Bearing
(Use With Intergrated Transom) -
1910-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2023-864596058 SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust BearingSHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
-
2023-864596059 SHIM/RACE, (.0585/.0594 Thick) White, Thrust BearingSHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
-
2023-864596060 SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust BearingSHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
-
2023-864596061 SHIM/RACE, (.0605/.0614 Thick) Green, Thrust BearingSHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
-
2023-864596062 SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust BearingSHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
-
2023-864596063 SHIM/RACE, (.0625/.0634 Thick) Red, Thrust BearingSHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
-
2023-864596064 SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust BearingSHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
-
2023-864596065 SHIM/RACE, (.0645/.0654 Thick) Black, Thrust BearingSHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
-
2023-864596066 SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust BearingSHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
-
2124-17997A1 SPRING KITSPRING KIT
-
2231-861787 BEARING ASSEMBLYBEARING ASSEMBLY
-
2343-887906A1 GEAR SET, (29/27)
(See Sterndrive Unit Chart For Application)GEAR SET, (29/27)
(See Sterndrive Unit Chart For Application) -
2343-887903A1 GEAR SET, (32/27)
(See Sterndrive Unit Chart For Application)GEAR SET, (32/27)
(See Sterndrive Unit Chart For Application) -
2343-840898A3 GEAR SET, (16/19)
(See Sterndrive Unit Chart For Application)GEAR SET, (16/19)
(See Sterndrive Unit Chart For Application) -
2431-861792 BEARING ASSEMBLYBEARING ASSEMBLY
-
2552-865344A01 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
2624-93505 SPRINGSPRING
-
2745-812773T02 DRIVESHAFT, UpperDRIVESHAFT, Upper
-
2823-86770 COLLARCOLLAR
-
2997351 KEEPERKEEPER
-
3019-824928001 PLUG, RubberPLUG, Rubber
-
3112-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
3211-35053 NUT, (.437-20)NUT, (.437-20)
-
33NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
3416-840851 STUD
(Use With Integrated Transom)STUD
(Use With Integrated Transom) -
3512-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(Use With Integrated Transom)WASHER, (.390 x .625 x .062) Stainless Steel
(Use With Integrated Transom) -
3611-82671013 NUT, (.375-24), Lock
(Use With Integrated Transom)NUT, (.375-24), Lock
(Use With Integrated Transom) -
37808006 INSERT, Trim AdjustmentINSERT, Trim Adjustment
-
NS26-16709A2 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
