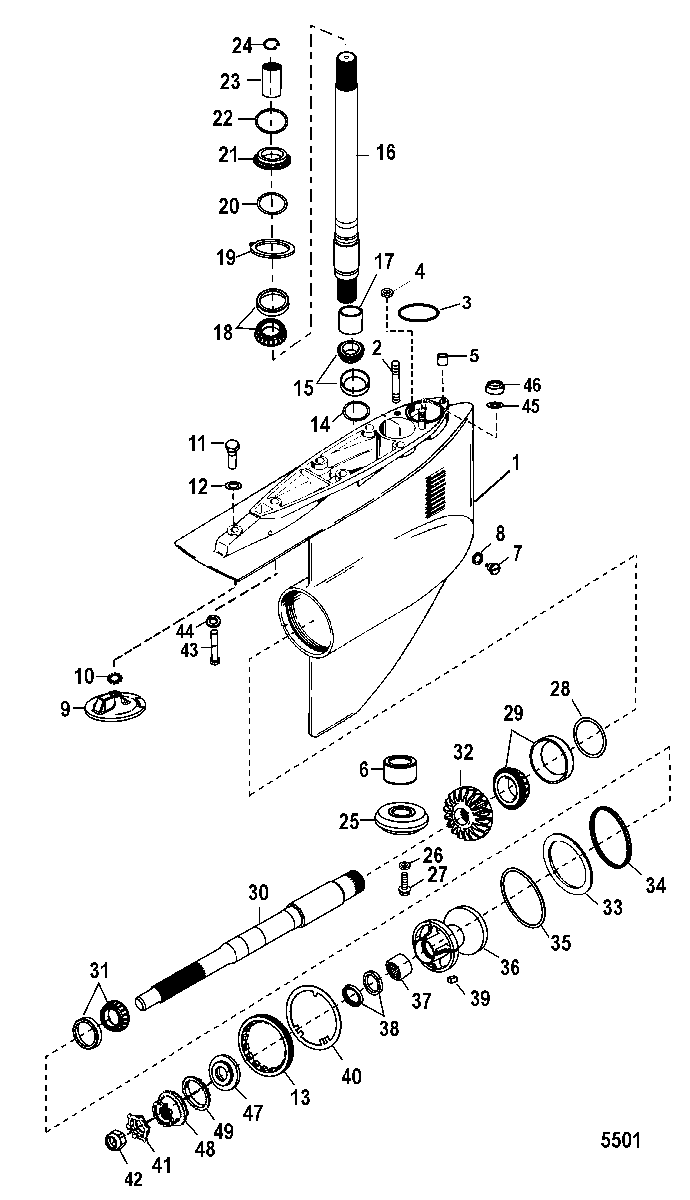

Gear Housing(Bravo Two) для Mercruiser - BRAVO TWO 0W250000 & Up
-
№АртикулНазвание
-
-1641-8294A19 GEAR HOUSING ASSEMBLY, Complete
(1.50:1 - 1.65:1 Ratio)GEAR HOUSING ASSEMBLY, Complete
(1.50:1 - 1.65:1 Ratio) -
-1641-8294J02 GEAR HOUSING ASSEMBLY, Complete
(SEACORE)(1.50:1 - 1.65:1 Ratio)GEAR HOUSING ASSEMBLY, Complete
(SEACORE)(1.50:1 - 1.65:1 Ratio) -
-1641-8294A16 GEAR HOUSING ASSEMBLY, Complete
(1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR HOUSING ASSEMBLY, Complete
(1.81:1 - 2.00:1 - 2.20:1 Ratio) -
-1641-8294J01 GEAR HOUSING ASSEMBLY, Complete
(SEACORE)(1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR HOUSING ASSEMBLY, Complete
(SEACORE)(1.81:1 - 2.00:1 - 2.20:1 Ratio) -
11641-8294A14 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
11641-8294J00 GEAR HOUSING ASSEMBLY, Basic
(SEACORE)GEAR HOUSING ASSEMBLY, Basic
(SEACORE) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-33465 O-RINGO-RING
-
426-455771 SEALSEAL
-
526-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
631-86754T BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
722-8M0058389 PLUG KIT, Drain - Magnetic, MagneticPLUG KIT, Drain - Magnetic, Magnetic
-
826-830749 SEALSEAL
-
997-76214Q5 ANODE KITANODE KIT
-
1013-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
1110-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
1212-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
1354163 RETAINERRETAINER
-
138M2000346 RETAINER
(SEACORE)RETAINER
(SEACORE) -
1415-92914A1 SHIM KITSHIM KIT
-
1531-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1645-888434A1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1731-815901 RACE, BearingRACE, Bearing
-
1831-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1914-86739 TAB WASHERTAB WASHER
-
2015-86749A1 SHIM KITSHIM KIT
-
2123-8M0046302 SPACERSPACER
-
2225-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
2388243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2453-88242 RING, RetainingRING, Retaining
-
2543-41656T GEAR, (16/27), Pinion
(1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR, (16/27), Pinion
(1.81:1 - 2.00:1 - 2.20:1 Ratio) -
2543-827304T GEAR, (18/25), Pinion
(1.50:1 - 1.65:1 Ratio)GEAR, (18/25), Pinion
(1.50:1 - 1.65:1 Ratio) -
2612-805068 WASHER, Pinion GearWASHER, Pinion Gear
-
2710-808027 SCREW, Pinion GearSCREW, Pinion Gear
-
2815-55499A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
2931-8M0103475 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3044-62820T1 PROPELLER SHAFTPROPELLER SHAFT
-
3131-8M0103474 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3243-41657T GEAR, DRIVE
(1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR, DRIVE
(1.81:1 - 2.00:1 - 2.20:1 Ratio) -
3243-827303 GEAR, DRIVE
(1.50:1 - 1.65:1 Ratio)GEAR, DRIVE
(1.50:1 - 1.65:1 Ratio) -
33860323 RING, ThrustRING, Thrust
-
3423-66093T RING, LoadRING, Load
-
3525-34821 O-RINGO-RING
-
36863913A04 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
36863913A14 CARRIER ASSEMBLY, Bearing
(SEACORE)CARRIER ASSEMBLY, Bearing
(SEACORE) -
3731-54042T BEARING, RollerBEARING, Roller
-
3826-814242 SEAL, Oil, Fish-Line CutterSEAL, Oil, Fish-Line Cutter
-
3826-821092 SEAL, OilSEAL, Oil
-
3928-30281 KEYKEY
-
4014-54167 TAB WASHERTAB WASHER
-
4114-34817 TAB WASHERTAB WASHER
-
4211-82671127 PROP NUT, (1.00-14) BrassPROP NUT, (1.00-14) Brass
-
4310-90085 SCREW, (.4375-14 x 2.75)SCREW, (.4375-14 x 2.75)
-
4413-47659 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
4512-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
4611-35053 NUT, (.437-20)NUT, (.437-20)
-
4755074T THRUST HUBTHRUST HUB
-
4812-55073A2 WASHER ASSEMBLYWASHER ASSEMBLY
-
4912-55072 WASHERWASHER
-
-26-76868A04 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-97-888761Q03 ANODE KIT, Aluminum (Bravo II)ANODE KIT, Aluminum (Bravo II)
-
-97-888760Q03 ANODE KIT, Magnesium (Bravo II)ANODE KIT, Magnesium (Bravo II)
