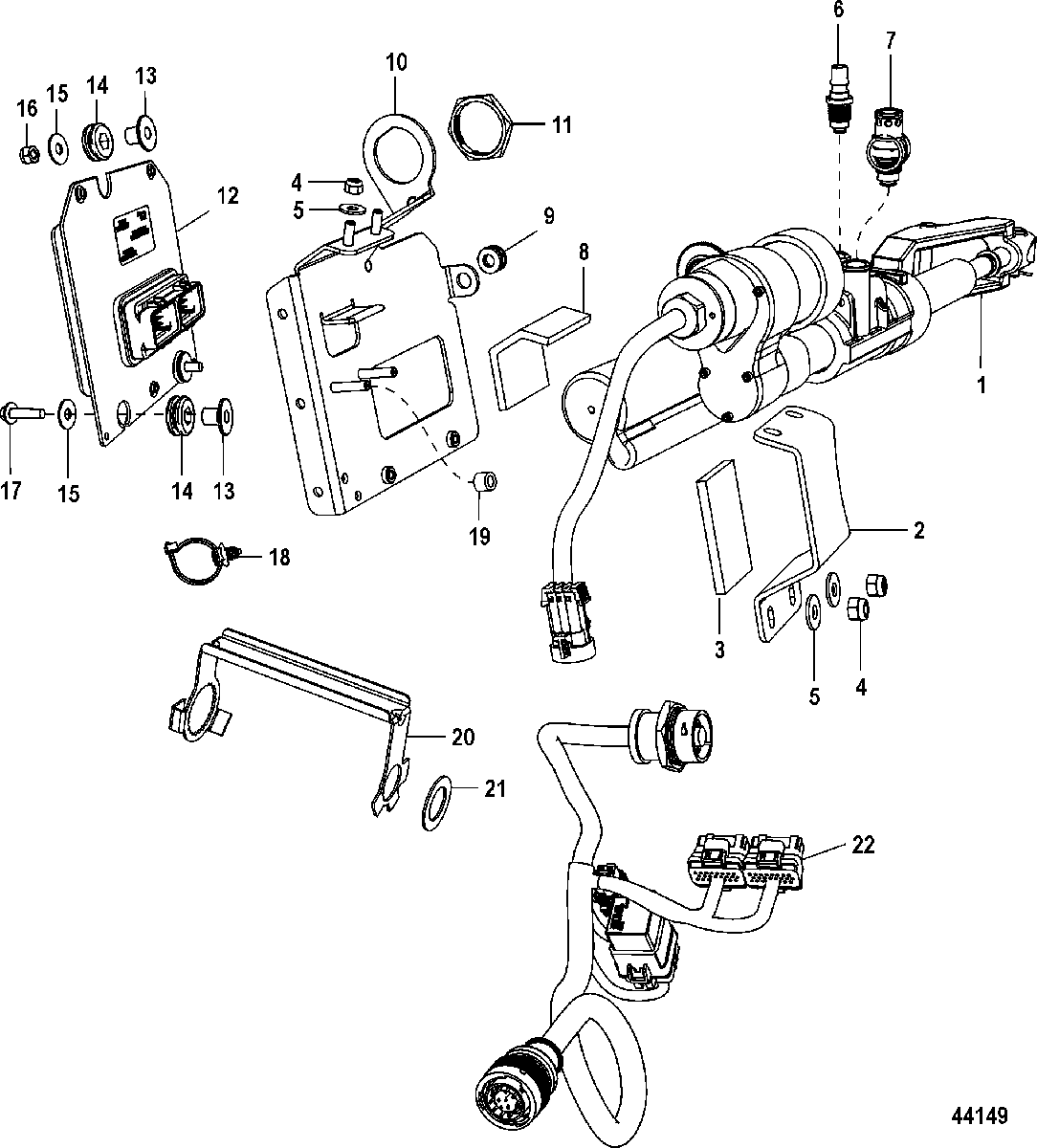

Steering Actuator, Axius (Gen II) для Mercruiser - BRAVO TWO 0W250000 & Up
-
№АртикулНазвание
-
-8M8025732 STEERING ACTUATOR ASSEMBLY, CompleteSTEERING ACTUATOR ASSEMBLY, Complete
-
18M0047043 STEERING ACTUATOR ASSEMBLYSTEERING ACTUATOR ASSEMBLY
-
28M2018451 BRACKET, TVM ClampBRACKET, TVM Clamp
-
38M2020078 PAD, IsolationPAD, Isolation
-
411-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
512-4002316 WASHERWASHER
-
622-865414001 FITTINGFITTING
-
722-865415 FITTINGFITTING
-
88M2020077 PAD, IsolationPAD, Isolation
-
925-8M2019104 GROMMET, (.285 Inside Diameter)GROMMET, (.285 Inside Diameter)
-
108M0047525 BRACKET, TVM MountingBRACKET, TVM Mounting
-
1111-889664 NUT, (1.500-18) Black NylonNUT, (1.500-18) Black Nylon
-
128M0047524 MODULE - TVMMODULE - TVM
-
1323-856954 BUSHINGBUSHING
-
1425-834985 GROMMETGROMMET
-
1512-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1611-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1710-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1854-899145 CLIP, Tie StrapCLIP, Tie Strap
-
1923-822392 SPACERSPACER
-
2014-879150A34 WASHER ASSEMBLYWASHER ASSEMBLY
-
2112-8M2010068 WASHER, (.78 x 1.25 x .05) Stainless SteelWASHER, (.78 x 1.25 x .05) Stainless Steel
-
2284-8M0109446 HARNESS, Thrust Vector ModuleHARNESS, Thrust Vector Module
