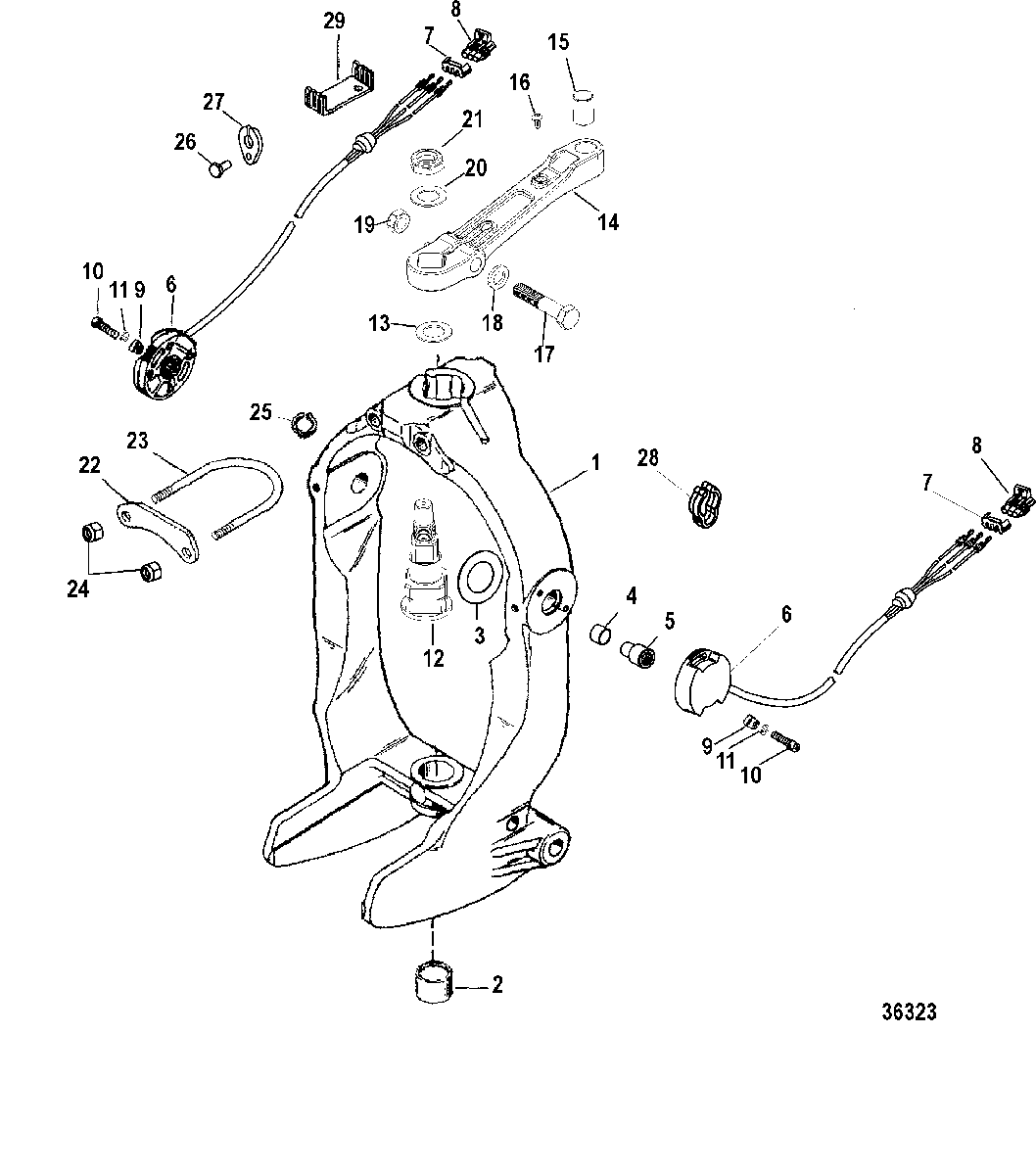

Gimbal Ring and Steering Lever, AXIUS Gen I для Mercruiser - BRAVO TWO 0W250000 & Up
-
№АртикулНазвание
-
18M0062440 GIMBAL RING ASSEMBLYGIMBAL RING ASSEMBLY
-
18M0063519 GIMBAL RING ASSEMBLY
(SEACORE)GIMBAL RING ASSEMBLY
(SEACORE) -
223-847638 BUSHINGBUSHING
-
312-41721 WASHERWASHER
-
423-847637 BUSHINGBUSHING
-
510-86801 SCREW, Hinge PinSCREW, Hinge Pin
-
68M0107462 SENDER ASSEMBLY, Trim, Analog
(SmartCraft Series Transom) SN# 2A417473 & BelowSENDER ASSEMBLY, Trim, Analog
(SmartCraft Series Transom) SN# 2A417473 & Below -
68M0095310 SENDER ASSEMBLY, Trim, Digital
SN# 2A417474 & UpSENDER ASSEMBLY, Trim, Digital
SN# 2A417474 & Up -
7831957 RETAINERRETAINER
-
88307973 CONNECTORCONNECTOR
-
957008 RETAINERRETAINER
-
1010-37978 SCREW, (#10-32 x .750) Stainless SteelSCREW, (#10-32 x .750) Stainless Steel
-
1113-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
128M2010473 SHAFT, Upper SwivelSHAFT, Upper Swivel
-
1312-98548 WASHER, (1.125 )WASHER, (1.125 )
-
14879288T24 LEVER, SteeringLEVER, Steering
-
1523-8M2008903 BUSHINGBUSHING
-
1610-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
1710-8M2011240 SCREWSCREW
-
1812-8M2010081 WASHERWASHER
-
1911-8M2008453 NUTNUT
-
2012-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
2111-8M2014641 NUT, (.750-16)NUT, (.750-16)
-
22816510T BRACKETBRACKET
-
2310-8M0120158 U BOLTU BOLT
-
2411-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2554-818557 CLAMPCLAMP
-
2610-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
2754-12078 CLAMPCLAMP
-
2854-818557001 CLAMPCLAMP
-
2979146 RETAINERRETAINER
